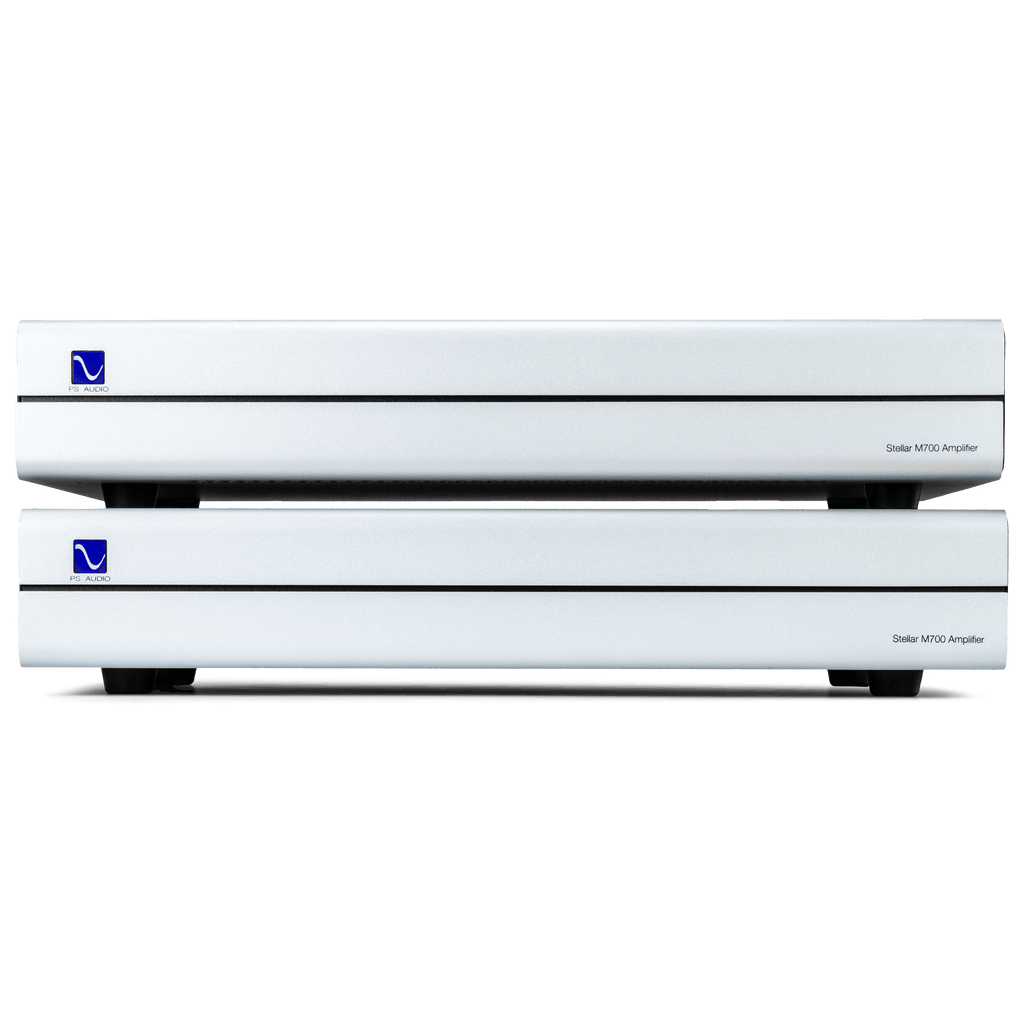

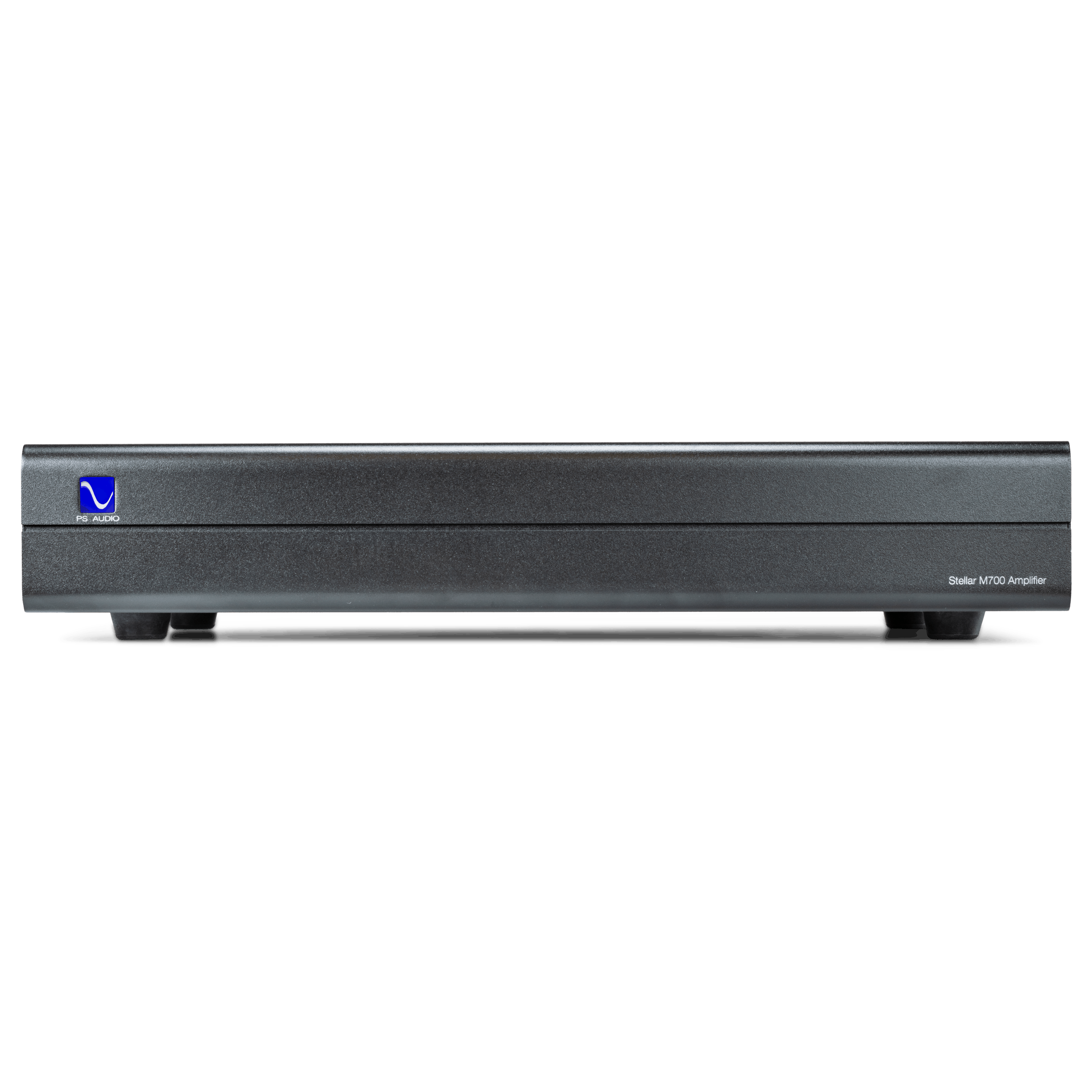

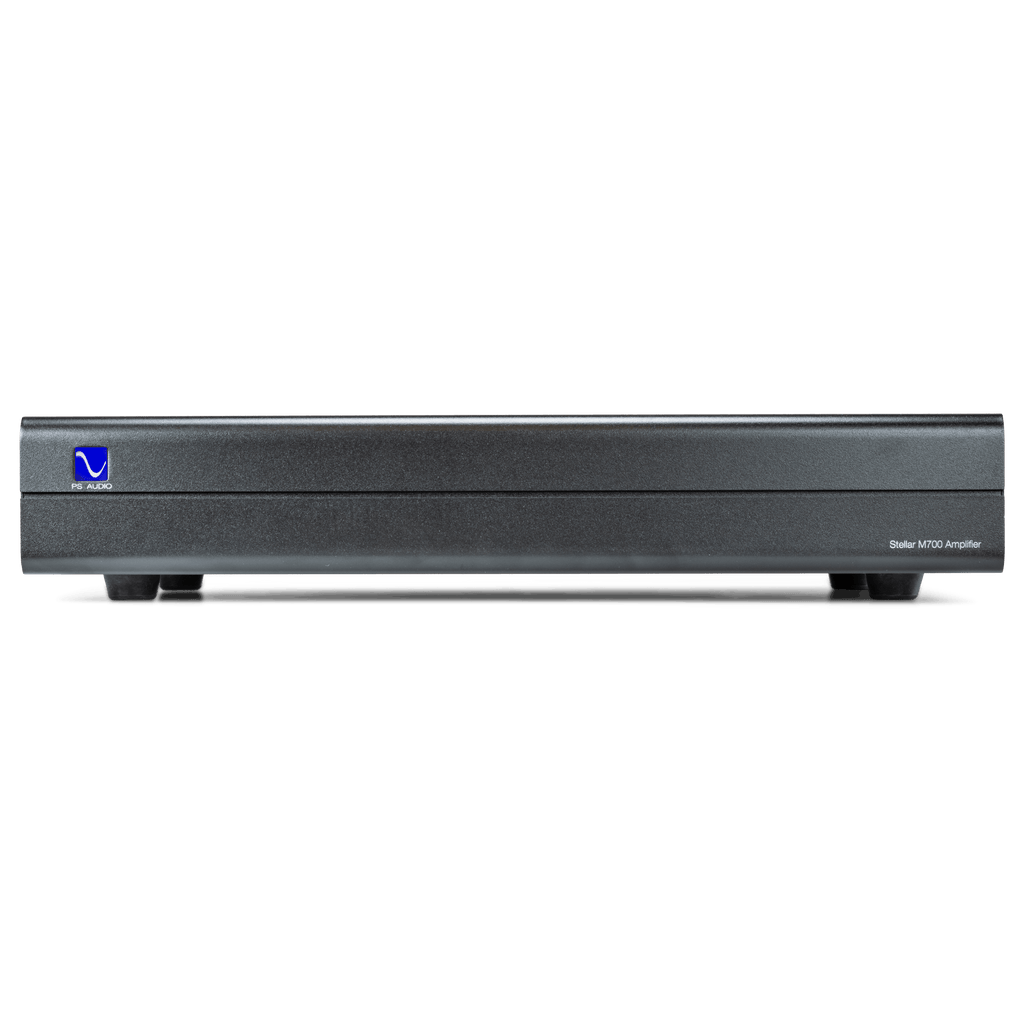

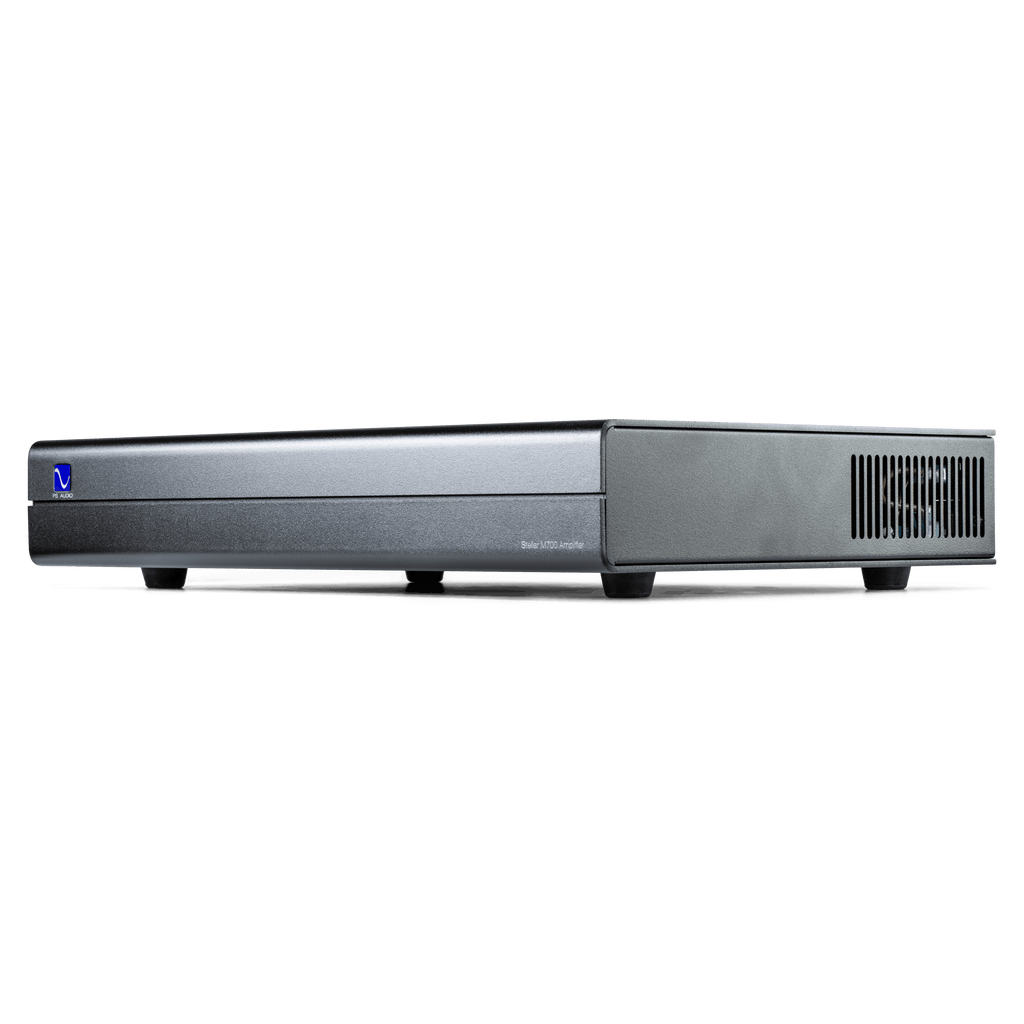

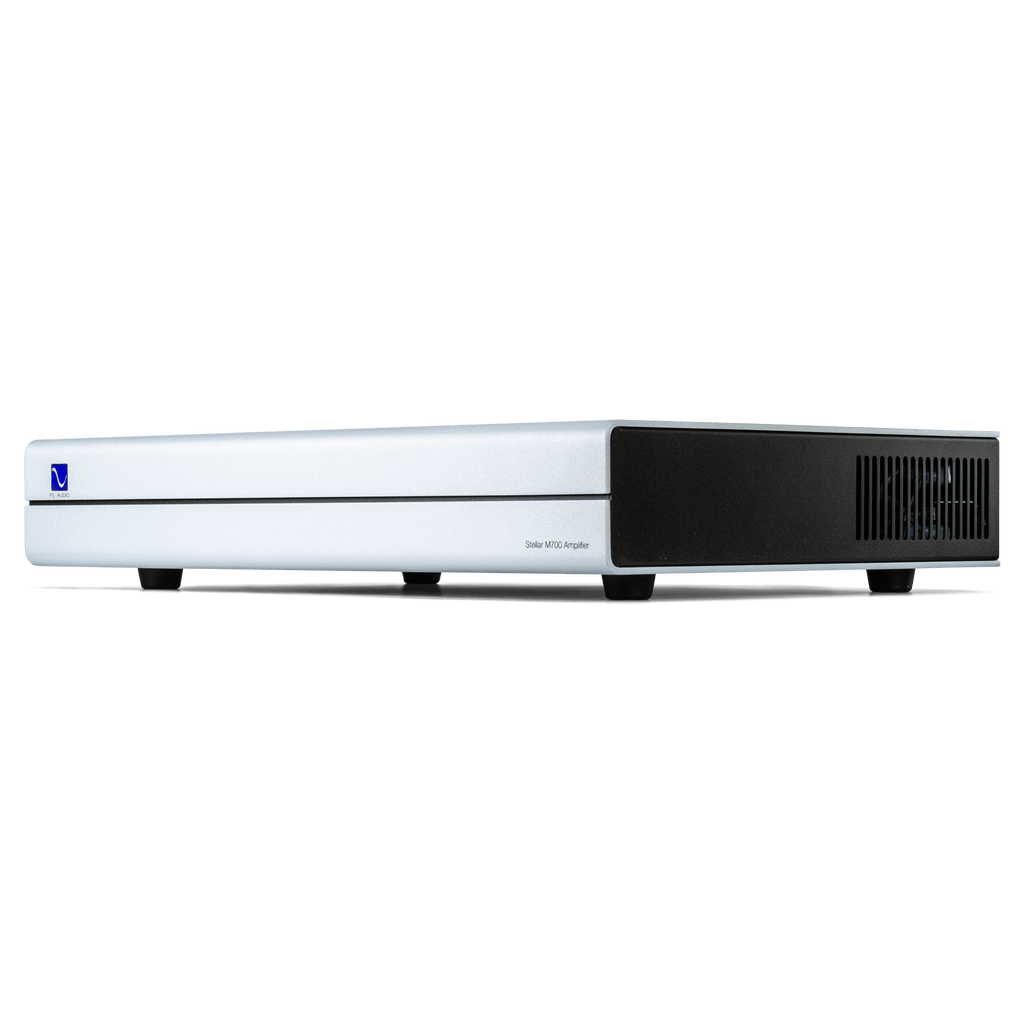

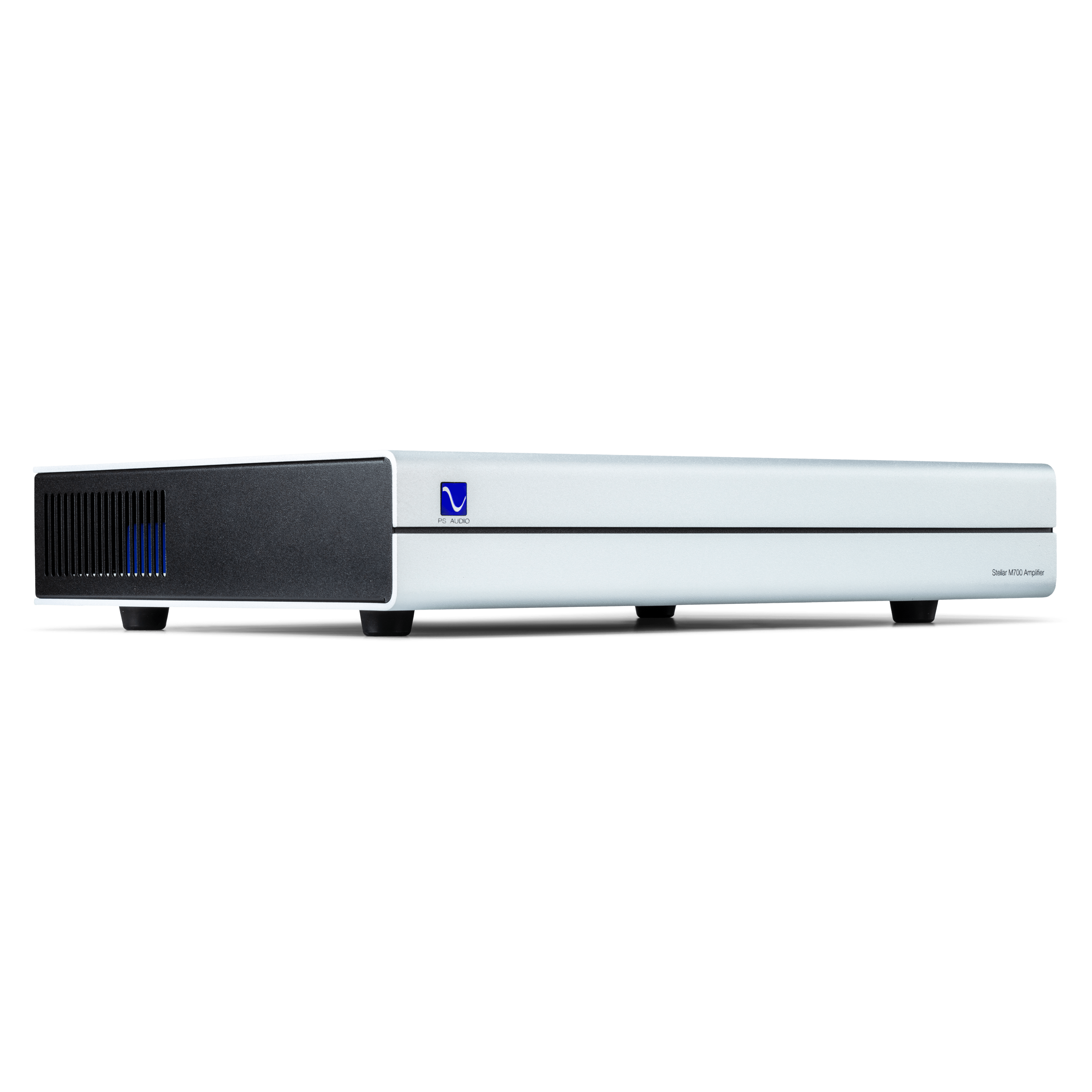

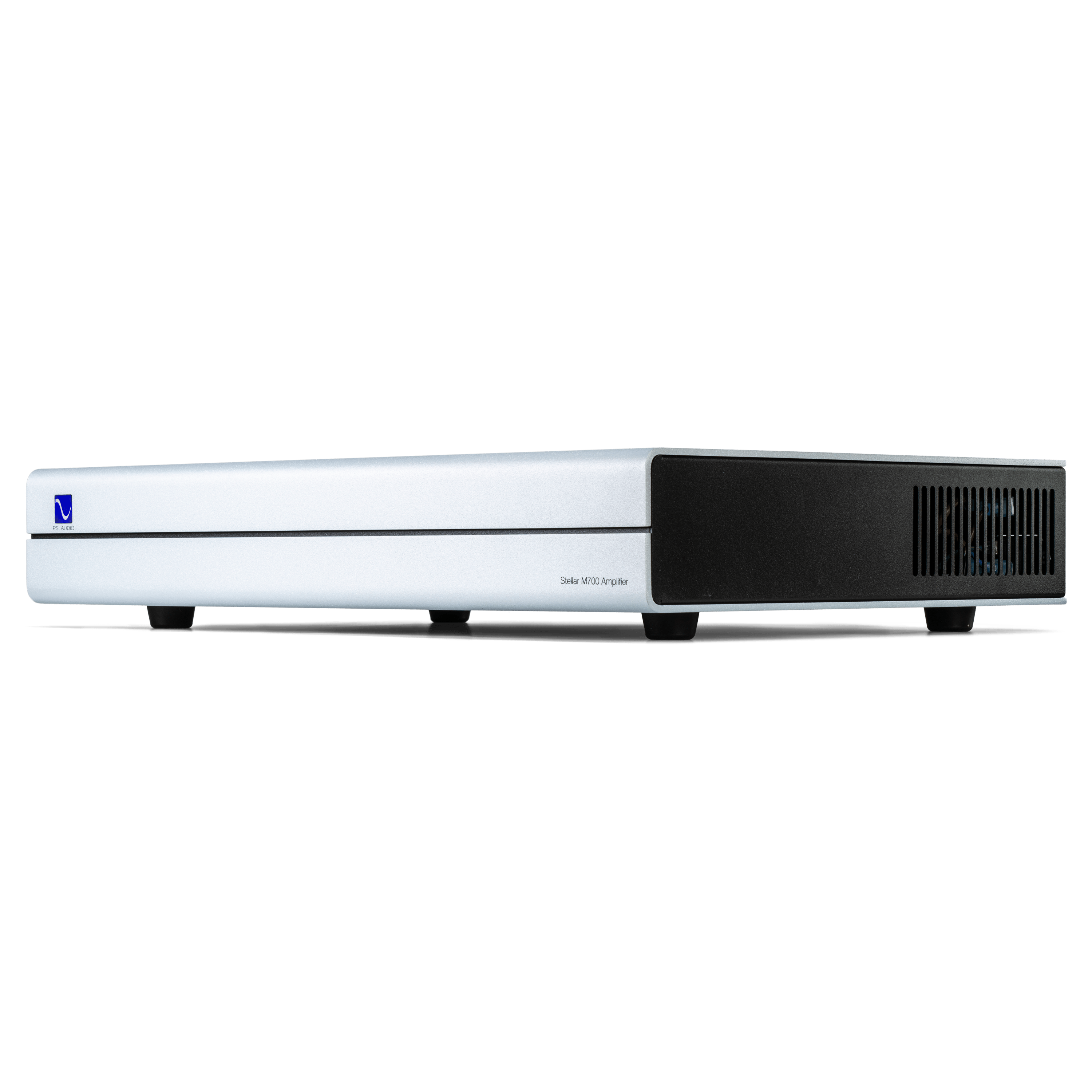

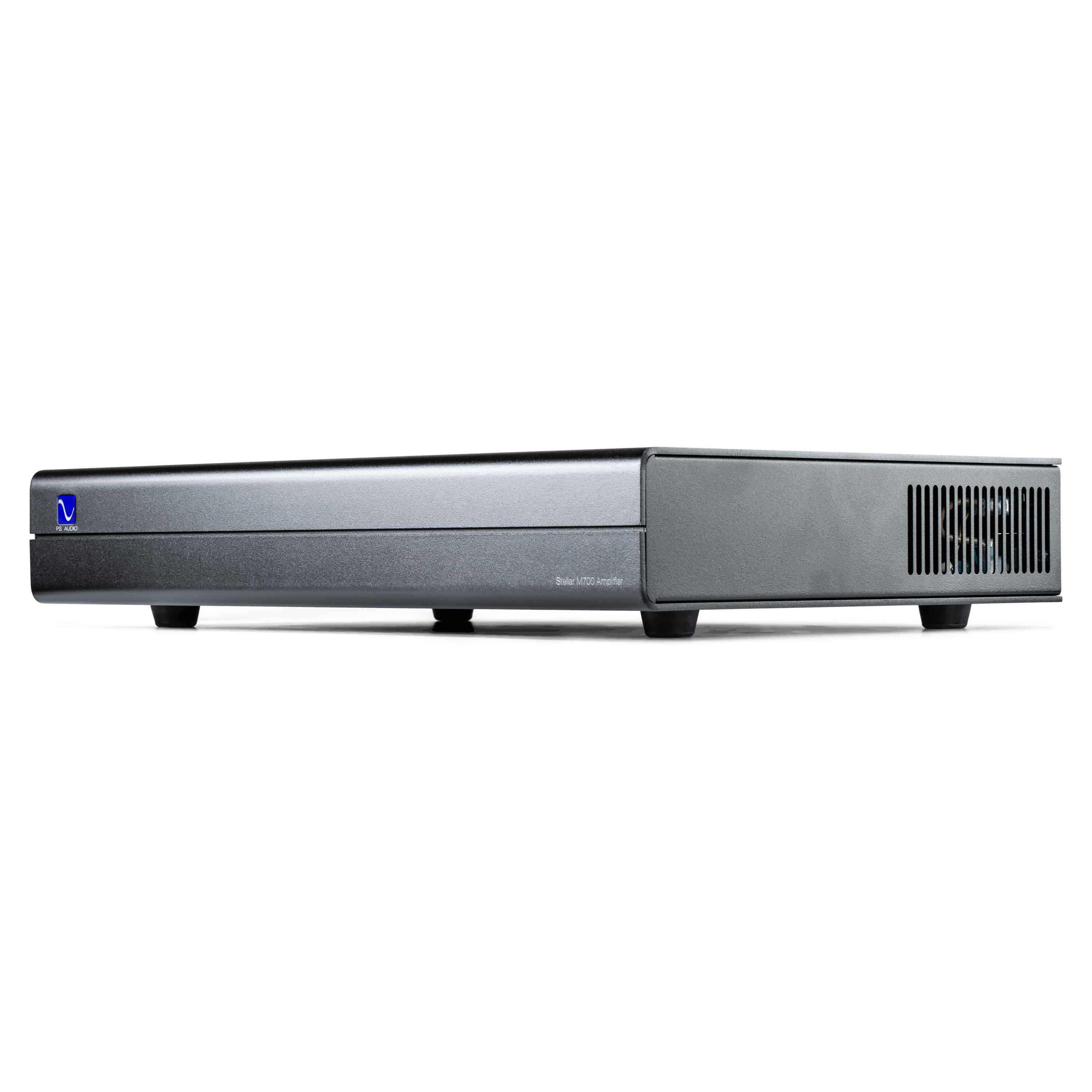

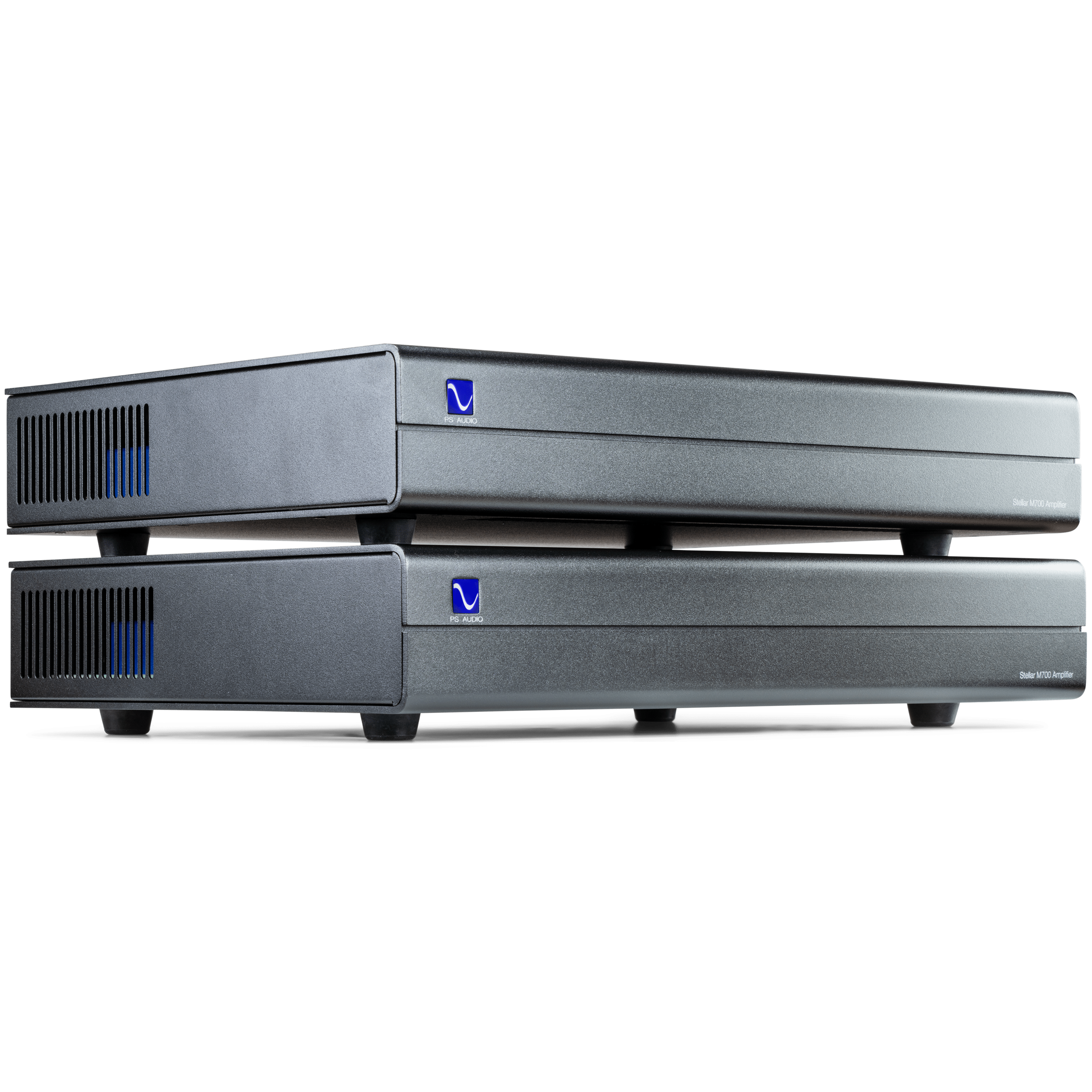

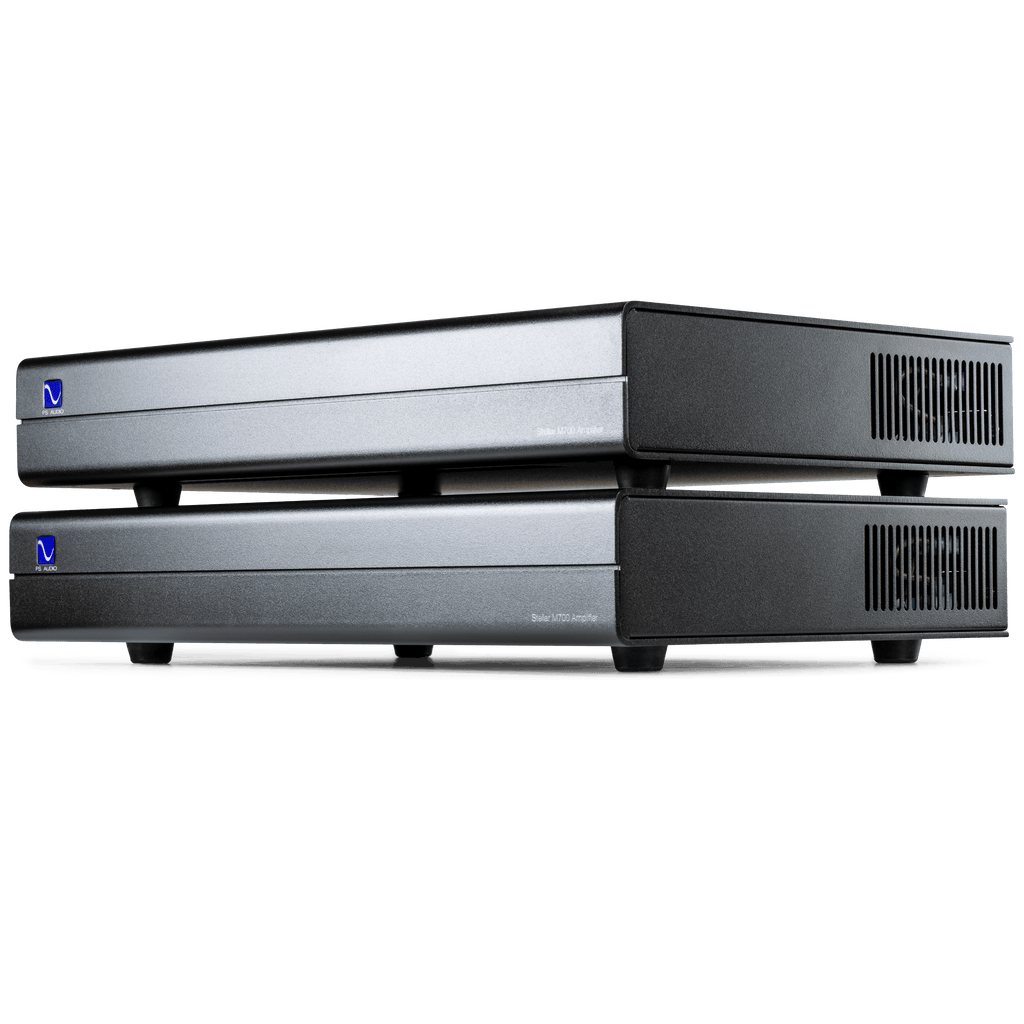

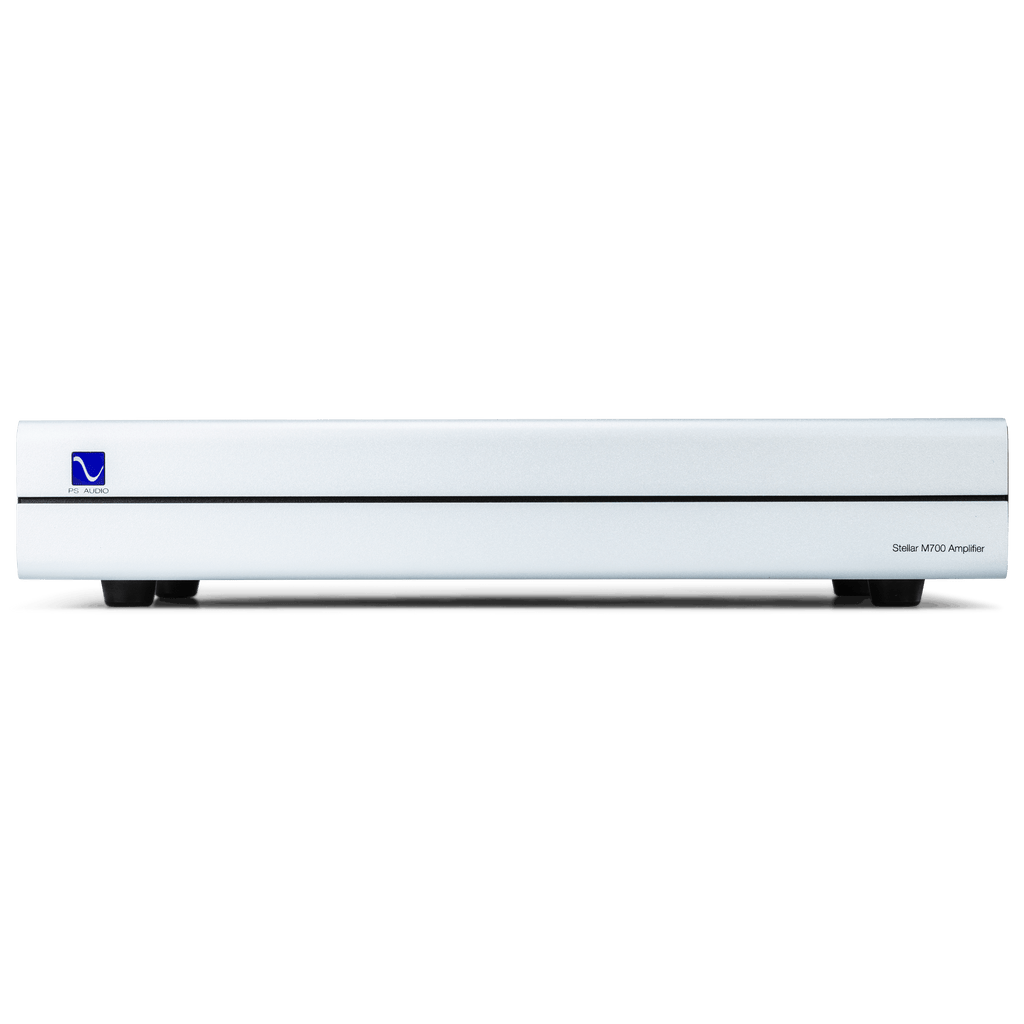

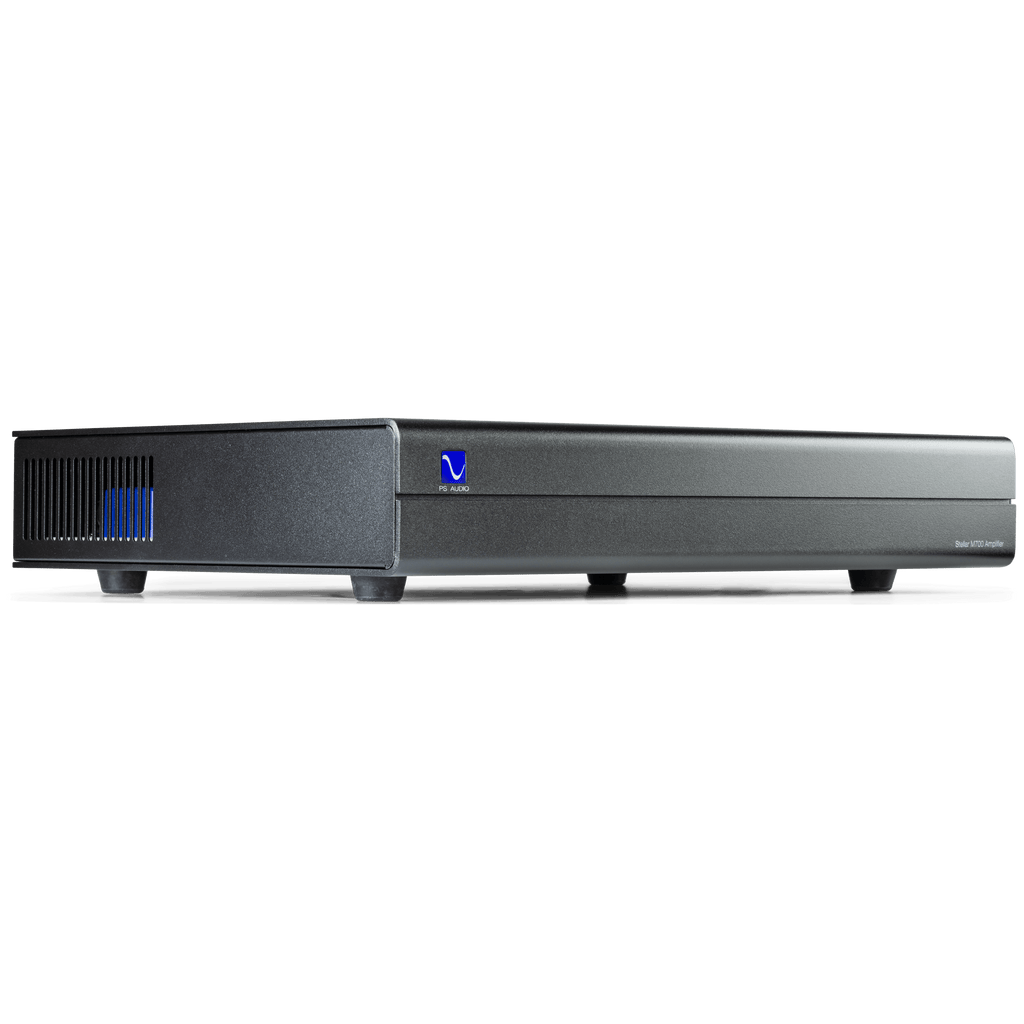

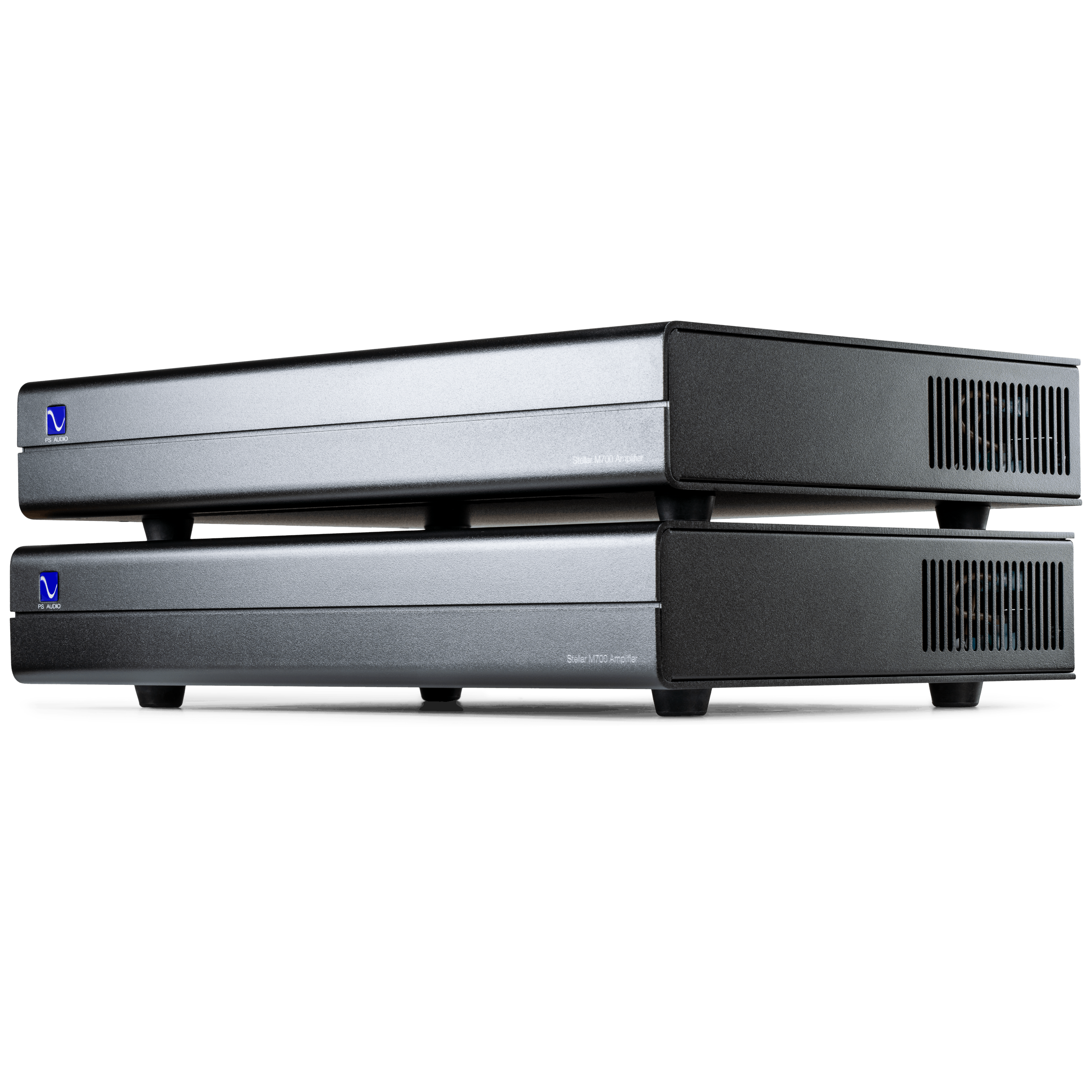

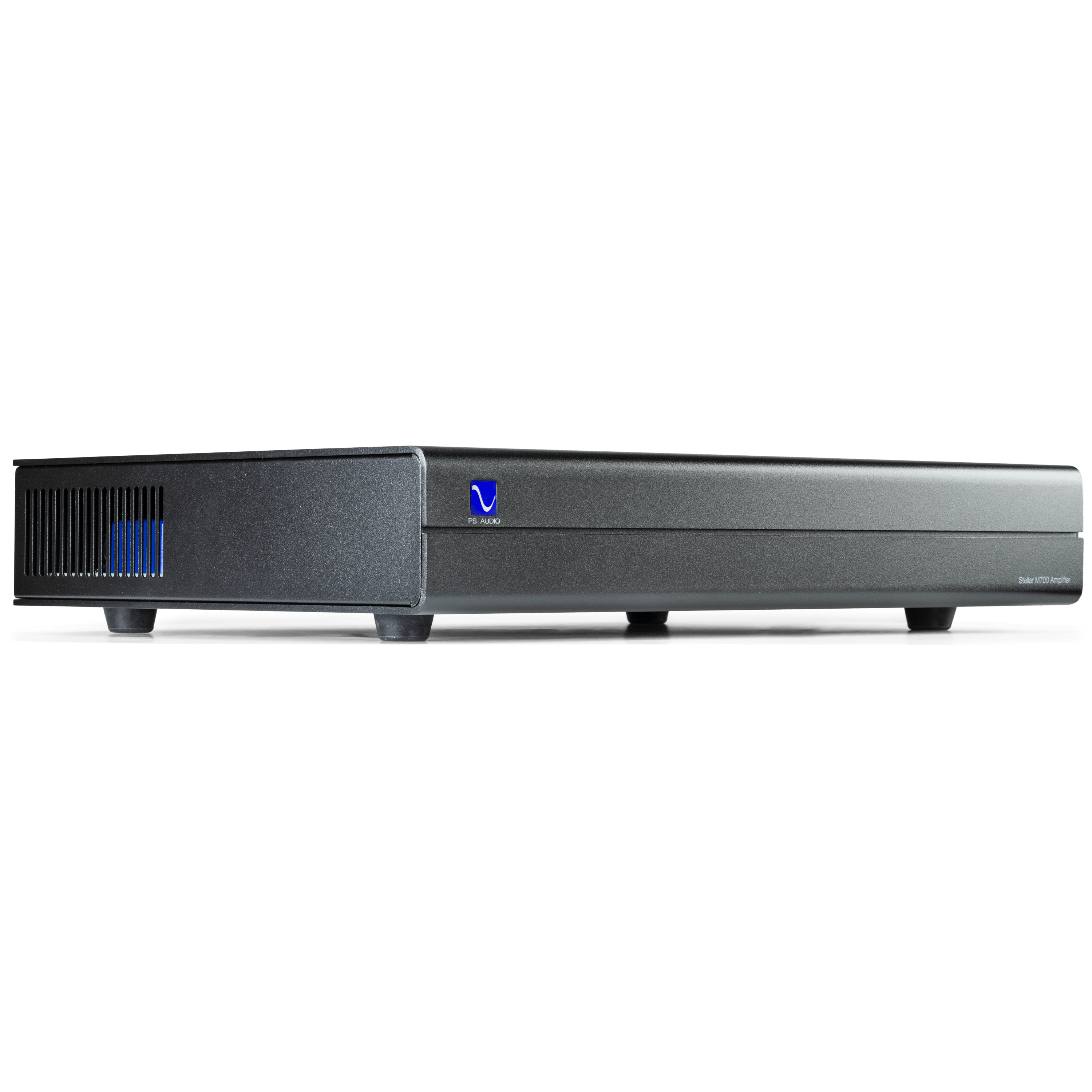

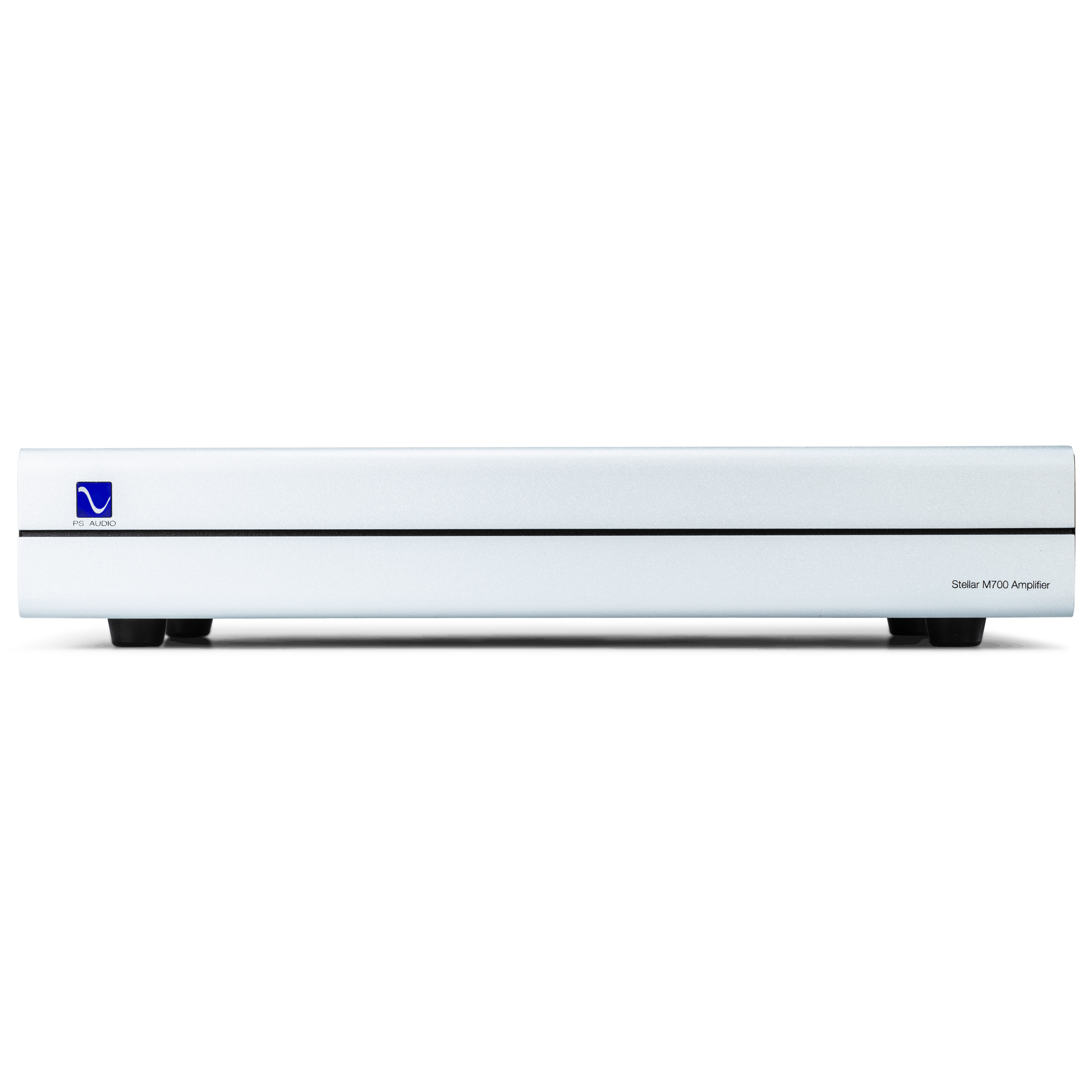

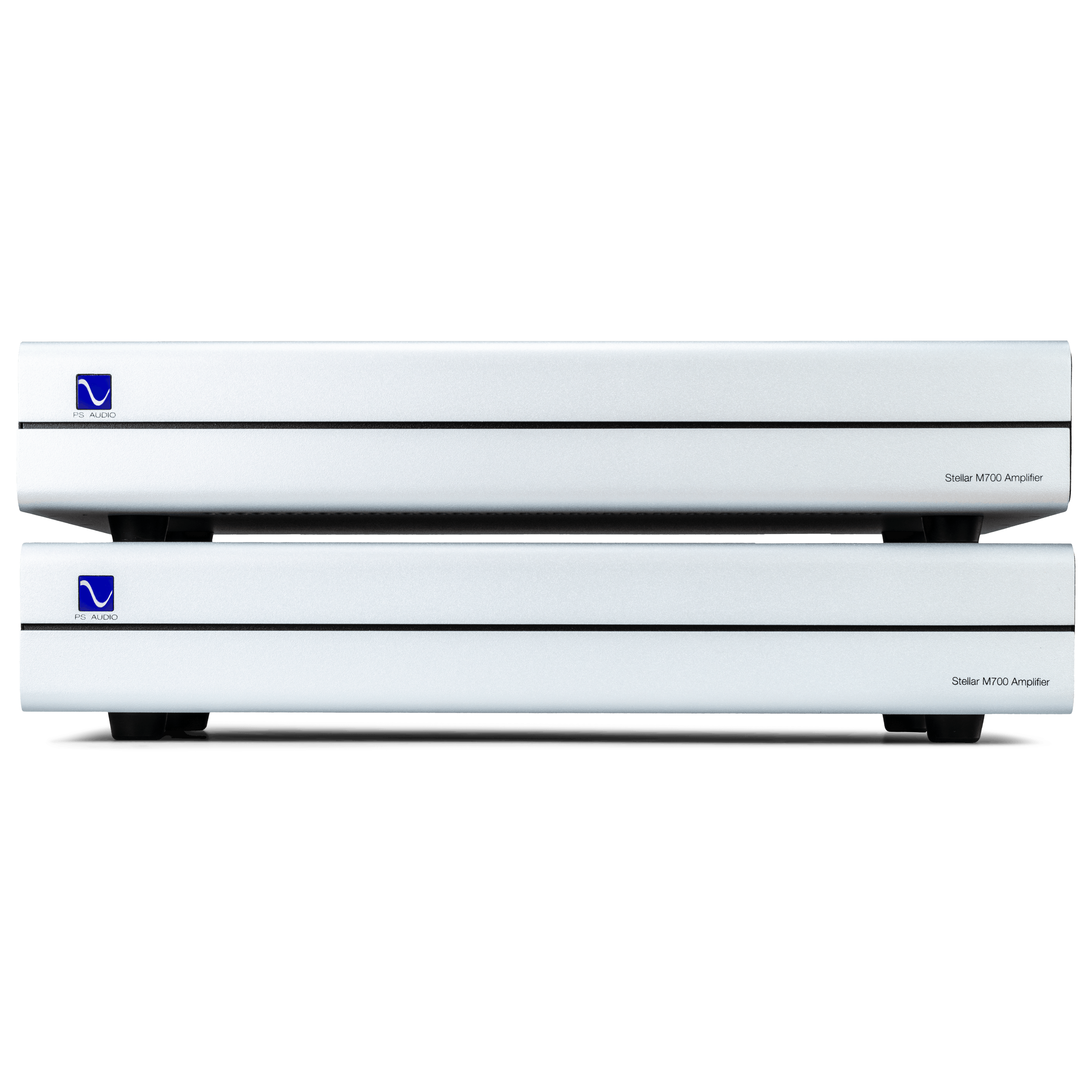

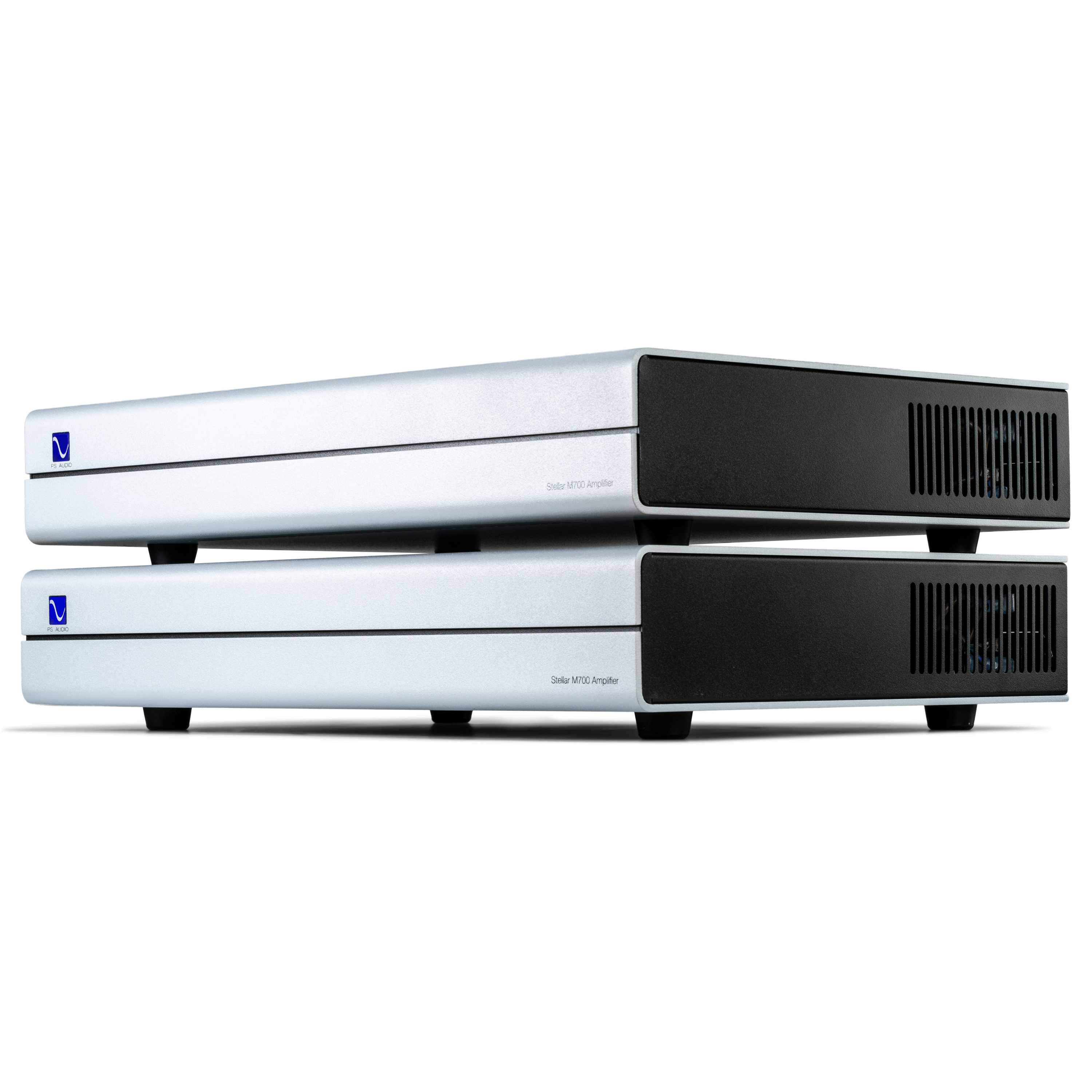

Stellar M700 Mono Amplifier |
|
| Unit Weight | 13 lbs [5.9 kg] (each) |

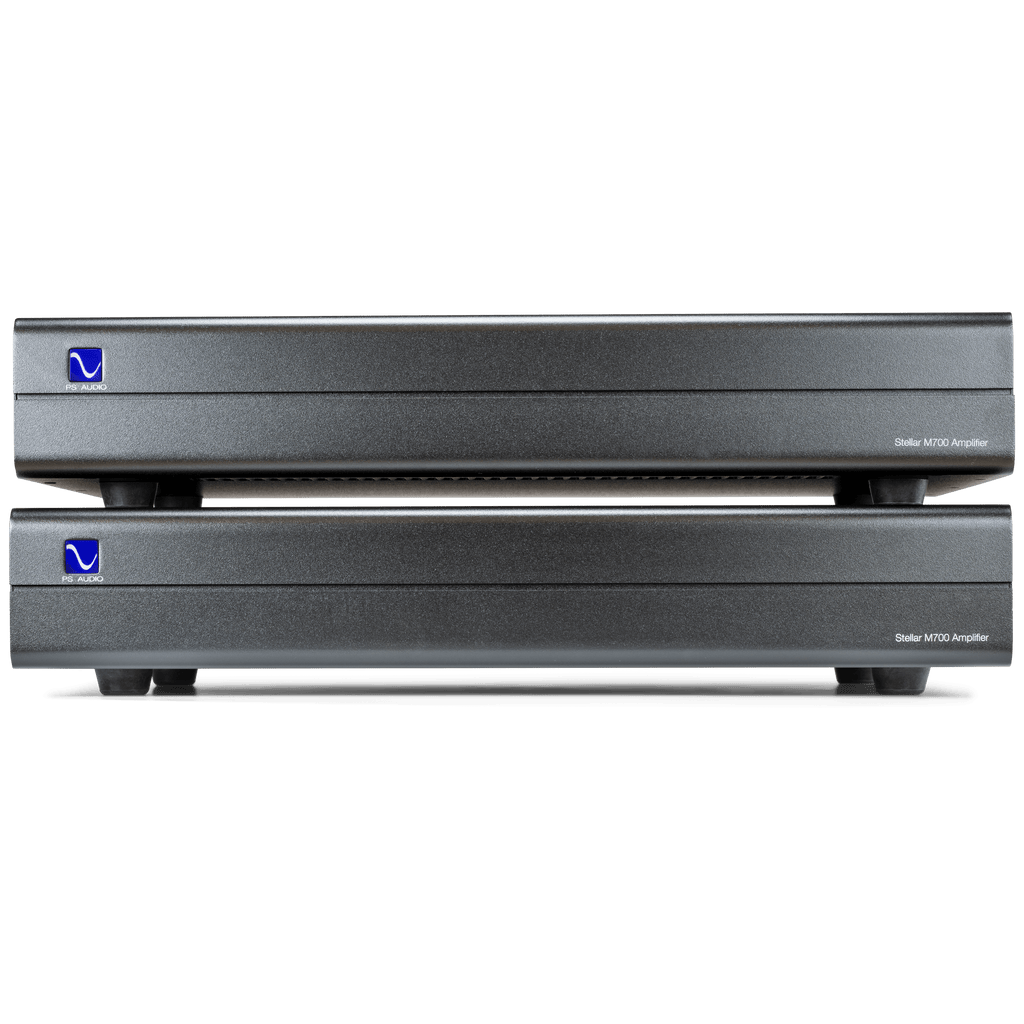

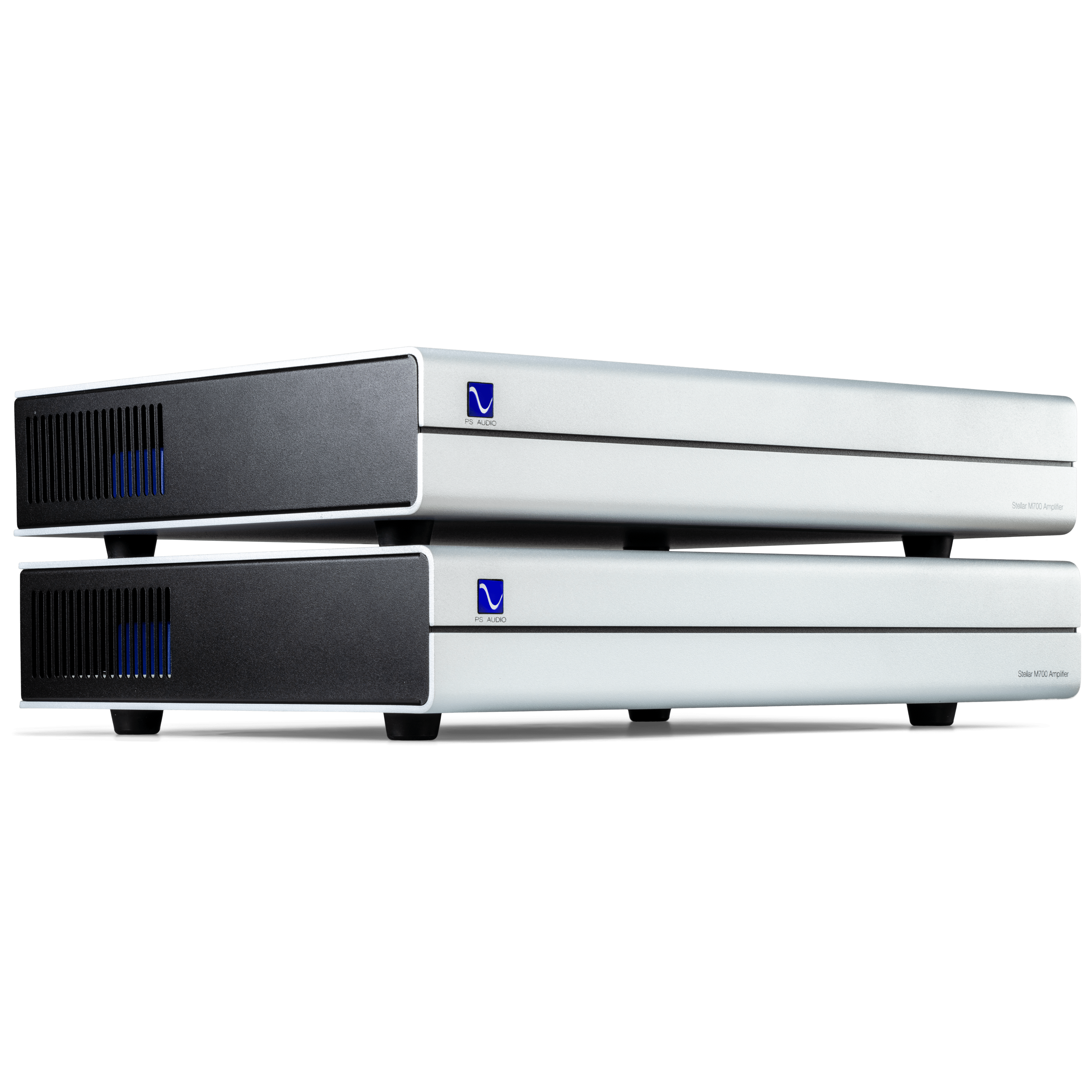

| Unit Dimensions | 17”W x 3”H x 12”D (13"D w/connectors) 17”W x 6”H x 12”D (Stacked) |
| Shipping Weight | 16.5 lbs [7.5 kg] (each) |
| Shipping Dimensions | 22”W x 8”H x 17”D (each) |
| Color Options | Black Silver |
| Voltage Options (Factory set only) |
Japan 100V North America 120V Europe/Asia/Australia/New Zealand 230V |
| Mains Power Inputs | IEC C14 |
| Idle Power Consumption | 23W |
| Accessories Included | US (NEMA 5-15P) (all versions) Schuko (CEE7/7) (230V version) UK (BS 1363) (230V version) |

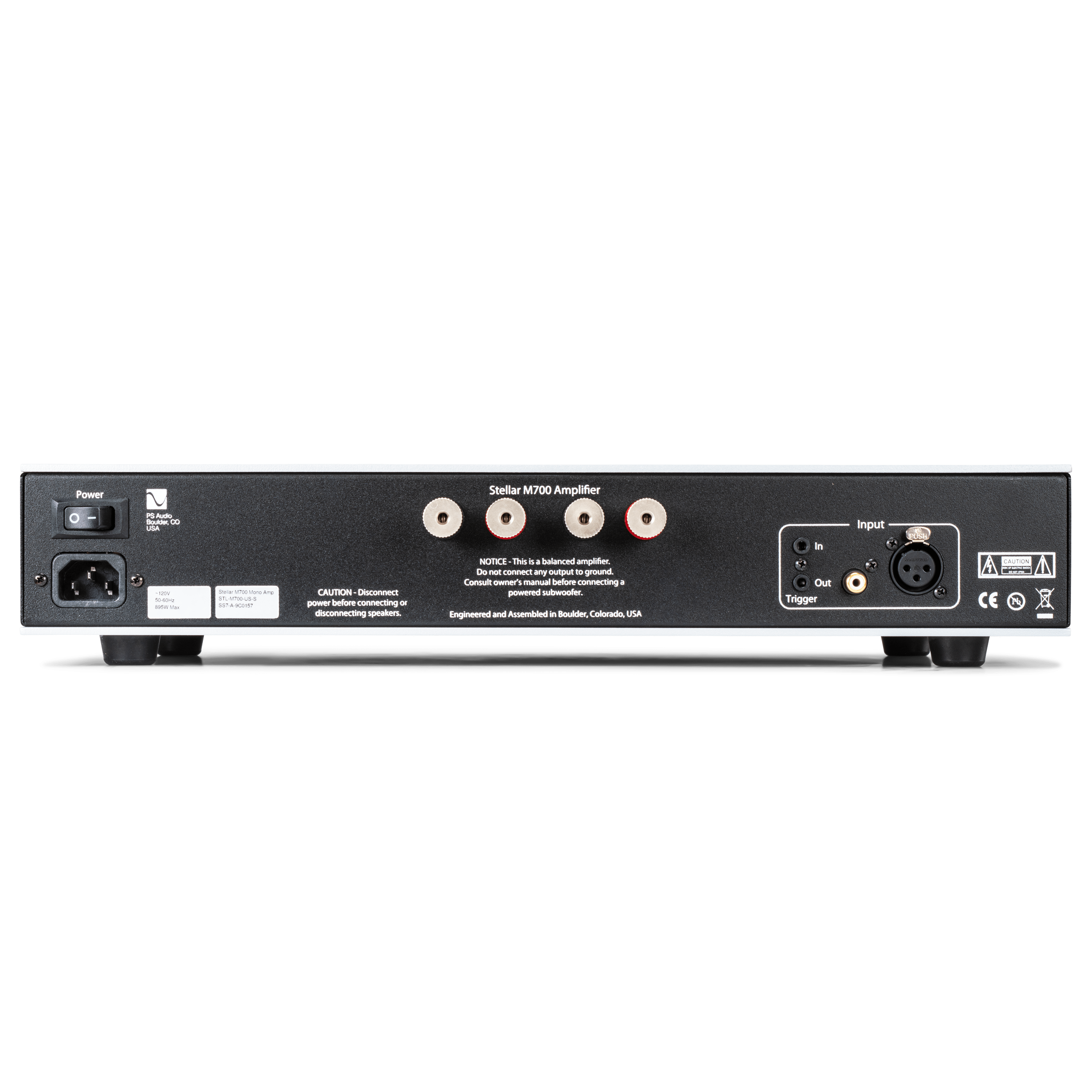

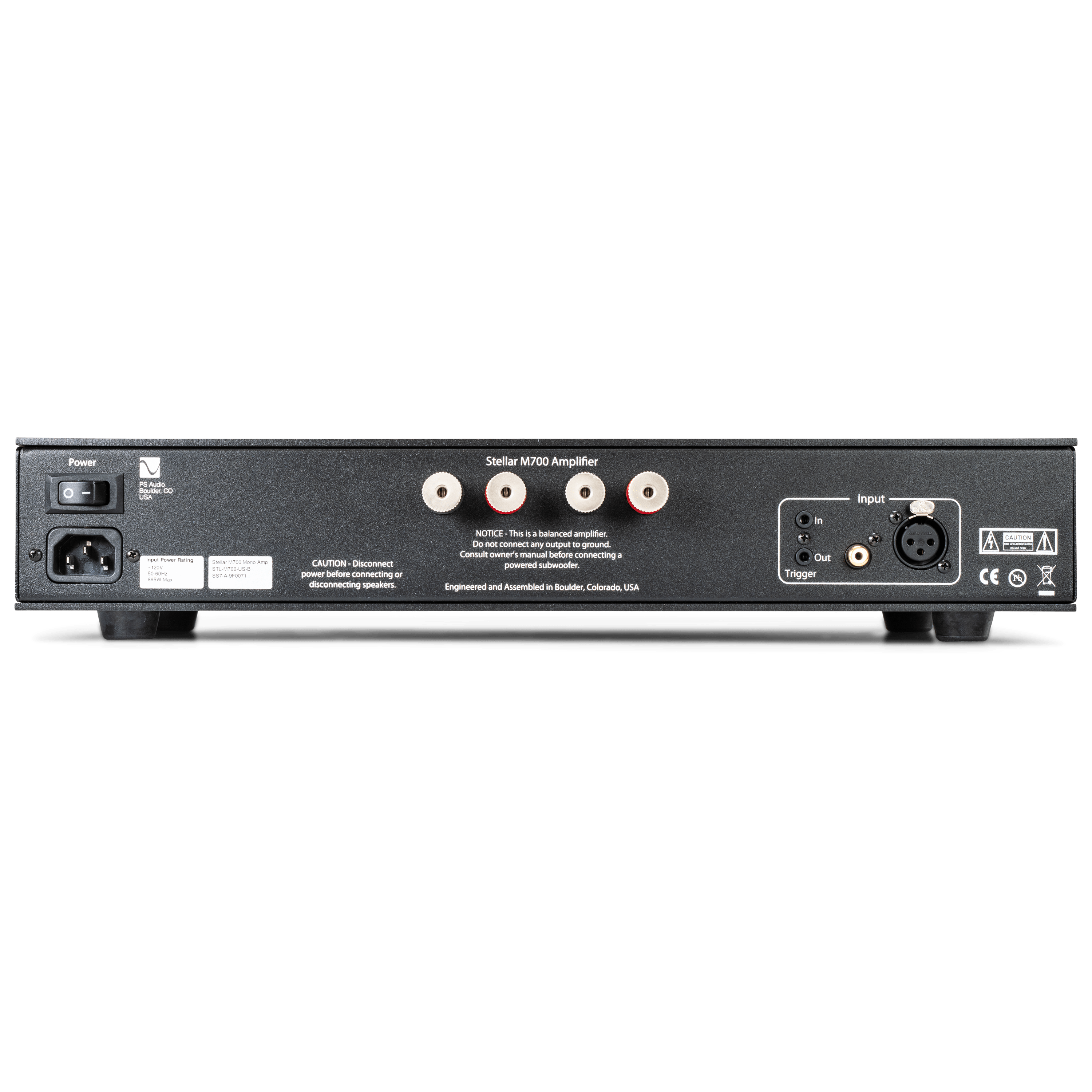

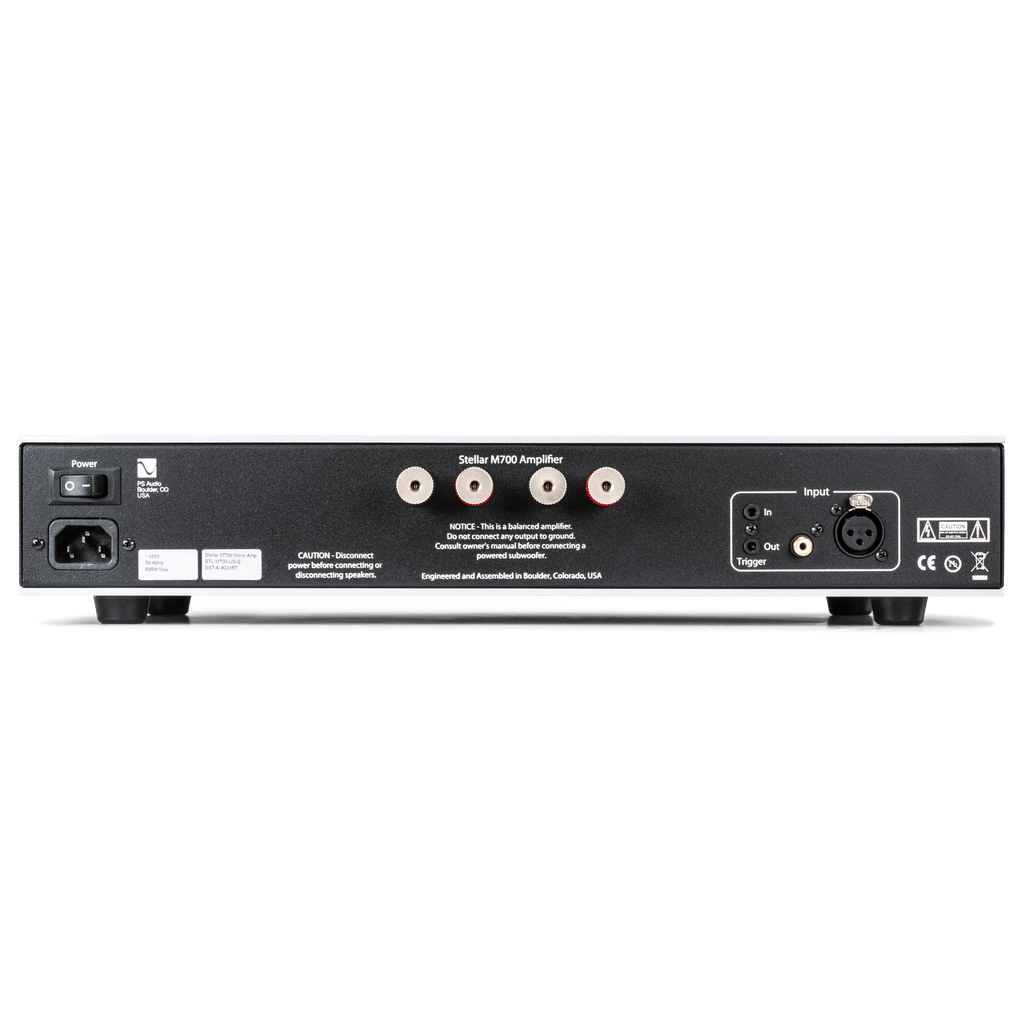

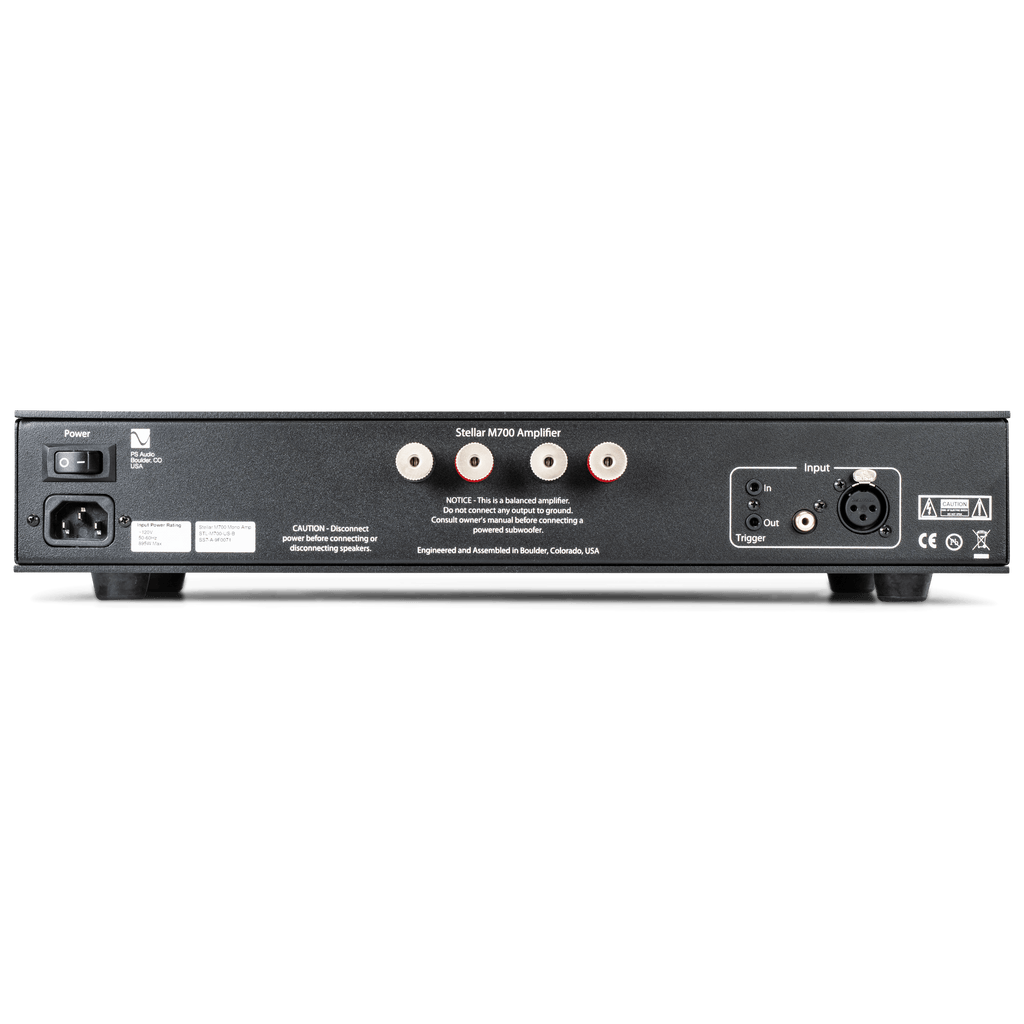

| Audio Inputs | RCA (Unbalanced) XLR (Balanced) |
| Speaker Outputs | Copper base nickel plated binding posts (2 pair) |
| DC Trigger Input | 3.5mm 5-15VDC |
| Warranty | 3 years parts and labor |
Signal |
|
| Gain | 30.5dB +/-0.5dB |
| Sensitivity for rated output power | 1.6V |
| Noise | 1kHz@700 Watts < -105dB |
| Input impedance | Unbalanced 50KΩ Balanced 100KΩ |
| Output Impedance | 50Hz, 2.8VRMS <0.007Ω |
| Damping factor | 50Hz. 2.8VRMS 8Ω >1100 4Ω >550 |
| Frequency Response | 2.8VRMS into 4Ω 10Hz – 20KHz +/- 0.5dB 10Hz – 50KHz +0.1/-3.0dB |
THD&IM |
|
| 1KHz, 1W/4Ω | <0.02% |
| 10-20KHz, 1W/4Ω | <0.02% |
| 10-50KHz, 1W/4Ω | < 0.05% (90kHz BW) |
| 1KHz, 87.5W/4Ω | < 0.015% |
Output Power |
120vac mains, 1kHz, 1% THD |
| 8Ω | 350W minimum |
| 4Ω | 700W minimum |
| 2Ω | Stable for musical transients |

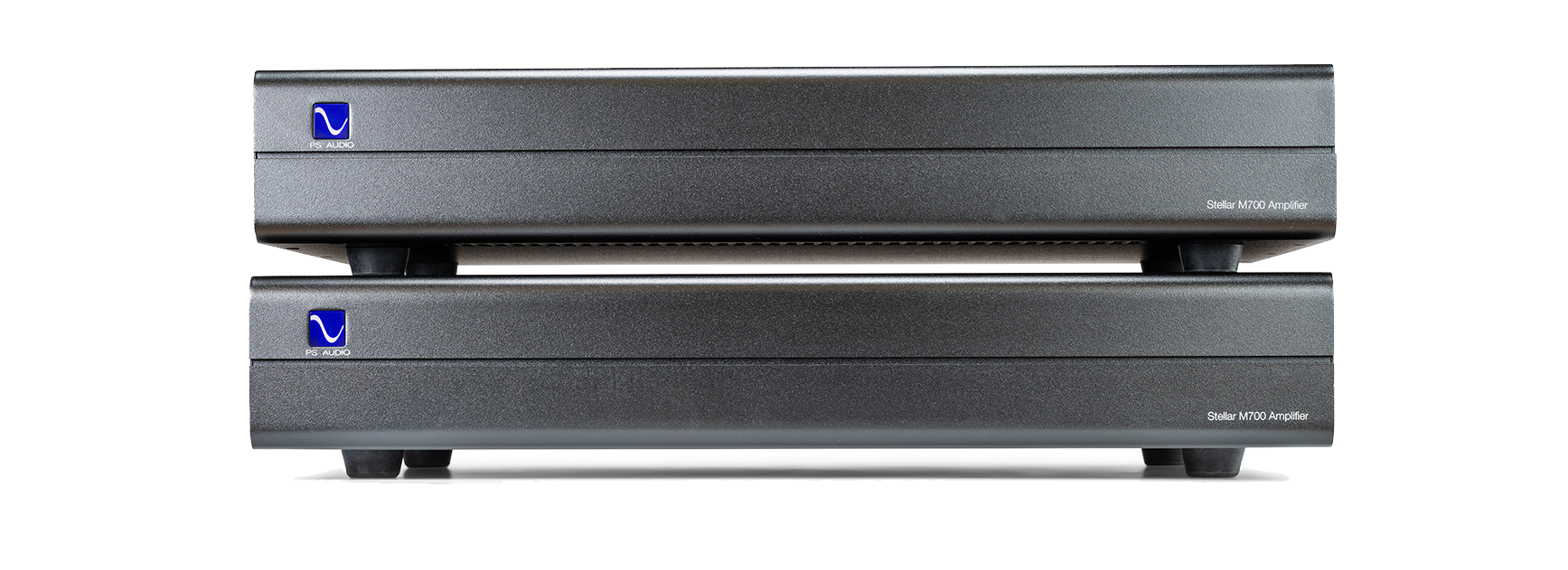

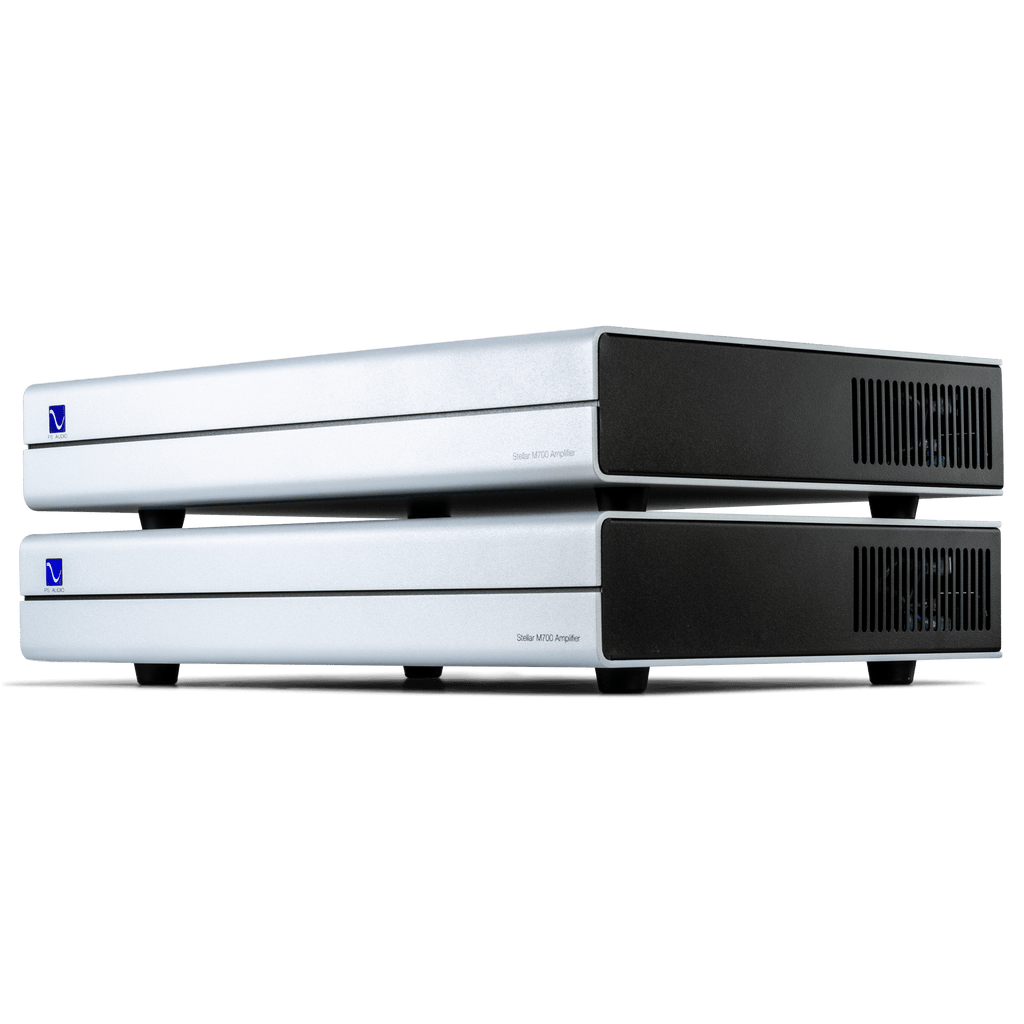

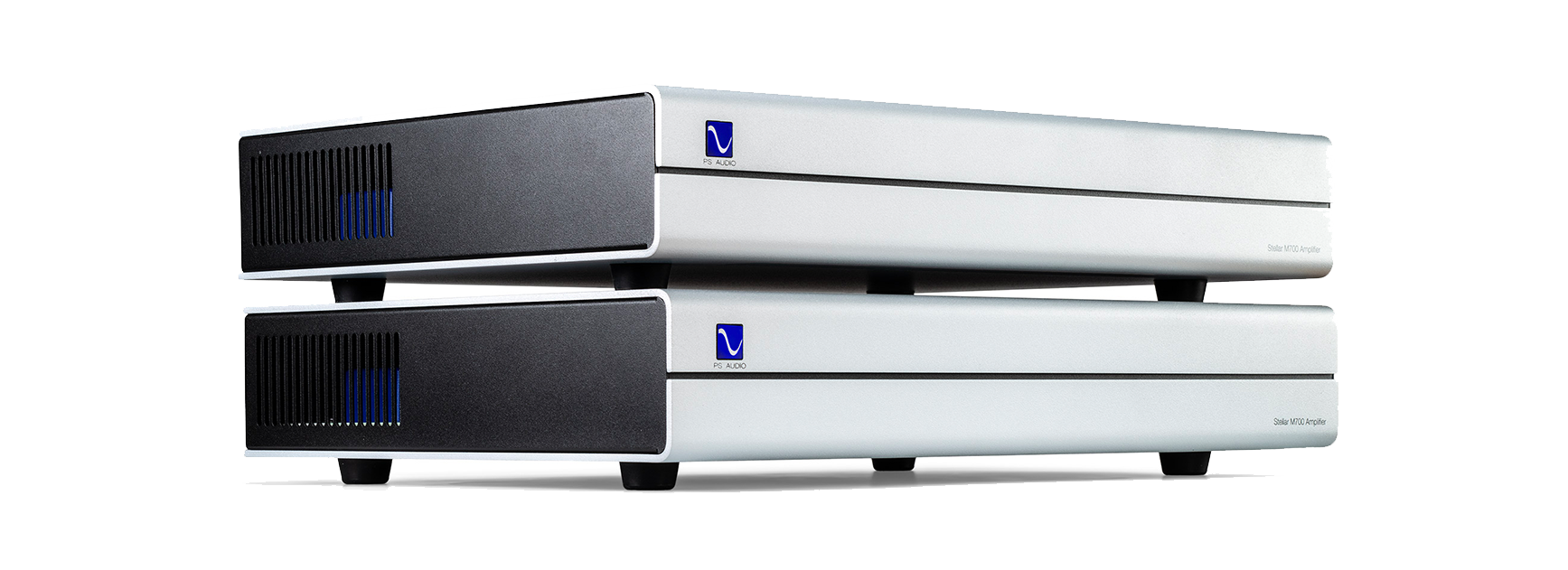

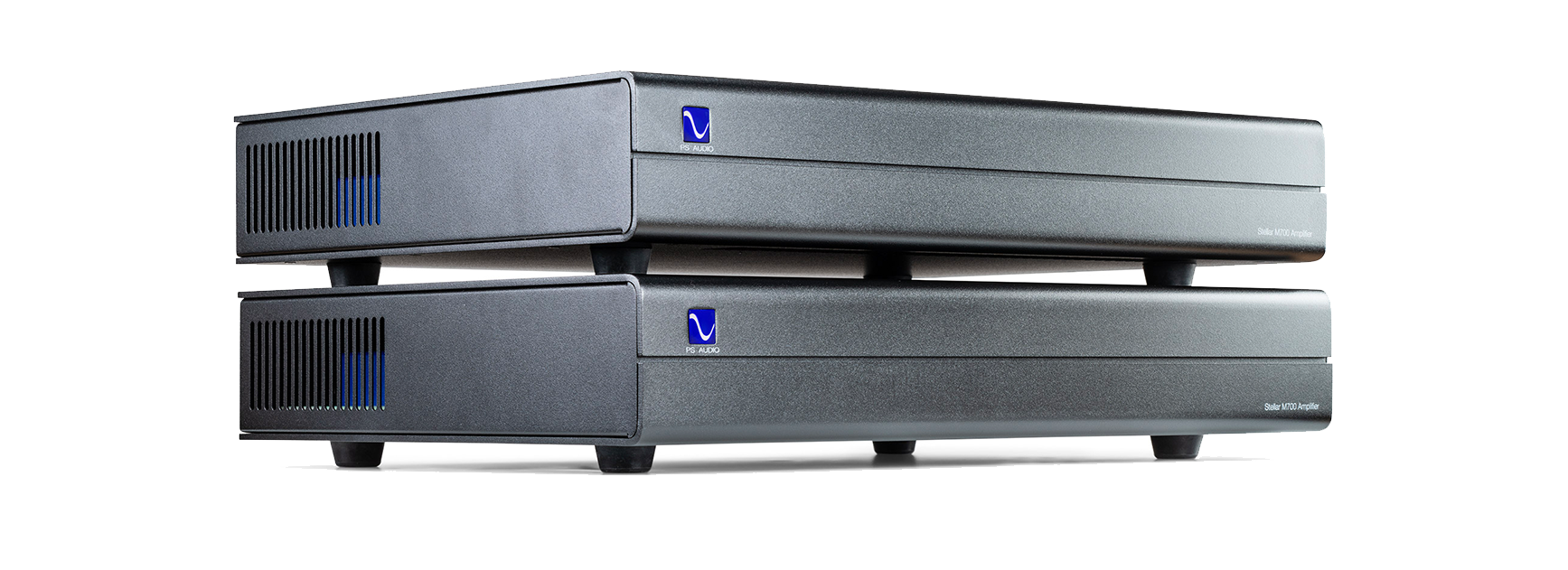

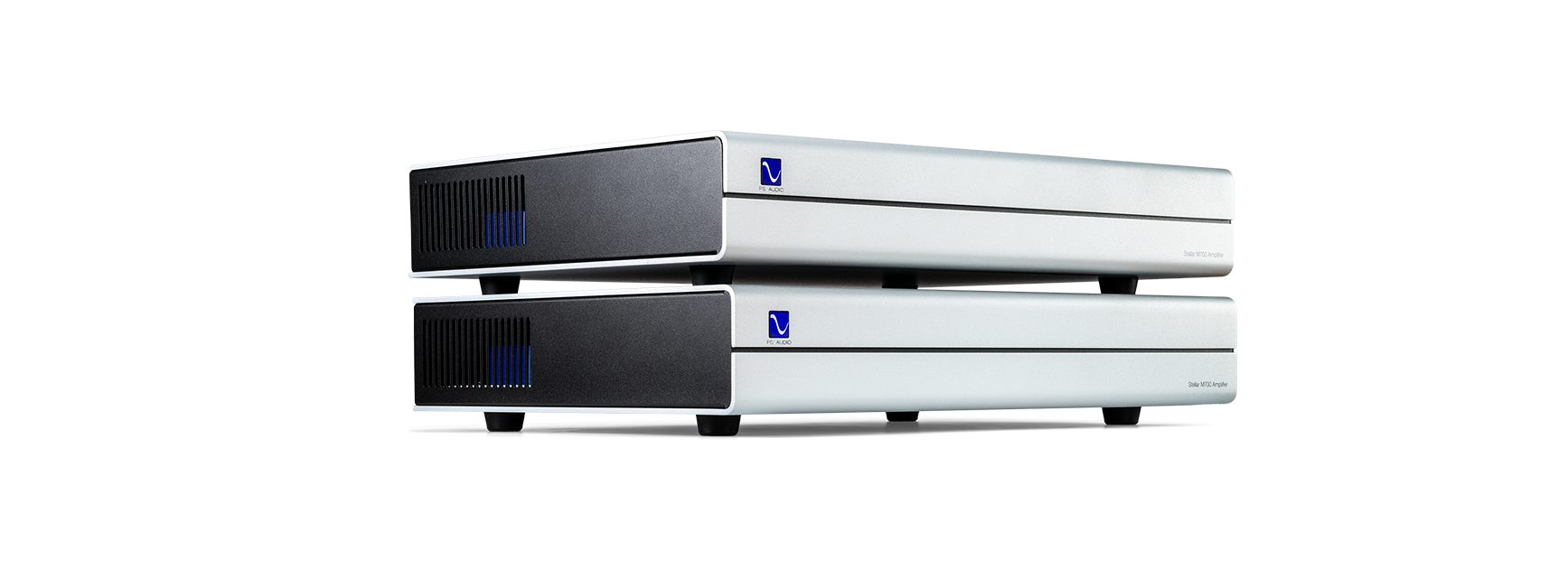

M700 Amplifier Pair
Design
Application
Overview
The Analog Cell
Output Stage
Features
15 key featuresMONO POWER AMPLIFIER PAIR
ZERO-LOSS ANALOG CELL INPUT
POWERFUL MOSFET OUTPUT STAGE
RCA SINGLE-ENDED INPUT
XLR "TRUE" BALANCED INPUT
350 WATTS PER 8Ω CHANNEL
700 WATTS PER 4Ω CHANNEL
2Ω STABLE
< 0.1% THD 20Hz 20kHz AT RATED POWER
DAMPING FACTOR = 1100
FRONT PANEL STANDBY
VERY LITTLE HEAT PRODUCTION
DUAL, SOLID, COPPER PLATED OUTPUT POSTS
27 LBS
INPUT 12v TRIGGER
Reviews
reviews
All PS Audio components I've encountered (or owned) are incredibly well-built and the Stellar line is no exception. They have a weight, look and feel that exudes quality belying their sub-,000 USD total cost and puts me in mind of gear I've reviewed costing double this price point. The PS Audio Stellar 'three-fer' proved itself to sound far more captivating, powerful, lyrical, musical and possess a humanity to its sonic signature in playback of all types of music than I previously thought
I was really able to hear the amplifiers' real attributes: astonishing and accurate bass, with sparkling highs that had an almost tube-like sound. How did they accomplish this in such a small footprint for such an amazing price? In the end I believe this is the top of the line in its price range. Nothing comes close—the sheer amount of power and sound quality that comes from these little chassis is nothing but pure engineering magic. Kudos to the PS Audio team for coming up with such a simple
Read full review →
I could not fault the sound of the Gain Cell DAC -- its neutrality and honesty were captivating, leading to compelling listening. During my time with it and the pair of M700s, I always felt they had total control over whatever music was thrown at them, in whatever format. From the understated nuance of an unaccompanied lute to the bombast of a symphony orchestra going full tilt, the laid-back drive of dub or the pulse of electronica, I not once felt deprived of any of the music's emotion
Read full review →
PS Audio has been on a roll. That roll continues with the Stellar M700 power amplifier. I have had nothing but good experience with PS Audio products; still, with the Stellar M700, my expectations were exceeded. Having little sound of its own, the M700 delivered well-balanced reproduction that was always faithful to the music… the Stellar M700s came ever so close to matching the sound of my high-end reference monoblocks
Read full review →
There are many excellent-sounding amplifiers in this price range, but few can put out anywhere near as much power as the Stellar M700, and most of those that do don't sound as refined. PS Audio says that the Stellar M700 is one of the most extraordinary monoblocks ever sold for less than 000/pair. I have to agree. The Stellar M700 is my new favorite entry-level high-end power amplifier
Read full review →
In the Stellar M700, PS Audio has designed excellent sounding mono amps that can be the foundation of a reasonably priced high-end audio system. The analog input section is as expansive and natural sounding as the ICE amp modules are powerful and accurate. The resulting sound is a wonderful balance between expression and precision, allowing the amps to disappear within the audio chain. They clearly take on the signal they are fed, allowing a great front end to weave its audio magic
Read full review →
I've been putting source material through the rig with the PS Audio Stellar M700's Mono amps for a month and I have been consistently impressed with their musicality and get up and go. These powerful PS Audio Stellar M700 Mono amplifiers are capable of effortlessly driving demanding loudspeaker loads to concert levels. This may be the first higher-priced component I can't live with out... but wait, there's more
Read full review →Want to leave your own review?
