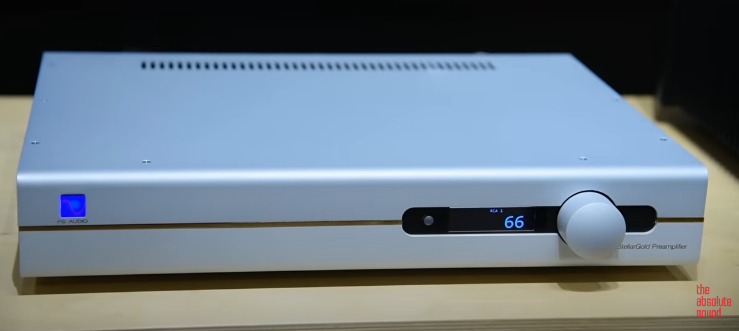

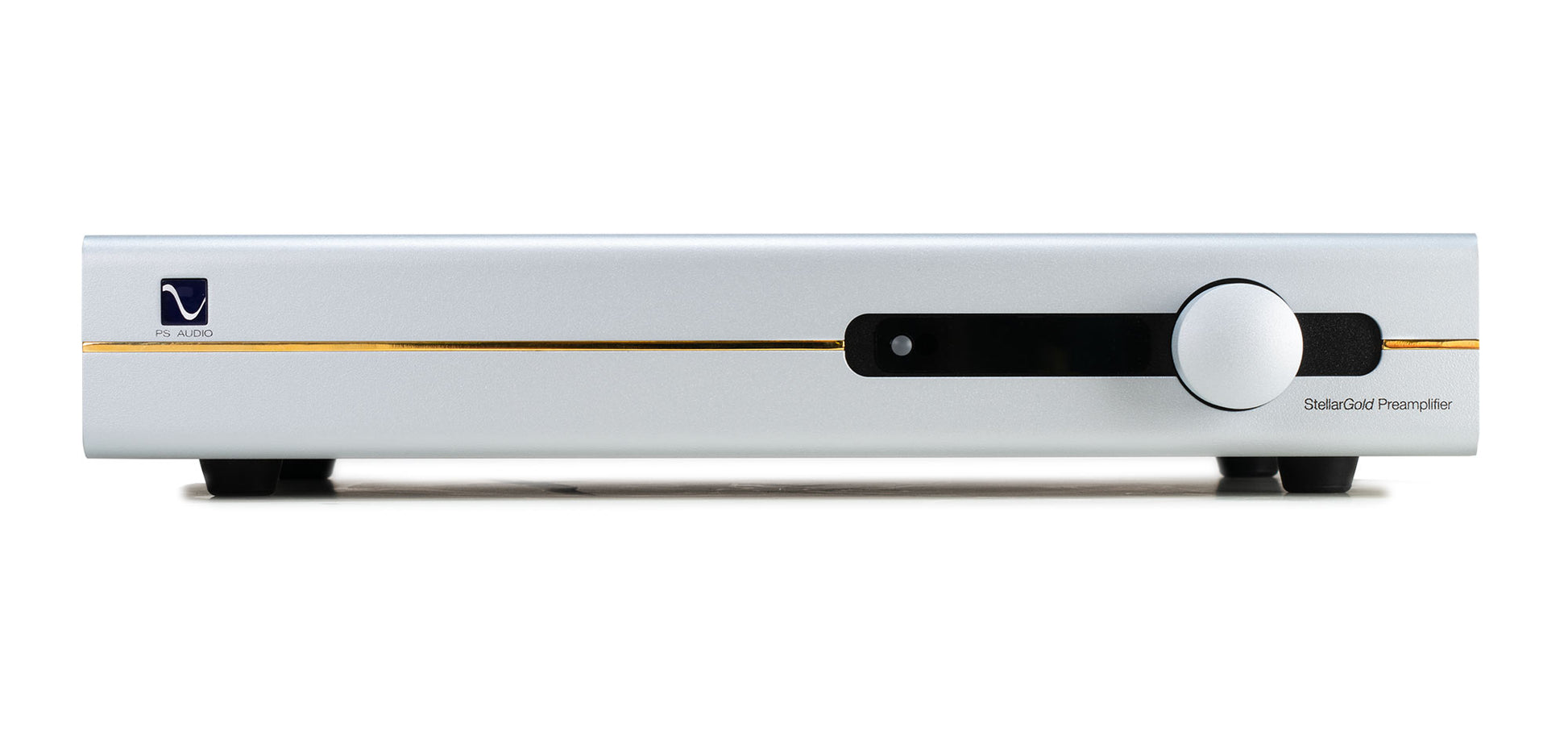

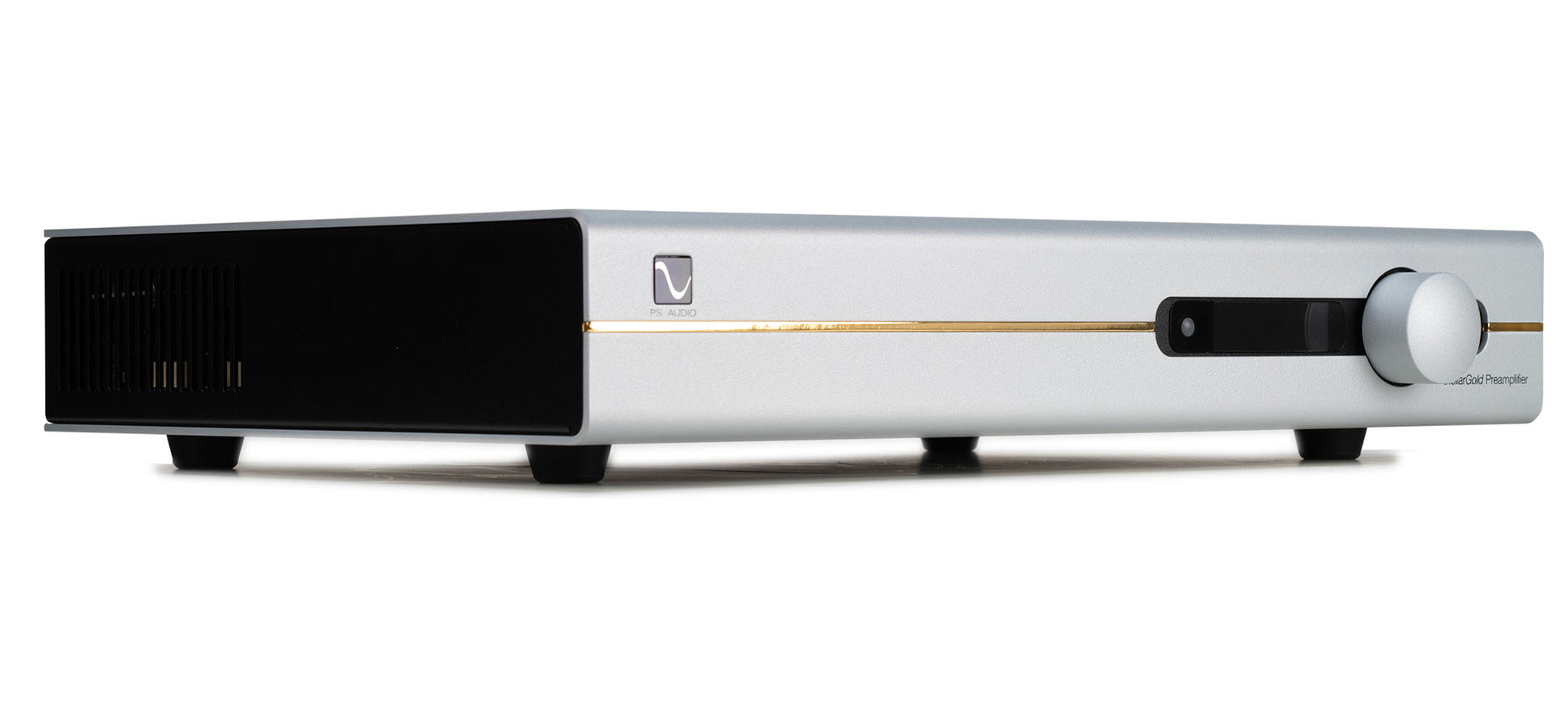

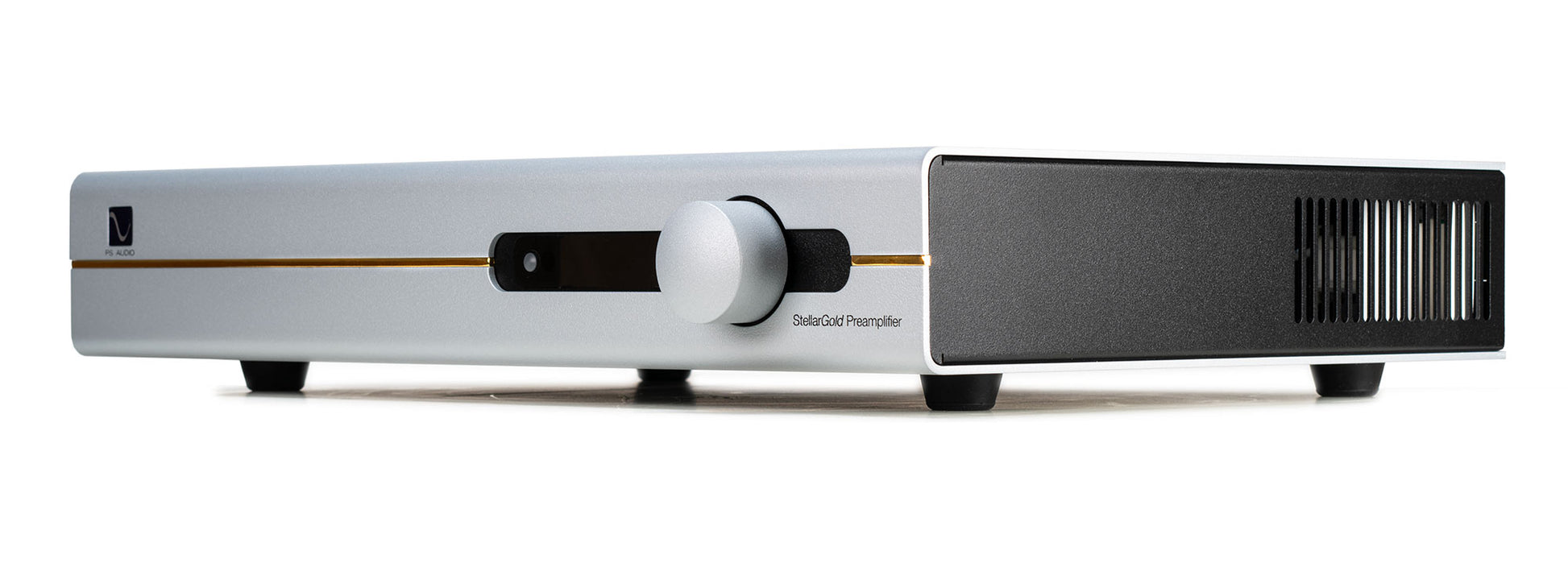

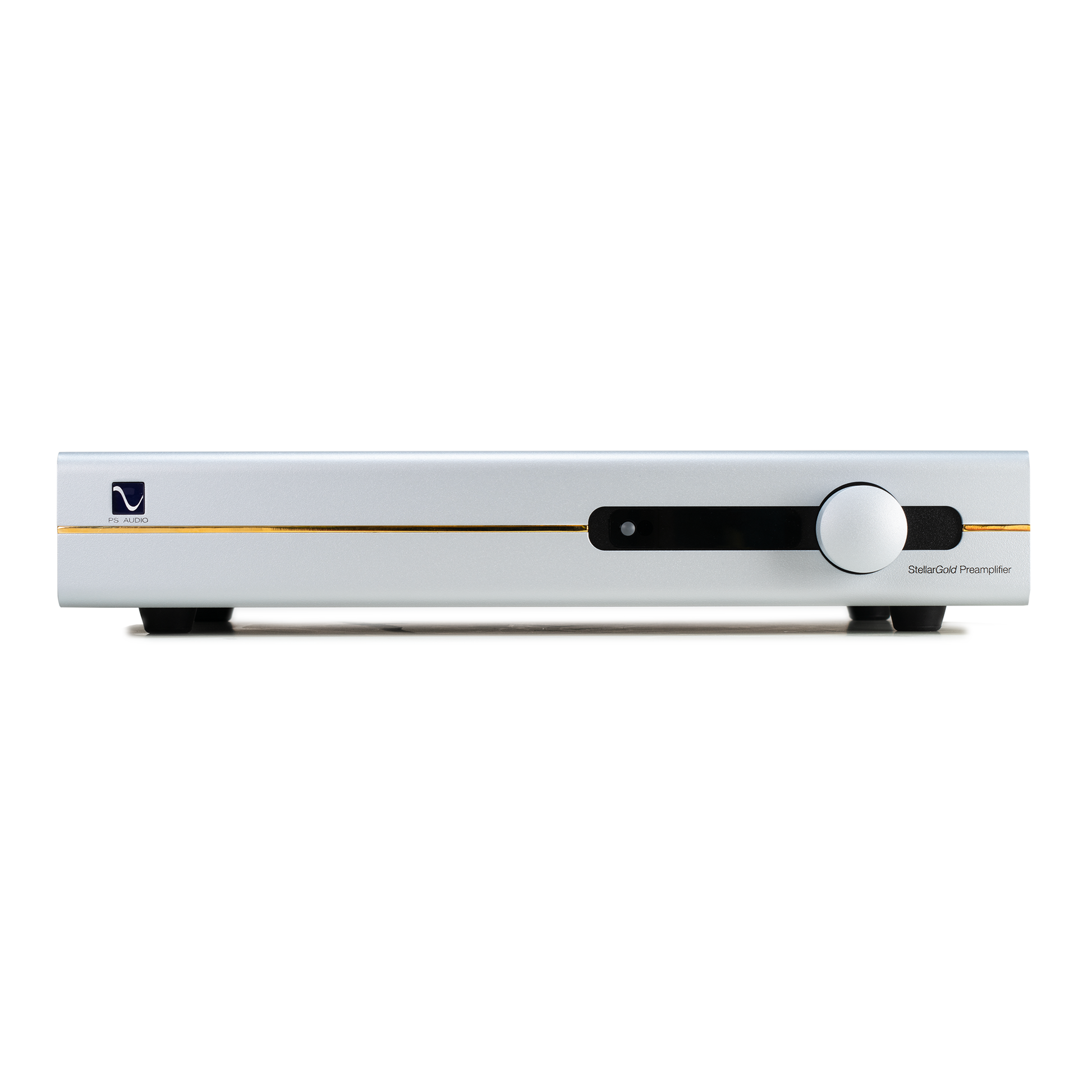

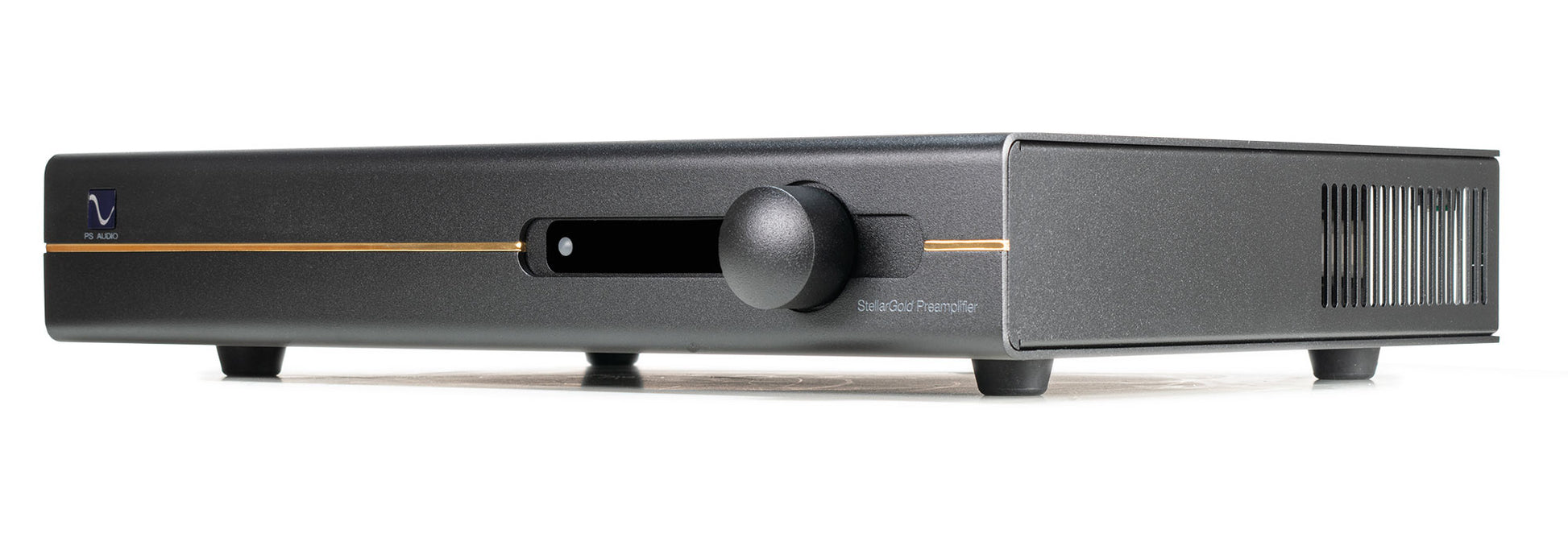

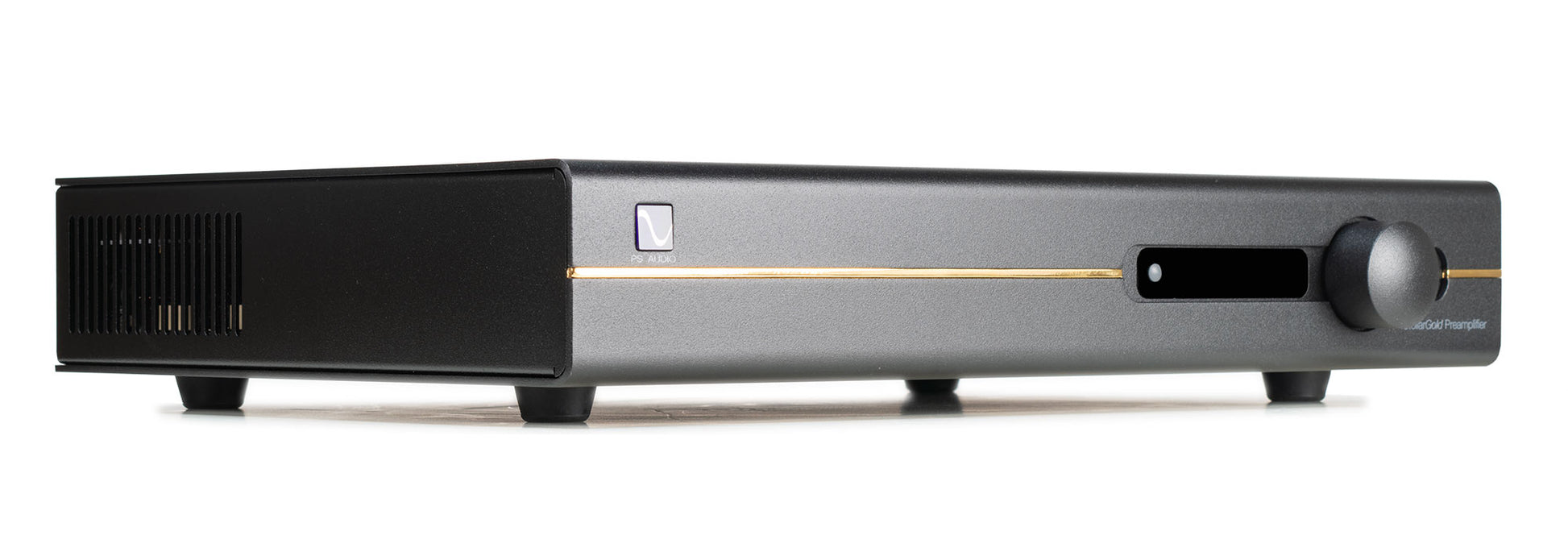

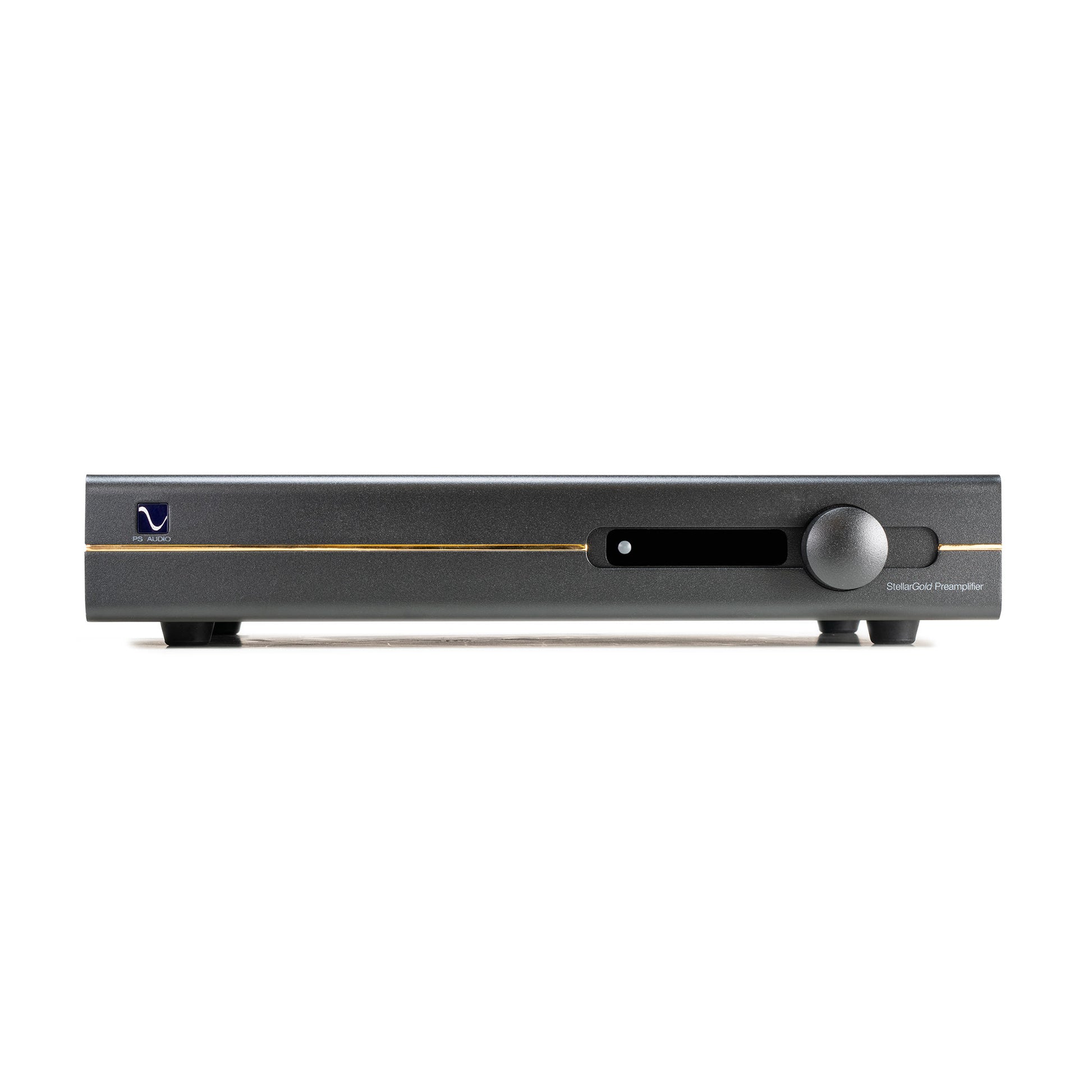

StellarGold Preamplifier


StellarGold Preamplifier
StellarGold Preamplifier
Preamplifiers act as the backbone of premium audio setups, overseeing input choices, initiating the amplification process, managing volume and balance, and ensuring electrical separation between sound sources and amplifiers. When you add the StellarGold Preamplifier into your audio chain—bridging devices like DACs, phono preamps, tuners, or other auxiliaries with your amplifier—a magical sonic revelation unfolds: more realism, life, and space around each performer. It's time to take control of your system and add that missing element, a great preamplifier. StellarGold.
Regular price
$3,999.00 USD
Regular price
Sale price
$3,999.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

TALK TO A HI-FI SPECIALIST











-
Design
-
Application
Technology



Features
Specifications - StellarGold Preamp
Physical: | |
Unit Weight | 24.1 lbs or 10.9 kg |
Unit Dimensions | 17"W x 3.3"H x 13"D (with knob, without knob 12"D) [43.18 cm x 8.38 cm x 33.02 (with knob, without 30.48 cm)] |
Shipping Weight | 27.6 lbs or 12.5 kg |
Shipping Dimensions | 22"W x 8"H x 17"D [55.88 cm x 20.32 cm x 43.18 cm] |
Power Requirements: | |
Input Power | Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz |
Power Consumption | 15W |

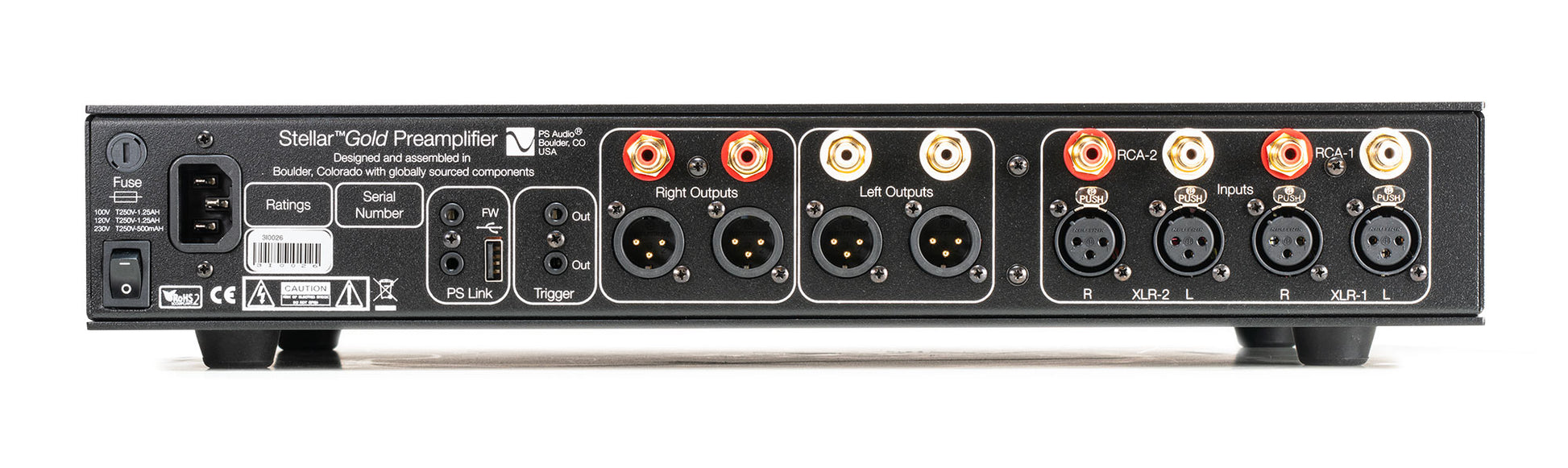

Connectors: | |
Audio Inputs | RCA / Single-Ended: 2 pair XLR / Balanced: 2 pair |
Audio Outputs | RCA / Single-Ended: 2 pair XLR / Balanced: 2 pair |
Trigger Output | 2 |
USB | For USB firmware update only |
Performance: |
|
Max Gain | 12.6dB |
Frequency Response | 15Hz-150kHz, +/- 0.1dB |
Input Impedance | 50K Ω RCA / Single-Ended 100K Ω XLR / Balanced |
Bandwidth | 5Hz-500kHz, -3dB |
THD | < .0002% @ 1kHz, 1VRMS input |
THD+N | < .0003% @ 1kHz, 1VRMS input |
IMD | .0005% @ 1VRMS input, CCIF, 20kHz mean, 1kHz difference |
Crosstalk | -115dB, One channel driven |
Output level | 10VRMS Single-ended / 20VRMS Balanced @ 1% THD+N |
Output Impedance | 100Ω |
