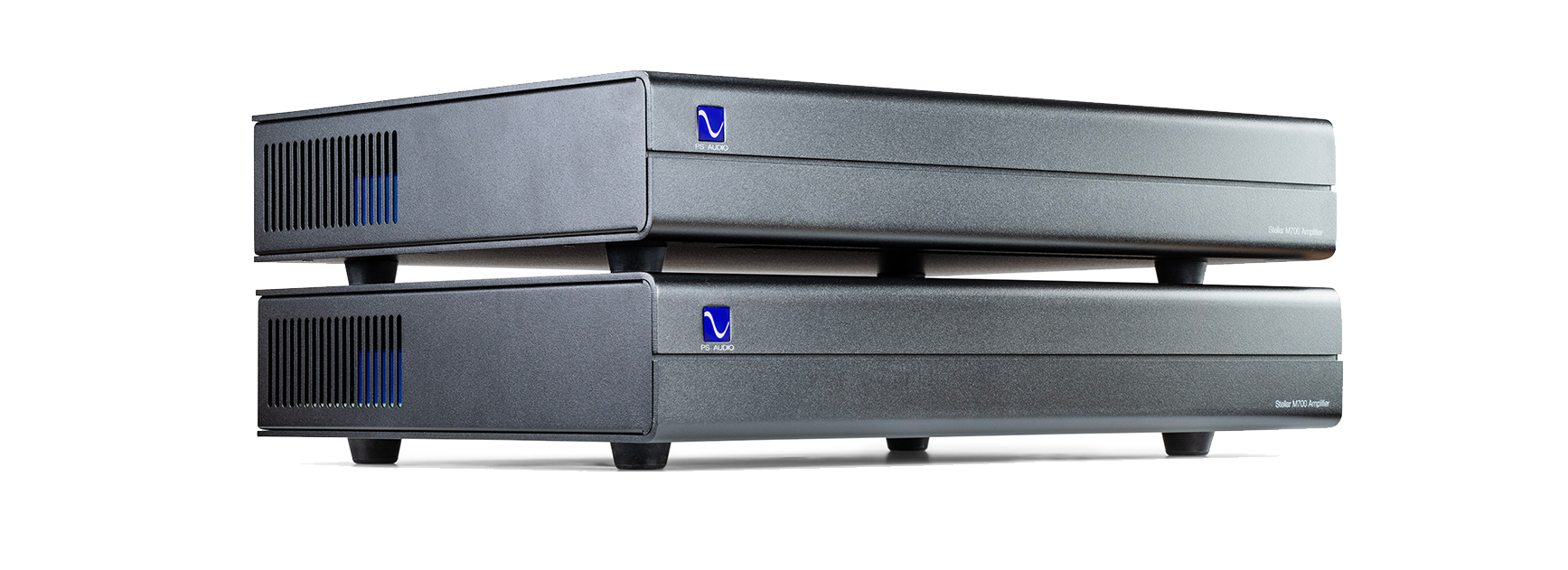

Stellar™ M700 Monoblocks

Control and command over demanding speakers, at concert levels.

$2,623 / pair $3,498

Options

Buy or audition near you

All dealers

Factory Certified

Tested in Boulder by the people who built it

14-day in-home evaluation. One-year factory warranty when registered. Each unit is fully factory tested in Boulder; some may show light cosmetic blemishes.

Factory Certified units are already priced well below new, so they can't be combined with Trade-Up credit or other discounts.

Designed for floorstanders, typical rooms

  • Power 350 W into 8Ω · 700 W into 4Ω
  • Design Mono pair, one per speaker
  • Stable down to 2Ω

What reviewers say

The Stellar M700 is my new favorite entry-level high-end power amplifier

SSoundStage!Roger Kanno, 2018

With the Stellar M700, my expectations were exceeded.

SStereophileRobert Deutsch, 2018

I was really able to hear the amplifiers' real attributes: astonishing and accurate bass, with sparkling highs that had an almost tube-like sound.

PPositive FeedbackPete Davey, 2018

Why choose it

A monoblock pair for less than $5,000

350 watts per channel into 8Ω, 700 into 4Ω, and stable down to 2Ω. Enough control to drive demanding speakers to concert levels.

Where it fits

The M700 is Stellar's best. Rated at 350 watts into 8Ω and 700 watts into 4Ω, a pair of these placed on any loudspeaker brings forth the lush, rich, and soul-satisfying power of two completely independent power blocks with headroom to spare. The listening experience with the M700 starts feet tapping and smiles breaking out.

Read more

The M700 is Stellar's best. Rated at 350 watts into 8Ω and 700 watts into 4Ω, a pair of these placed on any loudspeaker brings forth the lush, rich, and soul-satisfying power of two completely independent power blocks with headroom to spare. The listening experience with the M700 starts feet tapping and smiles breaking out. One listen to a hugely loud and complex musical passage effortlessly rendered by the M700 pair and you'll know you made the right choice.

A massively powerful engine, capable of effortlessly driving demanding loudspeakers to concert levels.

Watch

The unloved power amplifier

PS Audio founder Paul McGowan busts a long-held myth about which piece of a hi-fi system matters most.

Paul McGowan · 6 min

Design

How it's built

700 W
into 4Ω, per monoblock
350 W
into 8Ω
2Ω
stable
<0.1%
THD at rated power

01

Overview

Rated at 350 Watts into 8Ω and 700 Watts into 4Ω, the M700 combines the best of two worlds: ultra linear, high-current, Class D technology for the output stage; a discrete, Class A MOSFET based Analog Cell for the all-important input stage. The Stellar M700 captures the rich, full-bodied essence of recorded music and presents it to your loudspeakers with authority and grace, never a hint of glare or unnaturalness.

Read more

Rated at 350 Watts into 8Ω and 700 Watts into 4Ω, the M700 combines the best of two worlds: ultra linear, high-current, Class D technology for the output stage; a discrete, Class A MOSFET based Analog Cell for the all-important input stage. The Stellar M700 captures the rich, full-bodied essence of recorded music and presents it to your loudspeakers with authority and grace, never a hint of glare or unnaturalness. The M700 is faithful to the music like few amplifiers are. Listeners are constantly surprised at the width and depth of the M700's soundstage; its preservation of the smallest details in reverb, room acoustics, and musical overtones; its commanding presence without intrusion; its delicate handling of subtle shadings; its authority as it grabs hold of the loudspeaker and breezes through even the most complex musical passages.

02

The Analog Cell

Stellar's design imperatives -- affordable pricing and uncompromised sonics -- were major challenges solved by the invention of a unique new circuit christened the AnalogCell. Nothing in the design of a power amplifier is more important than its input stage when preserving music's finest nuances.

Read more

Stellar's design imperatives -- affordable pricing and uncompromised sonics -- were major challenges solved by the invention of a unique new circuit christened the AnalogCell. Nothing in the design of a power amplifier is more important than its input stage when preserving music's finest nuances. Knowing full well that the input stage determines sonic character, the AnalogCell has been employed to preserve the rich details found in music. The AnalogCell is the heart of the M700's musicality, where rich overlaid layers of music's inner details are preserved even in the most complex orchestral crescendos. As a proprietary, fully differential, zero feedback, discrete, Class A MOSFET circuit, hand-tuned to capture the smallest micro dynamics without sacrificing the loudest macro dynamics music has to offer, the AnalogCell makes all the difference in preserving music's magic.

03

Output Stage

The Stellar M700 has a massive power supply and ultra-linear, high-wattage power amplification stage based on a modern Class D ICE module. Class D output stages provide near-perfect linearity, low distortion, and high efficiency.

Read more

The Stellar M700 has a massive power supply and ultra-linear, high-wattage power amplification stage based on a modern Class D ICE module. Class D output stages provide near-perfect linearity, low distortion, and high efficiency. Modern Class D amplifiers, like the type used in Stellar, extend high frequencies to about 50kHz. Human hearing limitations are 20kHz, though most listeners rarely have hearing exceeding half that. Providing excellent frequency extremes, low distortion, high efficiency, high damping factor, and a generous and powerful output of 700 watts into the most common loudspeaker loads of 4Ω, the M700 is nothing short of breathtaking. The massively powerful nature of the M700 works well with any loudspeaker—big or small—providing huge amounts of headroom and effortless sound quality for even the most demanding orchestral crescendos.

Features

At a glance

  • Mono power amplifier pair
  • Zero-loss analog cell input
  • Powerful mosfet output stage
  • Rca single-ended input
  • XLR "true" balanced input
  • 350 watts per 8ω channel
  • 700 watts per 4ω channel
  • 2ω stable
  • < 0.1% THD 20 Hz 20khz at rated power
  • Damping factor = 1100
  • Front panel standby
  • Very little heat production
  • Dual, solid, copper plated output posts
  • 27 lbs

Specifications

Full specifications
Stellar M700 Mono Amplifier
Unit Weight13 lbs [5.9 kg] (each)
Unit Dimensions17”W x 3”H x 12”D (13"D w/connectors) 17”W x 6”H x 12”D (Stacked)
Shipping Weight16.5 lbs [7.5 kg] (each)
Shipping Dimensions22”W x 8”H x 17”D (each)
Color OptionsBlack Silver
Voltage Options (Factory set only)Japan 100V North America 120V Europe/Asia/Australia/New Zealand 230V
Mains Power InputsIEC C14
Idle Power Consumption23W
Accessories IncludedUS (NEMA 5-15P) (all versions) Schuko (CEE7/7) (230V version) UK (BS 1363) (230V version)
Audio InputsRCA (Unbalanced) XLR (Balanced)
Speaker OutputsCopper base nickel plated binding posts (2 pair)
DC Trigger Input3.5mm 5-15VDC
Warranty3 years parts and labor
Signal
Gain30.5dB +/-0.5dB
Sensitivity for rated output power1.6V
Noise1kHz@700 Watts < -105dB
Input impedanceUnbalanced 50KΩ Balanced 100KΩ
Output Impedance50Hz, 2.8VRMS <0.007Ω
Damping factor50Hz. 2.8VRMS 8Ω >1100 4Ω >550
Frequency Response2.8VRMS into 4Ω 10Hz – 20KHz +/- 0.5dB 10Hz – 50KHz +0.1/-3.0dB
THD&IM
1KHz, 1W/4Ω<0.02%
10-20KHz, 1W/4Ω<0.02%
10-50KHz, 1W/4Ω< 0.05% (90kHz BW)
1KHz, 87.5W/4Ω< 0.015%
Output Power120vac mains, 1kHz, 1% THD
8Ω350W minimum
4Ω700W minimum
2ΩStable for musical transients

Compare

How it compares

M800M400S400S200M1200M700This oneS300Strata
Price$29,998 / pair$17,998 / pair$9,999$7,999$6,998 / pair$3,498 / pair$1,999$3,499
Speakers & roomLarge rooms, any speakerLarge floorstanders, medium to large roomsFloorstanders, typical roomsBookshelf or efficient speakers, smaller roomsLarge or hard-to-drive speakersFloorstanders, typical roomsBookshelf speakers, smaller roomsAdd your speakers, bookshelf or floorstanding
Power400 W into 8Ω · 800 W into 4Ω200 W into 8Ω · 400 W into 4Ω200 W into 8Ω · 400 W into 4Ω, per channel100 W into 8Ω · 200 W into 4Ω, per channel600 W into 8Ω · 1,200 W into 4Ω350 W into 8Ω · 700 W into 4Ω140 W into 8Ω · 300 W into 4Ω, per channel—
DesignMono pair, one per speakerMono pair, one per speakerStereo, one boxStereo, one boxMono pair, one per speakerMono pair, one per speakerStereo, one boxIntegrated, one box
What sets it apart50 W of Class A bias: 99% of typical listening in pure Class A30 W of Class A bias10 W of Class A bias per channel10 W of Class A bias per channelVacuum tube input stageStable down to 2ΩDual mono, a separate power supply for each channelMoving magnet and moving coil phono, plus a Class A headphone amp
What's inside———————Streaming DAC, preamplifier, phono stage, amplifier

Build your system

What it pairs with

Reviews

More reviews

I've been putting source material through the rig with the PS Audio Stellar M700's Mono amps for a month and I have been consistently impressed with their musicality and get up and go.

These powerful PS Audio Stellar M700 Mono amplifiers are capable of effortlessly driving demanding loudspeaker loads to concert levels. This may be the first higher-priced component I can't live with out... but wait, there's more

GGreg Voth, Stereo Times2018
Read the full review

In the Stellar M700, PS Audio has designed excellent sounding mono amps that can be the foundation of a reasonably priced high-end audio system.

The analog input section is as expansive and natural sounding as the ICE amp modules are powerful and accurate. The resulting sound is a wonderful balance between expression and precision, allowing the amps to disappear within the audio chain. They clearly take on the signal...

GGary L Beard, Positive Feedback2018
Read the full review

There are many excellent-sounding amplifiers in this price range, but few can put out anywhere near as much power as the Stellar M700, and most of those that do don't sound as refined.

PS Audio says that the Stellar M700 is one of the most extraordinary monoblocks ever sold for less than 000/pair. I have to agree. The Stellar M700 is my new favorite entry-level high-end power amplifier

RRoger Kanno, SoundStage!2018
Read the full review

PS Audio has been on a roll.

That roll continues with the Stellar M700 power amplifier. I have had nothing but good experience with PS Audio products; still, with the Stellar M700, my expectations were exceeded. Having little sound of its own, the M700 delivered well-balanced reproduction that was always faithful to...

RRobert Deutsch, Stereophile2018
Read the full review

I could not fault the sound of the Gain Cell DAC -- its neutrality and honesty were captivating, leading to compelling listening.

During my time with it and the pair of M700s, I always felt they had total control over whatever music was thrown at them, in whatever format. From the understated nuance of an unaccompanied lute to the bombast of a symphony orchestra going full tilt,...

GGuy Lemcoe, The Audio Beat2018
Read the full review

I was really able to hear the amplifiers' real attributes: astonishing and accurate bass, with sparkling highs that had an almost tube-like sound.

How did they accomplish this in such a small footprint for such an amazing price? In the end I believe this is the top of the line in its price range. Nothing comes close—the sheer amount of power and sound quality that comes from these...

PPete Davey, Positive Feedback2018
Read the full review
Read all 7 reviews

All PS Audio components I've encountered (or owned) are incredibly well-built and the Stellar line is no exception.

They have a weight, look and feel that exudes quality belying their sub-,000 USD total cost and puts me in mind of gear I've reviewed costing double this price point. The PS Audio Stellar 'three-fer' proved itself to sound far more captivating, powerful, lyrical, musical...

RRafe Arnott, AudioStream2018

Questions for a specialist?

We're happy to help with system matching and upgrades. Talk to a real person at 800-PSAUDIO, Monday to Friday, 8:30 to 5 Mountain Time, or email sales@psaudio.com.

Contact a specialist

Outside the US?

Buy or audition through an authorized PS Audio dealer in your country. Can't find one near you? Contact us directly.

Find your local dealer
Skip to product information
Silver, pair
href="/products/m700-amplifier-refurbished?variant=48706179760418" class="link" >M700 Amplifier - Factory Certified

M700 Amplifier - Factory Certified

<strong>The Stellar M700 mono amplifiers are a massively powerful engine capable of effortlessly driving demanding loudspeaker loads to concert levels.</strong>

Enjoy an unheard of level of control and command from your loudspeakers with the Stellar M700, one of the most extraordinary under $5,000 power amplifier pair ever crafted. With its mighty 700 watt engine connected to any sized loudspeaker, the M700 monoblocks deliver extraordinarily effortless linear headroom that seems to go on forever. Dynamics like you've rarely experienced before. Slam, control, toe-tapping pacing, and music’s subterranean depths are effortlessly delivered to any loudspeaker from the most efficient to the most demanding. Revel in rich layers of fine, full detail you might have been missing before Stellar. Marvel at the deep, extraordinary, wall-to-wall soundstage. Control your loudspeakers as never before. Effortless. Lush. Stellar.

Note:

Sale price  $2,623.00 Regular price  $3,498.00
Factory Certified 14-Day In-Home Evaluation Click for details

What Factory Certified means

These are PS Audio units that have come home to our factory in Boulder — trade-ins, demos, and returns — not off-the-shelf new production. Each one is fully tested on the same benches we use for new gear: performance, safety, and reliability before it ships again.

  • 14-day in-home evaluation — live with it in your own system before you decide.
  • One-year factory warranty from your purchase date when you register the serial (new products carry three years).
  • Honest cosmetics — function and measured performance meet factory standards; some units may show light blemishes.

Full Factory Certified warranty and evaluation terms

Enjoy an unheard of level of control and command from your loudspeakers with the Stellar M700, one of the most extraordinary under $5,000 power amplifier pair ever crafted. With its mighty 700 watt engine connected to any sized loudspeaker, the M700 monoblocks deliver extraordinarily effortless linear headroom that seems to go on forever. Dynamics like you've rarely experienced before. Slam, control, toe-tapping pacing, and music’s subterranean depths are effortlessly delivered to any loudspeaker from the most efficient to the most demanding. Revel in rich layers of fine, full detail you might have been missing before Stellar. Marvel at the deep, extraordinary, wall-to-wall soundstage. Control your loudspeakers as never before. Effortless. Lush. Stellar.

Overview

Rated at 350 Watts into 8Ω and 700 Watts into 4Ω, the M700 combines the best of two worlds: ultra linear, high-current, Class D technology for the output stage; a discrete, Class A MOSFET based Analog Cell for the all-important input stage. The Stellar M700 captures the rich, full-bodied essence of recorded music and presents it to your loudspeakers with authority and grace, never a hint of glare or unnaturalness. The M700 is faithful to the music like few amplifiers are. Listeners are constantly surprised at the width and depth of the M700's soundstage; its preservation of the smallest details in reverb, room acoustics, and musical overtones; its commanding presence without intrusion; its delicate handling of subtle shadings; its authority as it grabs hold of the loudspeaker and breezes through even the most complex musical passages.

The Analog Cell

Stellar's design imperatives -- affordable pricing and uncompromised sonics -- were major challenges solved by the invention of a unique new circuit christened the AnalogCell. Nothing in the design of a power amplifier is more important than its input stage when preserving music's finest nuances. Knowing full well that the input stage determines sonic character, the AnalogCell has been employed to preserve the rich details found in music. The AnalogCell is the heart of the M700's musicality, where rich overlaid layers of music's inner details are preserved even in the most complex orchestral crescendos. As a proprietary, fully differential, zero feedback, discrete, Class A MOSFET circuit, hand-tuned to capture the smallest micro dynamics without sacrificing the loudest macro dynamics music has to offer, the AnalogCell makes all the difference in preserving music's magic.

Output Stage

The Stellar M700 has a massive power supply and ultra-linear, high-wattage power amplification stage based on a modern Class D ICE module. Class D output stages provide near-perfect linearity, low distortion, and high efficiency. Modern Class D amplifiers, like the type used in Stellar, extend high frequencies to about 50kHz. Human hearing limitations are 20kHz, though most listeners rarely have hearing exceeding half that. Providing excellent frequency extremes, low distortion, high efficiency, high damping factor, and a generous and powerful output of 700 watts into the most common loudspeaker loads of 4Ω, the M700 is nothing short of breathtaking. The massively powerful nature of the M700 works well with any loudspeaker—big or small—providing huge amounts of headroom and effortless sound quality for even the most demanding orchestral crescendos.

What owners and reviewers say

I've been putting source material through the rig with the PS Audio Stellar M700's Mono amps for a month and I have been consistently impressed with their musicality and get up and go. These powerful PS Audio Stellar M700 Mono amplifiers are capable of effortlessly driving demanding loudspeaker l...
Greg Voth, Stereo Times · Read full review
In the Stellar M700, PS Audio has designed excellent sounding mono amps that can be the foundation of a reasonably priced high-end audio system. The analog input section is as expansive and natural sounding as the ICE amp modules are powerful and accurate. The resulting sound is a wonderful balan...
Gary L Beard, Positive Feedback · Read full review
There are many excellent-sounding amplifiers in this price range, but few can put out anywhere near as much power as the Stellar M700, and most of those that do don't sound as refined. PS Audio says that the Stellar M700 is one of the most extraordinary monoblocks ever sold for less than 000/pair...
Roger Kanno, SoundStage! · Read full review
PS Audio has been on a roll. That roll continues with the Stellar M700 power amplifier. I have had nothing but good experience with PS Audio products; still, with the Stellar M700, my expectations were exceeded. Having little sound of its own, the M700 delivered well-balanced reproduction that wa...
Robert Deutsch, Stereophile · Read full review
I could not fault the sound of the Gain Cell DAC -- its neutrality and honesty were captivating, leading to compelling listening. During my time with it and the pair of M700s, I always felt they had total control over whatever music was thrown at them, in whatever format. From the understated nua...
Guy Lemcoe, The Audio Beat · Read full review
I was really able to hear the amplifiers' real attributes: astonishing and accurate bass, with sparkling highs that had an almost tube-like sound. How did they accomplish this in such a small footprint for such an amazing price? In the end I believe this is the top of the line in its price range....
Pete Davey, Positive Feedback · Read full review
All PS Audio components I've encountered (or owned) are incredibly well-built and the Stellar line is no exception. They have a weight, look and feel that exudes quality belying their sub-,000 USD total cost and puts me in mind of gear I've reviewed costing double this price point. The PS Audio S...
Rafe Arnott, AudioStream

14-day in-home evaluation

This is not the 30-day new-product trial — it is the Factory Certified evaluation period. How it works, or read the full warranty and returns policy.

Not for sale

We build these in Boulder, Colorado, and we are glad to show our work. Paul answers questions on video most weekdays, and the factory is open to visitors.

M700 Amplifier - Factory Certified

At home

Where it disappears into the music.

14-day in-home evaluation $2,623.00
Add to cart
Call
TALK TO A HI-FI SPECIALIST

Design

The hybrid approach used in the Stellar M700 Power Amplifier takes advantage of the best traits technology has to offer. The perfected analog voltage is then converted into the high current output needed to effortlessly drive your loudspeakers.

Applications

The M700 is Stellar's best. Rated at 350 watts into 8Ω and 700 watts into 4Ω, a pair of these placed on any loudspeaker brings forth the lush, rich, and soul-satisfying power of two completely independent power blocks with headroom to spare. The listening experience with the M700 starts feet tapping and smiles breaking out. One listen to a hugely loud and complex musical passage effortlessly rendered by the M700 pair and you'll know you made the right choice.

Overview

Rated at 350 Watts into 8Ω and 700 Watts into 4Ω, the M700 combines the best of two worlds: ultra linear, high-current, Class D technology for the output stage; a discrete, Class A MOSFET based Analog Cell for the all-important input stage. The Stellar M700 captures the rich, full-bodied essence of recorded music and presents it to your loudspeakers with authority and grace, never a hint of glare or unnaturalness. The M700 is faithful to the music like few amplifiers are. Listeners are constantly surprised at the width and depth of the M700's soundstage; its preservation of the smallest details in reverb, room acoustics, and musical overtones; its commanding presence without intrusion; its delicate handling of subtle shadings; its authority as it grabs hold of the loudspeaker and breezes through even the most complex musical passages.

The Analog Cell

Stellar's design imperatives -- affordable pricing and uncompromised sonics -- were major challenges solved by the invention of a unique new circuit christened the AnalogCell. Nothing in the design of a power amplifier is more important than its input stage when preserving music's finest nuances. Knowing full well that the input stage determines sonic character, the AnalogCell has been employed to preserve the rich details found in music. The AnalogCell is the heart of the M700's musicality, where rich overlaid layers of music's inner details are preserved even in the most complex orchestral crescendos. As a proprietary, fully differential, zero feedback, discrete, Class A MOSFET circuit, hand-tuned to capture the smallest micro dynamics without sacrificing the loudest macro dynamics music has to offer, the AnalogCell makes all the difference in preserving music's magic.

Output Stage

The Stellar M700 has a massive power supply and ultra-linear, high-wattage power amplification stage based on a modern Class D ICE module. Class D output stages provide near-perfect linearity, low distortion, and high efficiency. Modern Class D amplifiers, like the type used in Stellar, extend high frequencies to about 50kHz. Human hearing limitations are 20kHz, though most listeners rarely have hearing exceeding half that. Providing excellent frequency extremes, low distortion, high efficiency, high damping factor, and a generous and powerful output of 700 watts into the most common loudspeaker loads of 4Ω, the M700 is nothing short of breathtaking. The massively powerful nature of the M700 works well with any loudspeaker—big or small—providing huge amounts of headroom and effortless sound quality for even the most demanding orchestral crescendos.

Features

15 key features

MONO POWER AMPLIFIER PAIR

ZERO-LOSS ANALOG CELL INPUT

POWERFUL MOSFET OUTPUT STAGE

RCA SINGLE-ENDED INPUT

XLR "TRUE" BALANCED INPUT

350 WATTS PER 8Ω CHANNEL

700 WATTS PER 4Ω CHANNEL

2Ω STABLE

< 0.1% THD 20Hz 20kHz AT RATED POWER

DAMPING FACTOR = 1100

FRONT PANEL STANDBY

VERY LITTLE HEAT PRODUCTION

DUAL, SOLID, COPPER PLATED OUTPUT POSTS

27 LBS

INPUT 12v TRIGGER

Reviews

7 reviews
Greg Voth, Stereo Times
Greg Voth, Stereo Times

I've been putting source material through the rig with the PS Audio Stellar M700's Mono amps for a month and I have been consistently impressed with their musicality and get up and go. These powerful PS Audio Stellar M700 Mono amplifiers are capable of effortlessly driving demanding loudspeaker loads to concert levels. This may be the first higher-priced component I can't live with out... but wait, there's more

Read full review →
Gary L Beard, Positive Feedback
Gary L Beard, Positive Feedback

In the Stellar M700, PS Audio has designed excellent sounding mono amps that can be the foundation of a reasonably priced high-end audio system. The analog input section is as expansive and natural sounding as the ICE amp modules are powerful and accurate. The resulting sound is a wonderful balance between expression and precision, allowing the amps to disappear within the audio chain. They clearly take on the signal they are fed, allowing a great front end to weave its audio magic

Read full review →
Roger Kanno, SoundStage!
Roger Kanno, SoundStage!

There are many excellent-sounding amplifiers in this price range, but few can put out anywhere near as much power as the Stellar M700, and most of those that do don't sound as refined. PS Audio says that the Stellar M700 is one of the most extraordinary monoblocks ever sold for less than 000/pair. I have to agree. The Stellar M700 is my new favorite entry-level high-end power amplifier

Read full review →
Robert Deutsch, Stereophile
Robert Deutsch, Stereophile

PS Audio has been on a roll. That roll continues with the Stellar M700 power amplifier. I have had nothing but good experience with PS Audio products; still, with the Stellar M700, my expectations were exceeded. Having little sound of its own, the M700 delivered well-balanced reproduction that was always faithful to the music… the Stellar M700s came ever so close to matching the sound of my high-end reference monoblocks

Read full review →
Guy Lemcoe, The Audio Beat
Guy Lemcoe, The Audio Beat

I could not fault the sound of the Gain Cell DAC -- its neutrality and honesty were captivating, leading to compelling listening. During my time with it and the pair of M700s, I always felt they had total control over whatever music was thrown at them, in whatever format. From the understated nuance of an unaccompanied lute to the bombast of a symphony orchestra going full tilt, the laid-back drive of dub or the pulse of electronica, I not once felt deprived of any of the music's emotion

Read full review →
Pete Davey, Positive Feedback
Pete Davey, Positive Feedback

I was really able to hear the amplifiers' real attributes: astonishing and accurate bass, with sparkling highs that had an almost tube-like sound. How did they accomplish this in such a small footprint for such an amazing price? In the end I believe this is the top of the line in its price range. Nothing comes close—the sheer amount of power and sound quality that comes from these little chassis is nothing but pure engineering magic. Kudos to the PS Audio team for coming up with such a simple

Read full review →
Rafe Arnott, AudioStream
Rafe Arnott, AudioStream

All PS Audio components I've encountered (or owned) are incredibly well-built and the Stellar line is no exception. They have a weight, look and feel that exudes quality belying their sub-,000 USD total cost and puts me in mind of gear I've reviewed costing double this price point. The PS Audio Stellar 'three-fer' proved itself to sound far more captivating, powerful, lyrical, musical and possess a humanity to its sonic signature in playback of all types of music than I previously thought

Want to leave your own review?

Specifications

Technical details

Stellar M700 Mono Amplifier

Unit Weight 13 lbs [5.9 kg] (each)
Unit Dimensions 17”W x 3”H x 12”D (13"D w/connectors)
17”W x 6”H x 12”D (Stacked)
Shipping Weight 16.5 lbs [7.5 kg] (each)
Shipping Dimensions 22”W x 8”H x 17”D (each)
Color Options Black
Silver
Voltage Options
(Factory set only)
Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V
Mains Power Inputs IEC C14
Idle Power Consumption 23W
Accessories Included US (NEMA 5-15P) (all versions)
Schuko (CEE7/7) (230V version)
UK (BS 1363) (230V version)
Audio Inputs RCA (Unbalanced)
XLR (Balanced)
Speaker Outputs Copper base nickel plated binding posts (2 pair)
DC Trigger Input 3.5mm 5-15VDC
Warranty 3 years parts and labor

Signal

Gain 30.5dB +/-0.5dB
Sensitivity for rated output power 1.6V
Noise 1kHz@700 Watts < -105dB
Input impedance Unbalanced 50KΩ
Balanced 100KΩ
Output Impedance 50Hz, 2.8VRMS <0.007Ω
Damping factor 50Hz. 2.8VRMS
8Ω >1100
4Ω >550
Frequency Response 2.8VRMS into 4Ω
10Hz – 20KHz +/- 0.5dB
10Hz – 50KHz +0.1/-3.0dB

THD&IM

1KHz, 1W/4Ω <0.02%
10-20KHz, 1W/4Ω <0.02%
10-50KHz, 1W/4Ω < 0.05% (90kHz BW)
1KHz, 87.5W/4Ω < 0.015%

Output Power

120vac mains, 1kHz, 1% THD
8Ω 350W minimum
4Ω 700W minimum
2Ω Stable for musical transients

Questions?

Need help right now?

💬 Try our Virtual Audio Specialist! Get instant answers about products, setup, and technical questions. Just click the chat icon in the lower right corner.

If that doesn't work for you, feel free to use this form below, or call a real Audio Specialist at 800-PSAUDIO (800-772-8346), Monday through Friday, 9am to 5pm MST.

Specifications

Stellar M700 Mono Amplifier

Unit Weight 13 lbs [5.9 kg] (each)
Unit Dimensions 17”W x 3”H x 12”D (13"D w/connectors)
17”W x 6”H x 12”D (Stacked)
Shipping Weight 16.5 lbs [7.5 kg] (each)
Shipping Dimensions 22”W x 8”H x 17”D (each)
Color Options Black
Silver
Voltage Options
(Factory set only)
Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V
Mains Power Inputs IEC C14
Idle Power Consumption 23W
Accessories Included US (NEMA 5-15P) (all versions)
Schuko (CEE7/7) (230V version)
UK (BS 1363) (230V version)
Audio Inputs RCA (Unbalanced)
XLR (Balanced)
Speaker Outputs Copper base nickel plated binding posts (2 pair)
DC Trigger Input 3.5mm 5-15VDC
Warranty 3 years parts and labor

Signal

Gain 30.5dB +/-0.5dB
Sensitivity for rated output power 1.6V
Noise 1kHz@700 Watts < -105dB
Input impedance Unbalanced 50KΩ
Balanced 100KΩ
Output Impedance 50Hz, 2.8VRMS <0.007Ω
Damping factor 50Hz. 2.8VRMS
8Ω >1100
4Ω >550
Frequency Response 2.8VRMS into 4Ω
10Hz – 20KHz +/- 0.5dB
10Hz – 50KHz +0.1/-3.0dB

THD&IM

1KHz, 1W/4Ω <0.02%
10-20KHz, 1W/4Ω <0.02%
10-50KHz, 1W/4Ω < 0.05% (90kHz BW)
1KHz, 87.5W/4Ω < 0.015%

Output Power

120vac mains, 1kHz, 1% THD
8Ω 350W minimum
4Ω 700W minimum
2Ω Stable for musical transients

Recommended products
