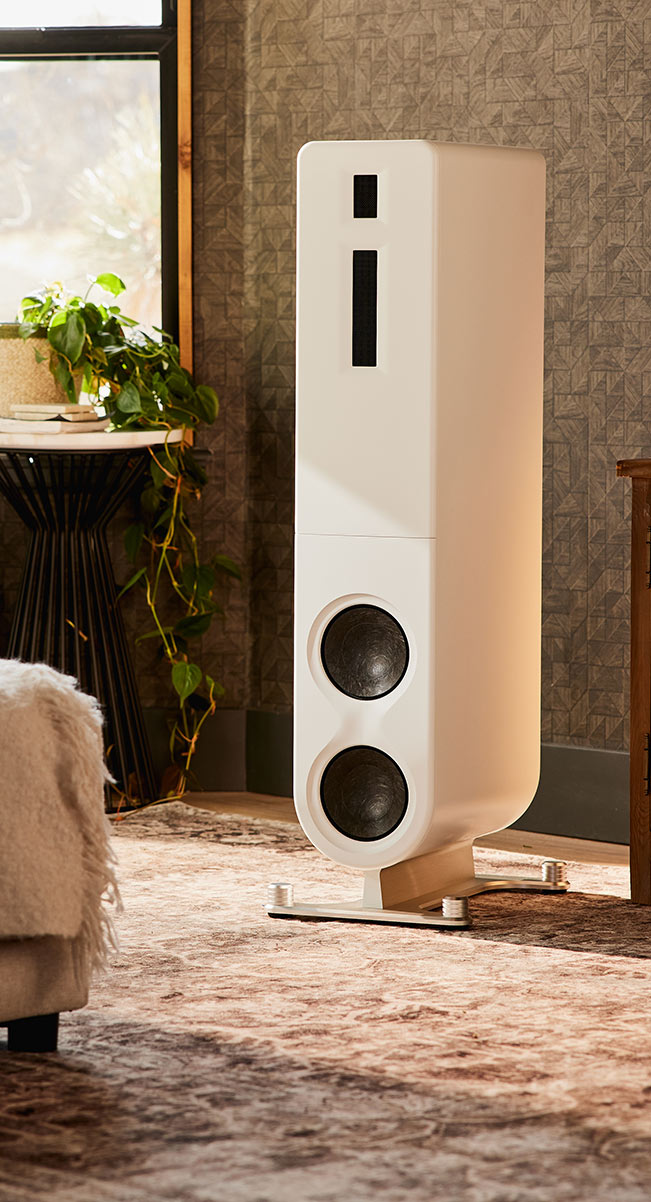

Satin White Pair
  • Satin White Pair
  • Satin White Pair
  • Satin White Pair

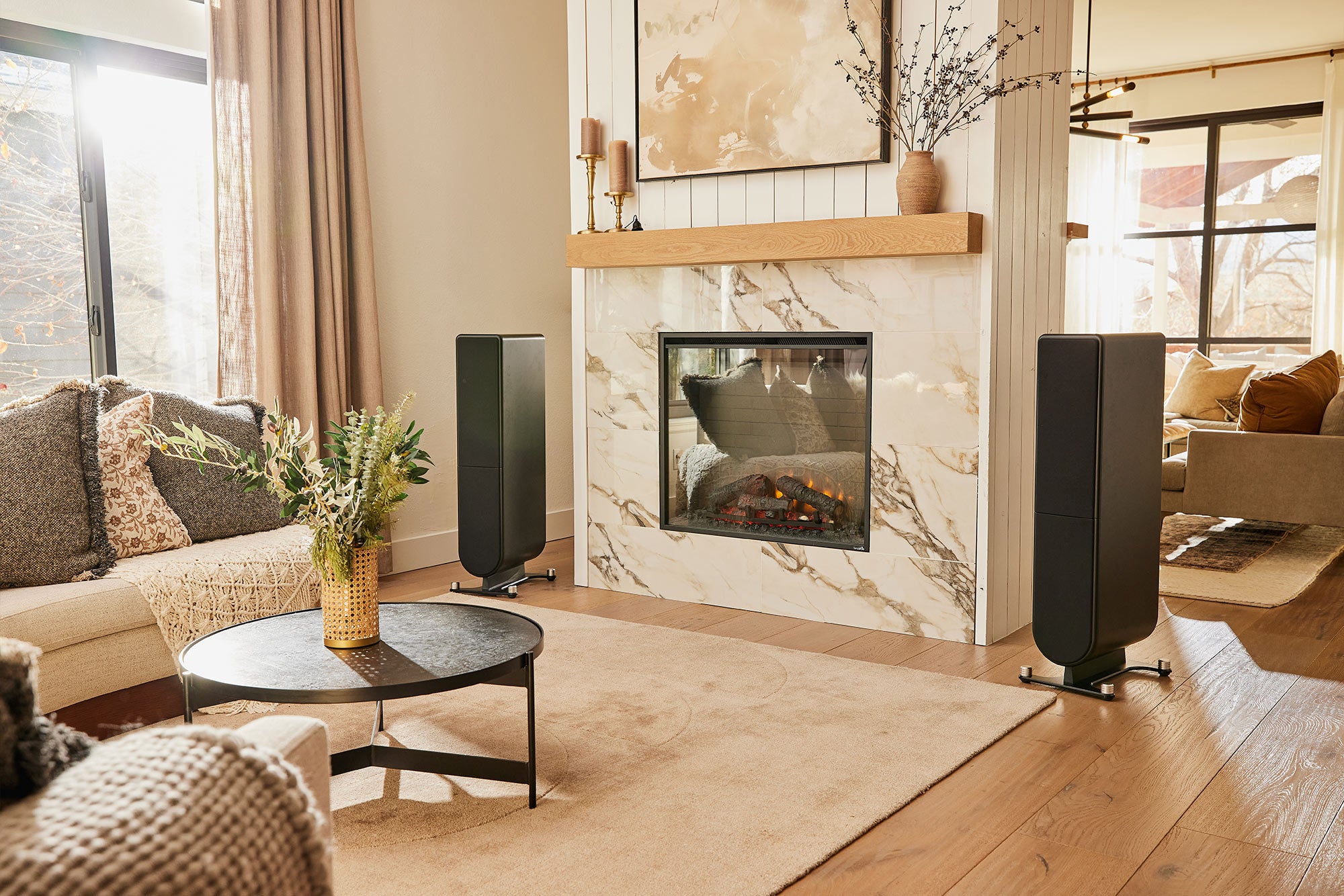

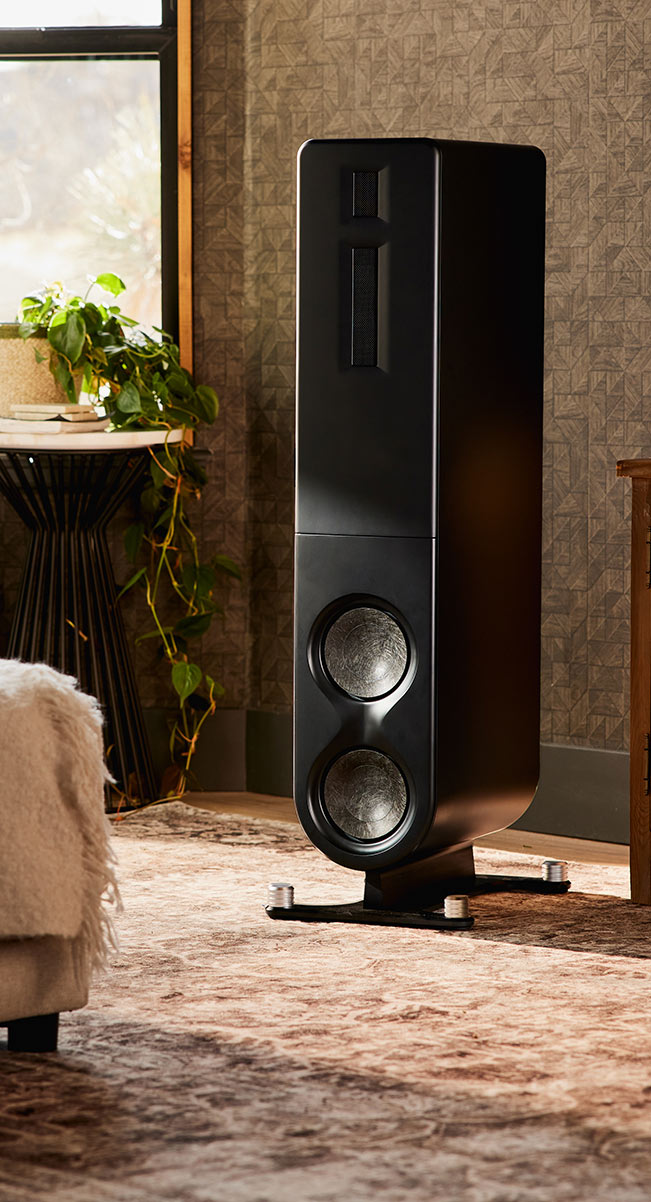

  • Satin Black Pair
  • Satin Black Pair
  • Satin White Pair
  • Satin White Pair
  • Satin White Pair
  • Satin Black Pair
  • Satin Black Pair
href="/products/aspen-fr10-loudspeaker?variant=47187108397346" class="link" >Aspen FR10 Loudspeaker

Aspen FR10 Loudspeaker

The perfect size loudspeaker for any room.<br /><p style="font-weight: bold;">Hi-Fi News says the Aspen FR10 sets the $10k standard. Check out the rest of the review <a href="https://cdn.shopify.com/s/files/1/0672/2283/1394/files/Hi-Fi_News_April_2024_PS_Audio_aspen_FR10_with_cover.pdf?v=1710969693" target="_blank">here</a>.</p>

The ground-breaking Aspen series of loudspeakers sets new standards for what is possible in home audio reproduction. Now, with the introduction of our most compact loudspeaker yet, the FR10, it is finally possible to bring the magic of Aspens into everyone’s home.

The Aspen loudspeaker series represents the culmination of 50 years of industry experience; learning in intimate detail what works and what does not; what it takes for a loudspeaker to disappear and leave only the magic of the music; designing a no-compromise phase-correct crossover; constructing a cabinet that does not color the sound; crafting a speaker that is easily driven with any decent power amplifier, and when not even the most advanced driver manufacturer’s products are good enough to meet our exacting standards, designing woofers, radiators, tweeters, and midranges from scratch. In all respects, the FR10 will transcend your expectations of what a small floor-standing loudspeaker can do.

No longer do you have to compromise.

Breathtaking to listen to, beautiful to behold, fits in any size room, with bass that will astound you, the Aspen FR10 is a dream come true.

Save up to 40% on Aspen Loudspeakers. Click "Trade-up" below to see the new price.
$9,999.00

Design

The FR10 joins the ranks of a rare handful of true full-range speakers that can honestly cover the frequency range of 30Hz to beyond 20kHz with grace, dynamics, slam, and low distortion—and work in any small to medium-sized room. Within moments of installing your new Aspen FR10 loudspeakers, you'll instantly be transported to a new level of musical ecstacy. What's captured on the disc is exactly what you'll hear with a greater resolution than most have ever experienced. Grace, beauty, PRaT, power, and a musicality that is rare amongst 6 figure offerings from other manufacturers await owners of the Aspen FR10. That this speaker is financially within reach of many makes it a miracle.

Application

Loudspeakers are part of the family. With their presence, they grace our homes and living areas by bringing the joy of music into our lives. Unlike the electronics that drive them, to perform their best most loudspeakers depend on proper placement and optimized room parameters. The Aspen FR10, however, is designed to more easily fit into any living environment and perform at their best with a minimum of setup hassles and a maximum of options. While the FR10, like all high-performance speakers, appreciates some breathing room between them and the front wall, placement in the room for best performance is a snap. Using the included step-by-step guide and CD, setup, from unboxing to playing music, happens easily in a few short hours.

Overview

By far the most important piece in the HiFi chain is the loudspeaker. If the speaker cannot reproduce what it is fed from the electronic chain, the missing musical information is forever lost. To achieve all that music demands, over the years, loudspeaker designers have tried to leverage every trick in the book: electrostats for details, conventional drivers for dynamics, planars for transparency, ribbons, domes, horns, open baffles, bipoles, dipoles. The list is endless and the choices and their inevitable sonic compromises daunting. With close to 50 years under our collective belts, we at PS Audio determined to design the perfect loudspeaker for every application, room size, and budgets. In the Aspen series we start with the FR30, then move to the FR20 and then the FR10. Each is a full range state-of-the-art loudspeaker that covers the range of possibilities from small to large rooms and to meet every budget need. The FR10 will fit into every small to medium sized room and provide room-shaking bass down to 30Hz. For the upper end, the FR10 employs the same Aspen planar tweeter as found in both the FR20 and FR30. For our legendary open midrange, the FR10 relies upon the same planar technology as found in its bigger counterparts. Without question, the Aspen FR10 is the perfect loudspeaker for any room and budget.

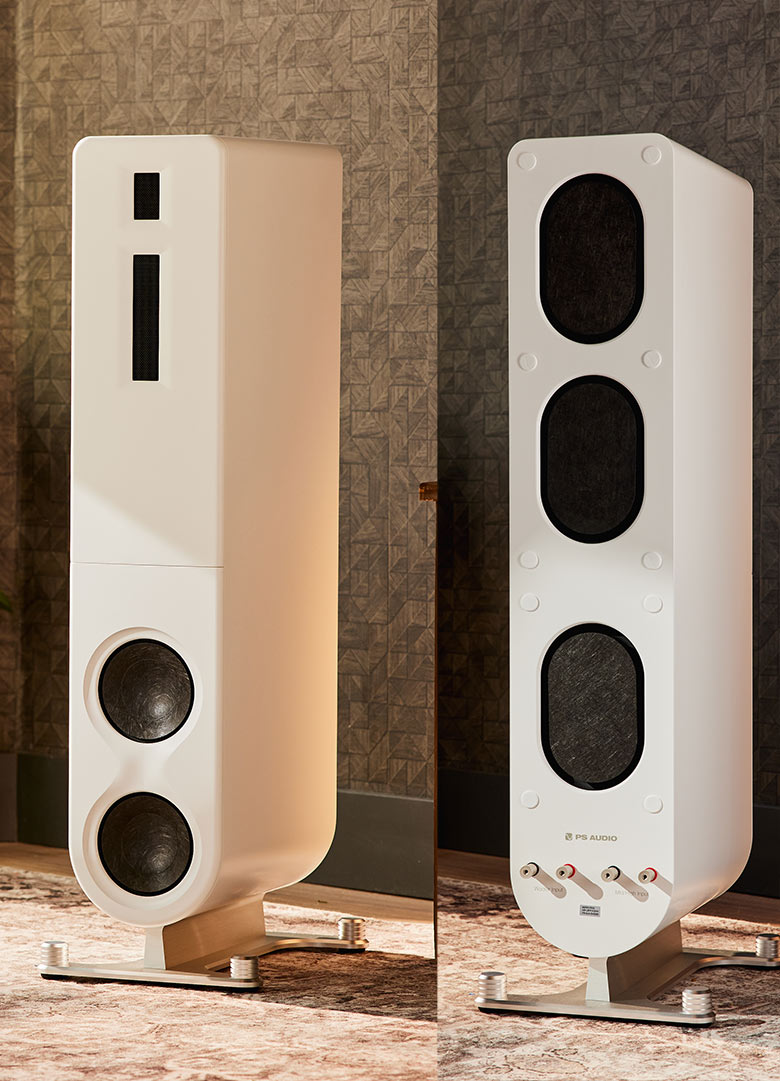

The Drivers

The heart and soul of any loudspeaker are its drivers, the transducers that in response to the amplifier's demands pressurize the air and generate the music. Each driver must be optimized for the task at hand. In the FR10, it quickly became apparent we could not source from even the most advanced driver manufacturers in the world the ultra-low-distortion high-dynamic output drivers we would need to build the FR10. We started with our tweeter and midrange for here are the two most difficult drivers to perfect. Moving air at high frequencies without colorations or distortion is a daunting task. On the FR10 we chose to go with a technology that has the speed of an electrostat with the dynamics of a cone. Planar Magnetics. These ultra-low distortion drivers are equally driven with front and rear magnetic structures that offer inherent linearity through symmetrical “push-pull” neodymium motor structures and directly driven ultra-low mass diaphragms with none of the cone or dome breakup, inductance modulation, or hysteresis distortion that plagues traditional drivers. For the low end, we crafted long-throw high-excursion 6.5" woofers that match the effortlessness and transparency of the planar magnetic drivers. To lower distortion, we employed a unique split magnetic gap and a double Faraday ring for low, linear inductance and wide bandwidth, coupled with a single progressive Nomex spider with stitched-in lead wires. The woofer cones are a low-mass Rohacell foam core. Lastly, to achieve maximum linearity and extended deep bass extension without the compression and distortion of ports, we implemented 3 rear-mounted high-compliance passive radiators. Together, these elements create a stunning presentation of music in your home.

The Enclosure

Loudspeakers have an honored place in our homes. They often are the focal point of our living rooms and, in that capacity, must proudly make a statement of fitting elegance. The Aspen FR10 enclosure design starts with the internal structure necessary for great sound and then lovingly sculpted into a work of art befitting our homes. With industrial design by famed Studio 63, the FR10's elegant look and smaller form factor complements every decor. Internally, the FR10 is an extensively braced enclosure designed to minimize external vibrations that have the potential of coloring the sound. Externally, the enclosures are lovingly finished with 20 coats of hand-rubbed high-grade lacquer. While the main body and baffling structure are built with MDF, the sculpted front baffle is formed from a dense, rigid and well-damped high-tech thermoset fiberglass resin composite material with integrated high-frequency acoustic waveguides. The speakers look to be almost floating as its curved bottom rests upon its sturdy aluminum base featuring large milled brass spikes with removable tips and integrated plastic feet for hard surfaces (and to aid in speaker placement). A masterpiece of design and love, crafted by those of us that care deeply about music and its reproduction in the home.

Features

16 key features

FULL-RANGE 3-WAY SYSTEM

86.5 dB SENSITIVITY

ONE 2.5" PLANAR RIBBON TWEETER

8" PLANAR RIBBON MIDRANGE

TWO 6.5" LOW DISTORTION HIGH EXCURSION WOOFERS

THREE 6X9” HIGH EXCURSION PASSIVE RADIATORS

NON-WOVEN CARBON FIBER SKIN ON ROACELL FOAM CORE WOOFER CONES

THERMOSET FIBERGLASS RESIN FRONT BAFFLES

SMOOTH AND FULL OFF AXIS RESPONSE

ONE PIECE CABINET FOR EASY SETUP

SOFT RUBBER FEET WITH REMOVABLE STAINLESS STEEL SPIKES AND MILLED ALUMINUM TOP CAP NUT

EASY TO POSITION FOR BEST PERFORMANCE

HEAVY INTERNAL BRACING FOR LOW CABINET VIBRATION

CUSTOM FILM CAPACITORS & PREMIUM AIR-CORE INDUCTORS

MAGNETICALLY ATTACHED GRILLES

MILLED, GRAINED AND ANODIZED ALUMINUM BASE

Reviews

reviews
Adrian Alexander, The Absolute Sound
Adrian Alexander, The Absolute Sound

Extremely low & tight bass. Well-blended, smooth & silky treble

Read full review →
Positive Feedback
Positive Feedback

The PS Audio Aspen FR10 loudspeaker is a great-looking and serious audiophile speaker, capable of delivering wonderfully immersive aural experiences. Whether you're into vinyl, streaming, digital file playback, or enjoying an HD show or movie over your Hifi system, the FR10s render it wondrously.

Read full review →
Hi-Fi News
Hi-Fi News

The FR 10s have a charming openness and spatiality.” They generate “an impressive feeling of scale and authority from a soundstage that’s typically ‘grand’.” In the summary verdict section of the review, the FR 10s are described as providing “a big-hearted, ebullient and hugely enjoyable performance across the board.” With careful setup, they offer “a scale and level of authority that belies their compact dimensions.

Read full review →
Erin’s Audio Corner

Two things I noticed about this speaker, consistently, …is the mid-base and lower mid-range transition area … there’s a lot of strong upper mid-base punch that I really appreciated. … The other thing I liked…is the sound stage width …there’s a good wide sound stage but the instruments and the layering and the precision of objects within the sound stage are very well defined

Read full review →
Maciej Stryjecki Hifi and Music
Maciej Stryjecki Hifi and Music

The scope, imagination, broad gesture – isn’t this the idea of ​​American sound? Here it becomes real. The speakers are extraordinary, and I can’t wait for the monitor

Read full review →
Christian Bayer 7Review
Christian Bayer 7Review

A stupendous spatial impression is given right from the start. Even the dispersion behavior is fantastic, and the ease of reproduction reminds one of pure planar speakers.

Read full review →

Want to leave your own review?

Write a Review

Share your experience with Aspen FR10 Loudspeaker

Specifications

Technical details
Color Options Satin White, Satin Black
Enclosure Type Passive radiator (three 6x9” oval rear-firing)
High Frequency Transducer 2.5” planar magnetic with Teonex diaphragm
Mid Frequency Transducer 8” planar magnetic with Teonex diaphragm
Low Frequency Transducer 2 x 6.5” woofers, cast frame, non-woven carbon fiber PMI foam sandwich cone, advanced magnet structure
Crossover Frequency 550 Hz, 1750 Hz - Linkwitz-Riley 4th order acoustic
Sensitivity (2.83V @ 1M) 86.5 dB
Nominal Impedance 4 ohm (3.3 ohm minimum impedance)
Recommended Amplifier Power 50-200W
Frequency Response 32 Hz-20 kHz (-6dB) half space, 25 Hz (-6 dB) in-room
Dimensions (HxWxD)

41.5” x 11.75” x 16.25” with base (8” width not including base)
Net Weight 75 lbs (34.1 kg)
