Sprout100 - Factory Certified

<strong>As PS Audio's newest, first-tier integrated amplifier, Sprout100 represents our vision of a simple, elegant means of playing music at home.</strong>

Sprout represents our vision of a simple, elegant means of playing music at home. We created it for those of us who want quality sound without the hassles that sometimes come with it. Sprout features a phono preamplifier for vinyl, a Bluetooth receiver for music streamed from smartphones, a high-quality hi-res DAC to handle anything stored on a computer, enough power for any speaker, and a headphone amp that drives even the toughest loads. Roughly the size of a large novel, Sprout100 is a source of music for those who want quality sound without the hassles that come with it.

Note:

$499.00 $799.00
Factory Certified 14-Day In-Home Evaluation Click for details
Call
TALK TO A HI-FI SPECIALIST
1-800-PSAUDIO

Design

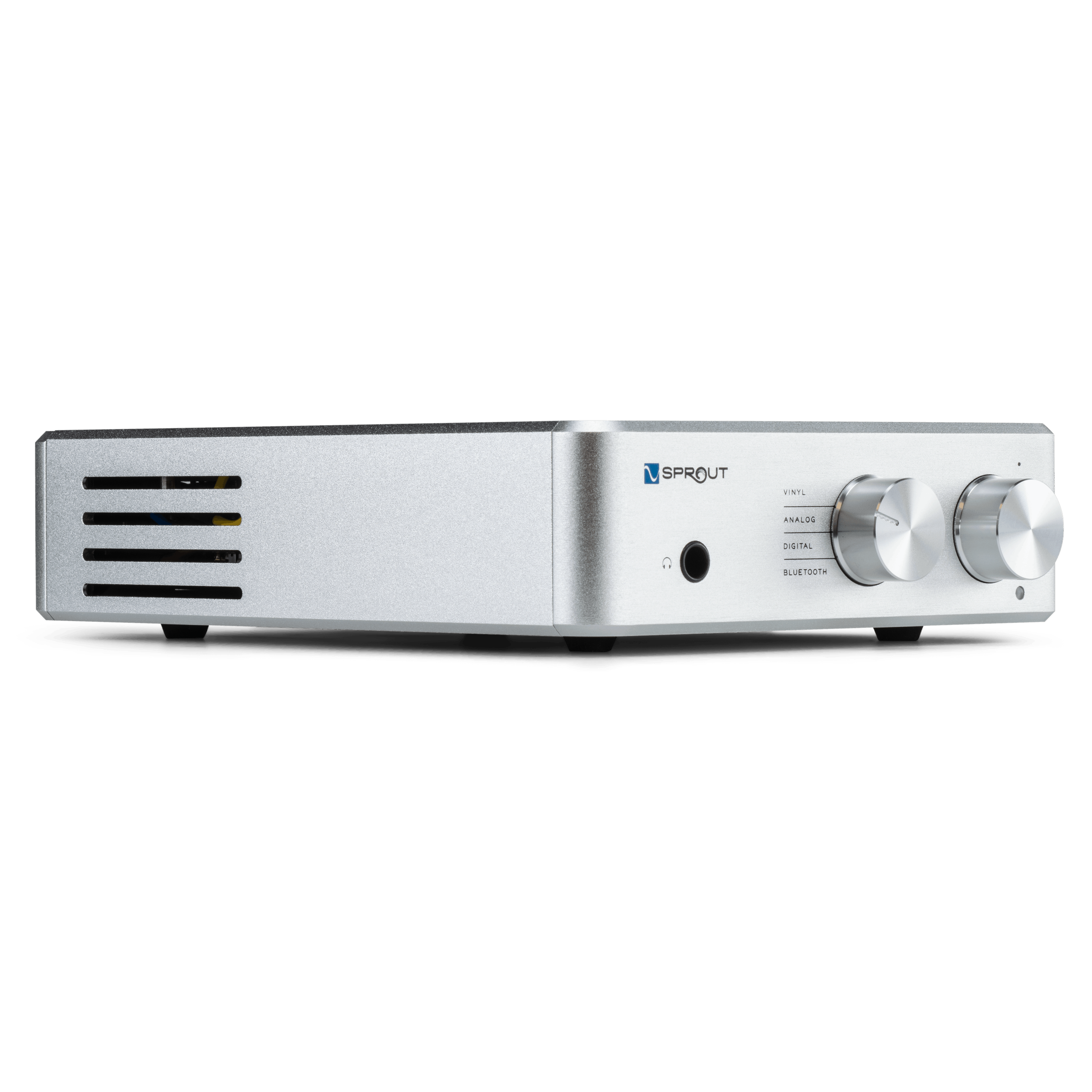

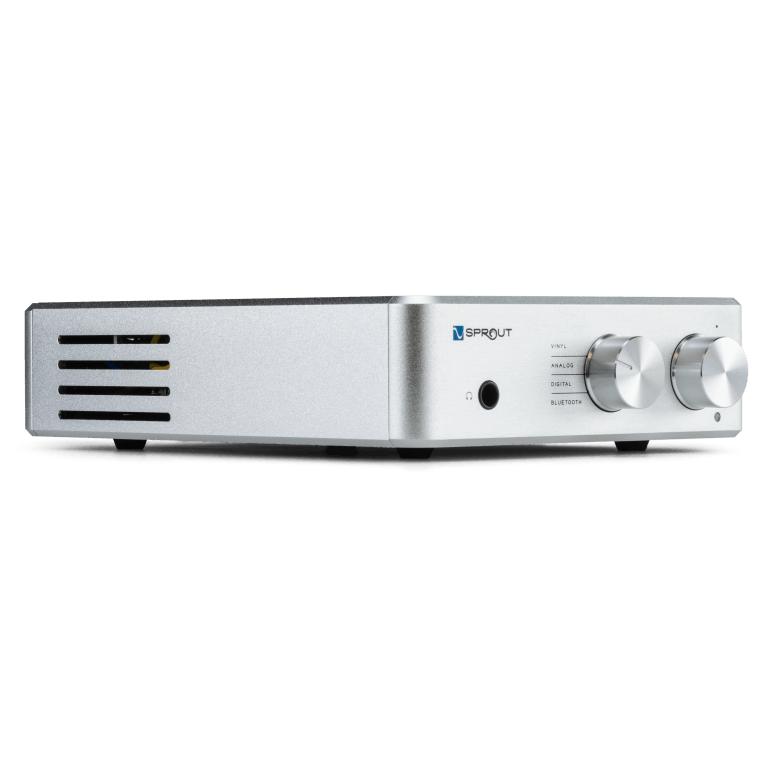

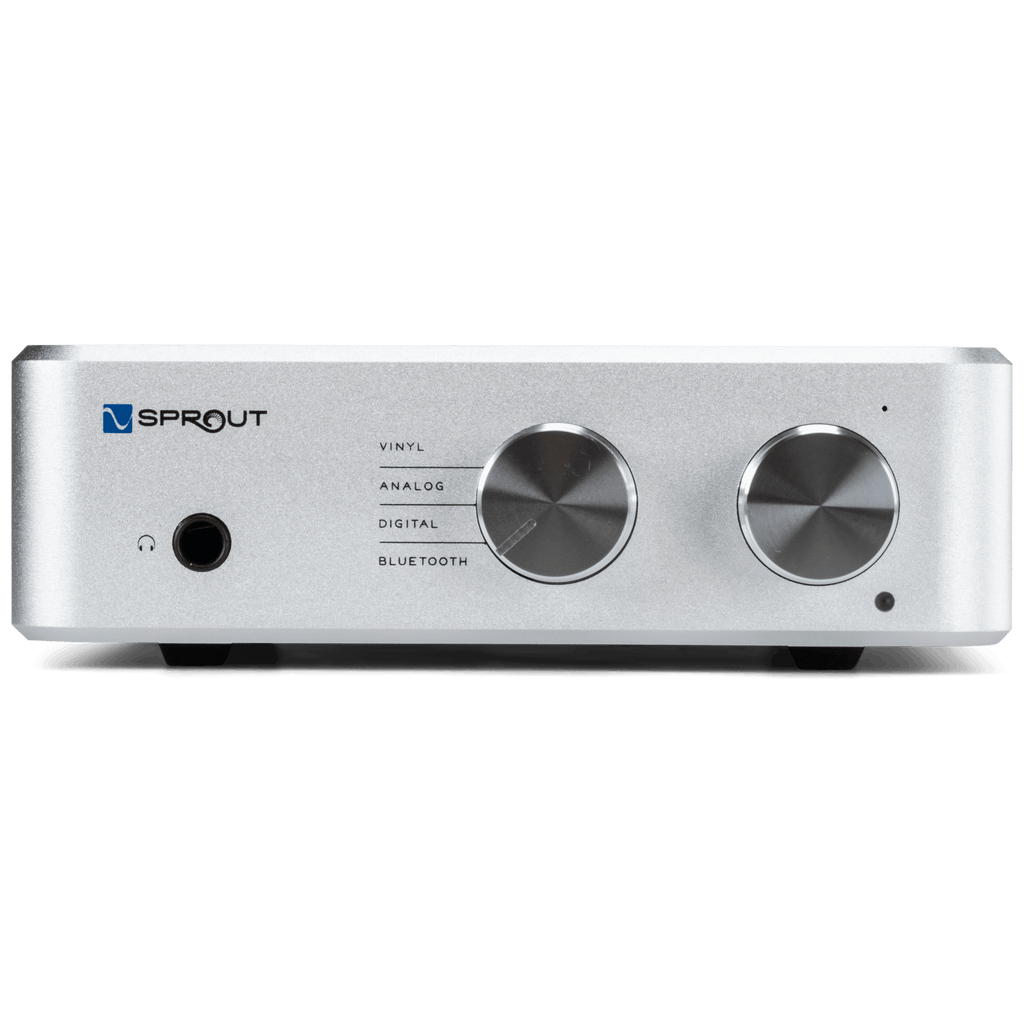

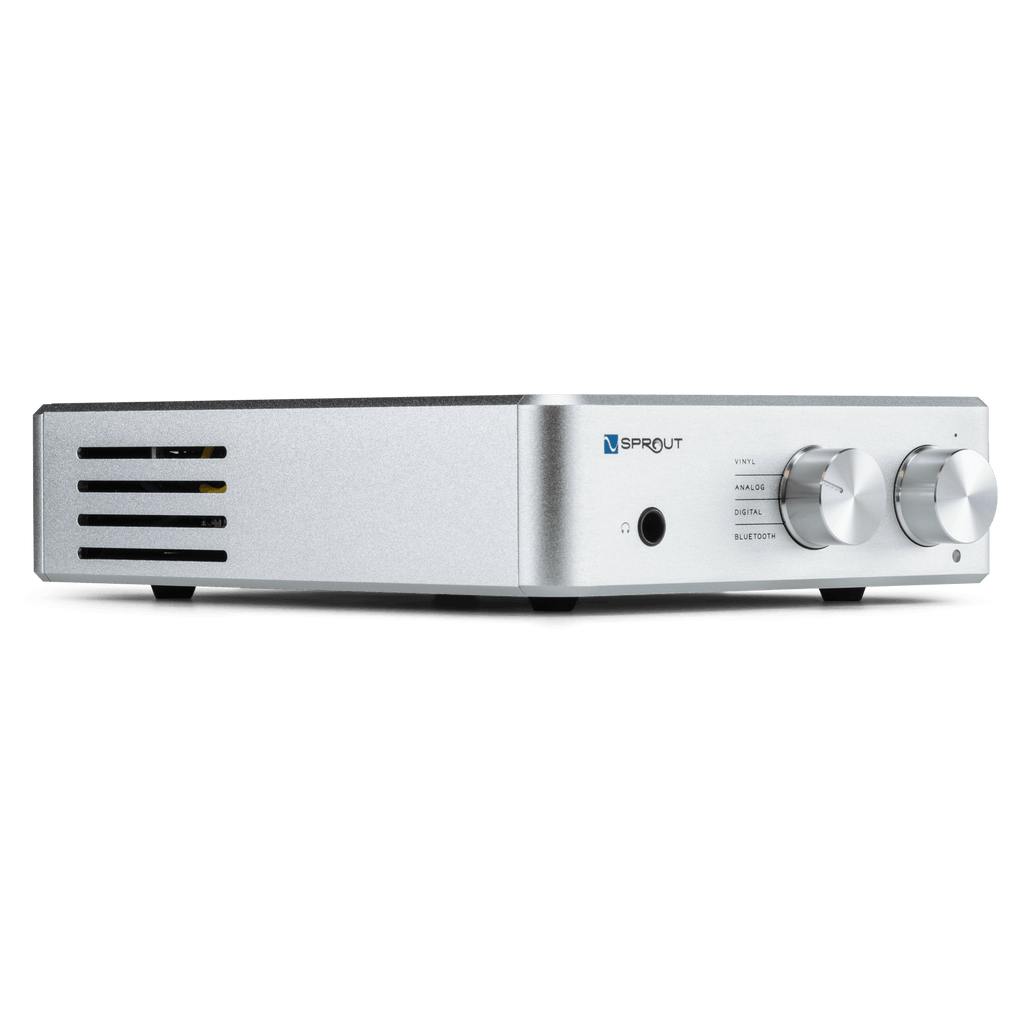

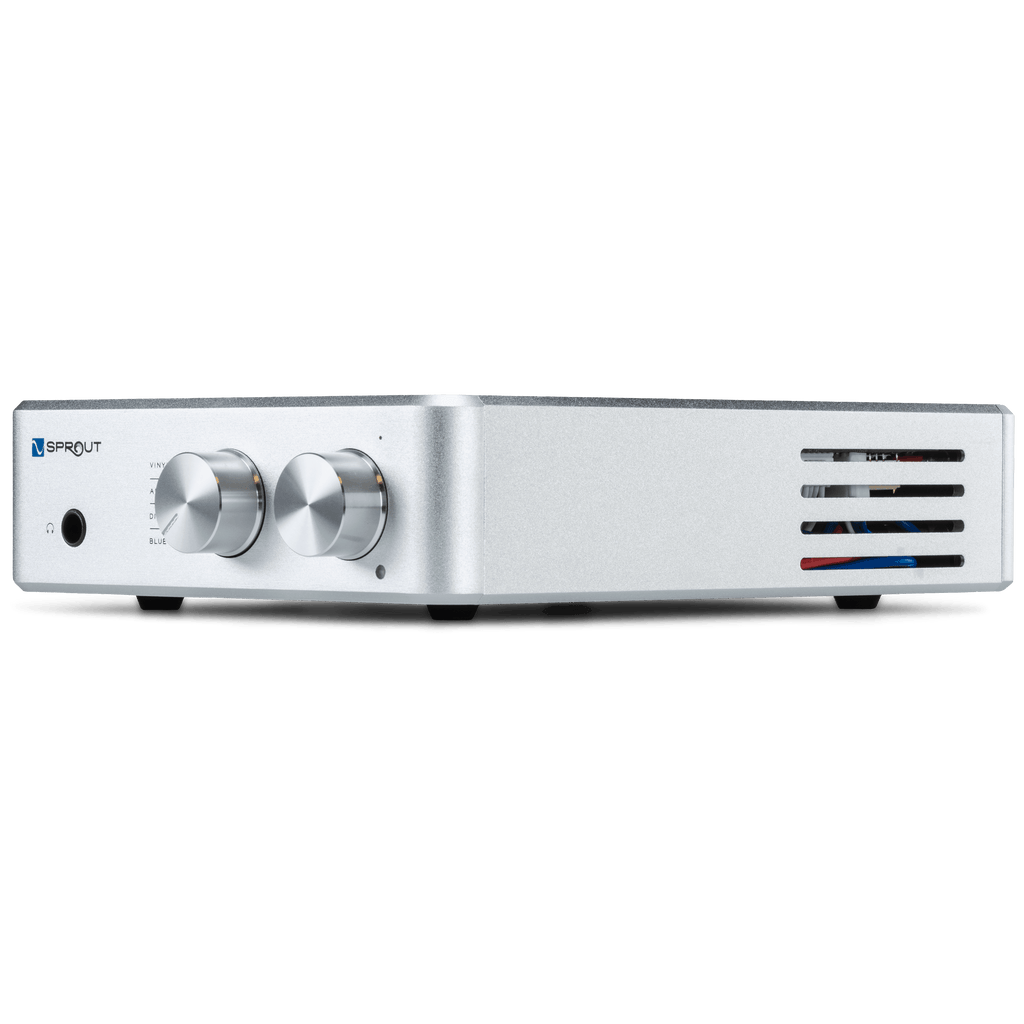

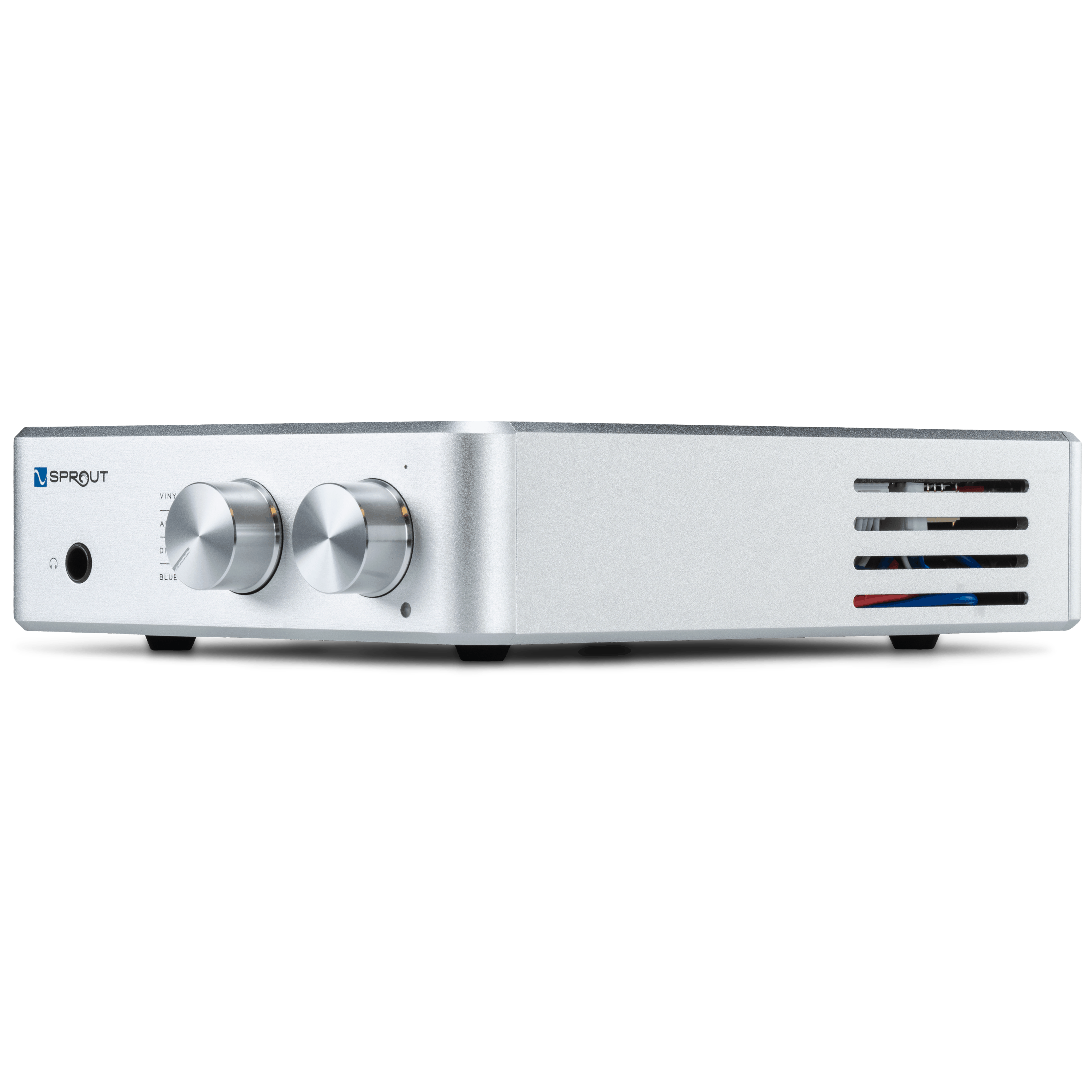

Designed to be compact and elegantly versatile, Sprout100 brings the content of yesterday to the technology of today. Sprout100 offers a maximum-resolution DAC, a variable subwoofer mono output, full RCA analog in/out connectors, a world-class RIAA phono-stage, a z-feedback low impedance headphone amplifier, and a universal internal power supply that allows you to take your new integrated amplifier abroad for maximum flexibility. Adorned with real walnut and machined aluminum knobs, each and every Sprout100 is unique.

Applications

Sprout100's ease of use makes it appealing and accessible to those who would find most audio gear intimidating. Sonically notable for its lucid spatial detail, acute tonal retrieval, and commanding noise immunity, Sprout100 is equipped to drive your loudspeakers and headphones better than ever. For those seeking a better, simpler way to play music in their home, Sprout100 will fill your living room, bedroom, or any room with enormous, live sound. Sprout100 provides quality without complication.

Overview

Sprout is a simple, elegant source of music for those who want quality sound without the hassles that come with it. Sprout was designed by PS Audio's Scott McGowan as an answer to the complexity and cost of Audiophile systems. Appealing to the eye and ear, solid and reassuring to the touch, Sprout’s ease of use makes it appealing and accessible to music lovers around the world. It features a phono preamplifier for vinyl, a Bluetooth receiver for music streamed from smartphones, a high-quality hi-res DAC to handle anything stored on a computer, enough power for any speaker, and a headphone amp that drives even the toughest loads.

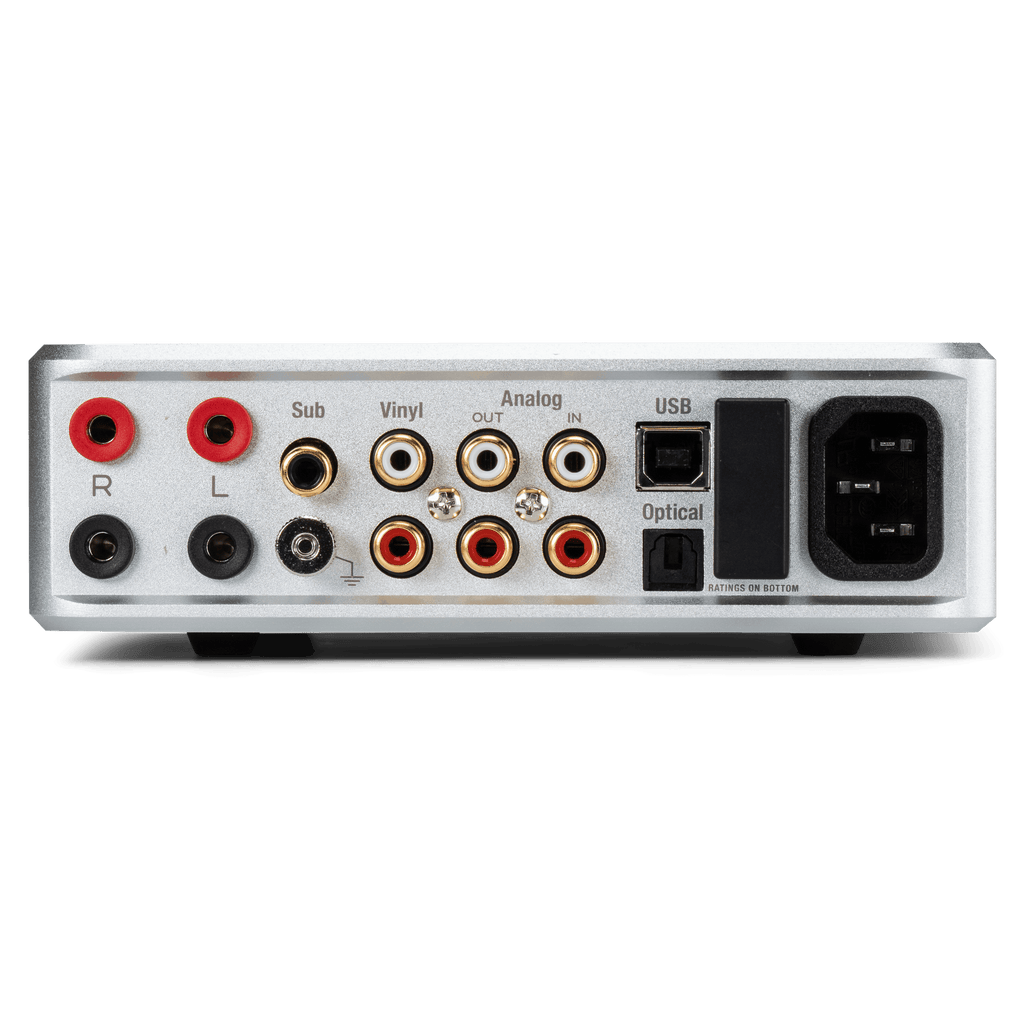

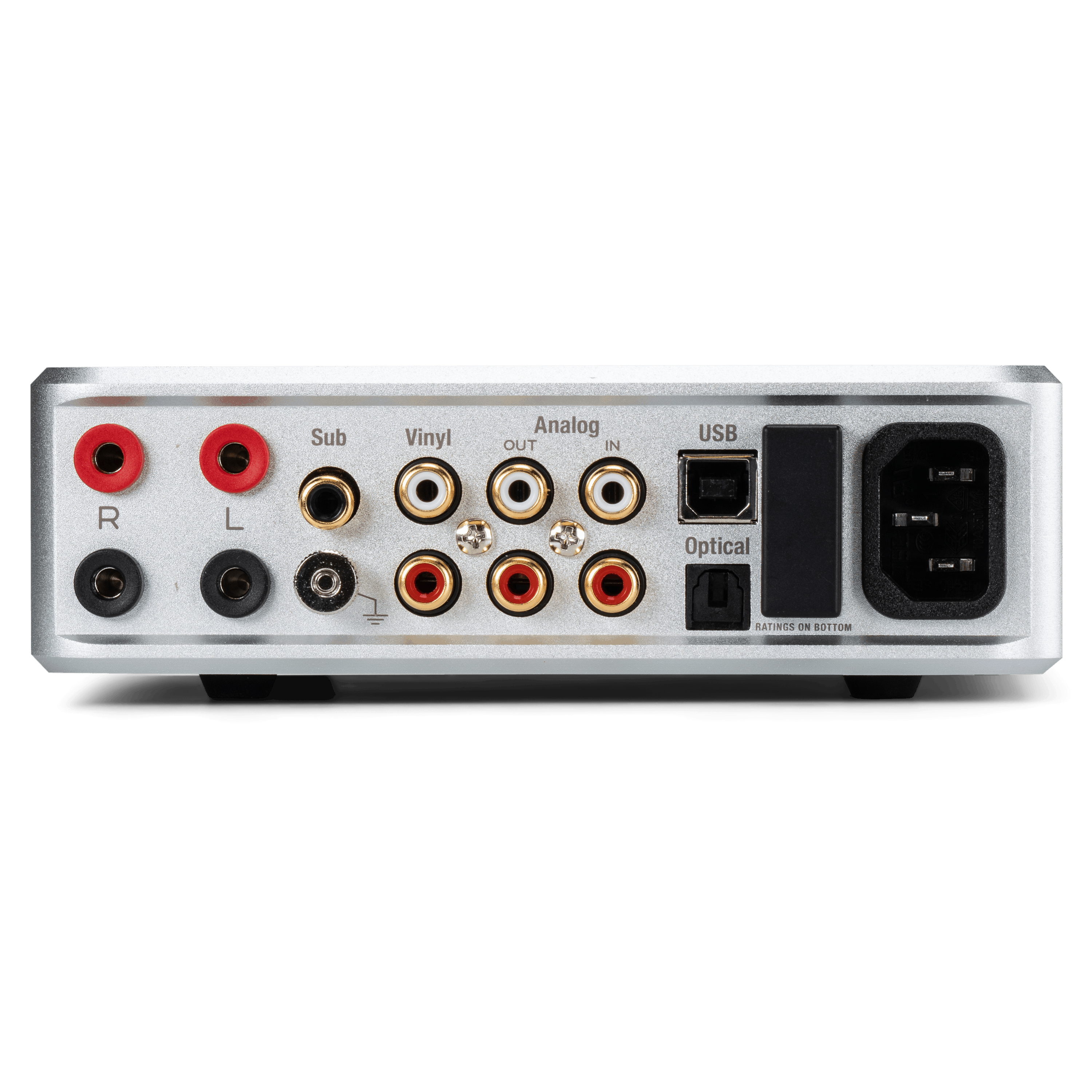

Inputs

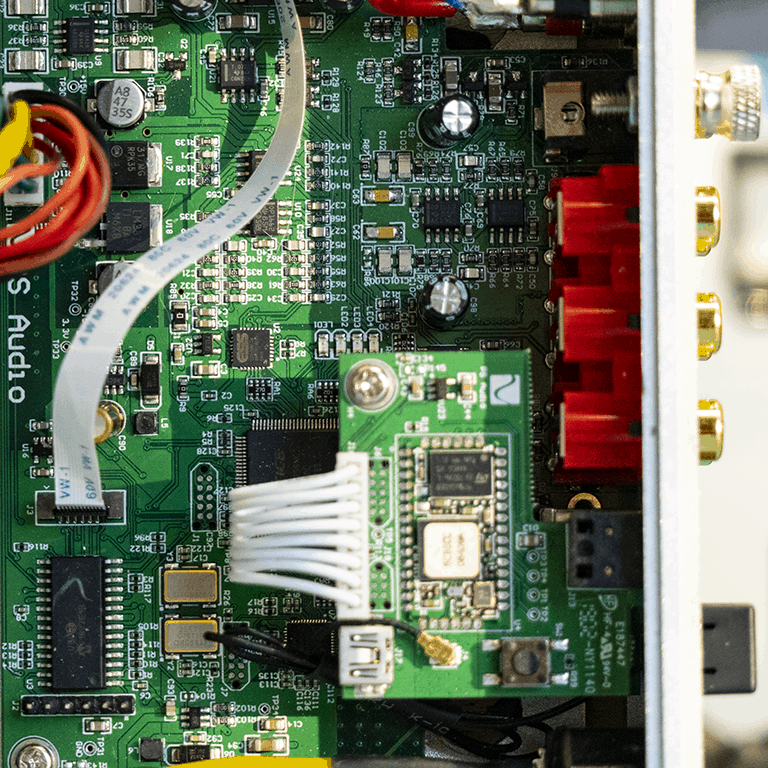

To ensure the best possible vinyl reproduction, we engineered a brand-new hybrid circuit design that incorporates a JFET input stage, to lower noise and increase headroom, and a passive high-frequency RIAA circuit, for extended and nuanced high-frequency response. Optimized to the cutting edge of digital playback, Sprout100 also employs an ultra high-resolution ESS Sabre DAC (9016) with USB-B input that accepts resolutions up to PCM 384/24 and DSD128: bit-perfect playback for your high-rez computer audio, video, and gamin applications. An optical (toslink) input allows you to incorporate a TV or other modern digital device with your new system. Bluetooth offers versatility, convenience, and one-touch access to a world of content.

Power

Equiped with bleeding-edge ICEpower amplifier technology, the Sprout100 offers 100 watts per channel, with peaks of up to 135 watts per channel. The Sprout100 also features a built-in subwoofer output (mono RCA, variable), allowing you all the rumble you want with the powered subwoofer of your choosing. With one of the finest headphone amplifiers made, the Sprout100 honors and respects the music with a low-impendance z-feedback circuit that is capable of driving virtually any pair of headphones you can throw at it with perfect transient impulse response. Slewing at an unheard of 1,300-volts/microsecond, the Sprout100's headphone amp produces lucid spatial detail and acute tonal retrieval.

Features

23 key features

FULL FEATURED INTEGRATED AMP

100 WATTS PER CHANNEL POWER AMP

DRIVES ANY SIZED LOUD SPEAKER

ALUMINUM REMOTE CONTROL

RCA ANALOG INPUTS

DAC SUPPORTS 384/24 OR DOUBLE RATE DSD

PASSIVE EQ MOVING MAGNET PHONO PREAMP

LOW OUTPUT HEADPHONE AMP

TOSLINK DIGITAL INPUT

USB INPUT

BUILT-IN BLUETOOTH RECEIVER

MANUAL INPUT SELECTOR

32Ω: 500mW HEADPHONE OUTPUT

300Ω: 125mW HEADPHONE OUTPUT

OPTIONAL BASS BOOST

SIGNAL TO NOISE RATIO 100dB AT 4Ω

THD <0.01% (1W, 1kHz into 4 ohms)

INDICATOR LIGHT

6ft REGIONAL POWER CORD

4x BANANA ADAPTERS

2x SPROUT DECALS

OWNER'S MANUAL

DIMENSIONS: 6.2″W x 8.2″L x 1.9″H

Reviews

0 reviews

No reviews yet for this product.

Write a Review

Share your experience with Sprout100 - Factory Certified

Specifications

Technical details

Physical
Unit Weight 2.9 lbs [1.3 kg]
Unit Dimensions Width 6.2", Height 1.9", Depth 8.2" (chassis only, not including knobs) or 9.2” (including connectors and knobs)
Shipping Weight 5lbs [2.2 kg]
Shipping Dimensions Width 10.5", Height 5", Depth 14"

Power requirements
Voltage Options 100-240 VAC, 50-60Hz, Auto-Detect
Power Consumption 280W Maximum
Mains Power Input IEC C14

Phono Audio Input
Connector 1 Stereo Pair, Phono RCA
Cartridge type Moving Magnet
Cartridge Output 3mV-10mV (5mV recommended)
Cartridge Loading 47KΩ (100pF)
EQ Type RIAA
Gain +40dB
S/N ratio >84dB A-weighted (analog output)

Analog Audio Inputs
Connector 1 Stereo Pair, Line Level RCA
Maximum Input level 2.1VRMS (+6.44dBV)
Input impedance 10KΩ

Analog Audio Output
Connector 1 Stereo Pair, Line Level RCA
Output level, maximum 3.0VRMS (+9.5dBV)
Output Max Gain (using Analog Inputs) 8.45dB
S/N ratio >105dB (3VRMS ref)
THD (Analog) <0.01% (1VRMS, 1KHz)

S/PDIF Digital Input
Connector Optical (Toslink)
Format PCM (96KHz max), 24 bits

USB Input
Connector USB “B” Type
Format PCM (384KHz max), 24 bits, DSD64 (DoP), DSD128 (DoP)
Transfer mode Asynchronous

Bluetooth
Antenna Built in
DAC Uses Sprout's built in asynchronous DAC over S/PDIF (ESS Sabre 9016 DAC)

Stereo Power Amplifier Output
8Ω loudspeakers connected 50 watts per channel, both channels driven
4Ω loudspeakers connected 100 watts per channel, both channels driven
THD (Speaker Output) <0.01% (1W, 1KHz into 4Ω)
Frequency Response +/- 1dB (1VRMS out, 20Hz – 20Khz into 4-8Ω)
Signal to Noise >100dB at max power into 4Ω

Headphone Output
32Ω headphones connected 500mW
300Ω headphones connected 125mW
THD <0.01% (1KHz, 50mW into 32 Ω)
Signal to Noise >105dB at max power into 300Ω
