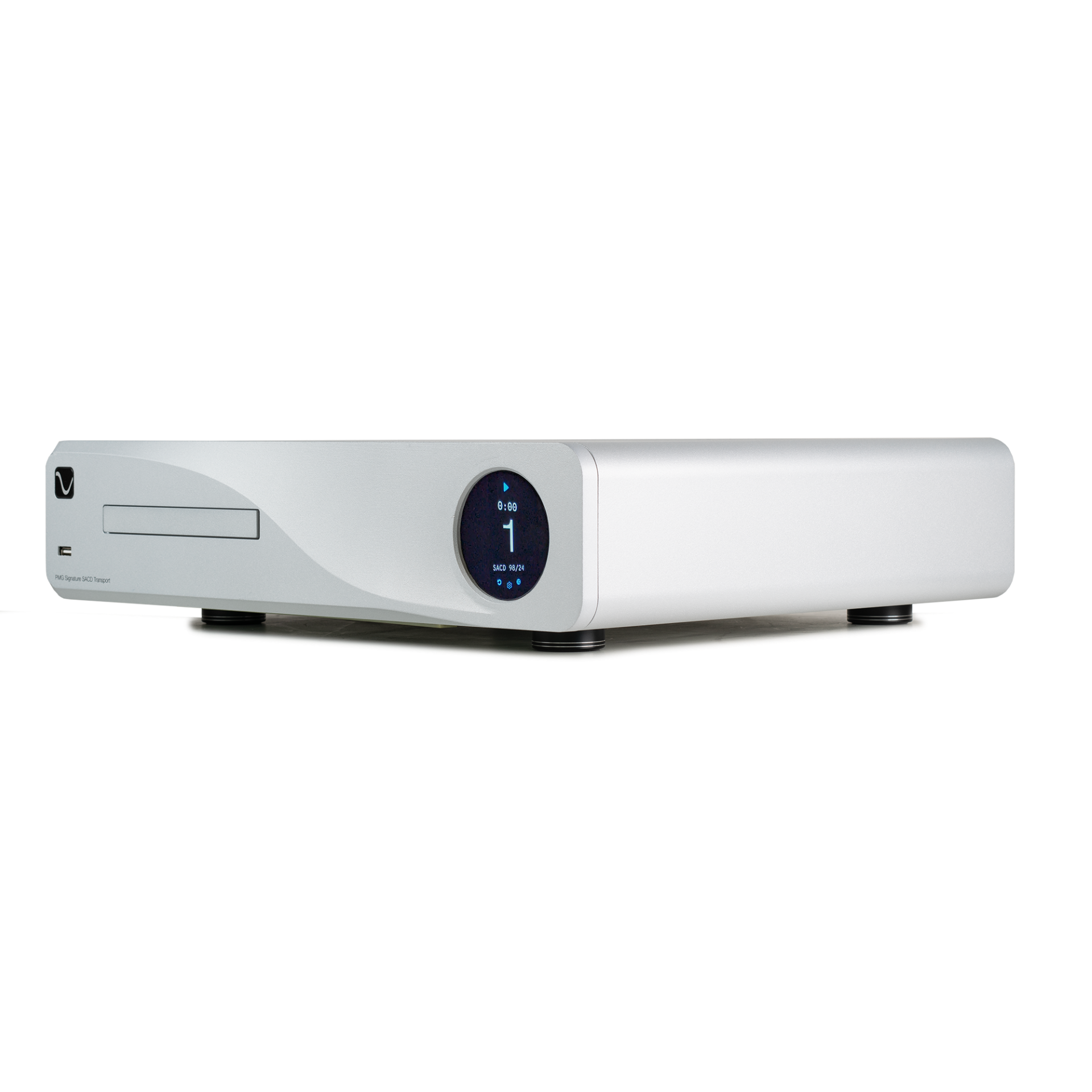

Silver
  • Silver
  • Black
  • Silver
  • Black
  • Silver
  • Black
  • Silver Black
href="/products/pmg-signature-sacd-transport?variant=49805283164450" class="link" >PMG Signature SACD Transport

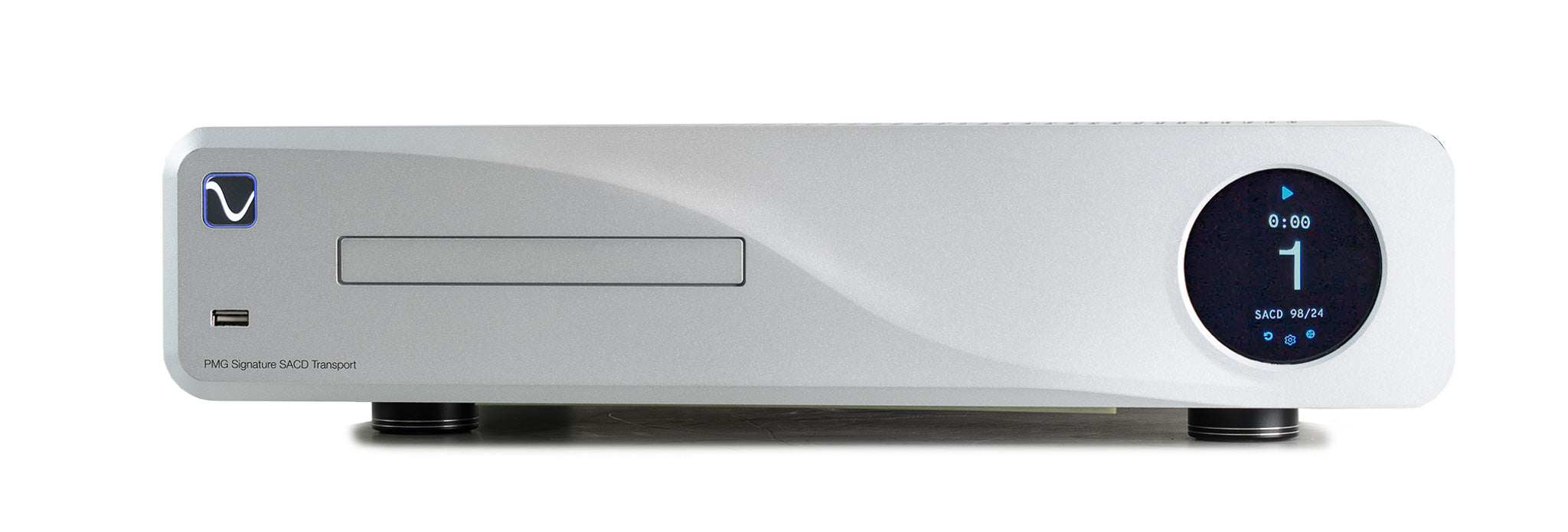

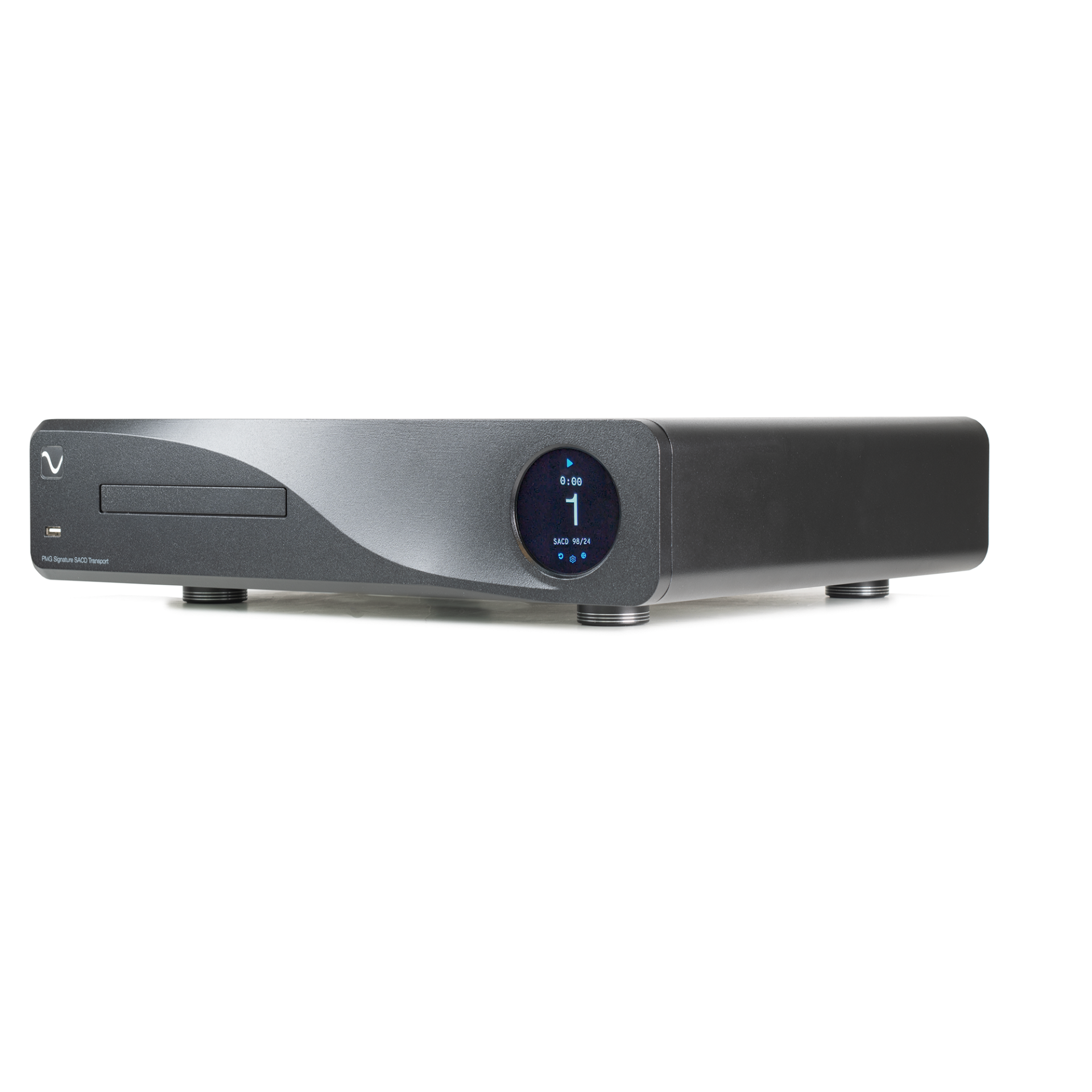

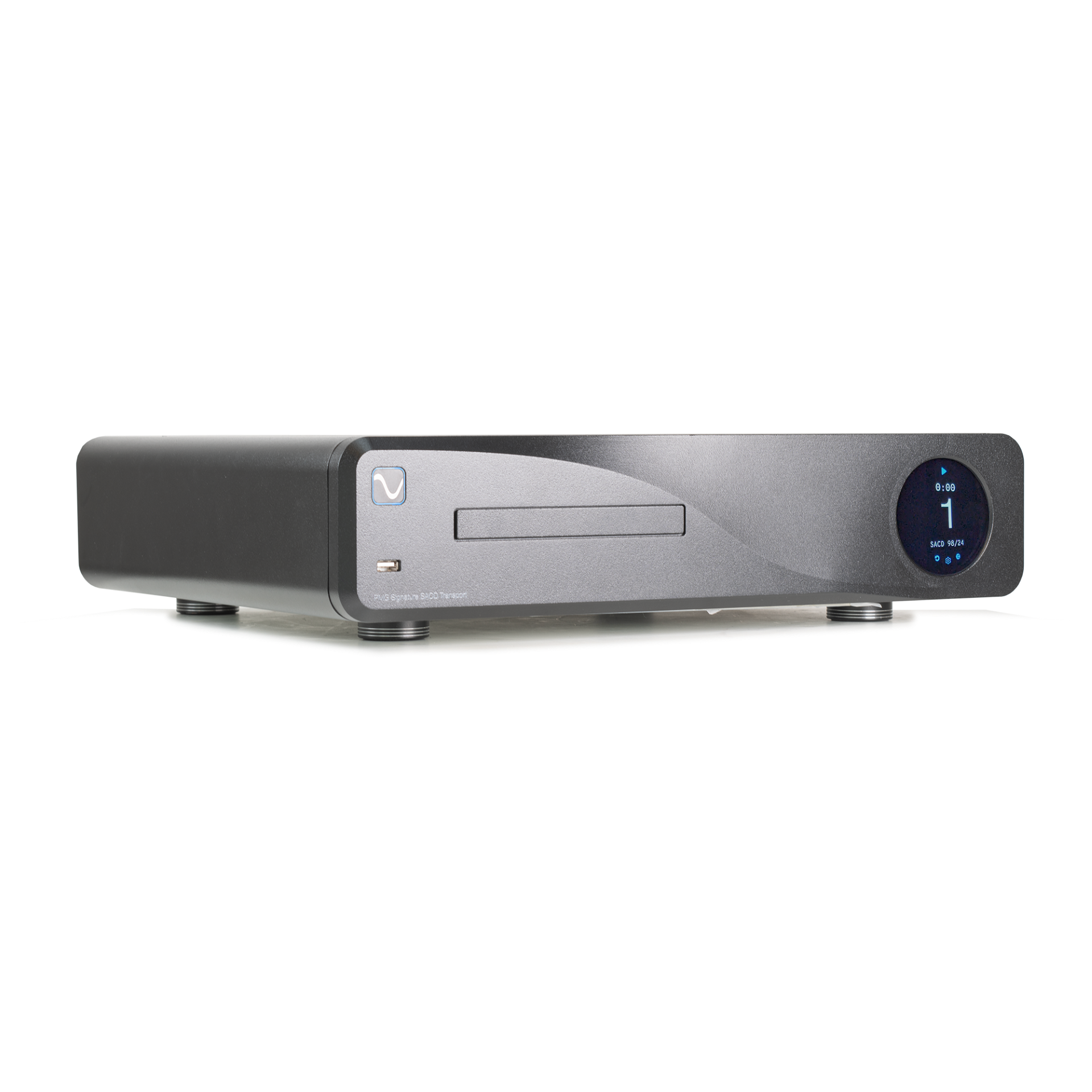

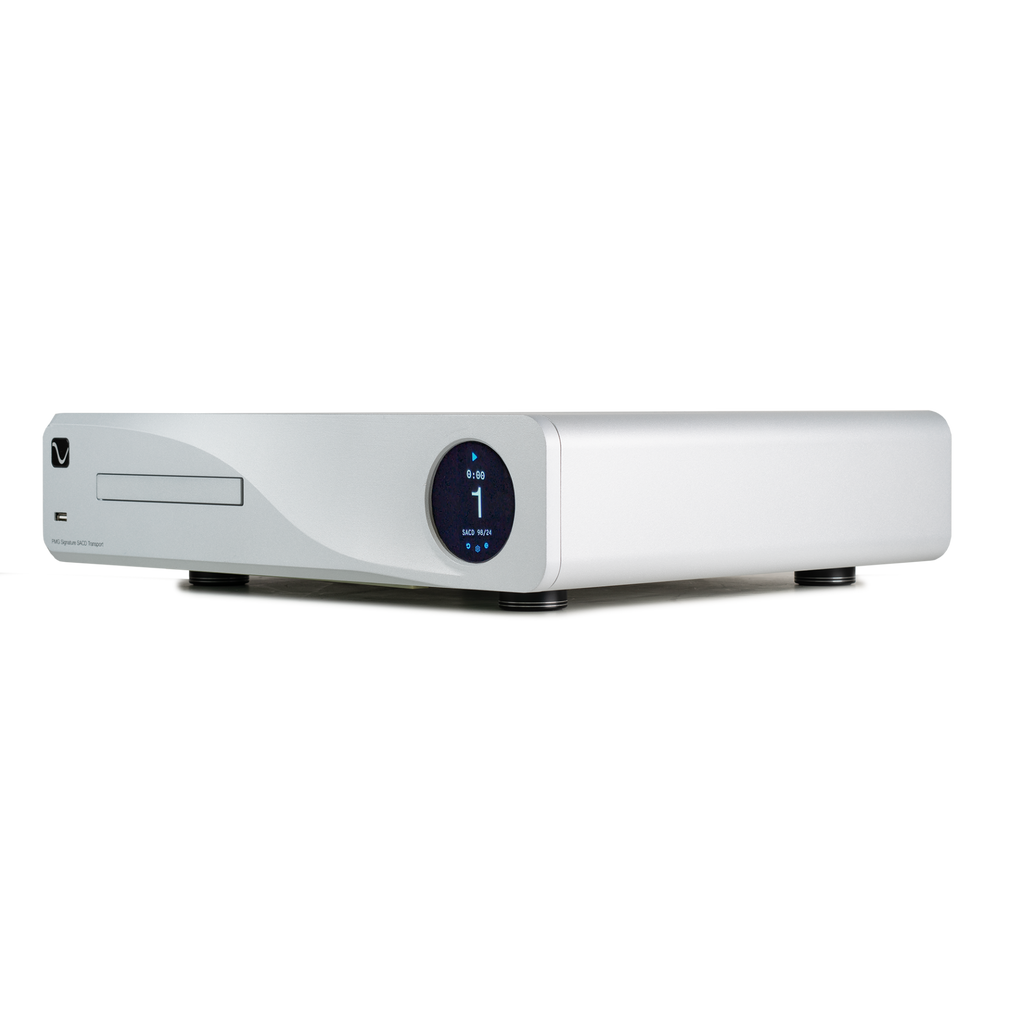

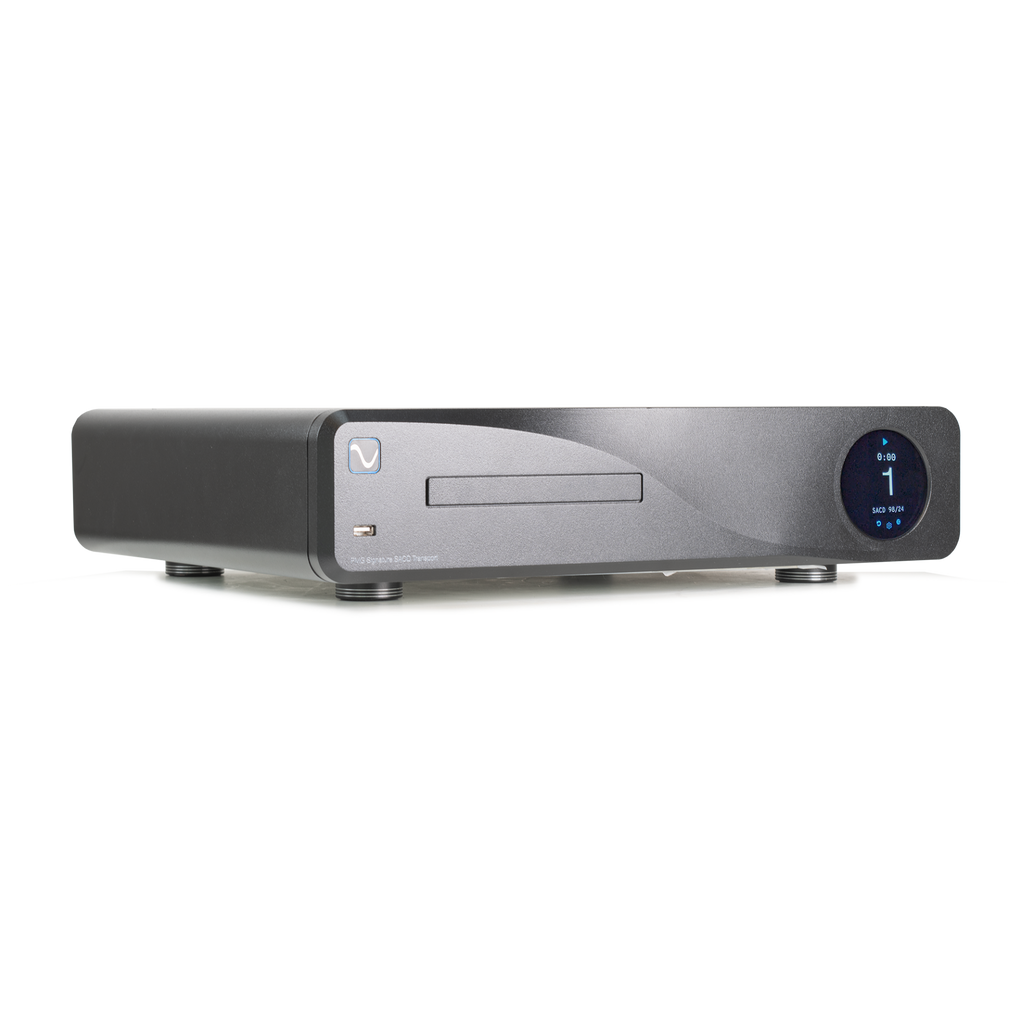

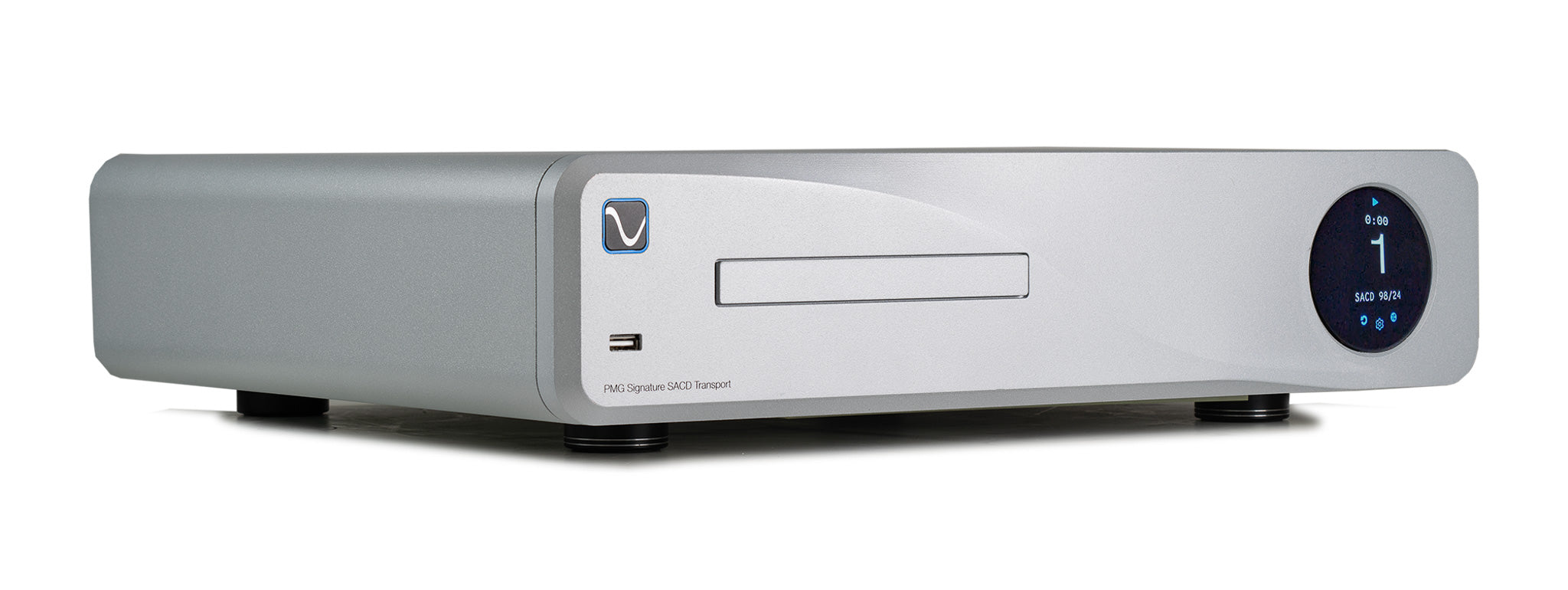

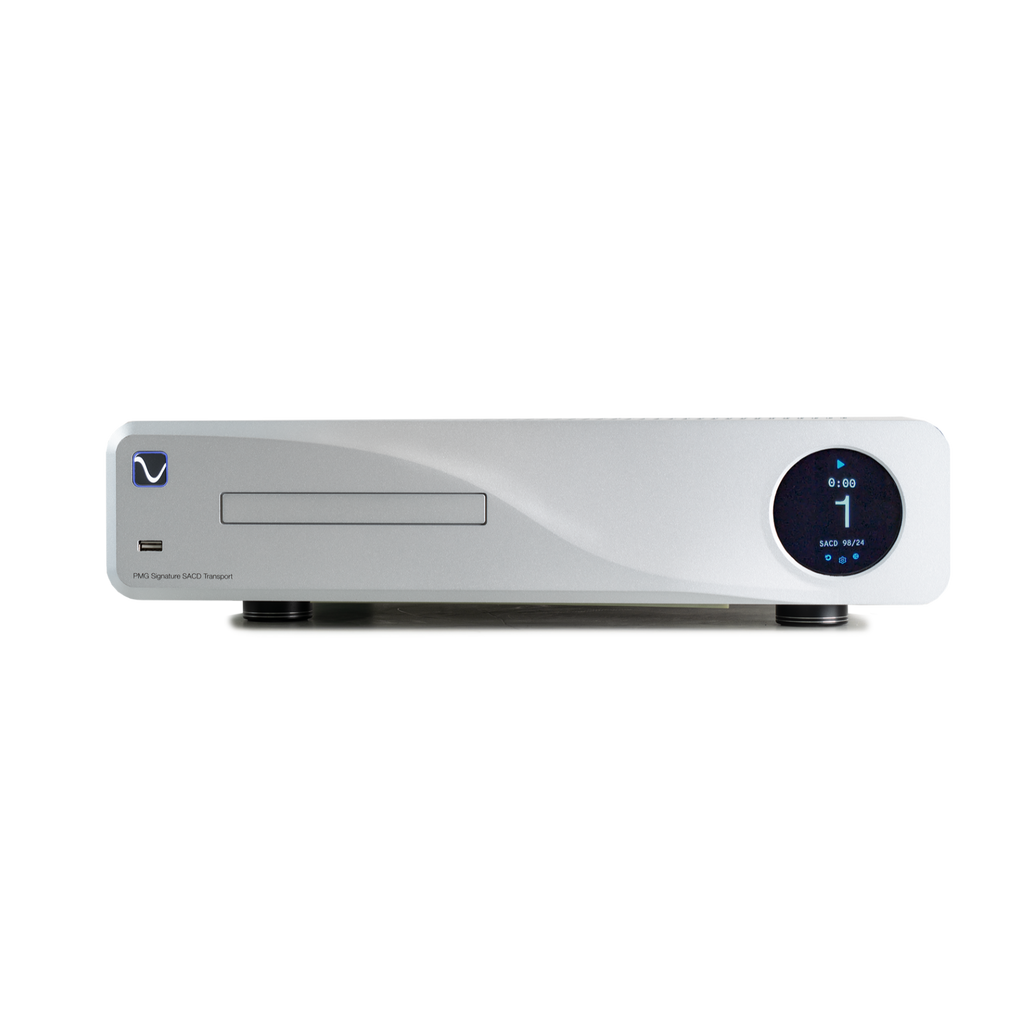

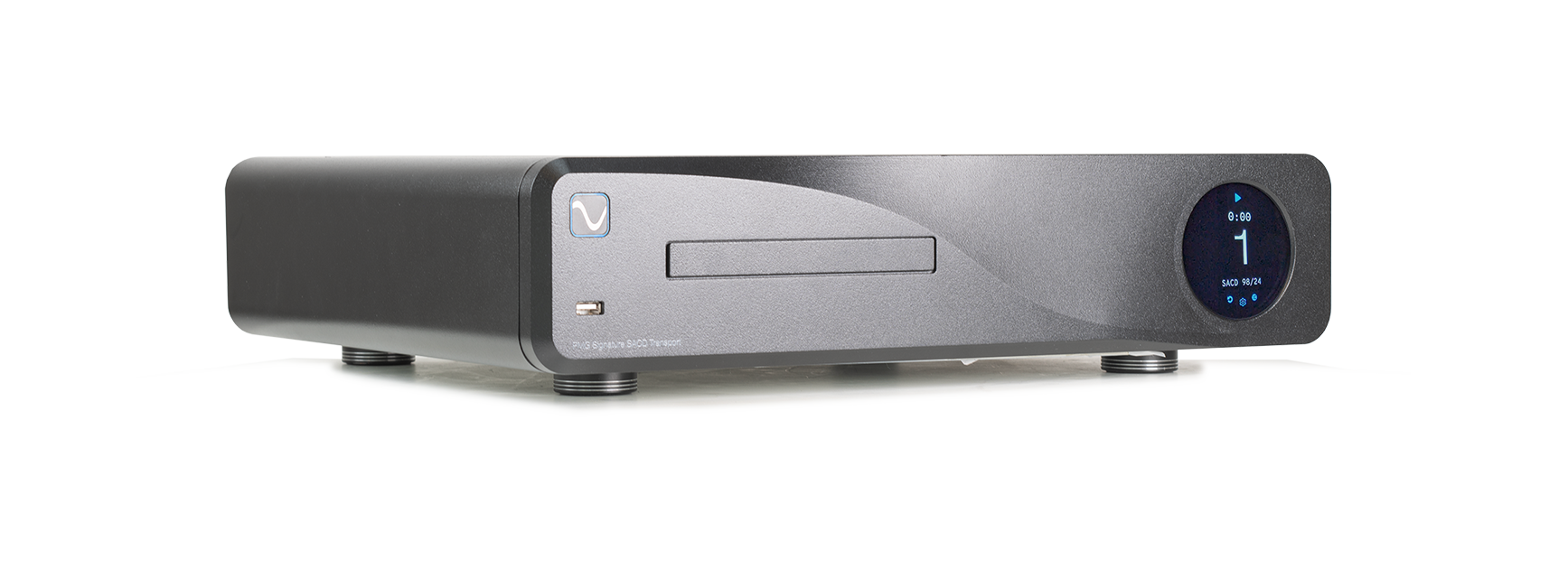

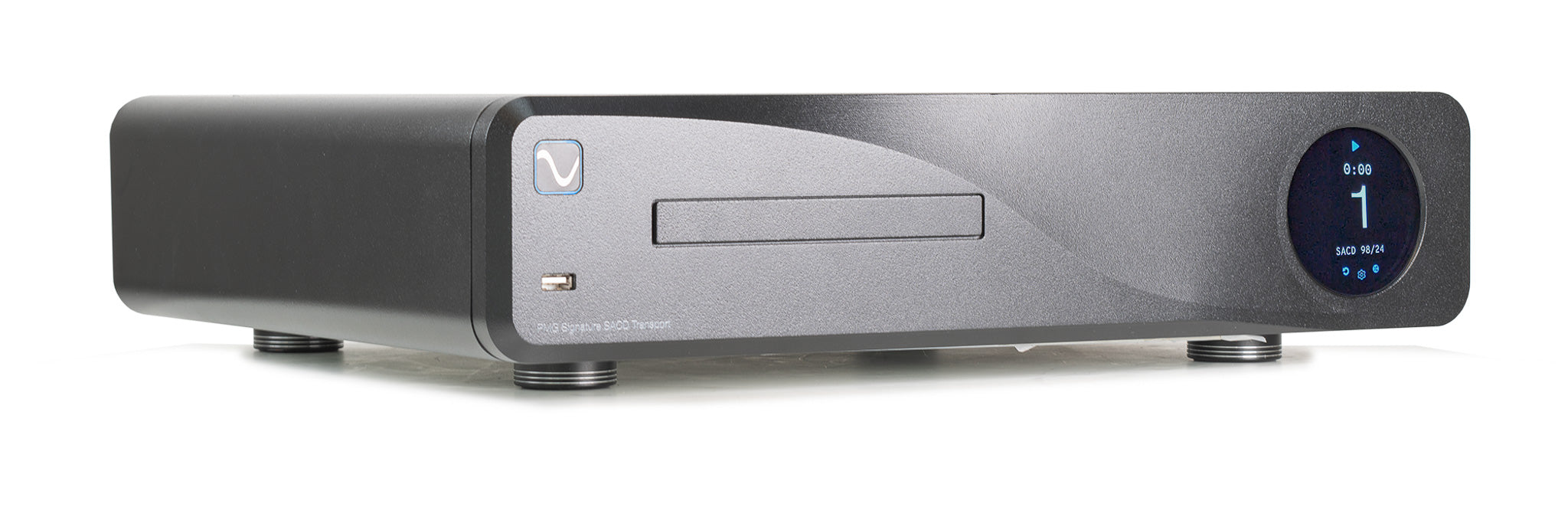

PMG Signature SACD Transport

Locked inside your CD and SACD collection is a treasure trove of music you've never truly heard. How do we know? Because we, like you, know every note of our reference discs—and we were stunned when we heard them through the new PMG Signature SACD Transport.

This isn’t just another player. It’s the finest optical disc transport we’ve built in 43 years, and for the first time in our history, our founder has signed his name to it.

The PMG Signature SACD Transport is an engineering triumph, designed to extract every nuance and detail from your CDs and SACDs with unmatched precision. With galvanically isolated outputs and ultra-low jitter design, it breathes new life into your CD collection when paired with any DAC. And when connected via I²S, it unlocks the raw DSD layer of your SACDs—delivering what was once hidden to external DACs.

This is not nostalgia. This is revelation.

The PMG Signature SACD Transport is the ultimate disc playback system—worthy of the name, and the legacy.

Receive up to $3,000 when you trade in your PerfectWave SACD Transport.
$8,999.00

Design

43 years after the introduction of the CD, PS engineers have continued our quest for perfection in the art of data extraction and delivery so you can finally hear what's been locked away in your CD and SACD collection. The PMG Signature SACD Transport is our most advanced optical disc transport. Our galvanically isolated output stage couples the output of the drive mechanism to the PMG's internal Digital Lens with nothing more than a pulse of energy across space, any hints of noise or ground contamination are eliminated. The results of this complete isolation are magical: a previously unheard level of image separation, openness, and effortless reproduction. Never have we experienced noise levels this low—a seemingly velvet blackness that must be experienced to understand.

Application

CD, data discs, and SACD reproduction is unequaled by any other player we know of. CDs played through the PMG Signature SACD Transport come closer than ever to high-resolution PCM and DSD, uncovering new layers of dimensionality, soundstage, depth, and musicality previously unobtainable in other optical readers or server-based audio systems. Like its predecessor, the PerefectWave SACD Transport, the PMG Signature opens the long-restricted DSD layer of SACD to PS Audio DACs. The PMG will deliver the raw DSD layer of copyright-protected SACD directly into your PS Audio DAC through I²S. This means that you'll uncover the wealth of audio's finest digital medium, DSD, and hear exactly what the mastering engineers who created these discs have enjoyed all along. Hear what you've been missing with the PMG Signature SACD Transport.

Overview

If you're like most of us, you still have a cherished library of physical discs. There's something timeless about opening a jewel case or sliding a disc from its sleeve—the feel, the ritual, the music waiting inside. Even in today’s world of streaming, CDs, SACDs, and data discs often deliver the best sound in a system—when paired with a truly exceptional transport. None are finer or better sounding than the PMG Signature SACD Transport. This is our statement piece, and it defines state-of-the-art disc playback. From the first notes, you’ll hear the staggering leap in performance it brings. Its secret? A fully galvanically isolated output stage that physically and electrically separates the delicate digital audio stream from its noisy environment, dramatically lowering jitter and noise. Hear more than you ever imagined from your discs with the PMG Signature SACD Transport—the finest we’ve built in over four decades.

Galvanic Isolation

Unlike the relatively quiet environment enjoyed by analog electronics, digital audio equipment is inherently noisy. Digital timing clocks running at speeds high enough to rival radio transmitters pose a serious challenge when the goal is a clean, jitter-free digital audio output stream. Engineers have spent decades experimenting with shielding, grounding, and isolation techniques to tame this noise—not just to meet regulatory limits, but to achieve true sonic quiet.
The most effective solution? Physical separation and full electrical isolation. Standard digital audio subsystems rely on wires for signal and power, which radiate high frequencies and worsen the noise floor. The PMG Signature SACD Transport takes a different approach. Its output stage is both physically and electrically isolated—no wires, no shared ground paths, no common power supplies. Inside, two completely independent power supplies serve separate duties: one for the noisy internal electronics, the other exclusively for the ultra-quiet output stage. Signal transfer between the two is achieved through a focused, short-wavelength radio link—eliminating interference and preserving the purity of the audio data.
The result is stunning. With the PMG Signature SACD Transport playing your discs, musical details once buried beneath noise and jitter are finally free to come to life.

DSD Master Layer

The Sony/Philips introduction of the SACD (Super Audio Compact Disc) in 1999 heralded a new format of high-performance audio. Not since the original introduction of the Compact Disc in 1982 had there been a major improvement in the performance of digital audio. With the SACD, digital audio took a major leap forward, surpassing not only the Compact Disc but, to many, the performance of analog. The technology behind the SACD is DSD, a high-sample rate (2.8mHz or 64 times that of a CD) 1-bit recording system that achieves 120dB of signal to noise ratio and dynamic performance without any hint of digital glare. Unfortunately, the DSD layer on SACDs is locked and cannot be extracted from the disc for playback on an external DAC. That was until the introduction of the PMG Signature SACD Transport. The PMG is able, through the use of our I2S output, to directly connect the DSD layer to a PS Audio enabled DAC. The results are breathtaking. Now SACD owners can connect directly to the master quality source locked onto the SACD's master layer. This is a major triumph for music lovers around the world. Hear what mastering engineers get to enjoy. The pure DSD Master layer.

Features

18 key features

SACD/CD/CD-R/CD-RW/DVD-R*/-RW*/+R*/+RW* (*Audio data file only)

PLAYS MP3, WMA, AAC, WAV, FLAC, AIFF, DSD, 2xDSD, AND ALAC FROM DISCS OR USB INPUT

2x BNC (COAX) OUTPUT FOR PCM AND DOP. USE IN TANDEM FOR DOUBLE-RATE DOP

USB DATA INPUT FOR STORED DIGITAL MEDIA

SACS DSD LAYER AVAILABLE THROUGH I2S OUTPUT

ADVANCED DIGITAL LENS TECHNOLOGY

I2S OUTPUT FOR PCM AND DSD (RAW)

2x XLR OUTPUT FOR PCM AND DOP. USE IN TANDEM FOR DOUBLE-RATE DOP

MEMORY PLAYER TRANSPORT

GALVANICALLY ISOLATED OUTPUT STAGE

1x RCA (COAX) OUTPUT FOR PCM AND DOP

LARGE ANALOG POWER SUPPLY

SEPARATE POWER REGULATORS

FPGA SIGNAL PROCESSING

NEAR-FIELD LATCH PLACEMENT

ZERO SETUP, JUST PLUG AND PLAY

CHASSIS WITHIN A CHASSIS FOR THE QUIETEST PERFORMANCE

REMOTE CONTROL

Reviews

reviews
PS Audio Forum
PS Audio Forum

I received my Transport yesterday (exquisitely packaged by the way) and got it installed. I am blown away! The debut SACD was Steely Dan’s “Aja” by Analogue Productions and it has never sounded better. Superb product and a very pleased customer!

Read full review →
G Thiel

I have about 100 hours on the PMG SACD - I2S to MKII. It’s opened up nicely. Vocal/Instruments float solidly in a black background. Voices more natural sounding. Ted Nugent’s Strangle Hold has super Wide sound stage. Nuge’s Gibson Birdland hollow body is growling and nasty as I expected. Tasty for sure. Chuck Mangione’s flugelhorn is smooth with a tad bit of grit. Stanley Clarke’s I want to play for you album is outstanding. PMG SACD blows the PWT away! easily!

Want to leave your own review?

Write a Review

Share your experience with PMG Signature SACD Transport

Specifications

Technical details

Physical
Unit Weight 30.3 lbs (13.7kg)
Unit Dimensions 14 3/4” x 17 1/2” x 4 3/8” (with feet)
375 mm x 445 mm x 112 mm (with feet)
Shipping Weight 40.5 lbs (18.4 kg)
Shipping Dimensions 20 1/2” x 24” x 10”
521 mm x 610 mm x 254 mm
Color Options Black
Silver

Power Requirements
Input Power 120VAC or 230VAC 50 or 60Hz
Power Consumption 25W

Media
Optical discs SACD/CD/CD-R/CD-RW/
DVD-R*/-RW*/+R*/+RW*
(*Audio data file only)
USB Drive USB Flash Drive with audio files
Supported File Formats MP3/WMA/AAC (~48kHz/320bps)
WAV/FLAC/AIFF (~192kHz/24bit)
ALAC (~96kHz/24bit)
DSD (~5.6MHz)

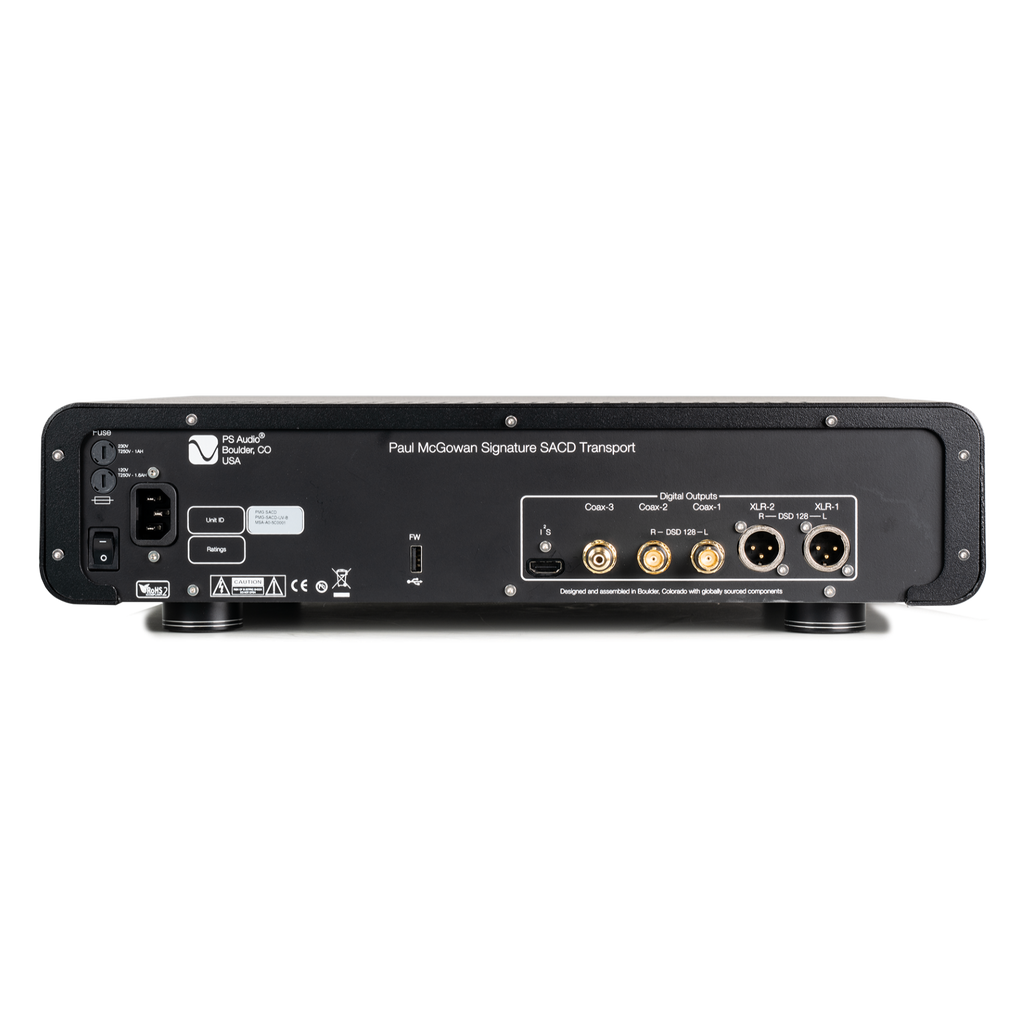

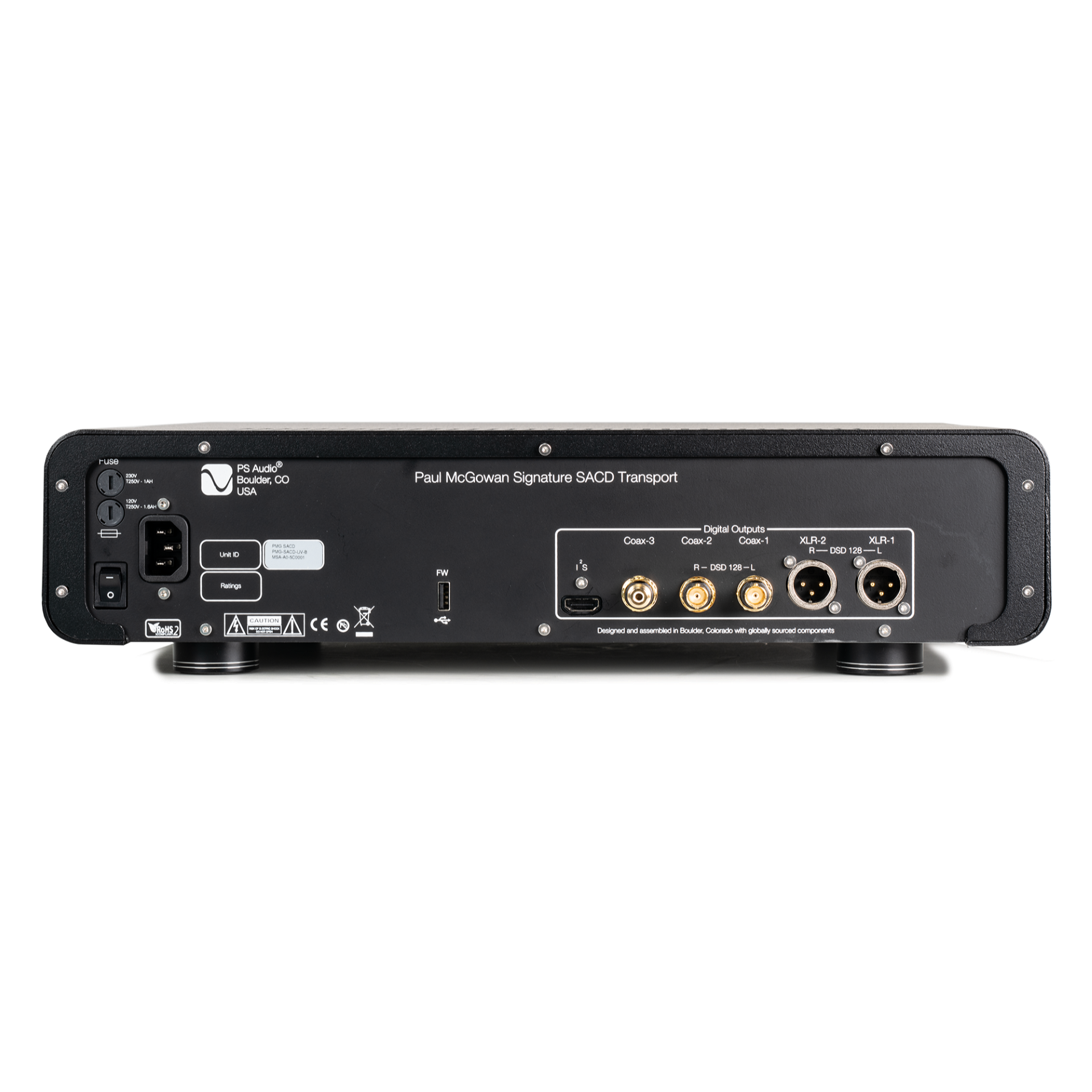

Outputs
I2S 1 I2S output for PCM and DSD (raw)
Coax 1 output for PCM and DoP
BNC 2 outputs for PCM and DoP

Use in tandem for double-rate DoP
XLR Balanced 2 outputs for PCM and DoP

Use in tandem for double-rate DoP
