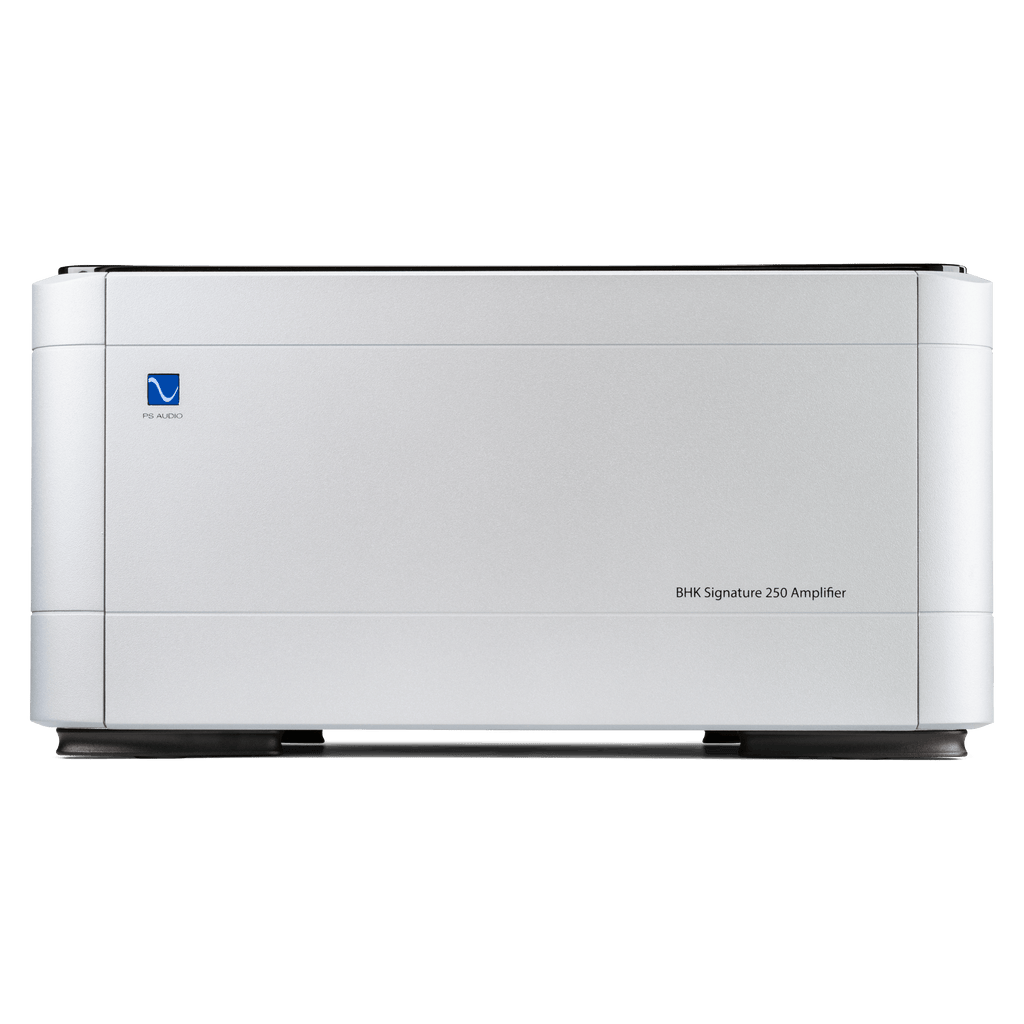

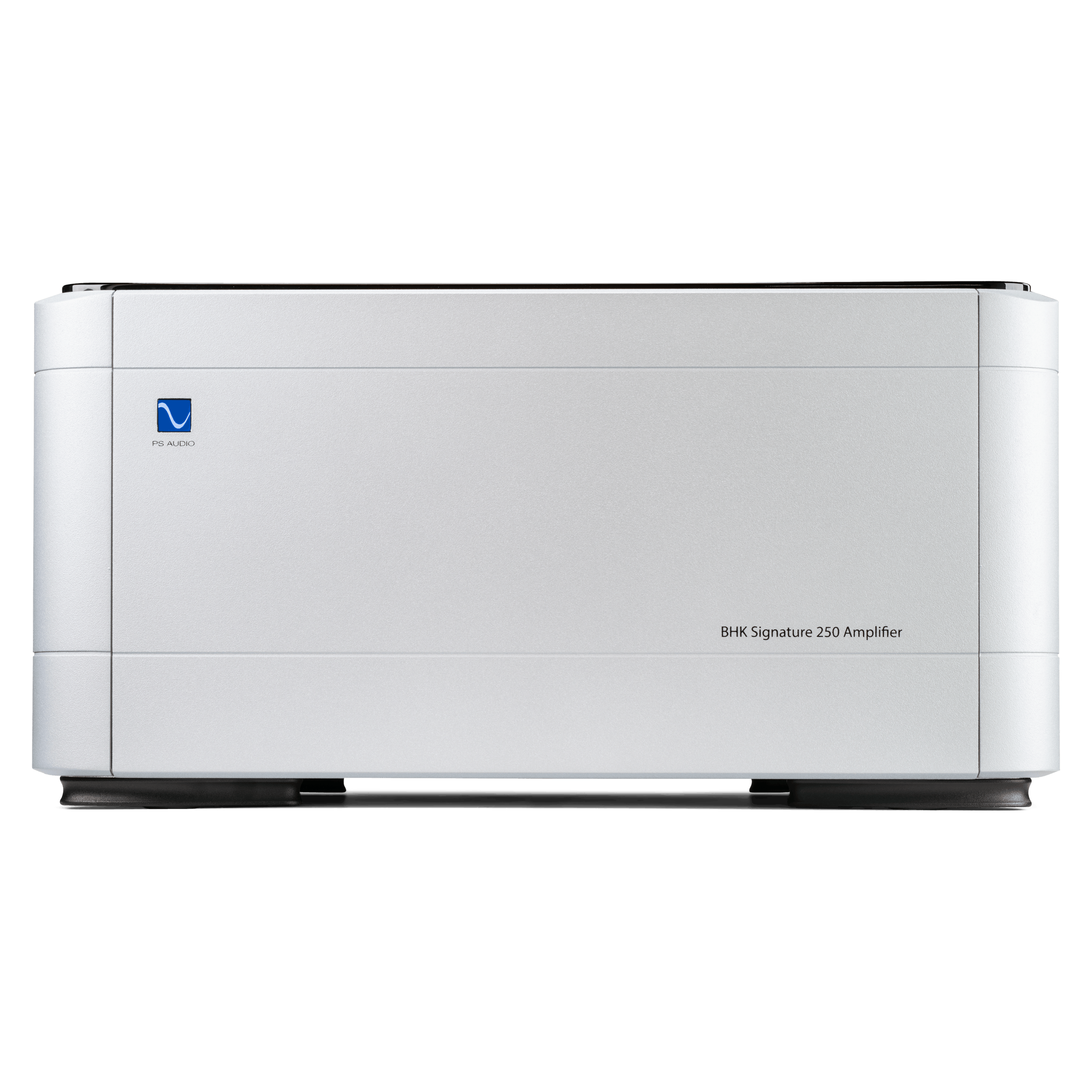

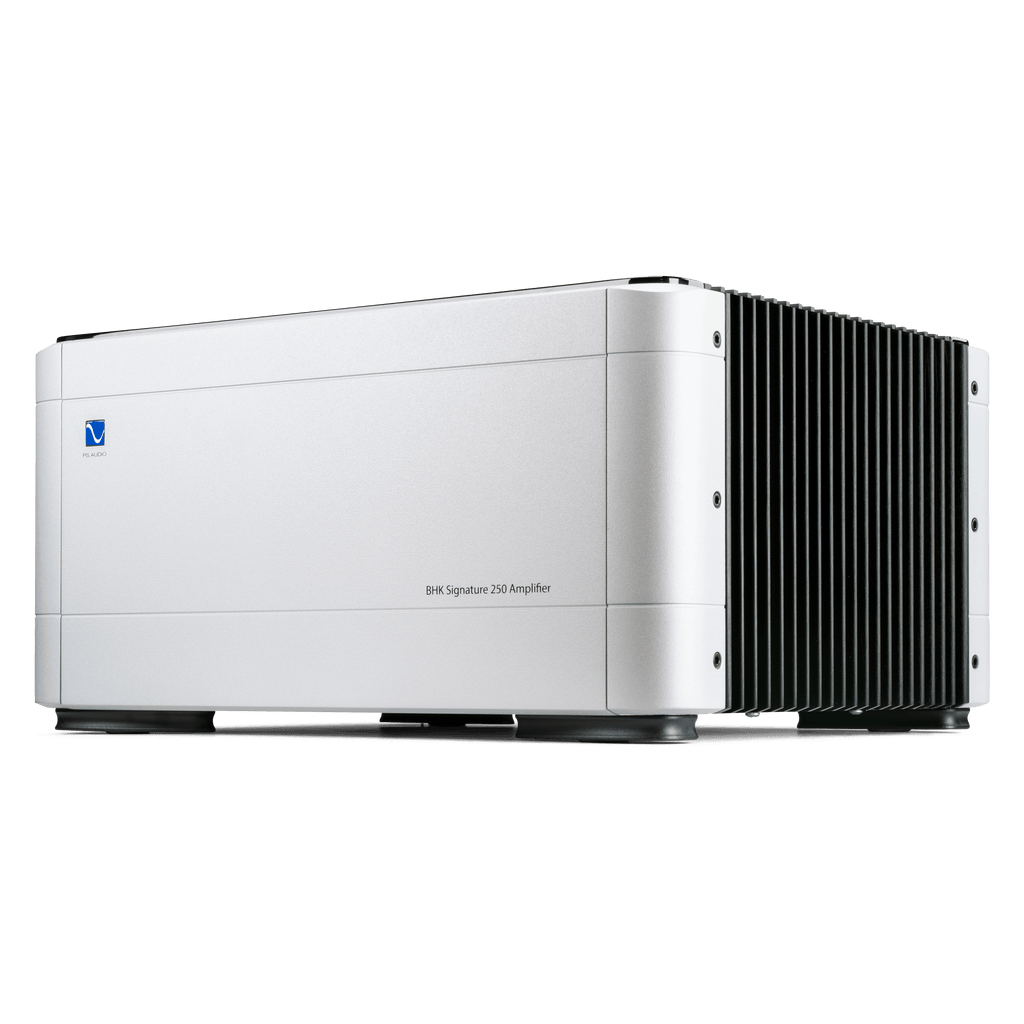

Silver
  • Silver

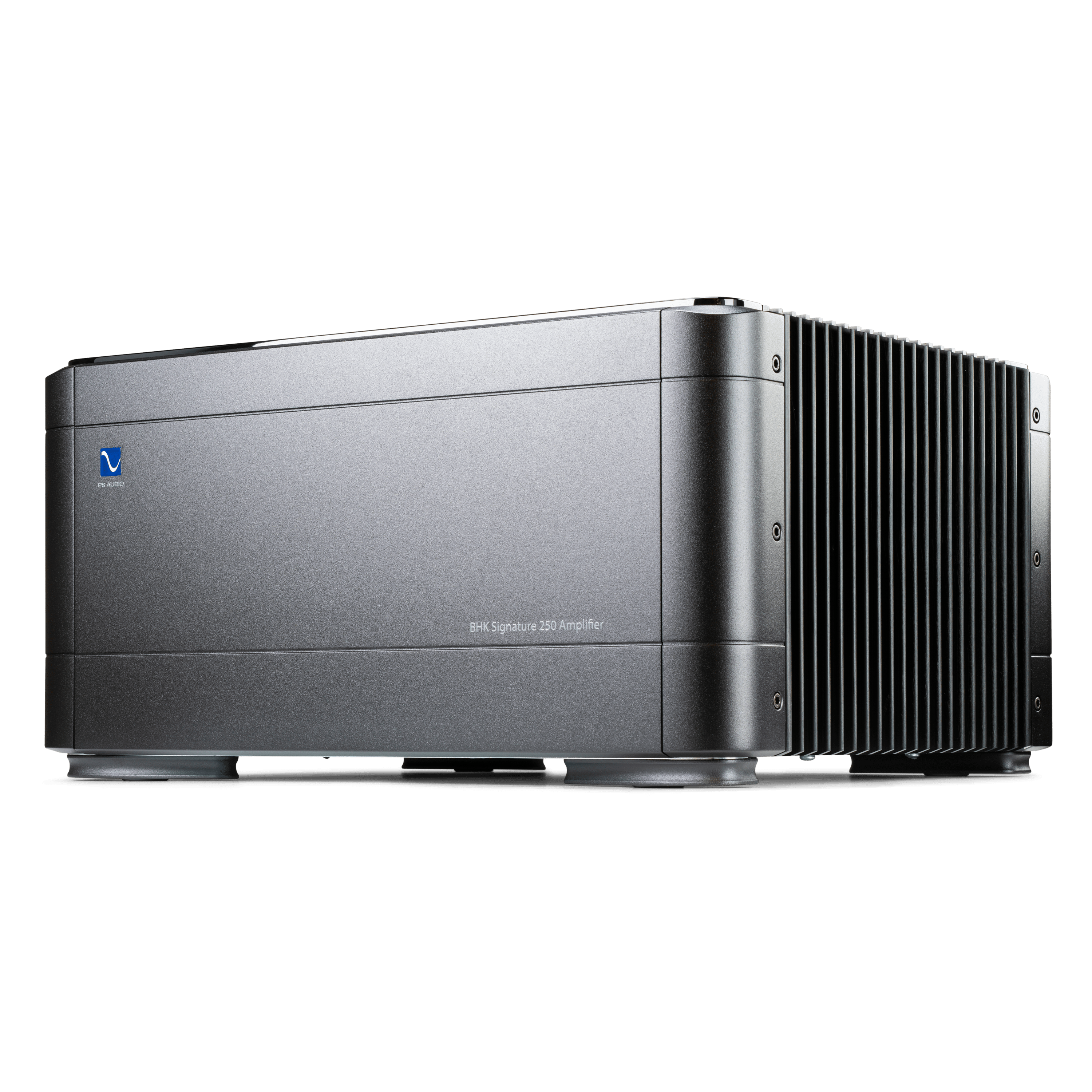

  • Black
  • Silver
  • Silver
  • Silver
  • Silver
  • Black
  • Black
  • Black
href="/products/bhk-signature-250-amplifier-refurbished?variant=48657146511650" class="link" >BHK Signature 250 Amplifier - Factory Certified

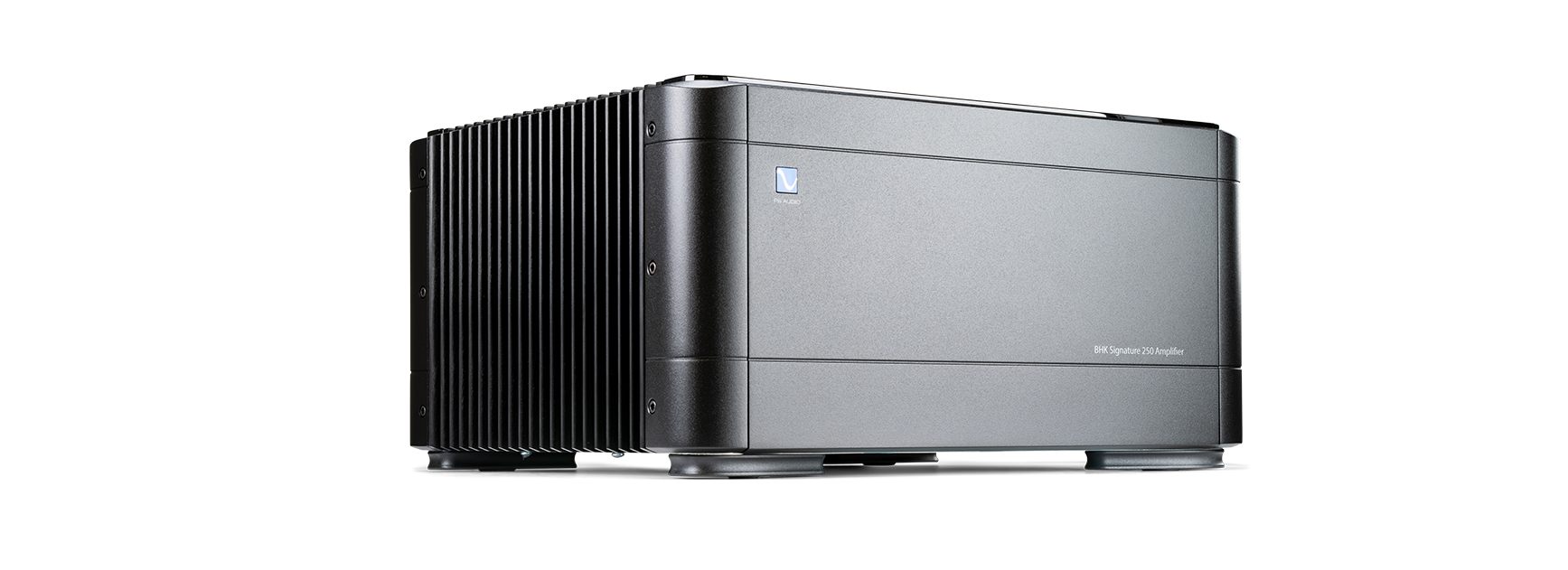

BHK Signature 250 Amplifier - Factory Certified

<strong>The BHK 250 stereo power amplifier is an industry reference standard for performance—a 250 watt per channel investment grade musical instrument that brings life to music.</strong>

The BHK Signature 250 Stereo Power Amplifier culminates one man’s lifelong quest for perfection in power amplification. Bascom H. King’s magnum opus combines a vacuum tube input with a powerful MOSFET output capable of 250/500 watts per channel. When cost-no-object performance is the goal there are a rare handful of power amplifiers capable of transporting listeners into a musical space few are able to enjoy. The BHK Signature 250 is one such amplifier. Lush, gorgeous, powerful, revealing, hand built, perfect. If you are uncomfortable with compromise and seek the finest performance, reliability, and build quality in a single-chassis format, the BHK Signature 250 is a perfect fit.

Note:

$4,249.00 $8,499.00
Factory Certified 14-Day In-Home Evaluation Click for details
Call
TALK TO A HI-FI SPECIALIST
1-800-PSAUDIO

Design

Nothing in the design of a power amplifier is more important than its input stage when preserving music’s finest nuances. In the BHK Signature, a vacuum tube serves as the perfect interface between the preamplifier and MOSFET output stage. This hybrid approach offers stunning musical performance and unrivaled, effortless drive to the speaker. The Signature 250 Stereo Amplifier is the ultimate choice when a single chassis solution is required.

Applications

The BHK Signature 250 Stereo Amplifier produces 250 watts/ channel into an eight-Ohm loudspeaker, 500 watts/channel into four-Ohms, and stable into 2-Ohms; enough power to satisfy even the hungriest of loads. Use this amplifier as the bedrock of your high-performance audio or home theater system. The BHK 250 provides the finest performance, reliability and build quality possible, in a single chassis format.

Overview

The importance of the power amplifier in the 2-channel system chain cannot be overstated, yet it's often overlooked. It's the rare few music lovers that truly appreciate the power amp's critical role in preserving music's nuanced details, because most amplifiers fail to preserve them. Overtones from plucked instruments, subtle cues defining placement, depth, soundstage width, and transient decays are often lost in the power amplifier. Suddenly revealed are the tiniest of details that now ring clear through the BHK, perfectly preserved through its low feedback, vacuum tube and MOSFET design. When it comes to musically controlling and powering loudspeakers, the BHK Signature has few peers at any price. The stereo Signature 250 produces 250 watts/per channel into an eight-Ohm loudspeaker, 500 watts/channel into four-Ohms, and stable into 2-Ohms; enough power to satisfy even the hungriest of loads.

Input Stage

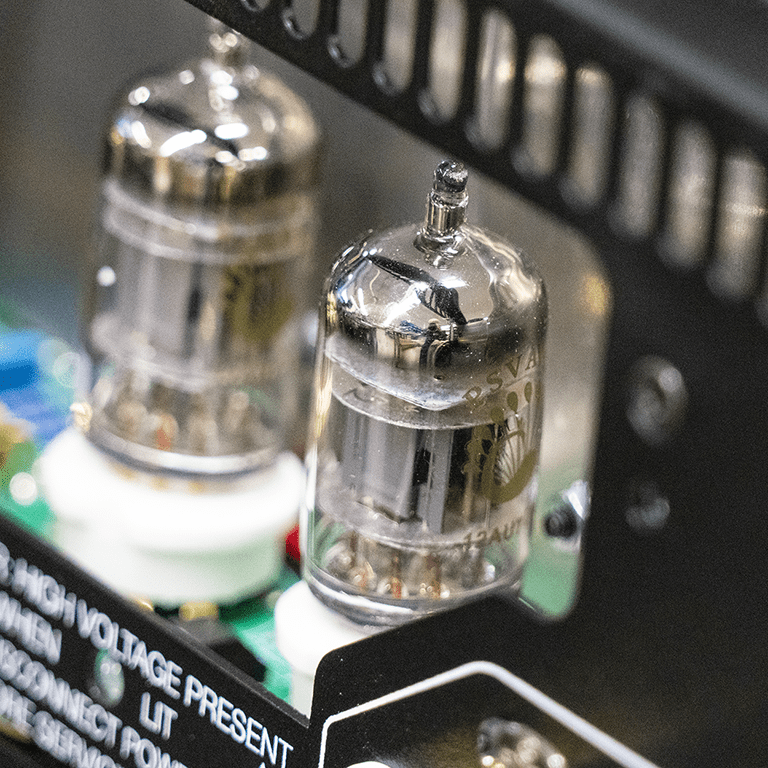

A power amplifier’s input stage is a critical interface in the quest to preserve music’s essential details and vacuum tubes do it best. Hand matched pairs of Russian Gold Lion 6922s provide the perfect interface between the delicate musical transitions output by the DAC or preamplifier, transferring it without loss to the MOSFET output power stage and eventually the loudspeakers. The hybrid approach used in the BHK Signature takes advantage of the best traits technology has to offer, unavailable in traditional solid state or tube designs. While vacuum tubes are the perfect input stage, they cannot make the same claim on a power amplifier's output. Conversely, solid state designs are correct for output stages, but suffer when used as inputs. Only a hybrid approach takes advantage of the best in both disciplines.

Output stage

A power amplifier connects its reservoir of energy to the loudspeaker through a type of valve (solid state or vacuum tube) controlled by the input stage. If the input stage has done a good job of preserving music's subtle details, textures, timing and phase information, transferring it without loss to the power stage and eventually the loudspeakers is best handled by a tube-like solid state device known as a MOSFET. Not all MOSFETs are the same, their differences characterized by their relationship with the input signal and the power supply driving them: N-types for the positive going signals, P-types for negative. N-types have lower distortion and perform better than P-types but N-channel-only amplifiers are rare. Using only N Channel MOSFETS in its output stage, the BHK Signature produces a near-perfect balanced waveform without the degradation inherent in a complementary design.

Features

16 key features

ZERO LOSS INPUT TUBE

POWERFUL MOSFET OUTPUT STAGE

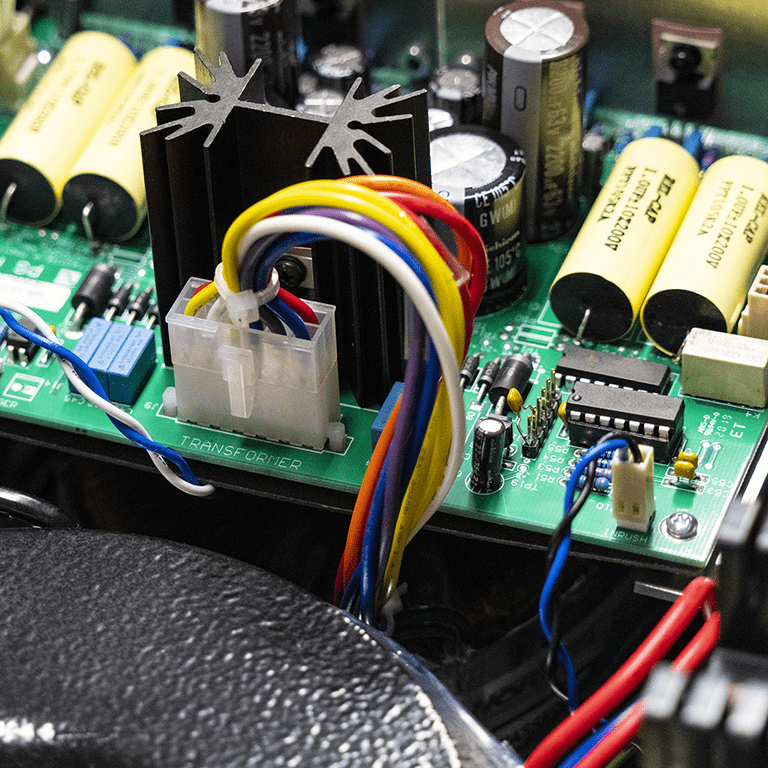

THROUGH-HOLE CONSTRUCTION

RCA SINGLE-ENDED INPUT

XLR "TRUE" BALANCED INPUT

250 WATTS PER CHANNEL 8Ω

500 WATTS PER CHANNEL 4Ω

2Ω STABLE

-3dB > 200khz

< 0.1% THD 20Hz - 20kHz AT RATED POWER

DAMPING FACTOR = 100

FRONT PANEL STANDBY BUTTON

BALANCED INPUT TO OUTPUT

DUAL, COPPER, PLATED, OUTPUT BINDING POSTS

83 LBS.

INPUT 12 VOLT TRIGGER

Reviews

0 reviews

No reviews yet for this product.

Write a Review

Share your experience with BHK Signature 250 Amplifier - Factory Certified

Specifications

Technical details

BHK Signature 250 Stereo and BHK Signature 300 Mono
Unit Weight 83 lbs [37.6 kg]
Unit Dimensions 17.1” x 8.7” x 14” Chassis only. 15" deep including connectors.
Shipping Weight 92 lbs [41.7 kg]
Shipping Dimensions 21”x 13” x 19”
Color Options Black
Silver
Voltage Options
Factory set only		 Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V
Mains Power Inputs IEC C14
Fuse Compliment all Countries 4 - 10 amp fast blow H-Rated 5x20mm Rail Fuses
Fuse Compliment Mains 100vac Countries
1 - 2 amp slow blow H-rated 5x20mm
1 - 12 amp slow blow H-rated 5x20mm
120vac Countries
1 - 2 amp slow blow H-rated 5x20mm
1 - 10 amp slow blow H-rated 5x20mm
230vac Countries
1 - 1.6 amp slow blow H-rated 5x20mm
1 - 5 amp slow blow H-rated 5x20mm
Accessories Included US (NEMA 5-15P) (all versions)
Schuko (CEE7/7) (230V version)
UK (BS 1363) (230V version)

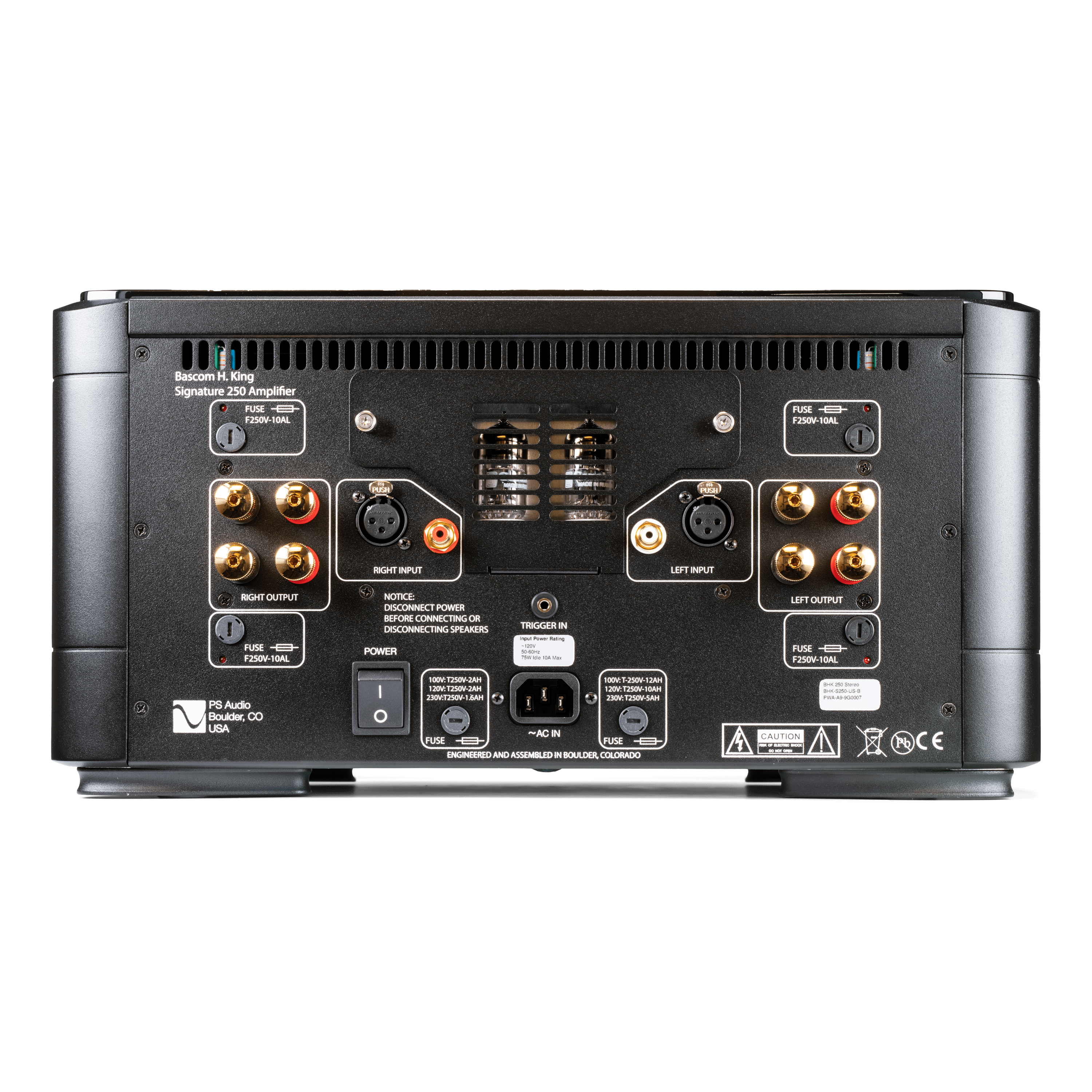

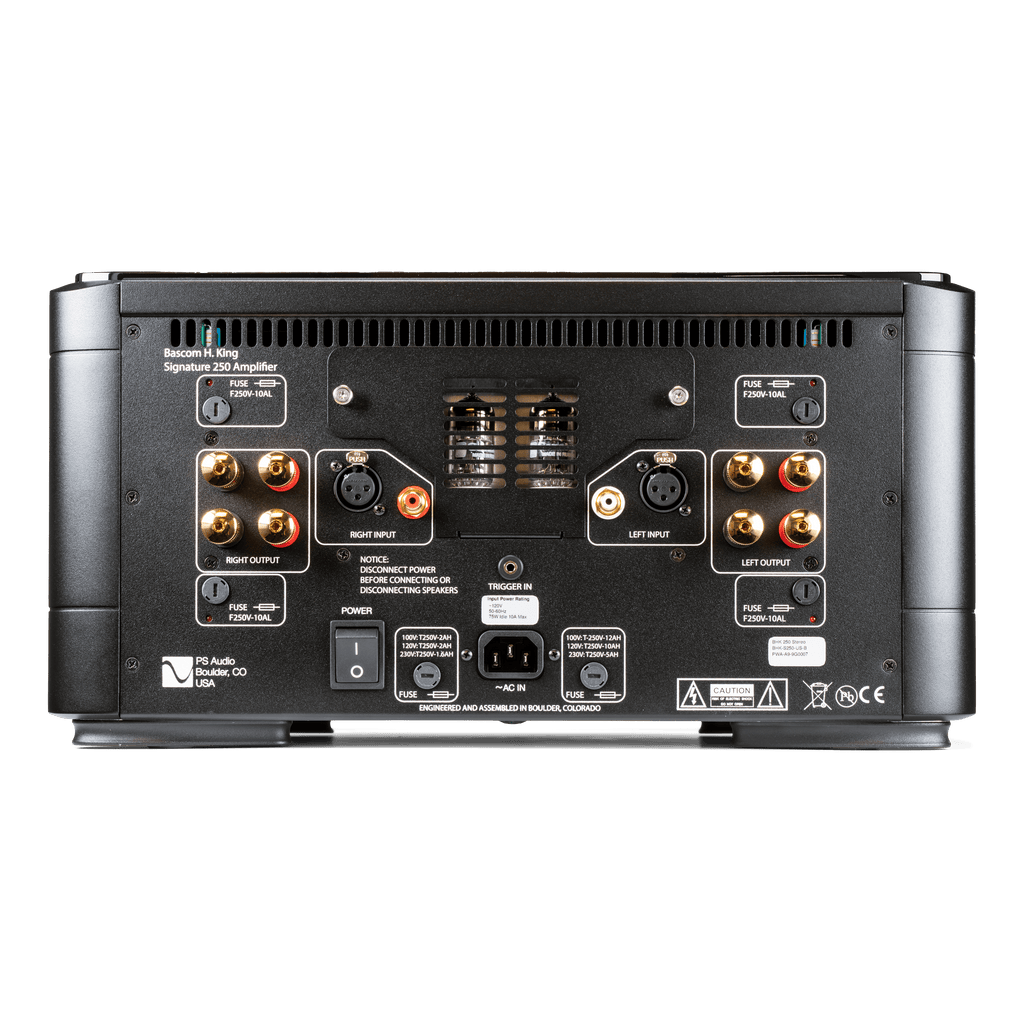

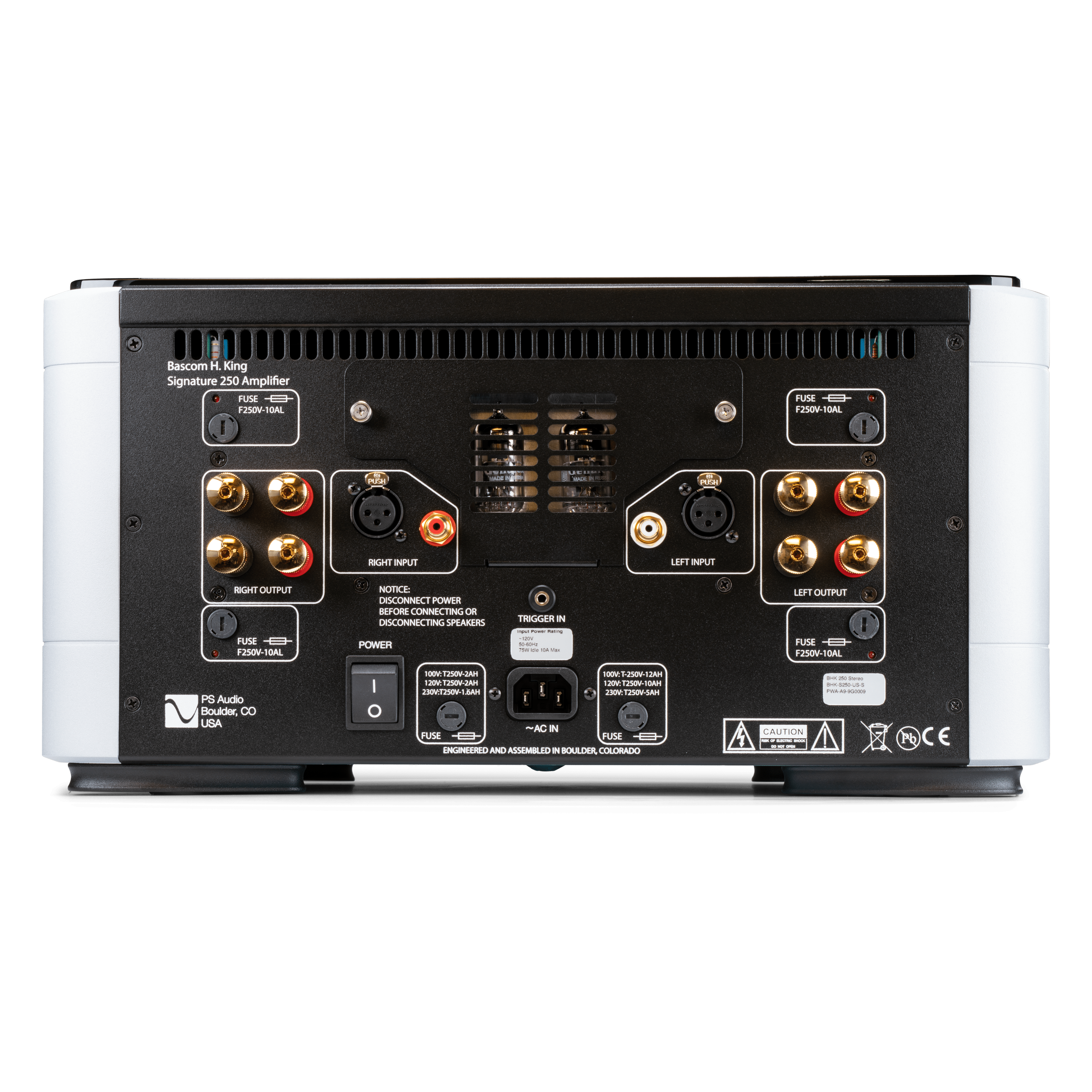

Audio Inputs RCA (Unbalanced)
XLR (Balanced)
Speaker Outputs Signature 250 Gold plated copper binding posts (2 pair per channel)
Speaker Outputs Signature 300 Gold plated copper binding posts (2 pair)
Other DC Trigger Input
3.5mm 5-15VDC
Warranty 3 years parts and labor on unit
1 year on vacuum tube

Power Consumption
@Ready 75 Watts
@Idle 175 Watts
@Rated power 8Ω 850 Watts
@Rated power 4Ω 1600 Watts

Signal
Gain 30.5dB +/-0.5dB
Sensitivity for rated output power of 250 watts into 8Ω 1.3V
Noise 100-20KHz <-85dBV
Input impedance Signature 250 stereo Unbalanced 100KΩ
Balanced 200KΩ
Input impedance Signature 300 mono Unbalanced 50KΩ
Balanced 100KΩ
Output Impedance 50Hz, 2.8VRMS <0.1Ω
Frequency Response @2.8VRMS
10Hz – 20KHz +/- 0.1dB
10Hz – 200KHz +0.1/-3.0dB

THD&IM
1KHz, 1W/8Ω <0.01%
20-20KHz, 1W/8Ω <0.1%
1KHz, 200W/8Ω < 0.1% (120VAC Mains input)
1KHz, 400W/4Ω < 0.1% (120VAC Mains input)

Signature 250 Stereo Amplifier

Output Power

 Both channels driven 120vac mains, 1kHz, 1% THD
8Ω 250W minimum
4Ω 500W minimum
2Ω Stable for musical transients

Signature 300 Mono Amplifier

Output Power

 120vac mains, 1kHz, 1% THD
8Ω 300W minimum
4Ω 600W minimum
2Ω 1000W
