Environment Specification |
US/JP |
Europe/Asia |
| Location | Indoor use only | Indoor use only |
| Duty Cycle | Suitable for continuous operation | Suitable for continuous operation |
| Moisture Sensitivity | Not sealed against moisture | Not sealed against moisture |
| Operating Humidity | <80%rh | <80%rh |
| Storage Temperature | -40C to +40C | -40C to +40C |
| Operating Temperature | 0C to 40C | 0C to 40C |
| Max Operating Altitude | 12,000’ (3500m) | 12,000’ (3500m) |
| Electrical Supply Nominal Rating | 120V 15A 60Hz US 100V 15A 50/60 Hz JP |
230V 10A 50/60Hz |
Instrument Specification |
||
| Unit Dimensions | 17” W x 14” D x 11” H (43cm W x 36cm D x 27.9 cm H) | 17” W x 14” D x 11” H (43cm W x 36cm D x 27.9 cm H) |
| Unit Weight | 96 lbs ( 43.5kg) | 96 lbs ( 43.5kg) |
| Shipping Dimensions | 23” x 22” x 17” ( 58cm x 55.8cm x 43 cm) | 23” x 22” x 17” ( 58cm x 55.8cm x 43cm) |
| Shipping Weight | 105 lbs (47kg) | 105 lbs (47kg) |
| Nominal Input Voltage | 95 – 145 VAC | 200 –285VAC |
| Maximum Continuous Load | 2000VA | 2000VA |
| Maximum Peak Load | 3600VA | 3600VA |
| Voltage Regulation | <1V | <1V |
| Output Distortion (Resistive Load) | <0.5% | <0.5% |
| Output Distortion (Reactive Load) | <0.5% 0.1% typical |
<0.5% 0.1% typical |
| Output Impedance | <0.005 ohm | <0.005 ohm |
| Noise Reduction | 100kHz – 2MHz >80dB | 100kHz – 2MHz >80dB |
| Efficiency @1500 VA | >85% | >85% |
| Standby Power Consumption | 35W | 45W |
| Input Frequency | 45 – 65 Hz | 45 – 65 Hz |
| Under Voltage Limit |
US - 90V JP - 75V |
175V |
| Over Voltage Limit |
US - 144V JP - 120V |
275V |
| Energy Dissipation | 2040J | 5040J |
| Peak Current Surge | 180,000A | 180,000A |
| Clamp Level | 340V | 775V |
| DC Trigger Configuration | Tip Positive | Tip Positive |
| DC Trigger Voltage | 5 – 15Vdc | 5 – 15Vdc |

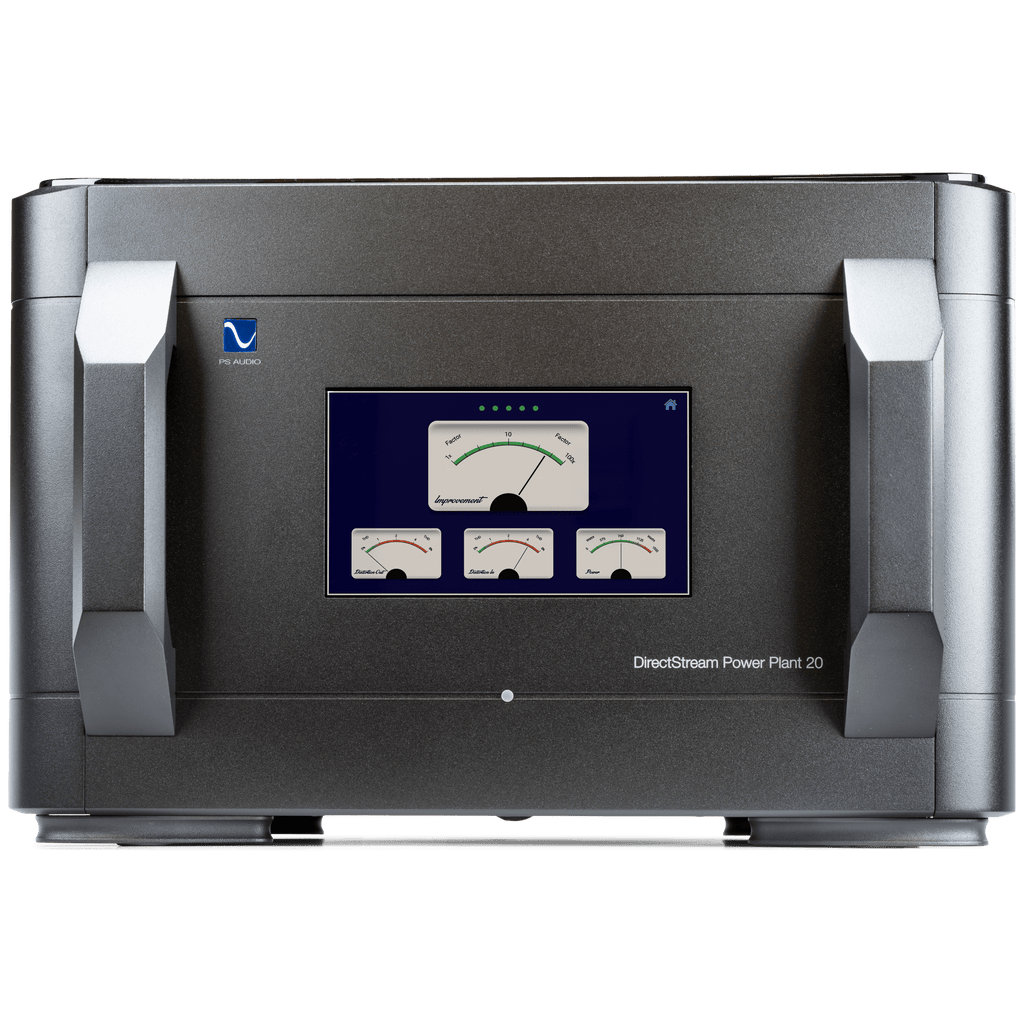

PowerPlant 20
Design
Application
Overview
Output
Protection
Features
24 key featuresBUILT IN BOULDER
2000 VA OUTPUT
40% MORE POWER
16x OUTLETS US
15AMP AC INPUT US
20AMP AC INPUT US
RANGE 95 – 145 VAC US
120VOLT REGULATED US
13AMP AC INPUT EU/AU/GR/UK
230 VOLT REGULATED EU/AU/GR/UK
RANGE 200 –285VAC EU/AU/GR/UK

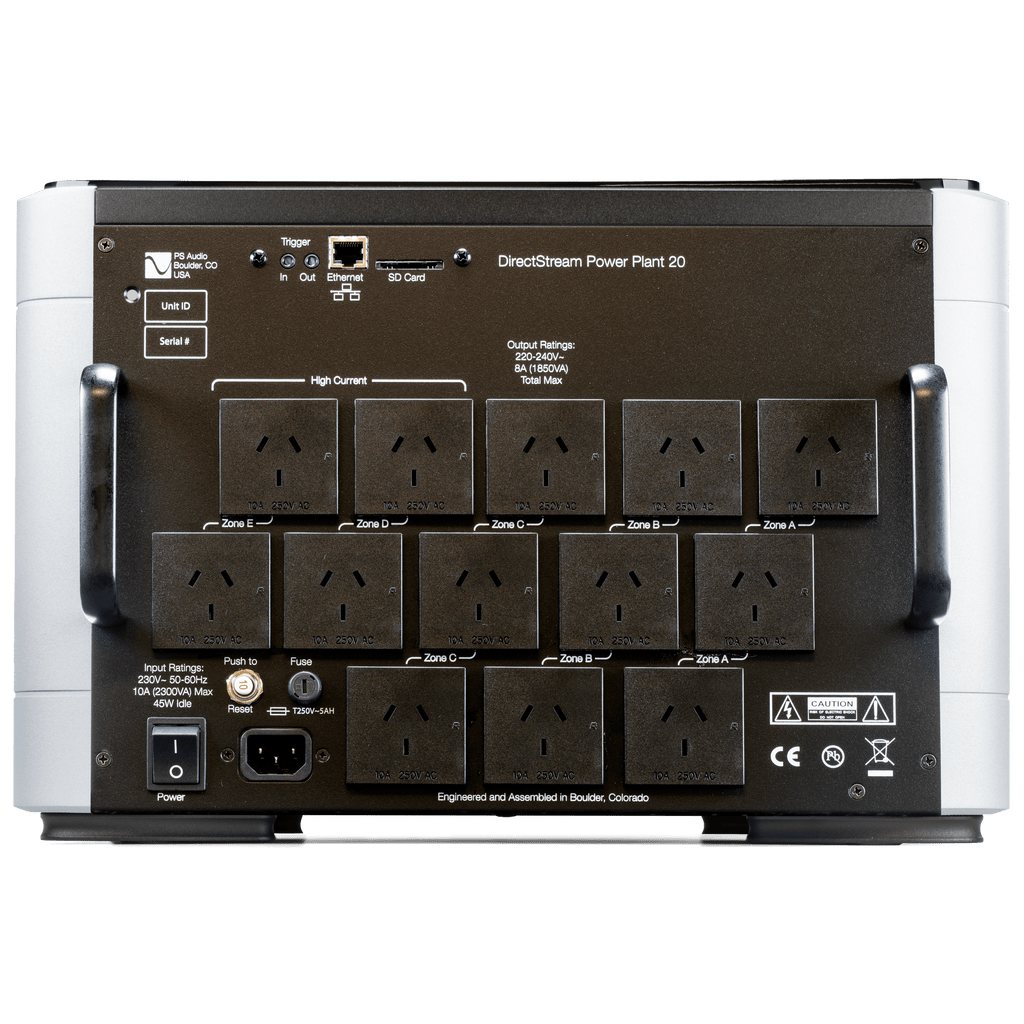

13x EU/AU/GR/UK OUTLETS
PASSIVELY COOLED
PURE SINE WAVE
MULTIWAVE
INTEGRATED OSCILLOSCOPE
THD METER
IMPROVEMENT METER
POWER METER
CONTROL OVER THE LAN
ADJUTABLE OUTPUT VOLTAGE
COLOR TOUCHSCREEN
FIELD UPGRADEABLE
100% REGENERATED AC
