BHK Signature 250 Stereo and BHK Signature 300 Mono |
|
| Unit Weight | 83 lbs [37.6 kg] |
| Unit Dimensions | 17.1” x 8.7” x 14” Chassis only. 15" deep including connectors. |
| Shipping Weight | 92 lbs [41.7 kg] |
| Shipping Dimensions | 21”x 13” x 19” |
| Color Options | Black Silver |
| Voltage Options Factory set only |
Japan 100V North America 120V Europe/Asia/Australia/New Zealand 230V |
| Mains Power Inputs | IEC C14 |
| Fuse Compliment all Countries | 4 - 10 amp fast blow H-Rated 5x20mm Rail Fuses |
| Fuse Compliment Mains |
100vac Countries 1 - 2 amp slow blow H-rated 5x20mm 1 - 12 amp slow blow H-rated 5x20mm 120vac Countries 1 - 2 amp slow blow H-rated 5x20mm 1 - 10 amp slow blow H-rated 5x20mm 230vac Countries 1 - 1.6 amp slow blow H-rated 5x20mm 1 - 5 amp slow blow H-rated 5x20mm |
| Accessories Included | US (NEMA 5-15P) (all versions) Schuko (CEE7/7) (230V version) UK (BS 1363) (230V version) |

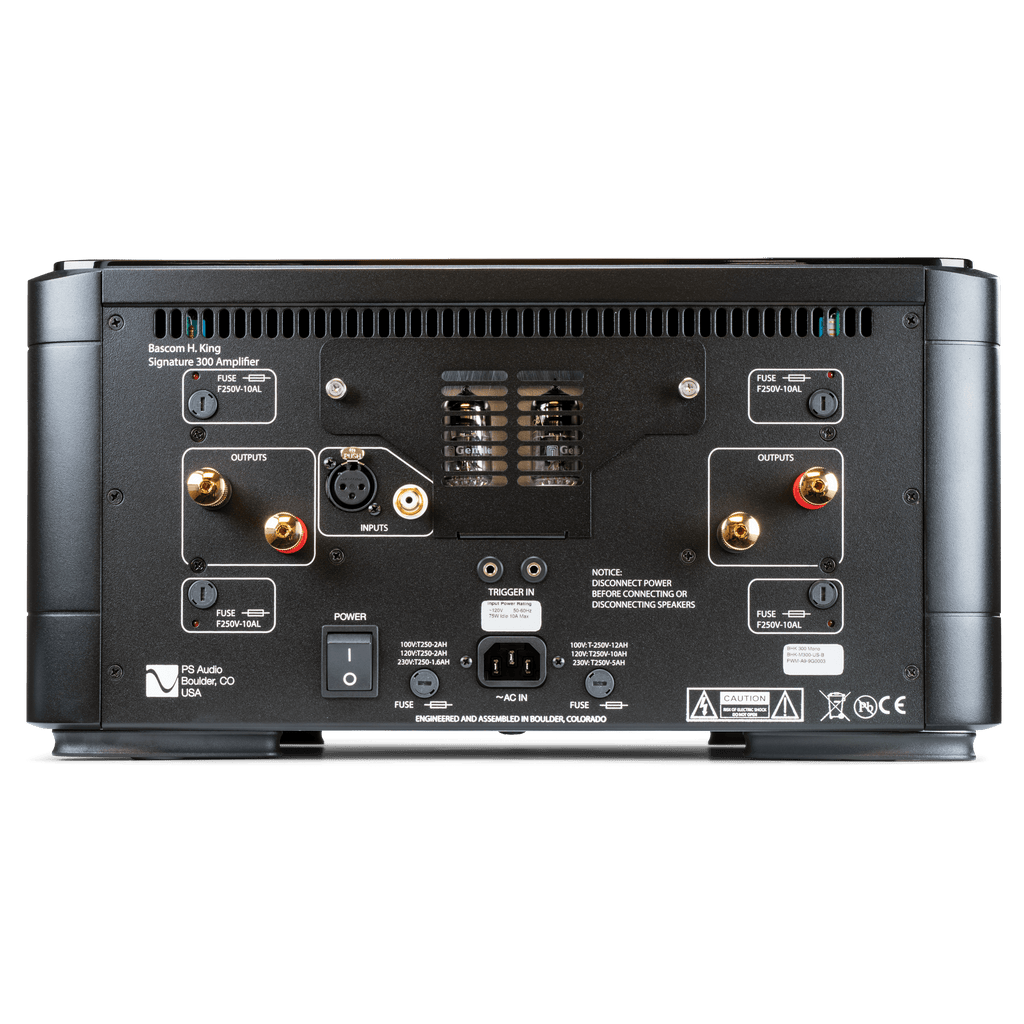

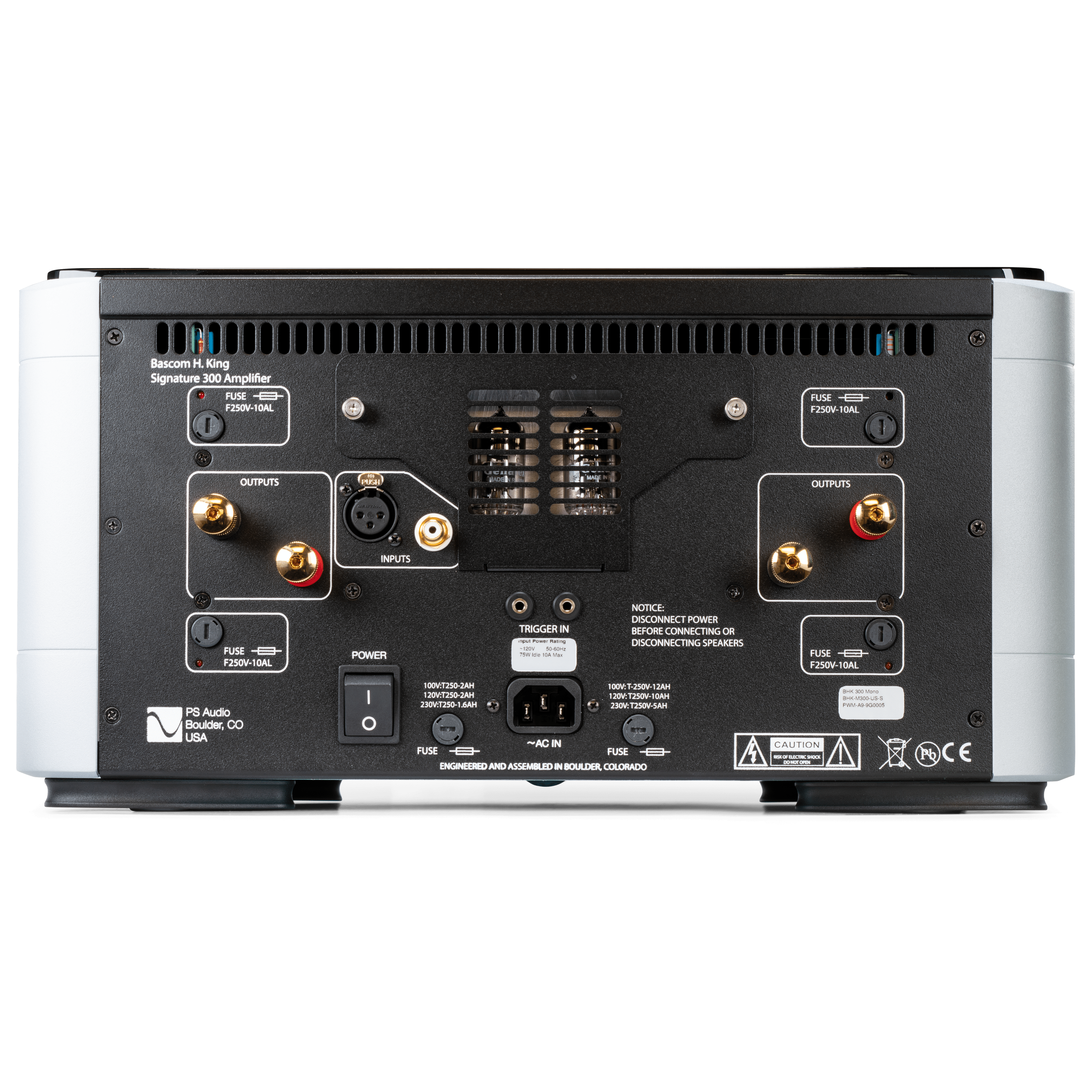

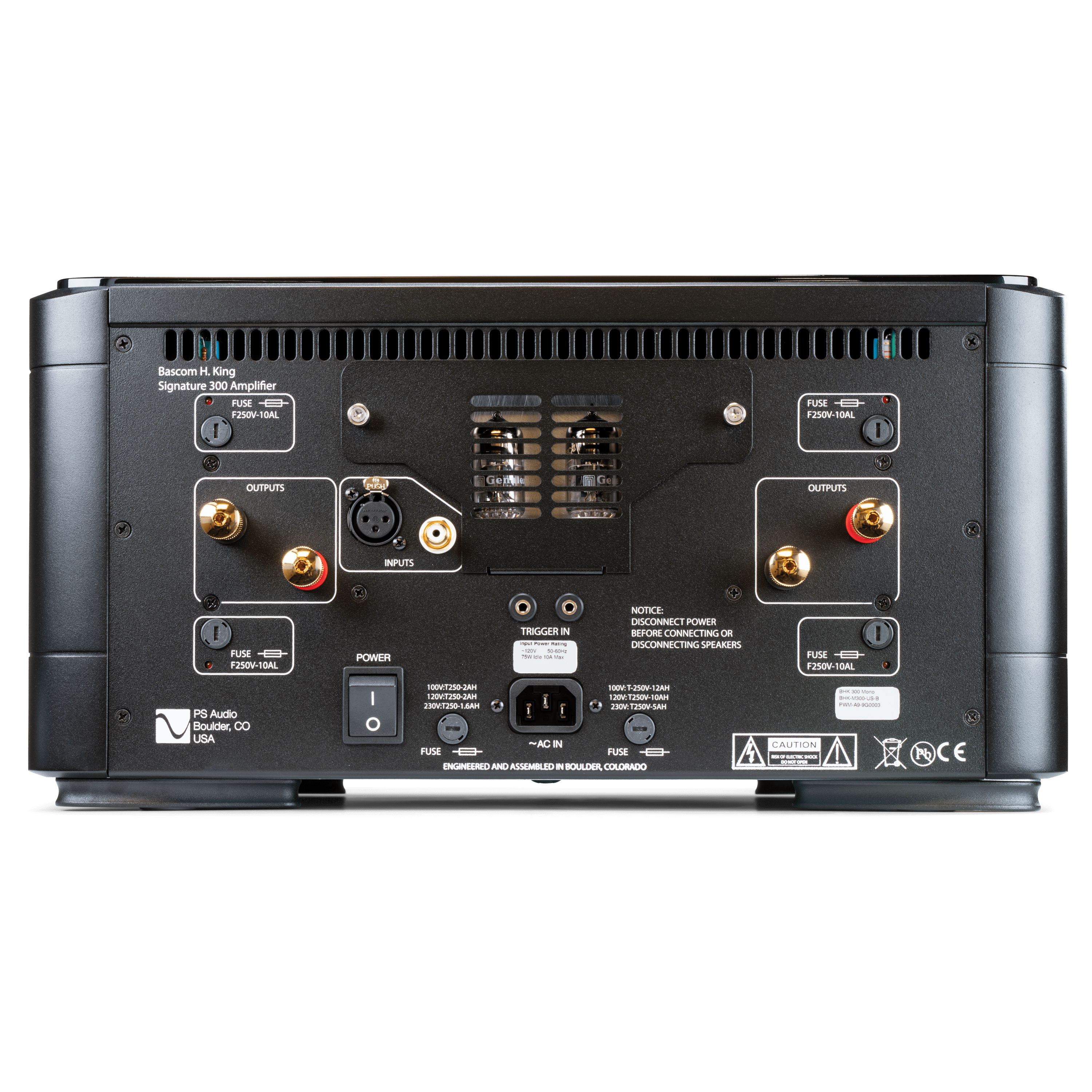

| Audio Inputs | RCA (Unbalanced) XLR (Balanced) |
| Speaker Outputs Signature 250 | Gold plated copper binding posts (2 pair per channel) |
| Speaker Outputs Signature 300 | Gold plated copper binding posts (2 pair) |
| Other | DC Trigger Input 3.5mm 5-15VDC |
| Warranty | 3 years parts and labor on unit 1 year on vacuum tube |
Power Consumption |
|
| @Ready | 75 Watts |
| @Idle | 175 Watts |
| @Rated power 8Ω | 850 Watts |
| @Rated power 4Ω | 1600 Watts |
Signal |
|
| Gain | 30.5dB +/-0.5dB |
| Sensitivity for rated output power of 250 watts into 8Ω | 1.3V |
| Noise | 100-20KHz <-85dBV |
| Input impedance Signature 250 stereo | Unbalanced 100KΩ Balanced 200KΩ |
| Input impedance Signature 300 mono | Unbalanced 50KΩ Balanced 100KΩ |
| Output Impedance | 50Hz, 2.8VRMS <0.1Ω |
| Frequency Response | @2.8VRMS 10Hz – 20KHz +/- 0.1dB 10Hz – 200KHz +0.1/-3.0dB |
THD&IM |
|
| 1KHz, 1W/8Ω | <0.01% |
| 20-20KHz, 1W/8Ω | <0.1% |
| 1KHz, 200W/8Ω | < 0.1% (120VAC Mains input) |
| 1KHz, 400W/4Ω | < 0.1% (120VAC Mains input) |
Signature 250 Stereo Amplifier |
|
Output Power |
Both channels driven 120vac mains, 1kHz, 1% THD |
| 8Ω | 250W minimum |
| 4Ω | 500W minimum |
| 2Ω | Stable for musical transients |
Signature 300 Mono Amplifier |
|
Output Power |
120vac mains, 1kHz, 1% THD |
| 8Ω | 300W minimum |
| 4Ω | 600W minimum |
| 2Ω | 1000W |

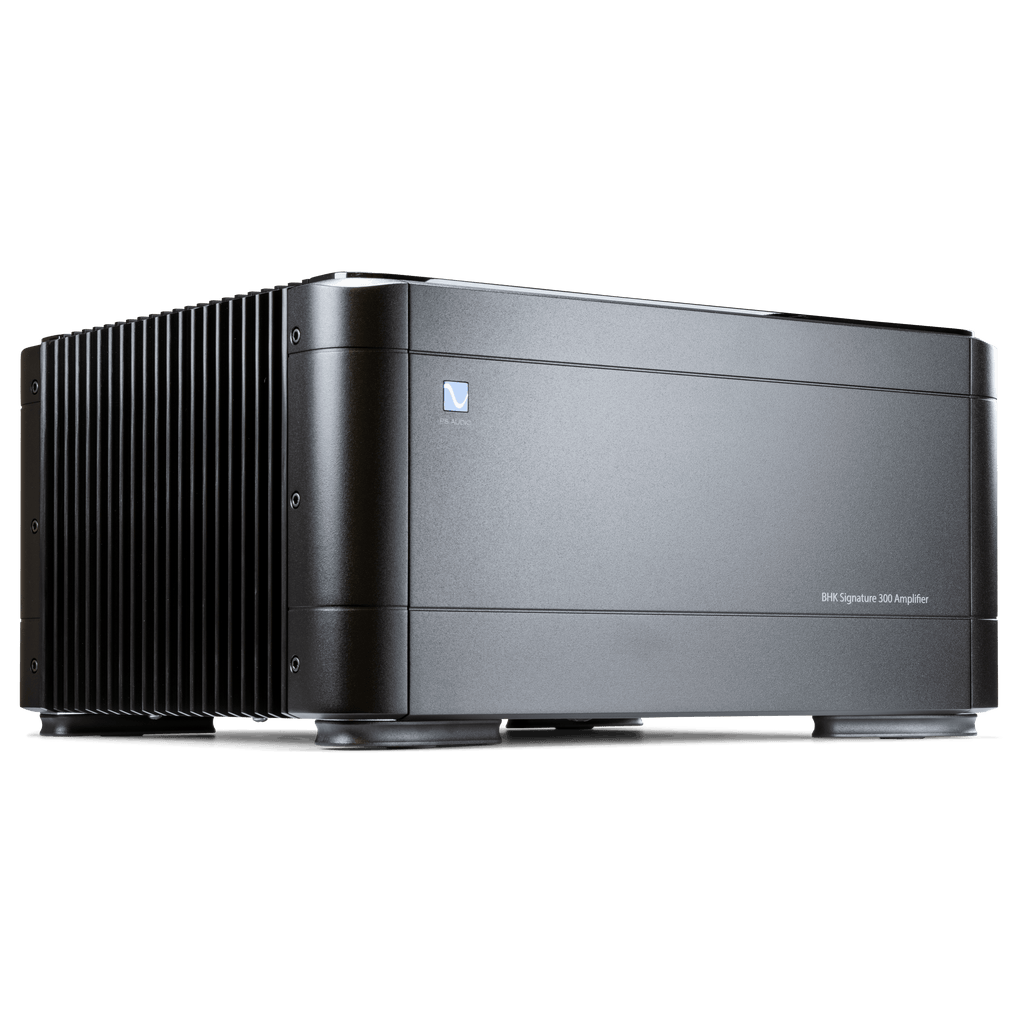

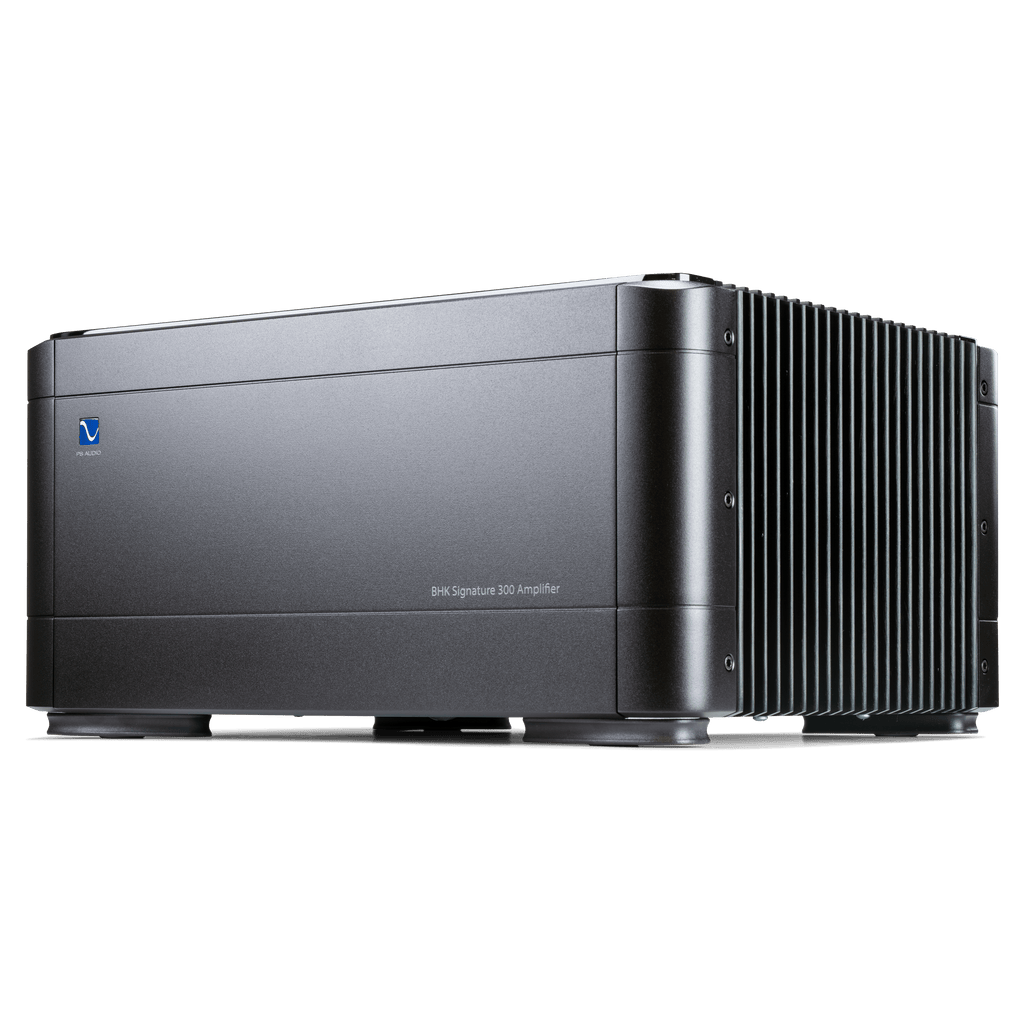

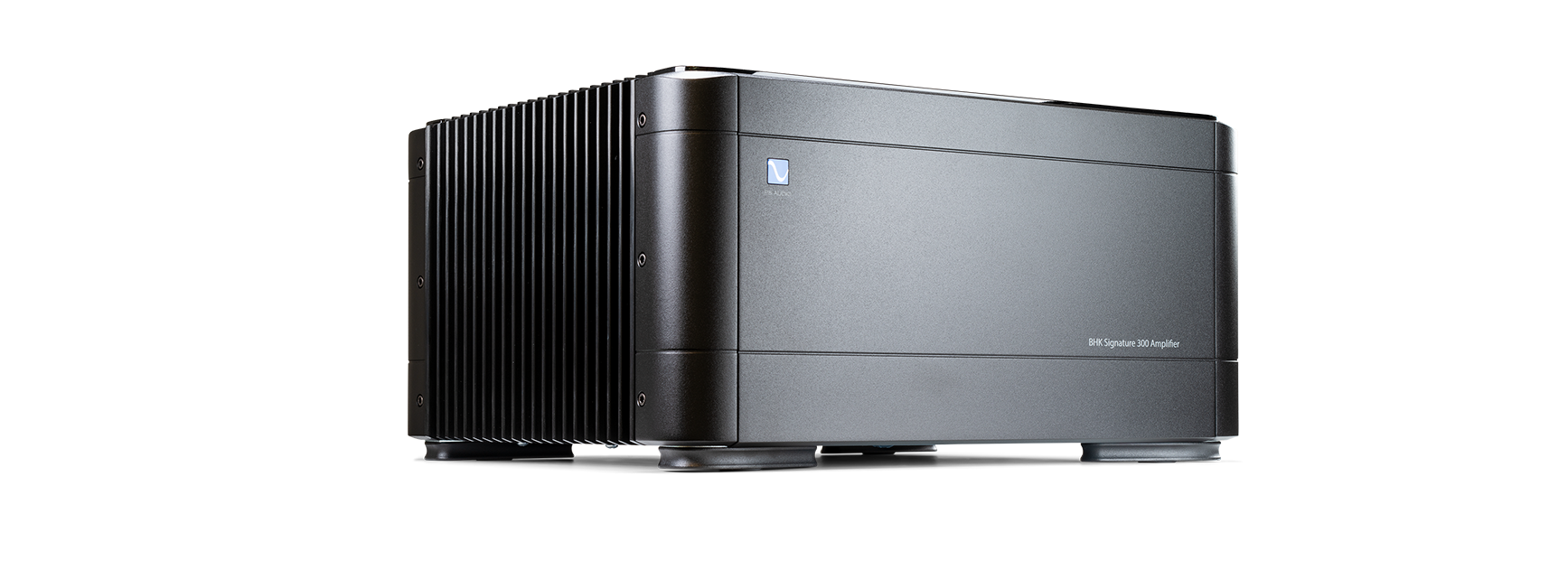

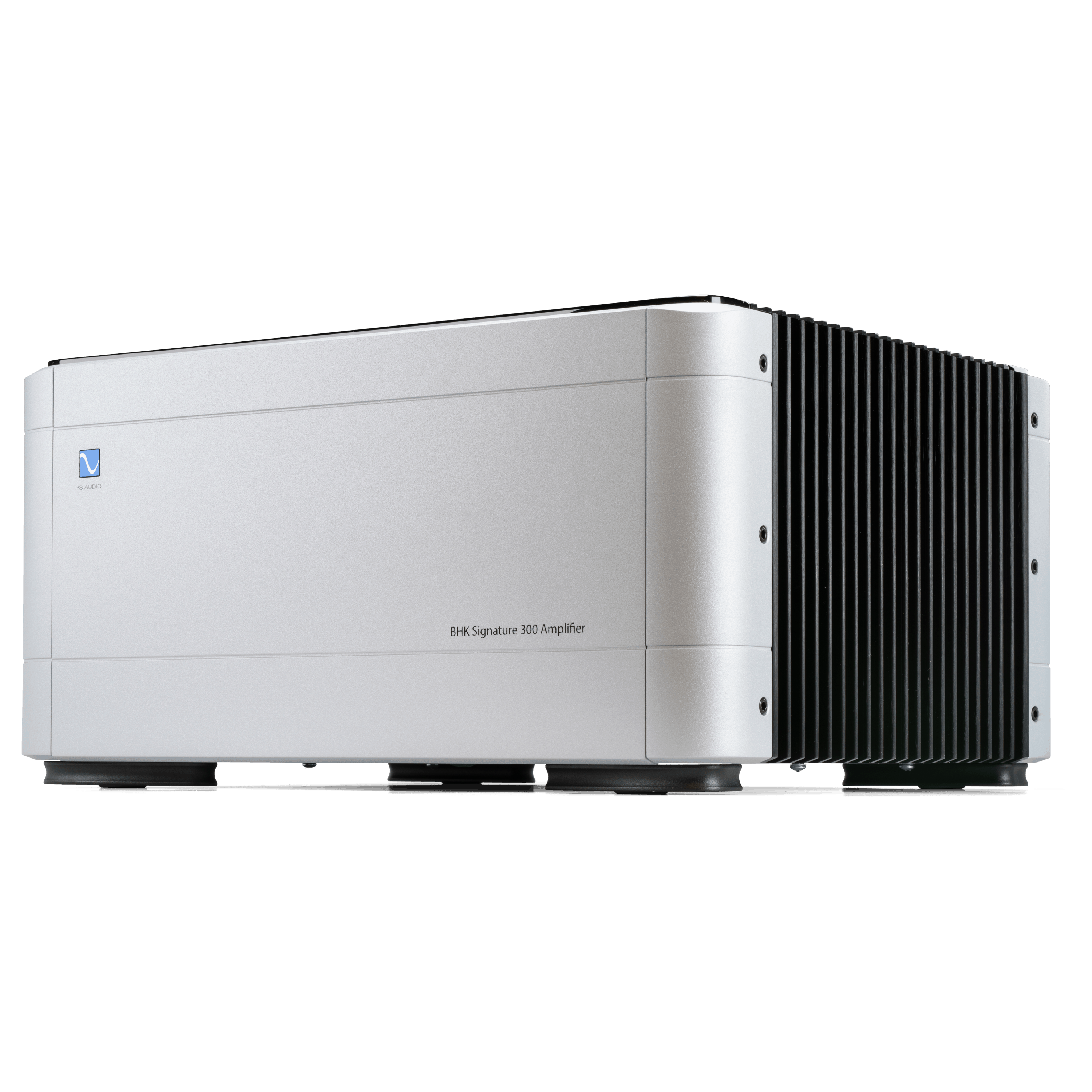

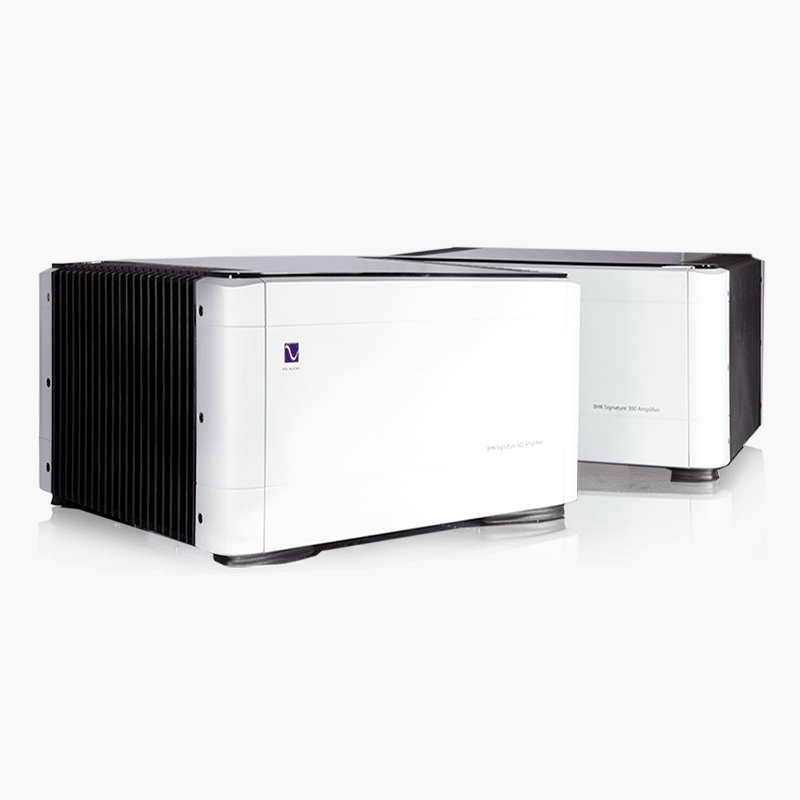

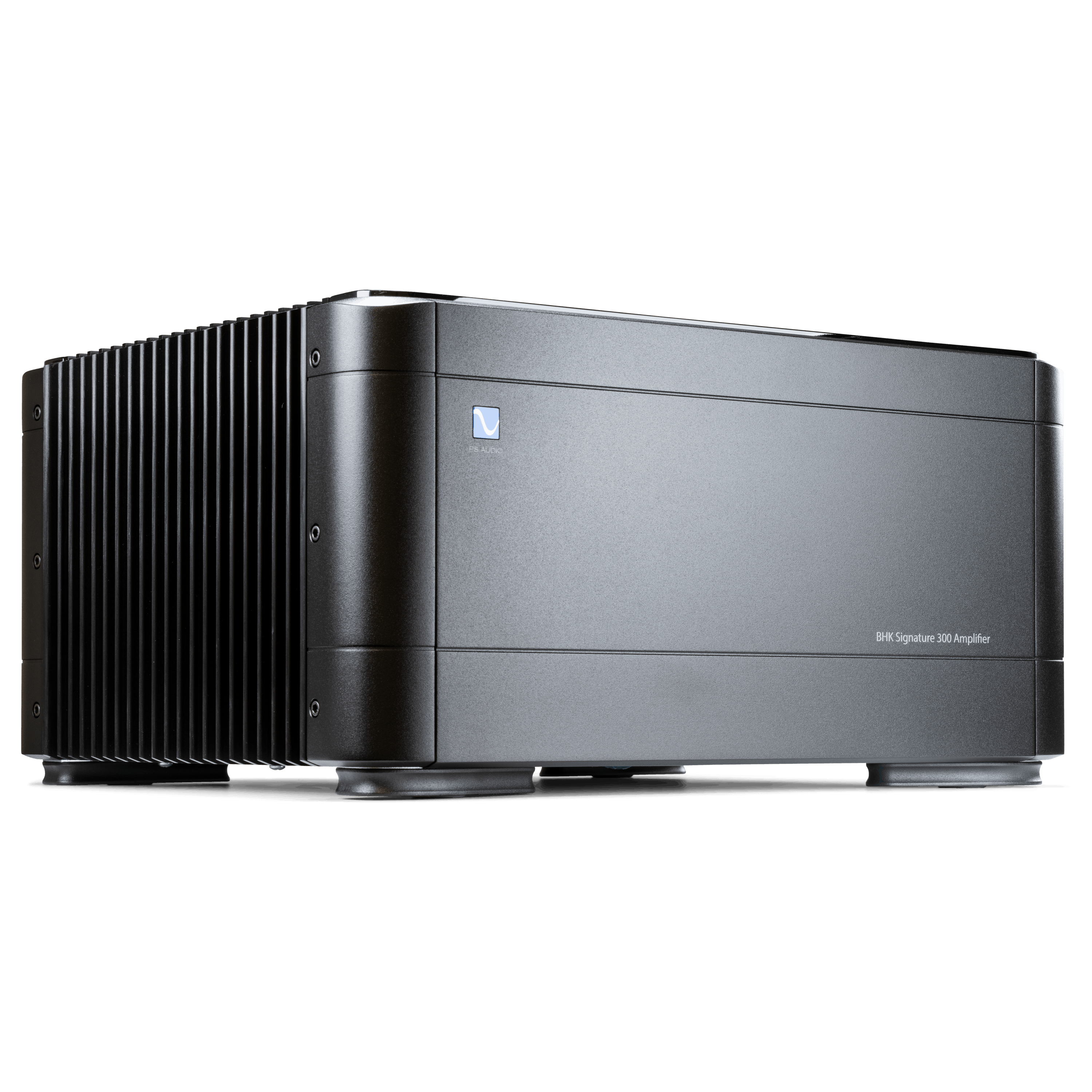

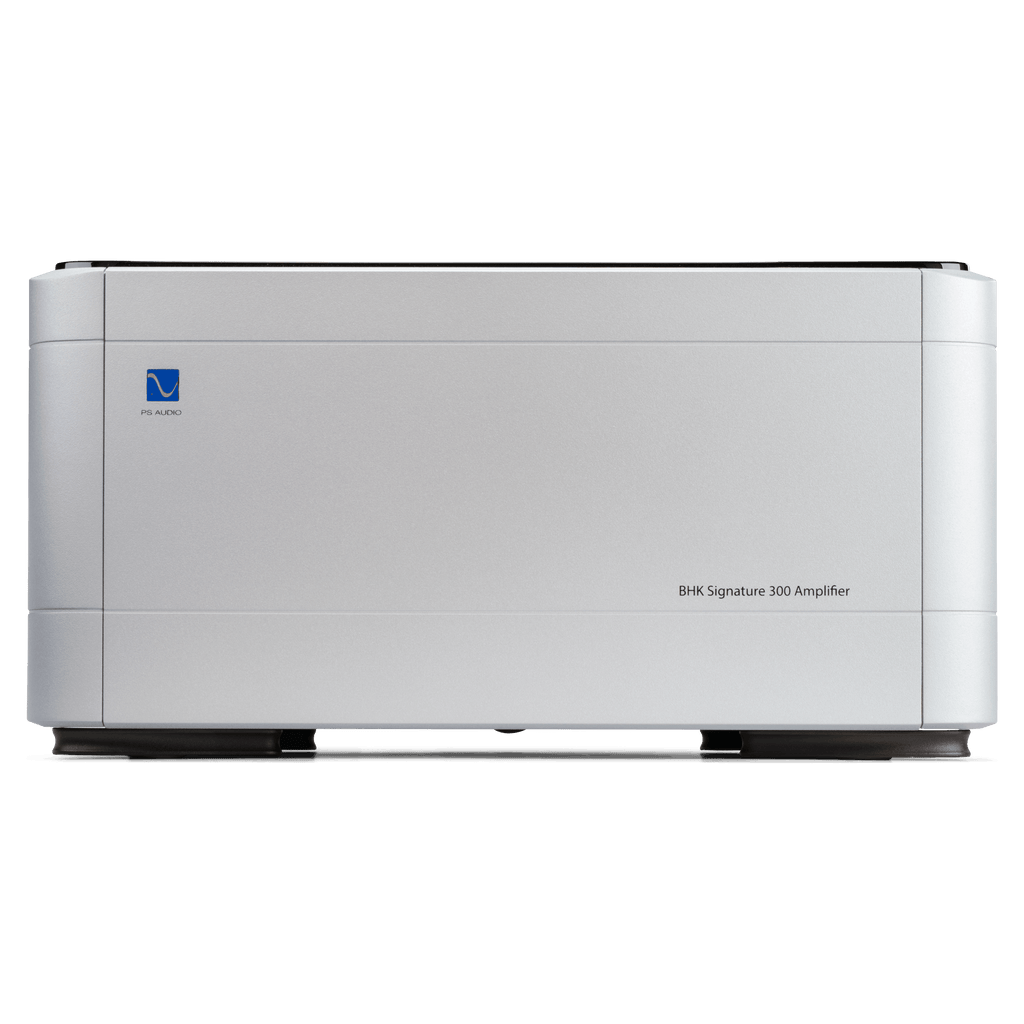

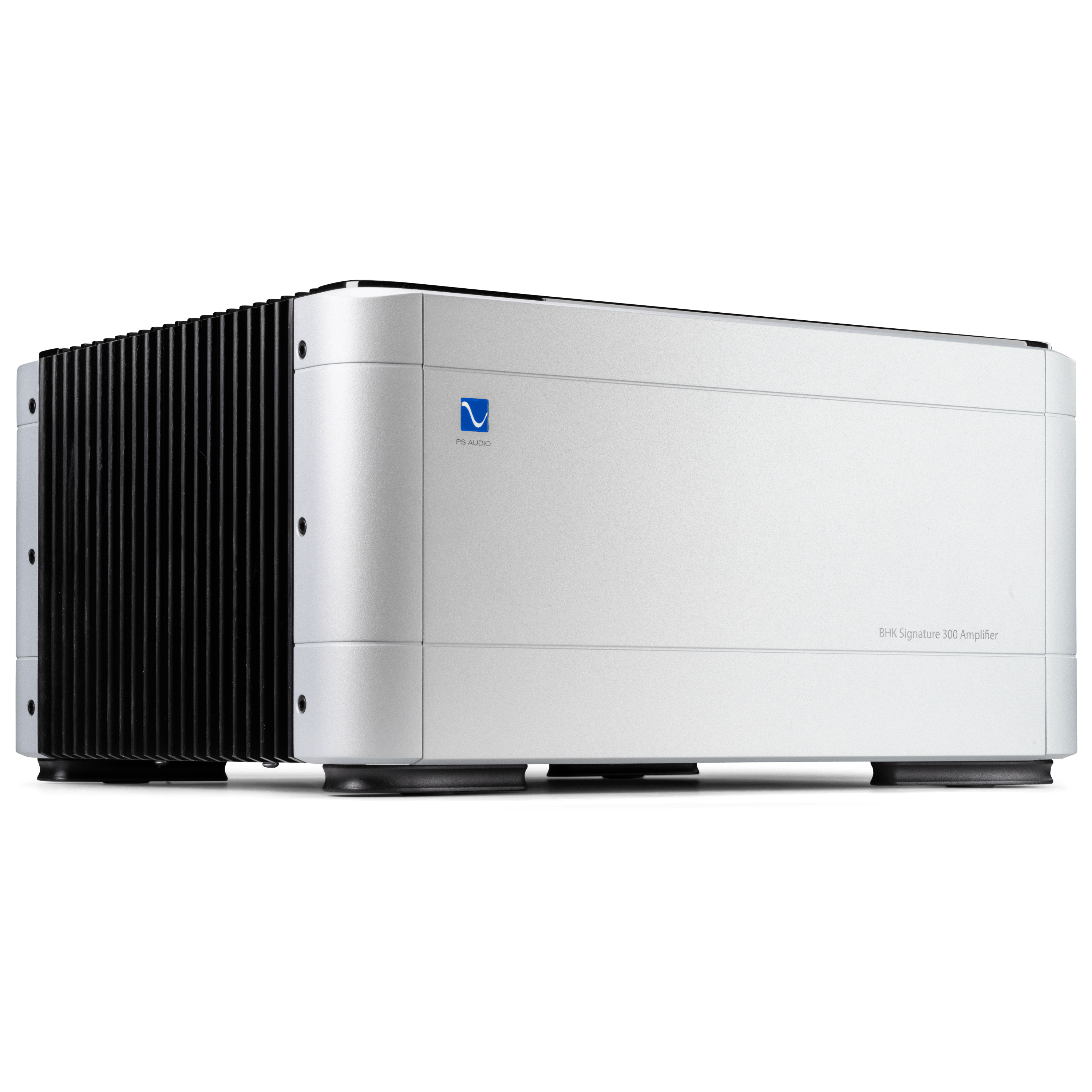

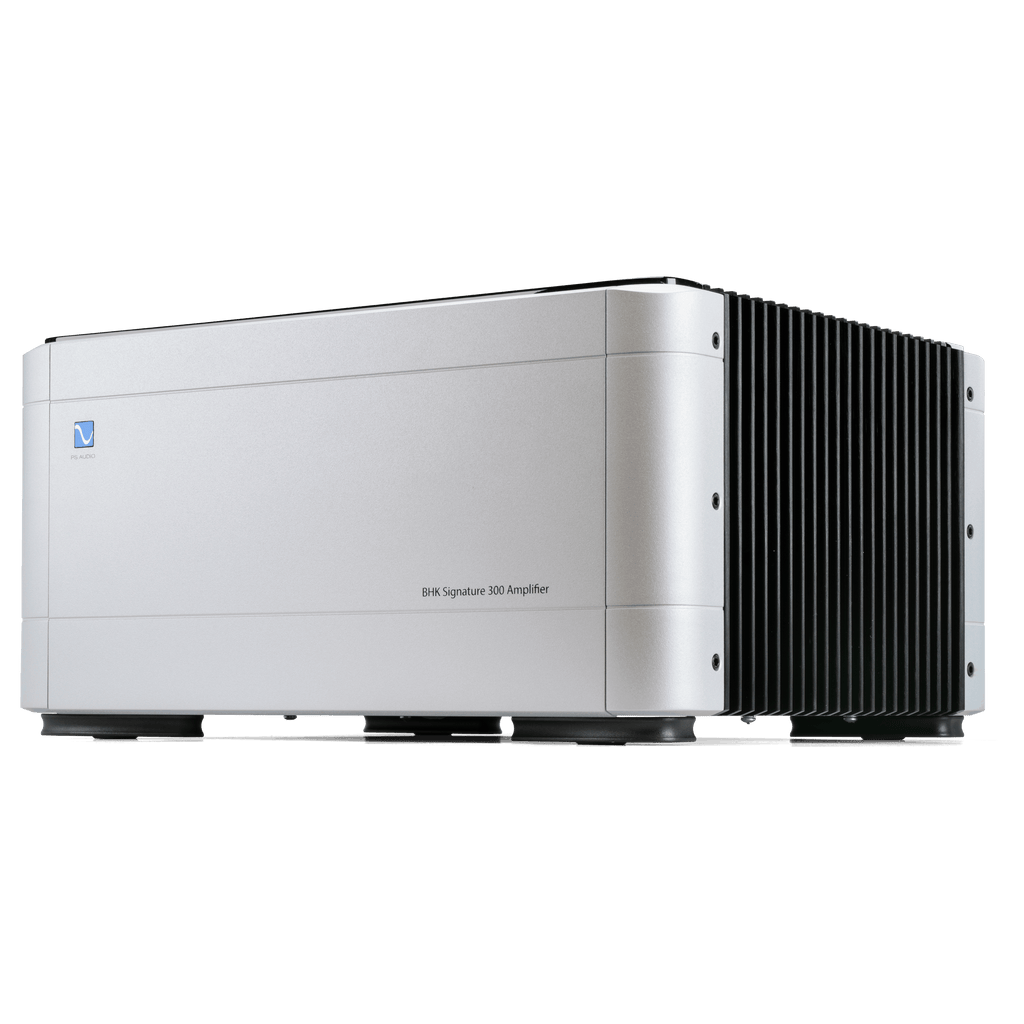

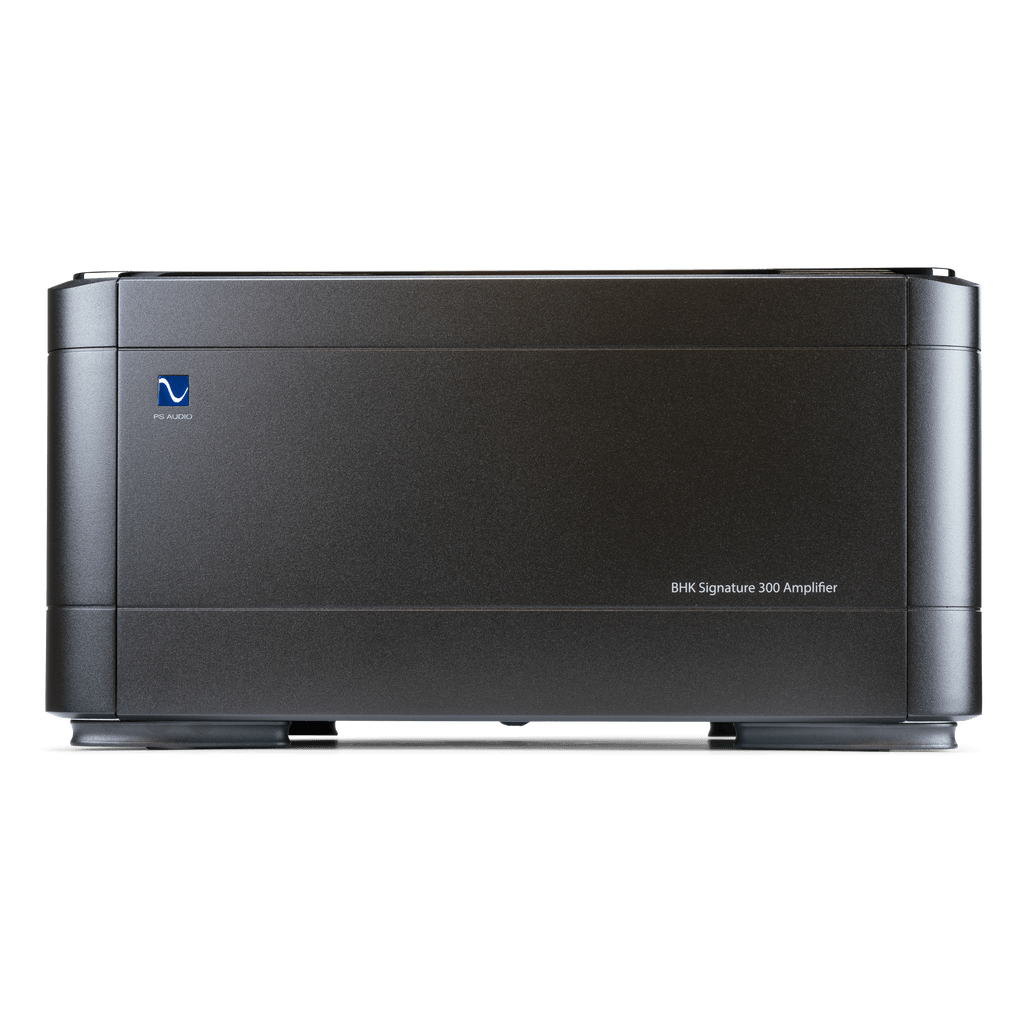

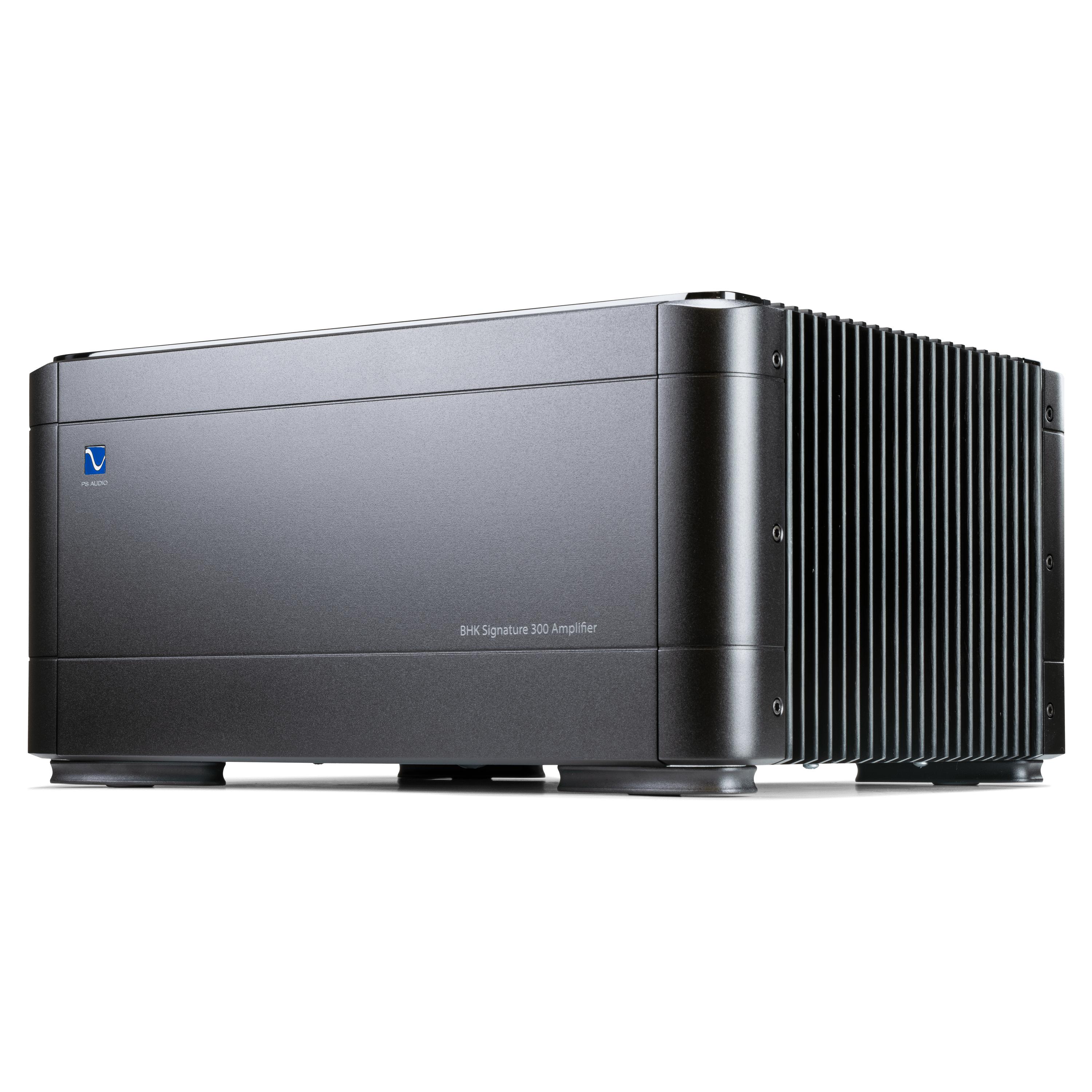

BHK Mono 300 Power Amplifier
Limited Final Restock. Price is per pair.
Design
Application
Overview
Input Stage
Output stage
Features

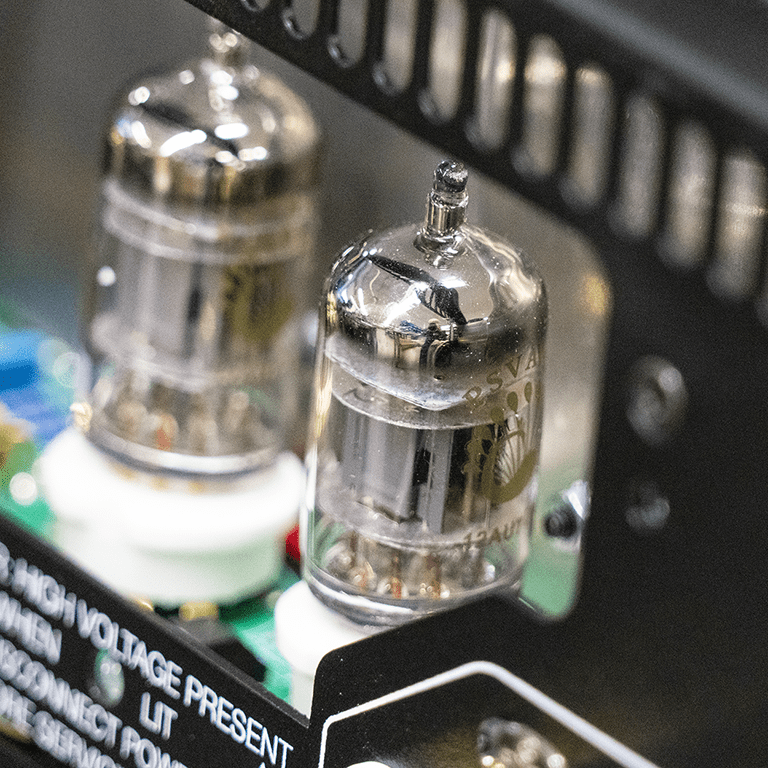

18 key featuresZERO LOSS INPUT TUBE

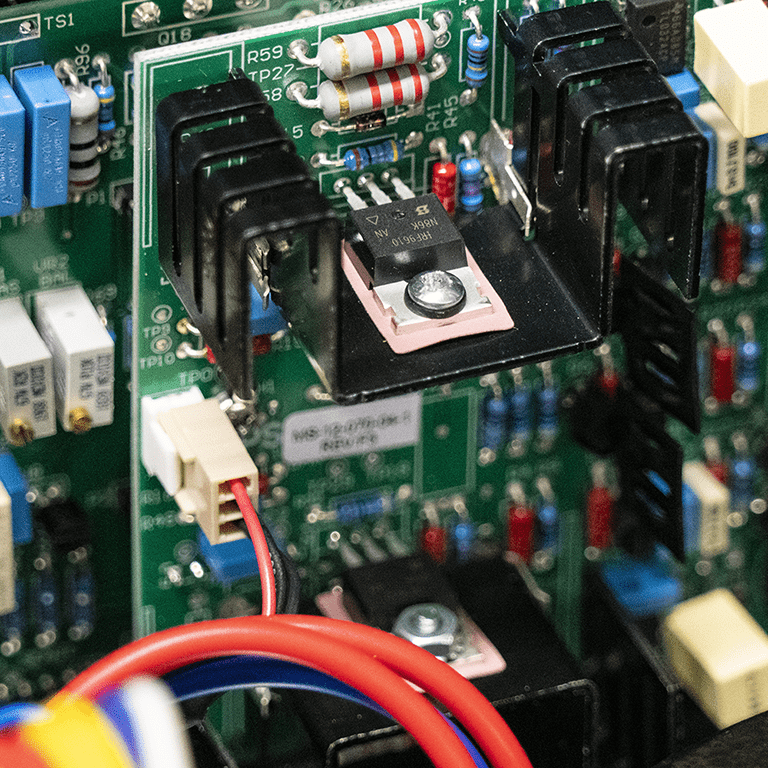

POWERFUL MOSFET OUTPUT STAGE
THROUGH-HOLE CONSTRUCTION
RCA SINGLE-ENDED INPUT
XLR "TRUE" BALANCED INPUT
300 WATTS PER CHANNEL 8Ω
600 WATTS PER CHANNEL 4Ω
1000 WATTS PER CHANNEL 2Ω
-3dB > 200khz
< 0.1% THD 20Hz - 20kHz AT RATED POWER
DAMPING FACTOR = 100
FRONT PANEL STANDBY BUTTON
BALANCED INPUT TO OUTPUT
DUAL, COPPER, PLATED, OUTPUT BINDING POSTS
83 LBS.
INPUT 12 VOLT TRIGGER
FULLY PARALLELED INSIDE
EASY ACCESS FOR TUBES
Reviews
reviews
They have truly exceptional imaging, depth, and natural soundstage width, and they really can get the best out of the naturally miked and produced recordings that have a real-world soundstage. The 300s' dynamics are extraordinary, particularly in the lower octaves that seem to be in even more demand for audio reproduction today than the upper octaves
Read full review →
The fact is, the BHK Signature 300 is a powerful, nimble-sounding amplifier that immediately drew me in with fast, punchy, tight bass; rich, liquid mids; and delicate, transparent highs—all effectively well integrated into a coherent whole
Read full review →
I've heard this amplifier in several systems…over the past couple years, and came away incredibly impressed on every occasion. An effortless presentation to every recording is a hallmark of PS Audio in my experience, with speed, dynamics, and an innately natural, unforced sound to everything from heavy metal, to intimate acoustic guitar solos. King seems to have harnessed the best of both worlds (tubes, and solid state) in this design, and the fact that it's made in the USA by real people
The fact is, the BHK Signature 300 is a powerful, nimble-sounding amplifier that immediately drew me in with fast, punchy, tight bass; rich, liquid mids; and delicate, transparent highs—all effectively well integrated into a coherent whole
Read full review →
When PS Audio decided to re-enter the amplifier market with a statement product, I am not sure even Paul McGowan anticipated what would result. That they have succeeded in creating something special is clear from my listening. The process of bringing on board a legendary designer and allowing him freedom to design to a sonic target while keeping costs in the realm of reasonable (ahem!) is more than mere advertising hype. At nearly 5k for a pair, these are not highly affordable products but
Read full review →
PS Audio's BHK Signature 300 Mono amplifiers produced wonderfully clear sound in my room, yet with a tangible, 3D quality that gave the music emerging from my speakers a bit more body -- which I really enjoyed. Their soundstaging was exceptional, and they proved unflappable throughout the listening period, despite being challenged with complex music and punishing volume levels. Their treble response was clean without sounding edgy, allowing me to enjoy longer listening sessions than I have with
Read full review →
The BHK Signature 300 Amplifier are nothing less than world-class amplifiers: Sonically they leave nothing to be desired, as they combine in perfect style power and control with softness and emotion. And PS Audio circuit Bascom H. Kings packed in simple and well designed housing instead of aluminum sculptures, the Monos can decorate with an unprecedented low price / sound ratio: downright reasonable dream amplifiers
Read full review →
Yes, it's all things you'd expect from a top flight amplifier: powerful and precise, fast and dynamic, generous in its staging, and close in its focus. But its ability to translate those elements into a musically coherent and consistently compelling performance is what sets the BHK Signature apart from any other power amplifier I've listened to. I sense a classic in the making
