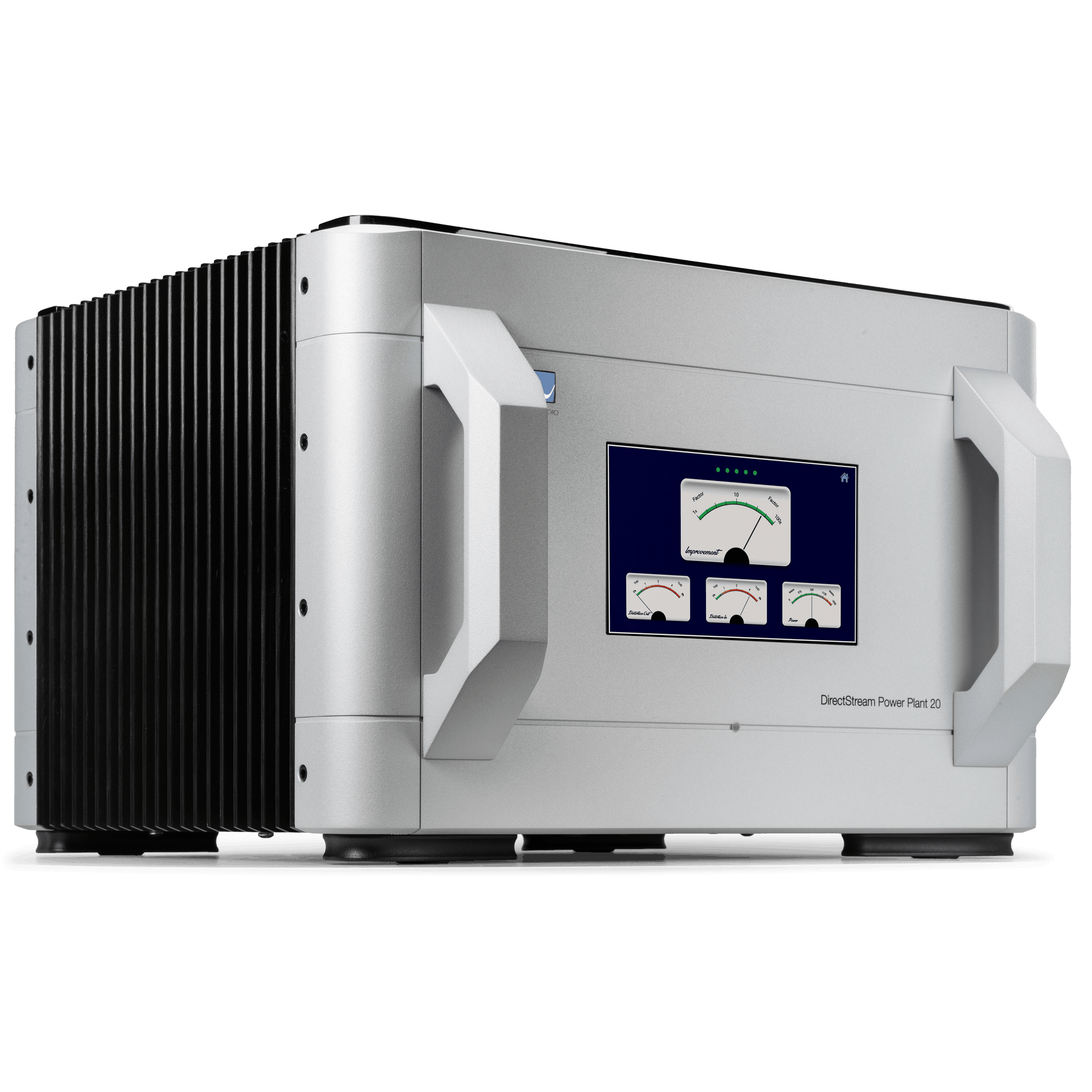

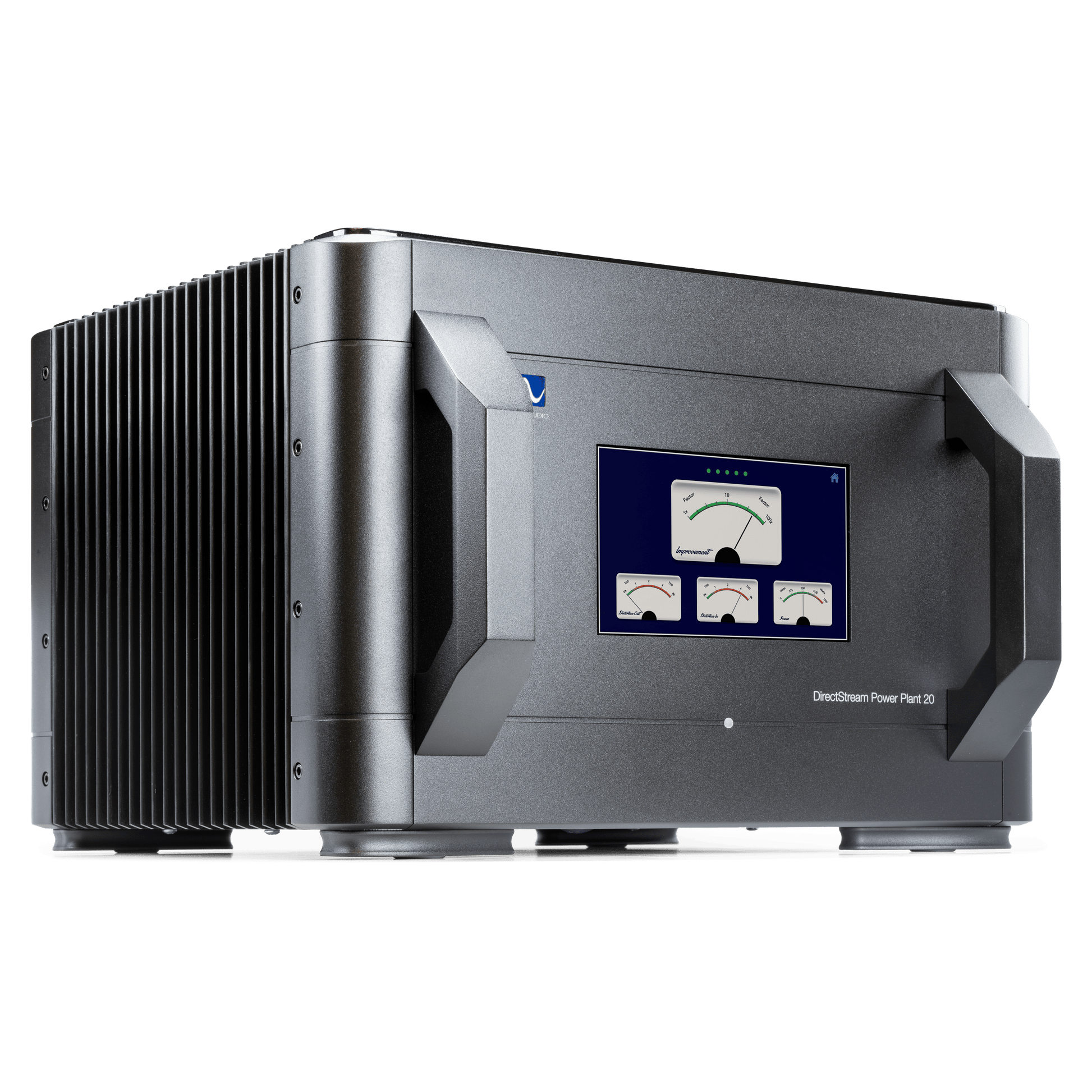

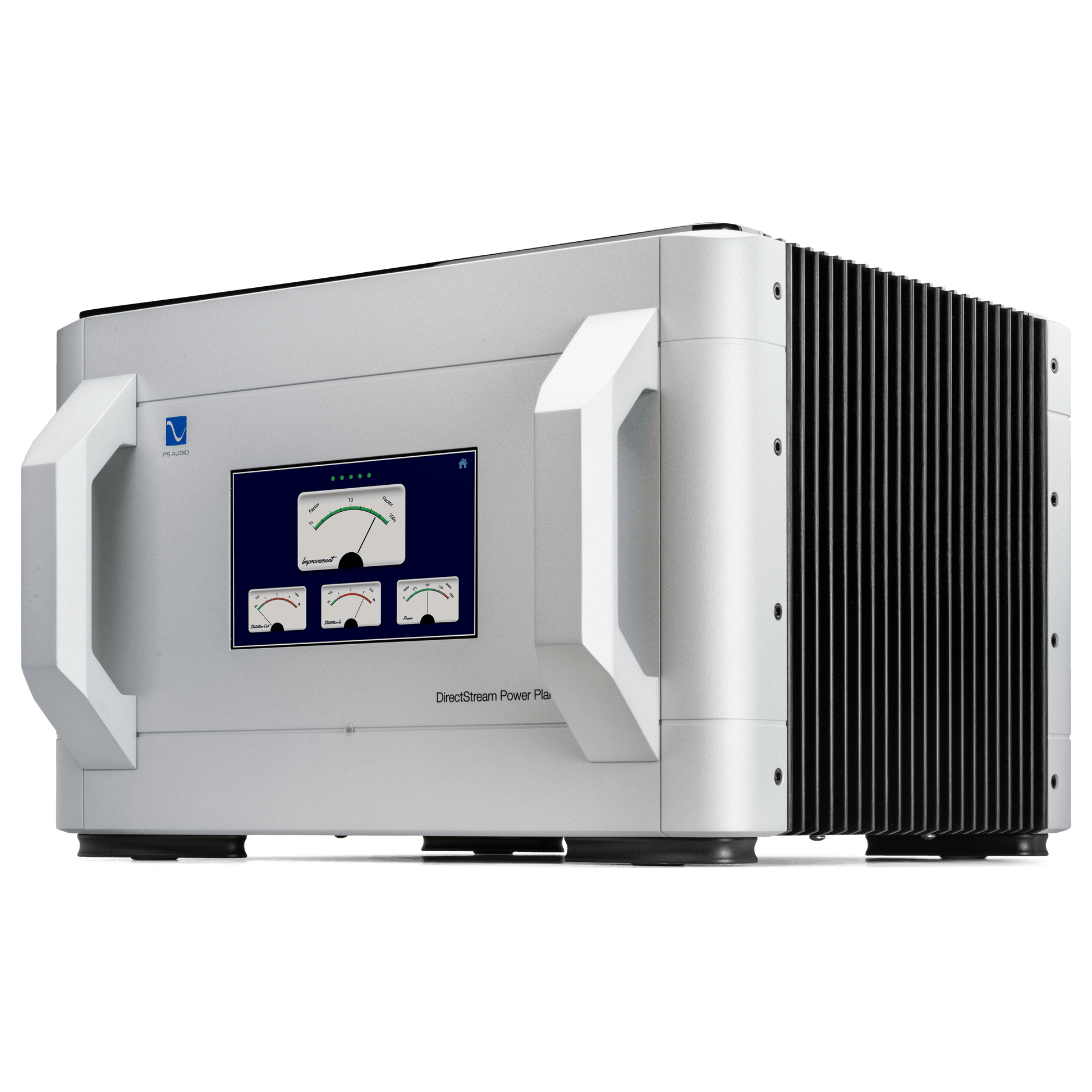

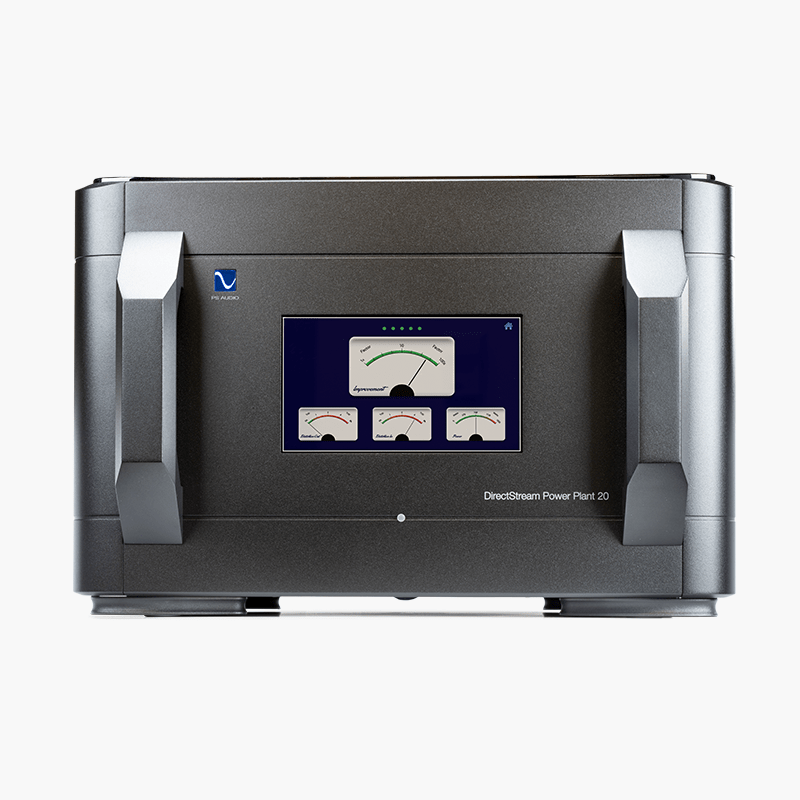

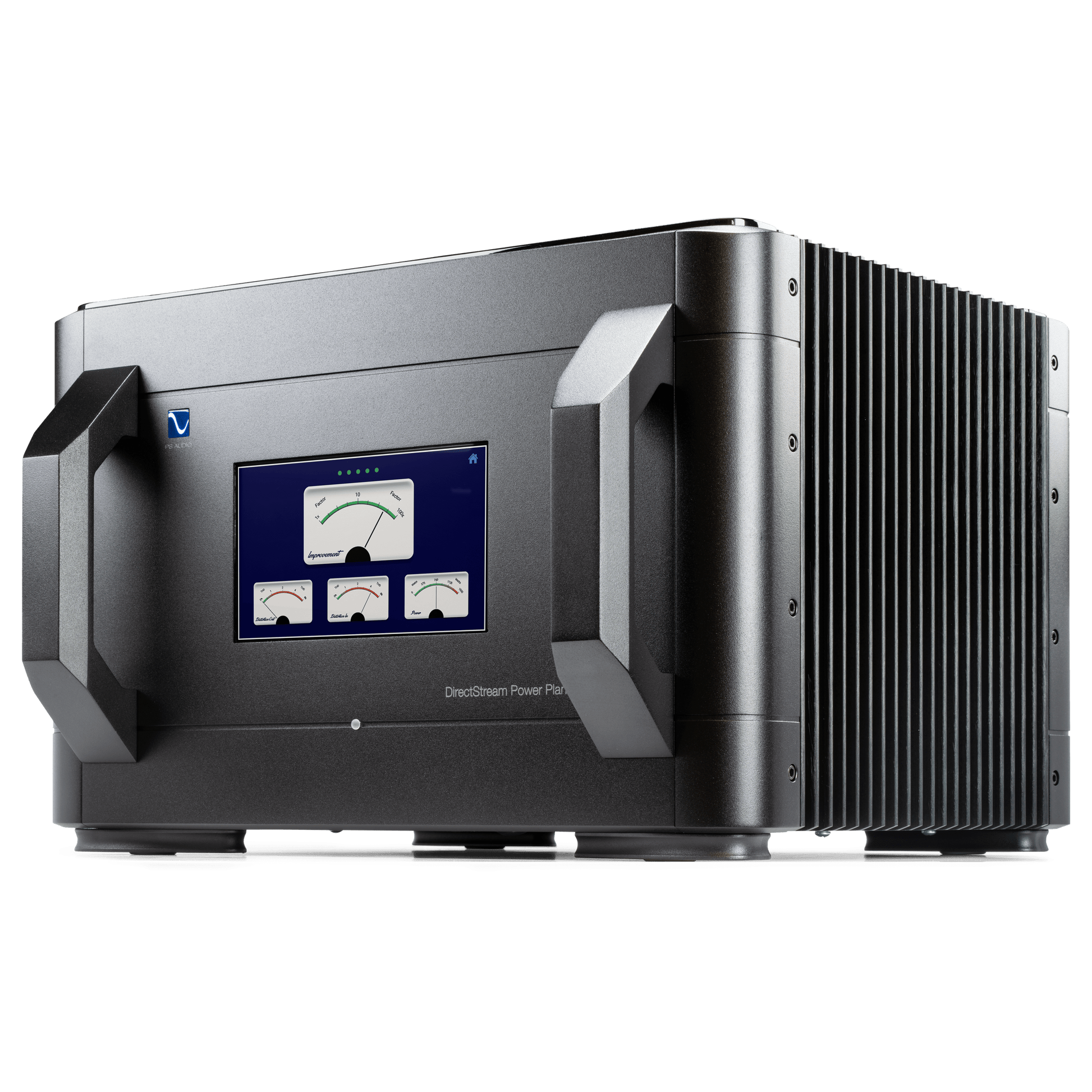

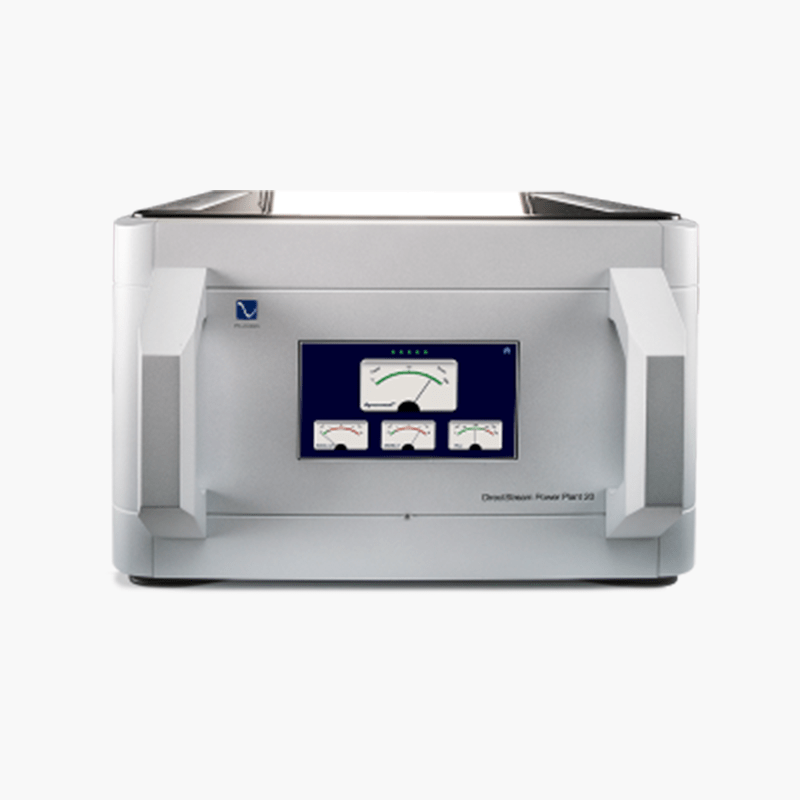

PowerPlant 20

PowerPlant 20

PS Audio's largest and most powerful regenerator, the P20 is trusted to protect and power the most expensive systems in the world.
The DirectStream P20 Power Plant is our finest expression of the art of delivering protected, pure, regulated, distortion-free AC power. With peak power levels of 3600 watts, no equipment can tax the mighty P20. Finally, your most coveted components have the opportunity to unleash their full potential. DirectStream P20 regulates both long-term fluctuations and peak dynamics without deviation, ensuring a solid foundation from which to build a state-of-the-art system. Its low output impedance and unhindered AC delivery are equivalent to less than 50 feet of 12 gauge wire connected directly to your city power source without the connecting miles of wire, the many transformers, and the multiple neighbors weakening and contaminating your power.
Regular price $9,999.00 USD
Regular price Sale price $9,999.00 USD
On Sale Sold out
Shipping calculated at checkout.
Trade-in
call
TALK TO A HI-FI SPECIALIST
View full details
  • Design

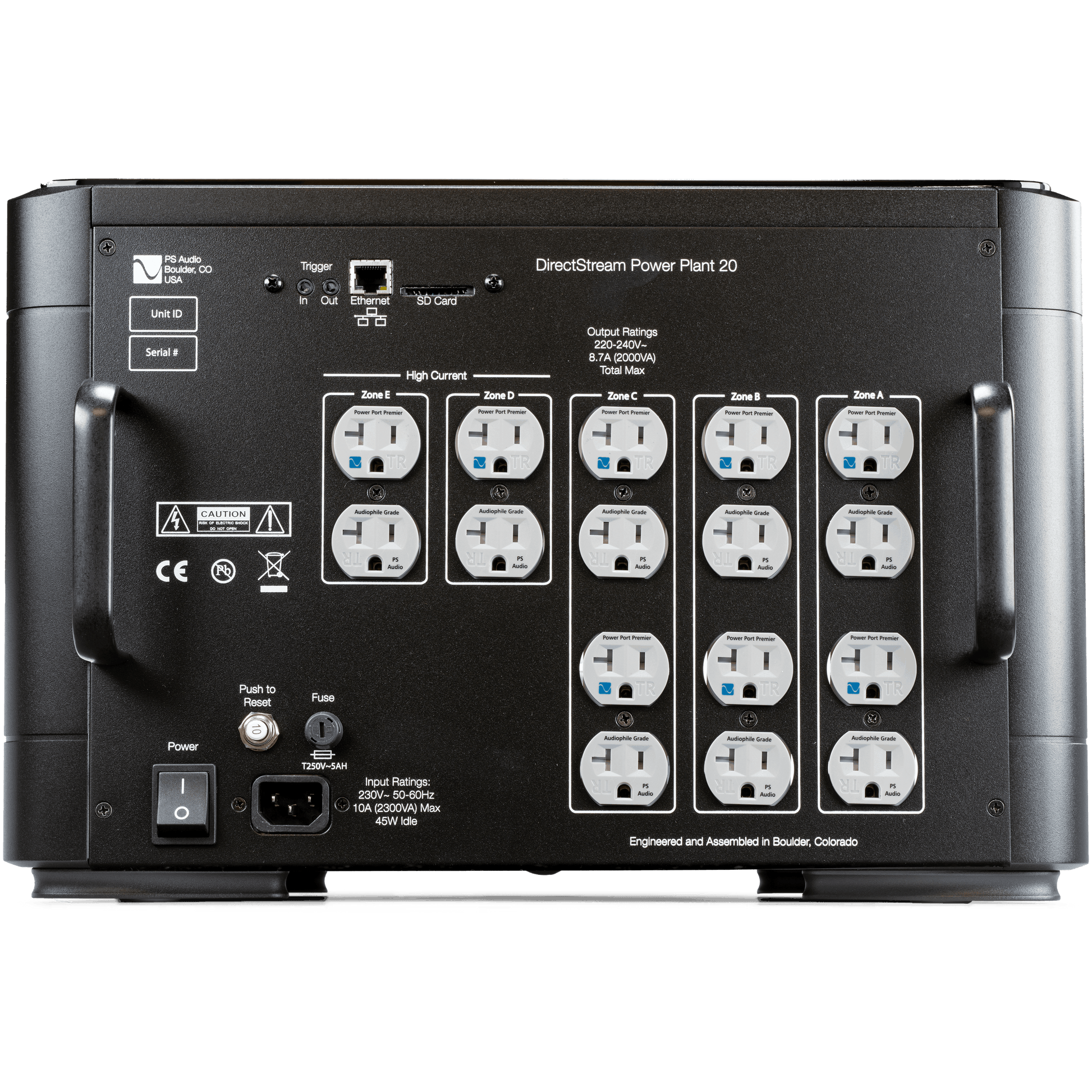

    The PerfectWave PowerPlant 20 is PS Audio's finest pure power delivery system. Equipped with 16 outlets (US version) across 5 separate regenerated zones, the P20 can take input from either 15 or 20 amp lines to regenerate a completely new AC waveform, free of distortion or voltage fluctuations. The P20 features an ultra-low impendance analog power amplifier and FPGA based DSD engine that delivers the cleanest, lowest noise sine waves of any regenerator in the world.

  • Application

    The P20 can provide clean power to even the biggest, most elaborate audio system. With a maximum output of 2000 watts, and peak power levels of 3600 watts, the P20 will provide pure power for the most demanding components and reproduce the full dynamic range of any music thrown at it. Regulated to within 1/10th of a volt, the P20 provides, safe, unquestionable purity for systems of all sizes and ensures a solid foundation from which to build a state-of-the-art system.

    Technology

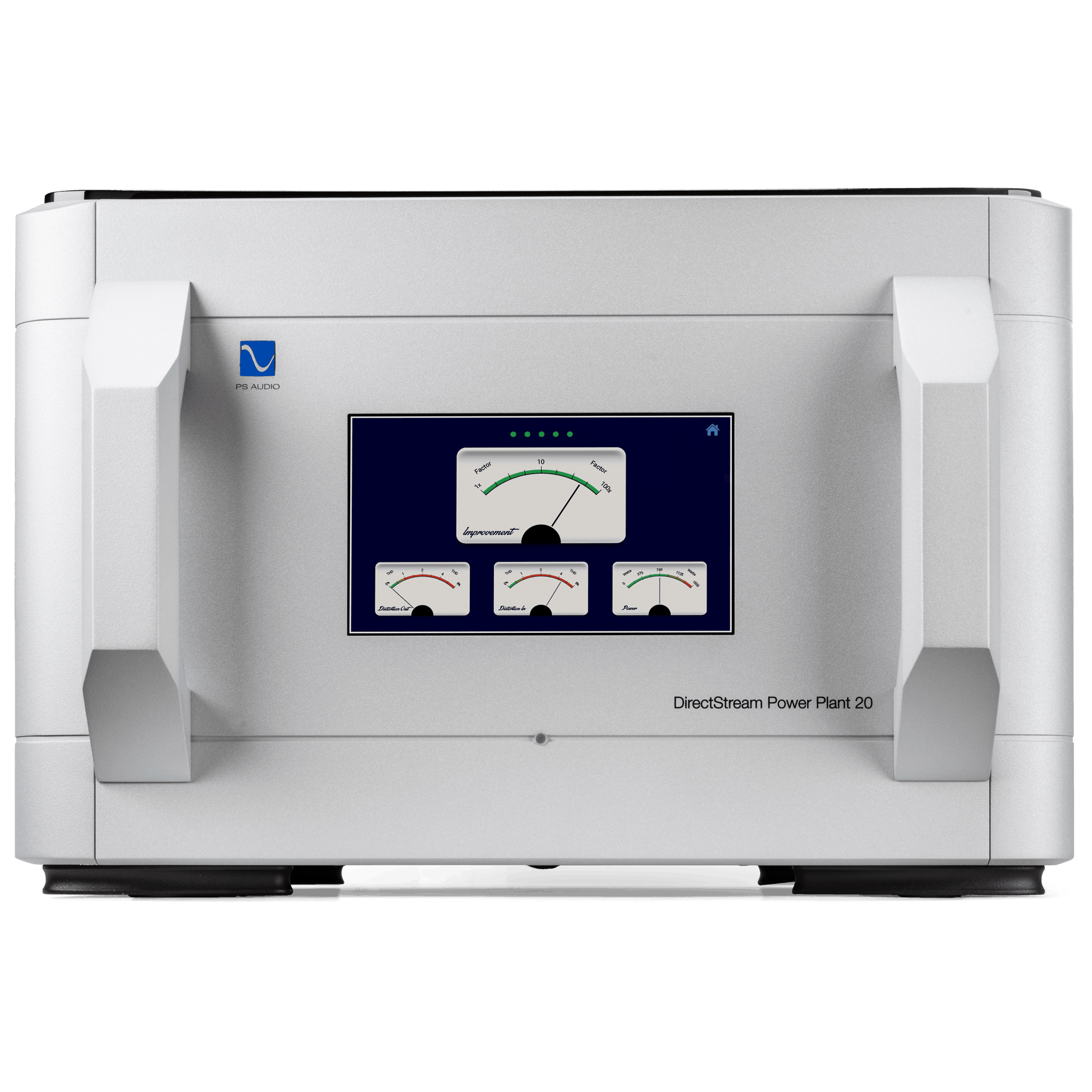

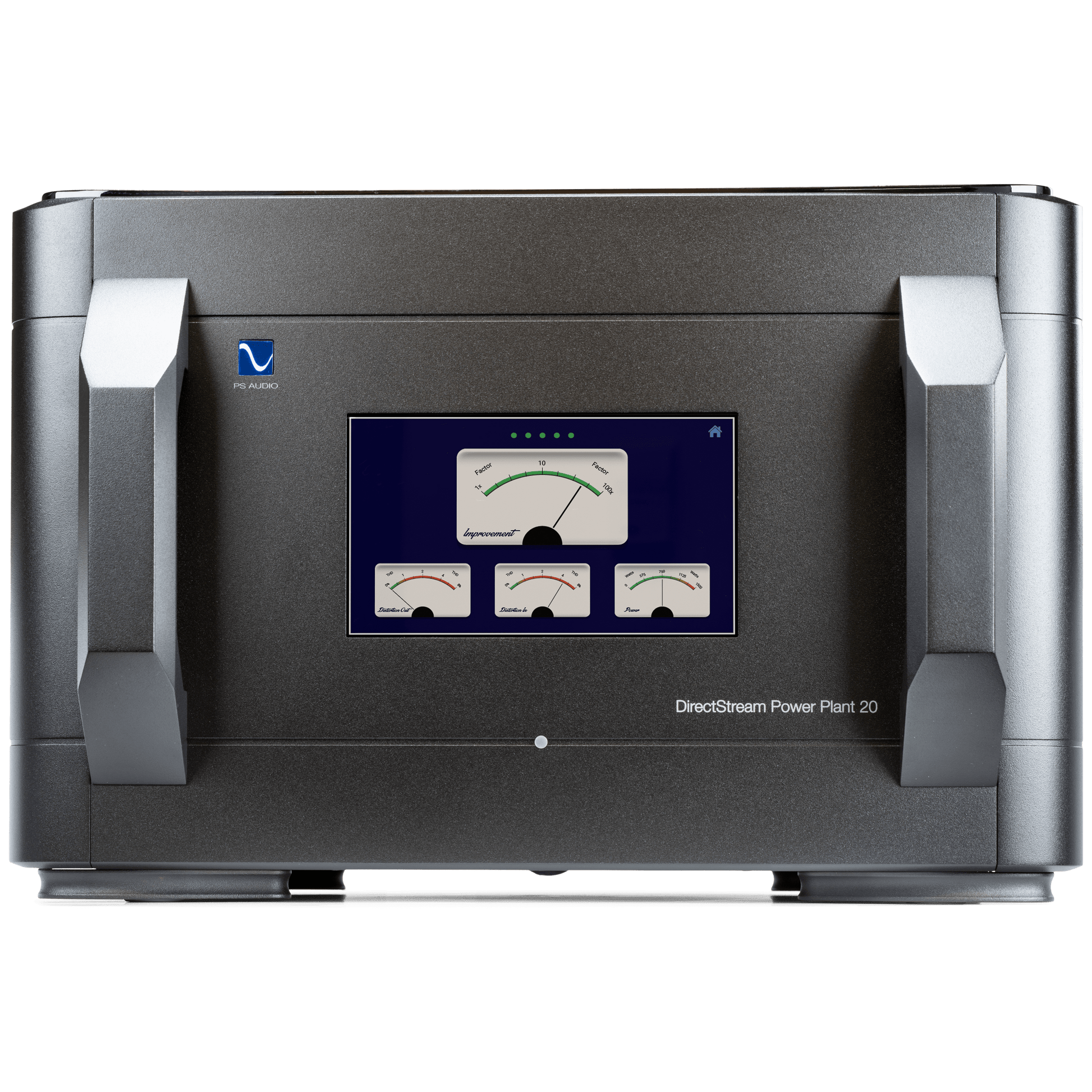

    When it comes to regenerated AC power we wrote the book. With two decades of engineering and a patented architecture in hand we built the biggest and best Power Plant ever. The P20 converts your home’s variable, compromised AC power into pure DC, then back again into safe, protected, regulated, perfect AC. The P20 will improve system performance like nothing else. DirectStream Power ushers in a new world of purity with a clean, analog-like DSD generator. With twice the number of output devices and double the power supply storage of any previous Power Plant, DirectStream P20 is the new benchmark for power products. Regardless of the quality of AC coming into P20, your equipment is guaranteed clean, safe power, with significantly lower distortion than ever before. Safe, regulated to within 1/10th of a volt, P20 provides unquestionable purity for systems of all sizes. The 7-inch, full color display on the front panel of the P20 allows you to measure distortion, both incoming and outgoing, improvement levels, and power consumption. You can also adjust your settings, such as the turn on/off sequence and the output voltage, as well as turn individual zones on or off, and measure the power quality with either the built-in oscilloscope or the THD analyzer.

    • BUILT IN BOULDER
    • 2000 VA OUTPUT
    • 40% MORE POWER
    • 16x OUTLETS US
    • 15AMP AC INPUT US
    • 20AMP AC INPUT US
    • RANGE 95 – 145 VAC US
    • 120VOLT REGULATED US

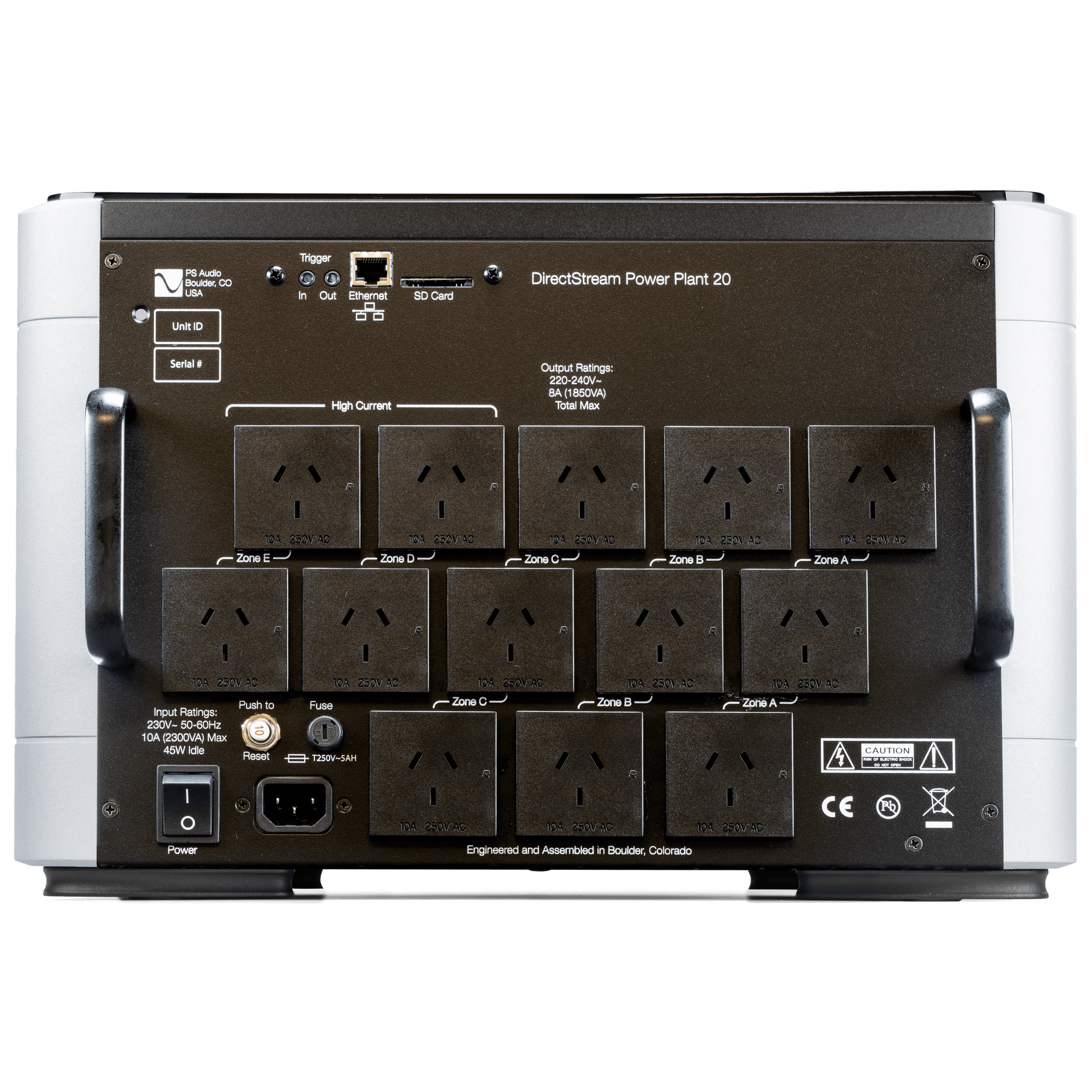

    • 13AMP AC INPUT EU/AU/GR/UK
    • 230 VOLT REGULATED EU/AU/GR/UK
    • RANGE 200 –285VAC EU/AU/GR/UK
    • 13x EU/AU/GR/UK OUTLETS
    • PASSIVELY COOLED
    • PURE SINE WAVE
    • MULTIWAVE
    • INTEGRATED OSCILLOSCOPE
    • THD METER
    • IMPROVEMENT METER
    • POWER METER
    • CONTROL OVER THE LAN
    • ADJUTABLE OUTPUT VOLTAGE
    • COLOR TOUCHSCREEN
    • FIELD UPGRADEABLE
    • 105 LBS.
    • 17W x 8.5H x 14D
    • 100% REGENERATED AC
    1 of 26

    Specifications - DirectStream PowerPlant 20

    Environment Specification

    US/JP

    Europe/Asia

    Location Indoor use only Indoor use only
    Duty Cycle Suitable for continuous operation Suitable for continuous operation
    Moisture Sensitivity Not sealed against moisture Not sealed against moisture
    Operating Humidity <80%rh <80%rh
    Storage Temperature -40C to +40C -40C to +40C
    Operating Temperature 0C to 40C 0C to 40C
    Max Operating Altitude 12,000’ (3500m) 12,000’ (3500m)
    Electrical Supply Nominal Rating 120V 15A 60Hz US
    100V 15A 50/60 Hz JP
    230V 10A 50/60Hz

    Instrument Specification

    Unit Dimensions 17” W x 14” D x 11” H (43cm W x 36cm D x 27.9 cm H) 17” W x 14” D x 11” H (43cm W x 36cm D x 27.9 cm H)
    Unit Weight 96 lbs ( 43.5kg) 96 lbs ( 43.5kg)
    Shipping Dimensions 23” x 22” x 17” ( 58cm x 55.8cm x 43 cm) 23” x 22” x 17” ( 58cm x 55.8cm x 43cm)
    Shipping Weight 105 lbs (47kg) 105 lbs (47kg)
    Nominal Input Voltage 95 – 145 VAC 200 –285VAC
    Maximum Continuous Load 2000VA 2000VA
    Maximum Peak Load 3600VA 3600VA
    Voltage Regulation <1V <1V
    Output Distortion (Resistive Load) <0.5% <0.5%
    Output Distortion (Reactive Load) <0.5%
    0.1% typical
    <0.5%
    0.1% typical
    Output Impedance <0.005 ohm <0.005 ohm
    Noise Reduction 100kHz – 2MHz >80dB 100kHz – 2MHz >80dB
    Efficiency @1500 VA >85% >85%
    Standby Power Consumption 35W 45W
    Input Frequency 45 – 65 Hz 45 – 65 Hz
    Under Voltage Limit

    US - 90V

    JP - 75V

    175V
    Over Voltage Limit

    US - 144V

    JP - 120V

    275V
    Energy Dissipation 2040J 5040J
    Peak Current Surge 180,000A 180,000A
    Clamp Level 340V 775V
    DC Trigger Configuration Tip Positive Tip Positive
    DC Trigger Voltage 5 – 15Vdc 5 – 15Vdc
