Loudspeakers have come a long way since their inception. From the early days of horn speakers (and yes, there are still horn speakers in use today, but this is a history piece, so…) to today’s high-fidelity masterpieces, the journey of loudspeaker development is a story of innovation, technology, and the ever-elusive pursuit of audio perfection.
As someone who has been witness to the last 50 years of audio history, and deeply embedded in the world of high-end audio, I've witnessed firsthand a small portion of the remarkable evolution of these devices. I find it fascinating to review some of the history we’ve been through, history that has led us to where we are today, capable of making speakers disappear, soundstages come to life, and in a darkened room, three-dimensional magic.
But it sure didn’t start out that way.
The Early Days: Horn Speakers
The birth of the loudspeaker can be traced back to the early 20th century with the advent of the horn speaker. These early horns were purely acoustic devices, acting as mechanical amplifiers of the grooves in phonograph records. Invented by Thomas Edison, the phonograph used a needle to trace the grooves of a record. The vibrations from the needle were transferred to a metal diaphragm, which in turn vibrated to produce sound. However, these sounds were often faint and lacked volume.
To address this, a horn was attached to the diaphragm. The horn acted as an acoustic amplifier, using its shape to efficiently direct and amplify the sound waves generated by the vibrating diaphragm. This was purely mechanical – there were no electrical components involved. The shape of the horn was crucial, as it allowed for a more effective conversion of the diaphragm's vibrations into audible sound, thus significantly increasing volume and clarity.
The next major leap in loudspeaker technology came with the introduction of electrical amplification. The first electrical versions of horn speakers began to emerge in the 1920s, transforming the audio landscape. Pioneers like the Magnavox Company played a significant role in this evolution. In 1915, Magnavox introduced one of the first practical loudspeakers, which used electrical amplification to drive the diaphragm.
These early electrical horns still relied on the basic principle of a diaphragm and horn but added an electromagnetic coil and magnet assembly. The audio signal, now electrical, passed through the coil, creating a magnetic field that caused the diaphragm to move. This movement, amplified by the horn, produced sound. This method offered unprecedented volume and clarity, setting the stage for further innovations in loudspeaker design.
Moving Coil Loudspeakers
The introduction of the moving coil loudspeaker in the 1920s and 1930s, developed by Chester W. Rice and Edward W. Kellogg, marked a significant milestone in the evolution of audio technology. This revolutionary design addressed many of the limitations of the earlier horn loudspeakers, which also utilized moving coils, and laid the foundation for modern loudspeaker technology.
Edward W. Kellogg and Chester W. Rice with the first moving coil driver unit in 1925. Courtesy of Wikimedia Commons/W.T. Meenam/public domain.
One of the primary differences between the moving coil (or dynamic driver) loudspeaker and the horn loudspeaker lies in their fundamental design principles. Horn loudspeakers rely on a horn to couple the vibrations of the diaphragm to the air, acting as an acoustic transformer to increase efficiency. The horn's shape and size play a crucial role in determining the loudspeaker's performance characteristics. In contrast, moving coil loudspeakers are direct radiators, with the diaphragm directly coupled to the air without the need for a horn. This design allows for a more compact and versatile form factor, enabling the creation of smaller and more aesthetically pleasing speakers suitable for various applications and environments. (Note that a distinction must be made between a pure horn loudspeaker and a horn-loaded dynamic-driver design such as the Klipschorn, which uses a moving coil/dynamic driver operating into a specifically-designed acoustic chamber.)
While horn loudspeakers are generally known for their high efficiency due to the horn's ability to match the high acoustic impedance of the diaphragm to the low acoustic impedance of the air, the moving coil design developed by Rice and Kellogg achieved comparable efficiency without the need for a horn. This advancement allowed for the development of loudspeakers that could produce high-quality sound while consuming less power, making them more practical for widespread use.
Cutaway view of a moving coil/dynamic driver woofer showing 1) magnet, 2) voice coil, 3) suspension or spider, and 4) diaphragm or cone. Courtesy of Wikimedia Commons/Svjo.
Another significant advantage of the moving coil loudspeaker over horn loudspeakers is its ability to reproduce a wider range of frequencies. The size and shape of the horn in horn loudspeakers limits their ability to accurately reproduce low frequencies, resulting in a less balanced and natural sound. Moving coil loudspeakers, on the other hand, can reproduce a more extended frequency range, including better low-frequency response, resulting in a more accurate and faithful reproduction of the original audio signal.
In terms of sound quality, moving coil loudspeakers offer significant improvements over horn loudspeakers. The direct radiator design minimizes distortion and coloration, providing a cleaner and more transparent sound. The absence of a horn eliminates the potential for resonances and other acoustic artifacts that can negatively impact the listener's experience. This enhancement in sound quality made moving coil loudspeakers more appealing to audiophiles and music enthusiasts seeking a more accurate and immersive listening experience. (That said, there are still horn loudspeaker aficionados who insist on nothing else, and new horn speaker designs continue to be introduced.)
Advancements in Materials
The development of the moving coil loudspeaker marked a significant turning point in the history of audio technology. As the basic design principles were established, engineers and manufacturers shifted their focus to improving the materials used in the construction of these speakers. This focus on materials science led to significant advancements in loudspeaker performance and durability.
Early loudspeakers often utilized paper diaphragms due to their affordability and ease of manufacturing. While paper proved to be an effective material for sound reproduction, it had several inherent limitations. One of the primary drawbacks of paper diaphragms was their susceptibility to humidity. Changes in ambient moisture levels could cause the paper to absorb or release water, leading to variations in the diaphragm's stiffness and mass. These fluctuations would result in inconsistent sound reproduction and could even cause permanent damage to the diaphragm over time.
Moreover, paper diaphragms had limited durability, especially when subjected to high-power audio signals or extreme environmental conditions. The repeated stress and strain of vibration could cause the paper to fatigue and eventually deteriorate, compromising the loudspeaker's performance and longevity.
As the 20th century progressed, advancements in materials science opened up new possibilities for loudspeaker design. Engineers began experimenting with a variety of polymers and metals to create more robust and stable diaphragms. These new materials offered several advantages over traditional paper diaphragms.
Polymers, such as polypropylene and mylar, exhibited excellent resistance to humidity and moisture, ensuring consistent performance even in challenging environmental conditions. They also demonstrated improved durability, withstanding the rigors of high-power audio signals and prolonged use without significant degradation. The use of polymers allowed for the creation of lightweight yet rigid diaphragms, enhancing the loudspeaker's transient response and reducing distortion.
Metals, such as aluminum and titanium, also found their way into loudspeaker design. These materials provided exceptional stiffness and low mass, enabling precise control over the diaphragm's movement and minimizing unwanted resonances. Metal diaphragms could maintain their structural integrity even under extreme operating conditions, ensuring reliable and consistent sound reproduction.
The incorporation of advanced materials in loudspeaker design had a profound impact on the audio industry. By utilizing polymers and metals, manufacturers could create loudspeakers with improved frequency response, lower distortion, and enhanced power handling capabilities. These advancements allowed for more accurate and detailed sound reproduction, bringing the listener closer to the original performance.
The Rise of Electrostatic and Planar Magnetic Speakers
In the quest for even higher fidelity, engineers began exploring alternative technologies to the moving coil design. Two notable innovations are electrostatic and planar magnetic speakers.
Electrostatic speakers use a thin, electrically charged diaphragm suspended between two conductive grids. When an audio signal is applied, the diaphragm moves, producing sound. These speakers are renowned for their clarity and detail, although they require high-voltage power supplies and can be more challenging to integrate into typical listening environments.
Planar magnetic speakers, on the other hand, use a diaphragm embedded with a conductive wire pattern placed within a magnetic field. This design offers many of the benefits of electrostatic speakers, such as excellent transient response and low distortion, without some of the practical drawbacks.
PS Audio’s Aspen Series loudspeakers employs planar magnetic drivers (as do a few others such as Magneplanars) to deliver, if I may boast for a moment, an extraordinary listening experience, combining the strengths of both traditional and alternative technologies to achieve a balance of precision and musicality.
Exploded diagram of a PS Audio Aspen Series planar magnetic driver.
The Future of Loudspeakers
The evolution of loudspeakers has been a remarkable journey, from the early days of horn speakers to the high-fidelity audio systems we enjoy today. However, this journey is far from over. As technology continues to advance at an unprecedented pace, we can anticipate groundbreaking innovations that will redefine the boundaries of audio reproduction.
One of the most promising areas of development lies in the realm of materials science. As researchers continue to explore novel materials with unique properties, we can expect to see loudspeakers that exhibit extraordinary performance characteristics. From graphene-based diaphragms that combine exceptional stiffness and low mass to piezoelectric materials that convert electrical energy directly into mechanical motion, the future of loudspeaker design is brimming with possibilities.
Moreover, the integration of artificial intelligence and machine learning into loudspeaker systems holds immense potential. Imagine a loudspeaker that can analyze the acoustic properties of a room and automatically adjust its output to provide the optimal listening experience. Or a system that can learn from user preferences and adapt its sound profile to suit individual tastes. The convergence of audio technology and AI promises to revolutionize the way we interact with and experience sound.
The journey from horns to high fidelity has been a remarkable one, and at PS Audio we are thrilled to be part of the ongoing evolution of the loudspeaker. Here’s to the next chapter in the pursuit of perfect sound.

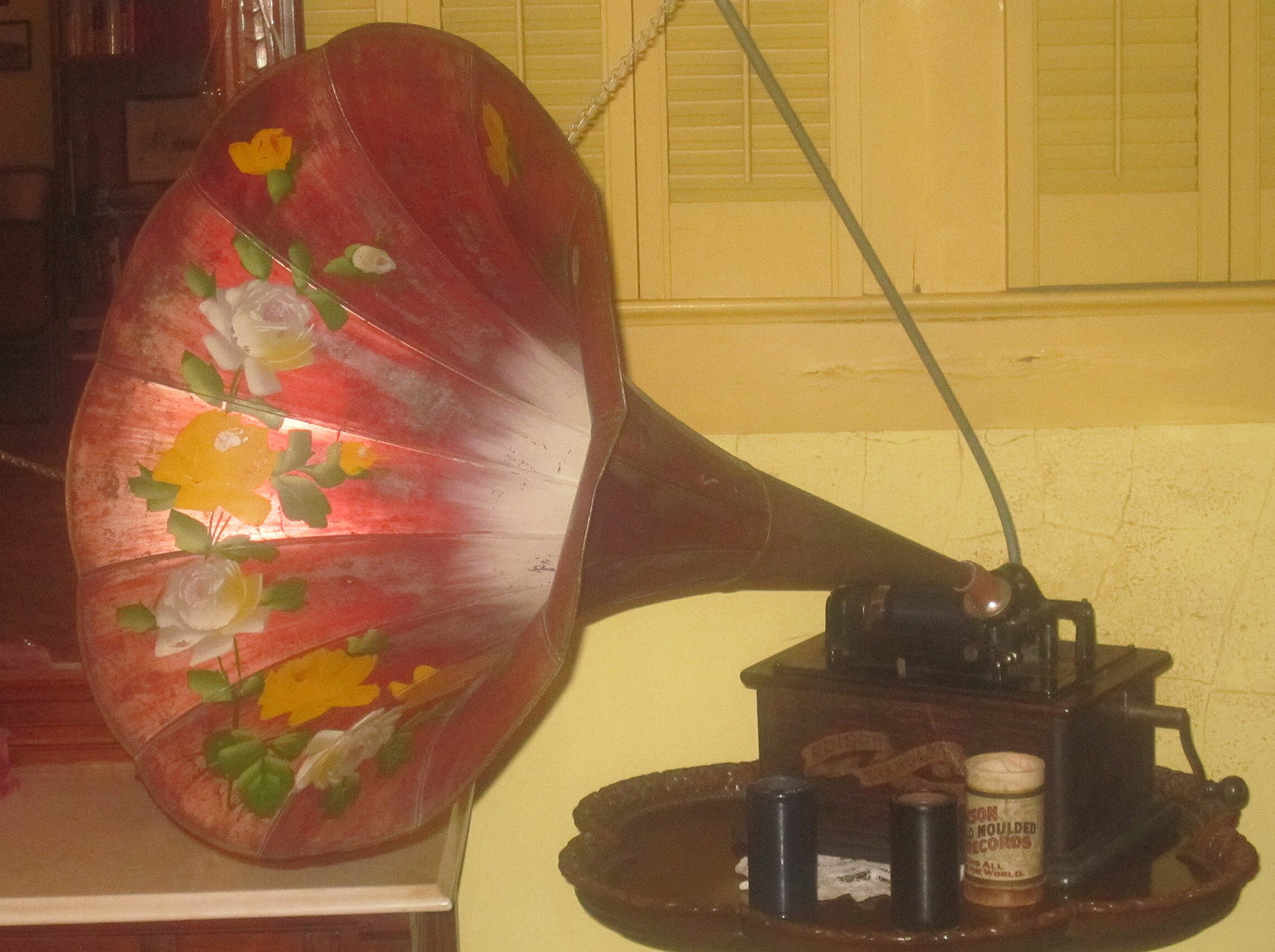

Header image courtesy of Wikimedia Commons/Billy Hathorn.
