S300 Amplifier

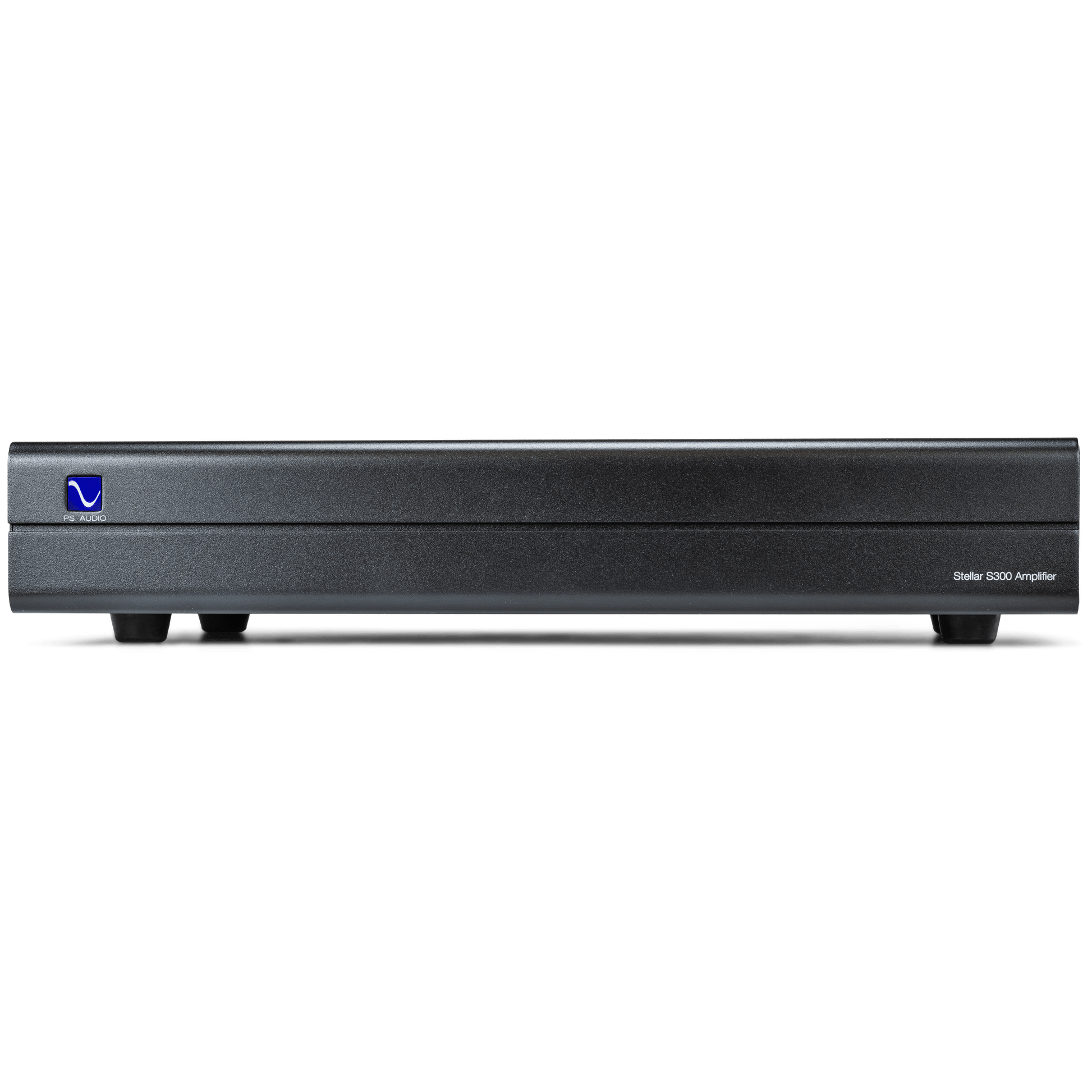

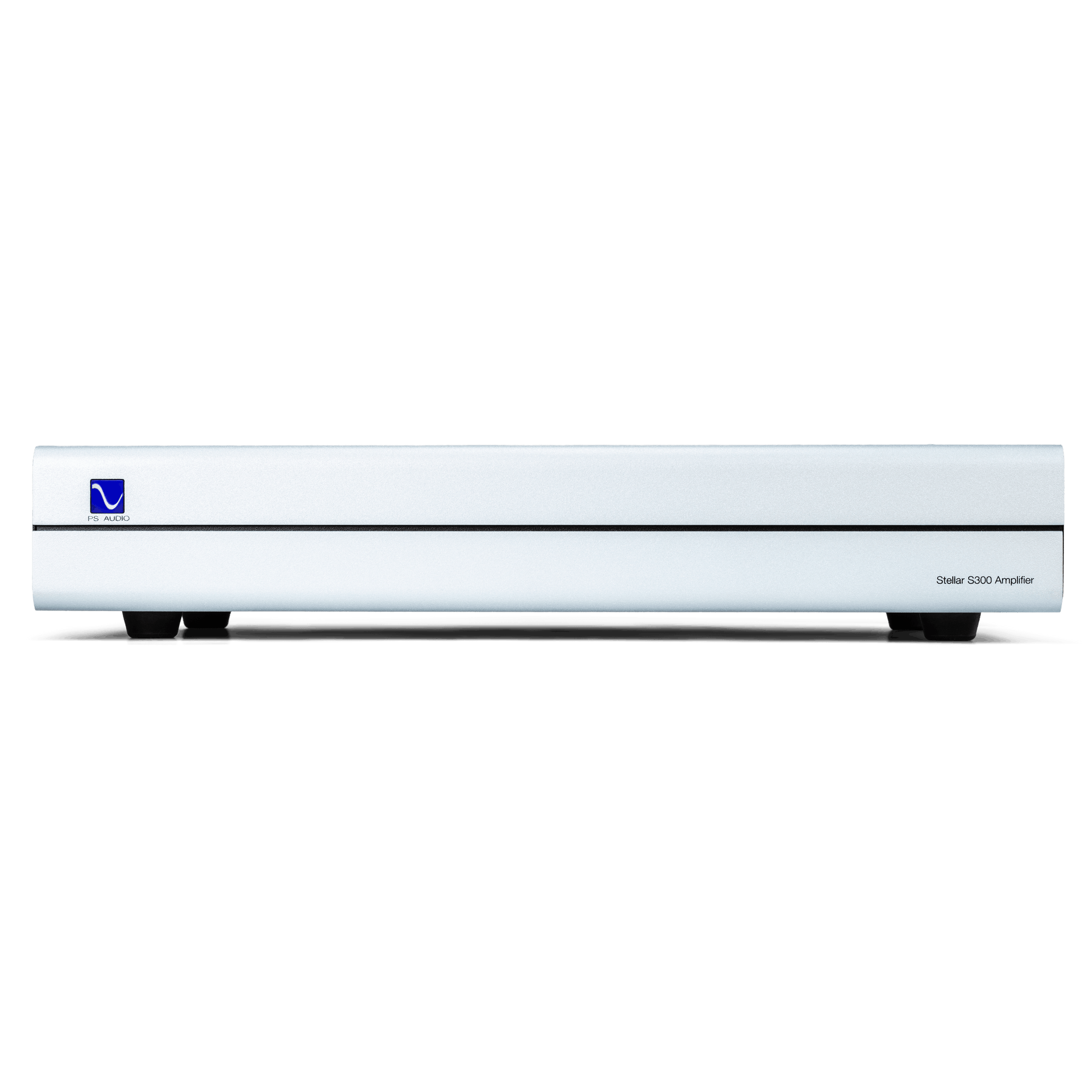

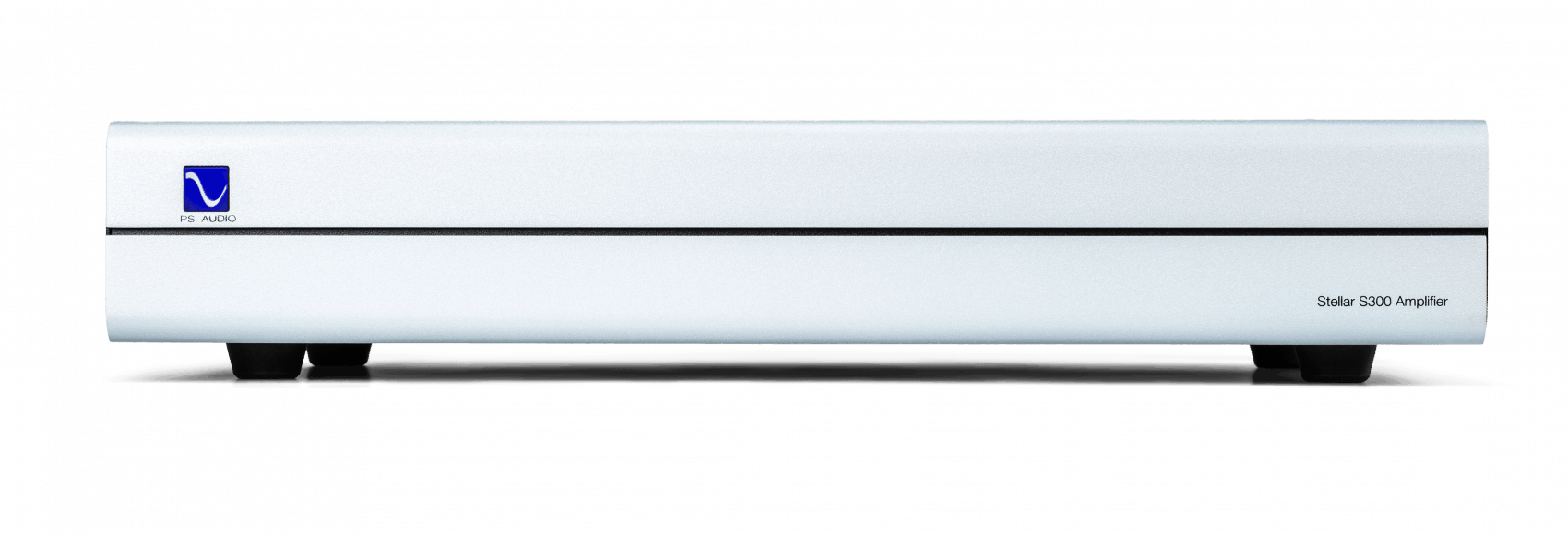

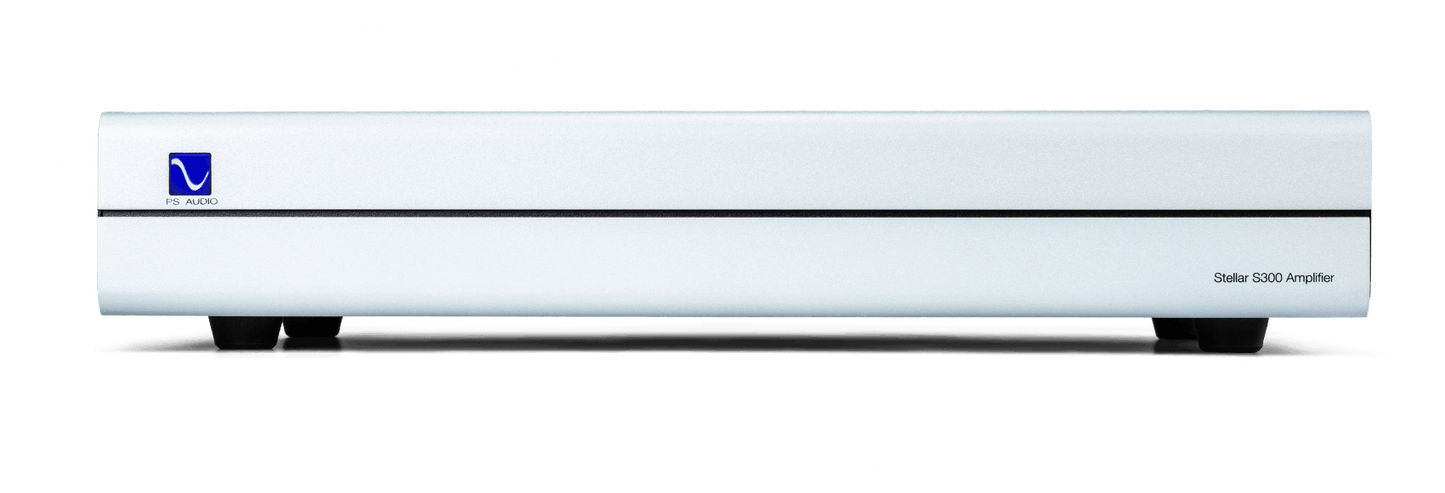

Front Panel

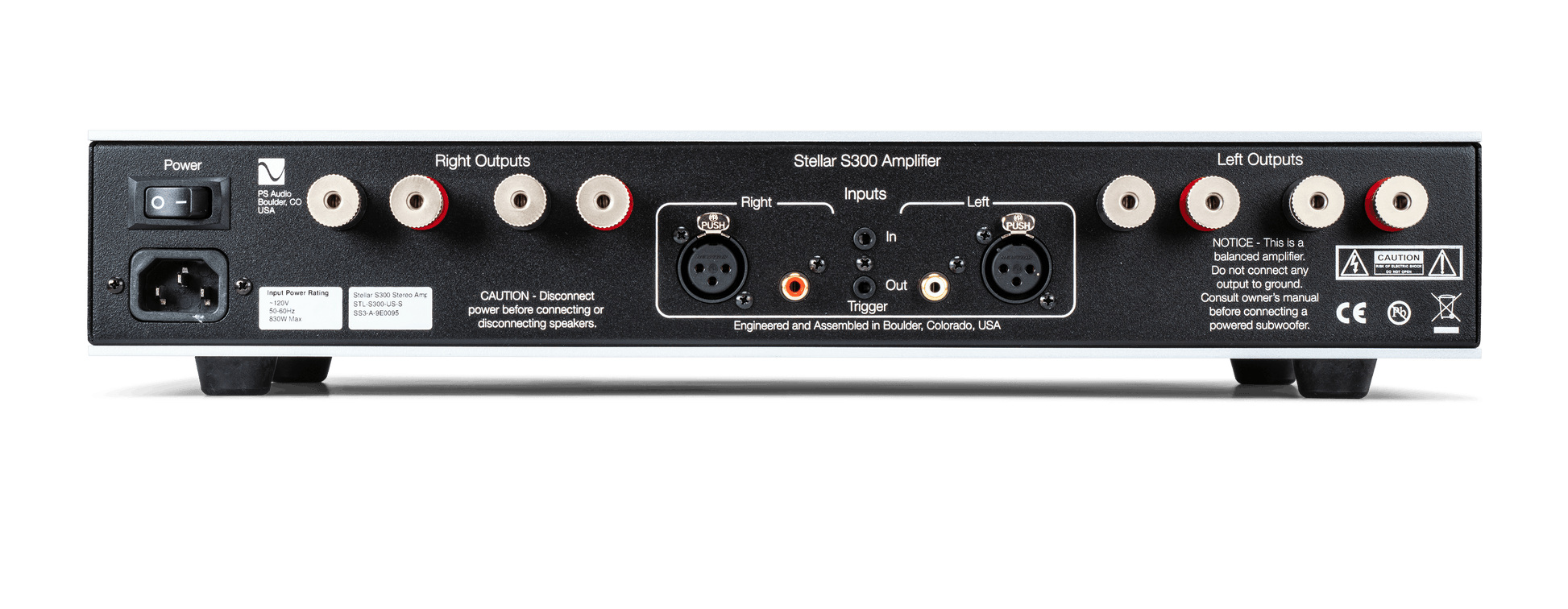

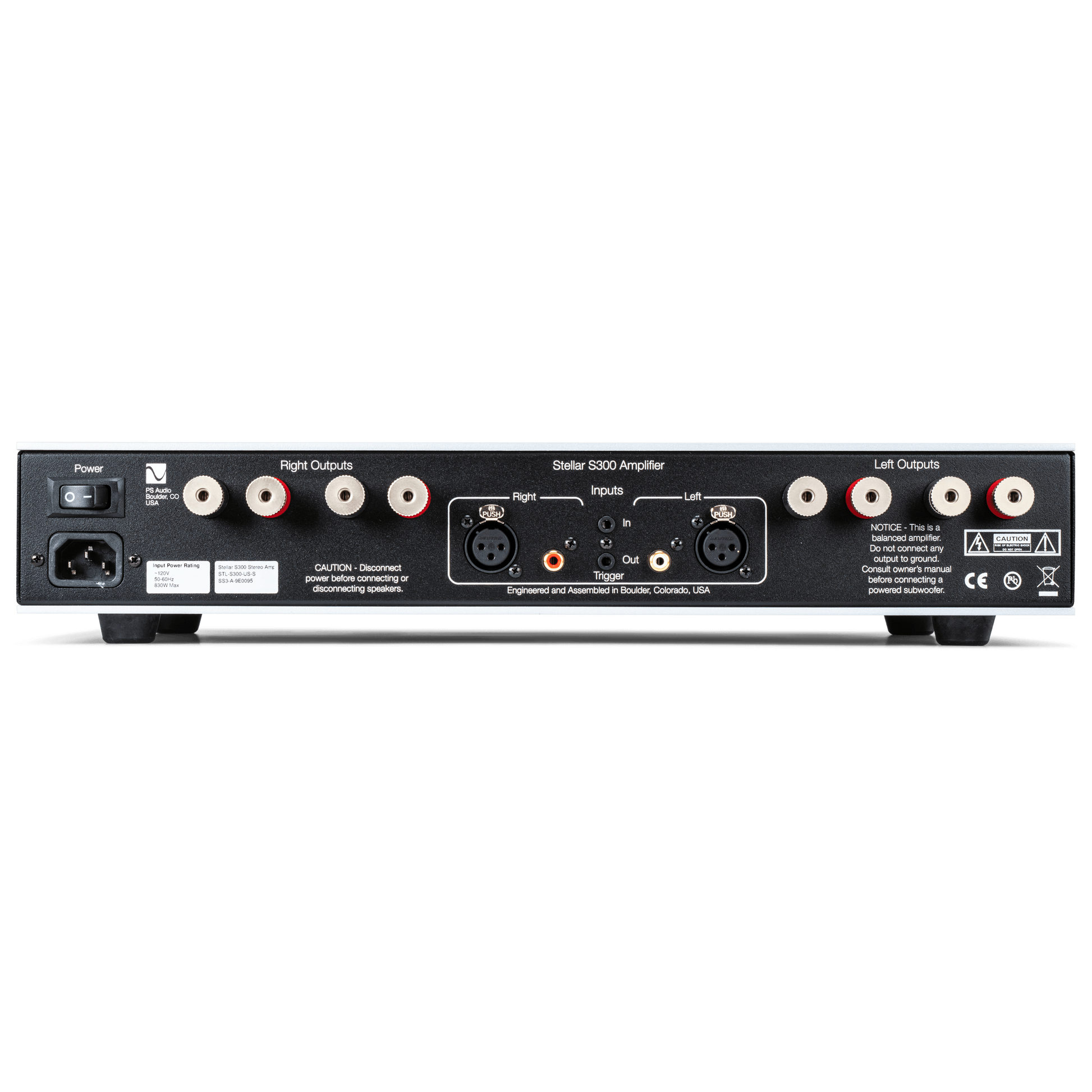

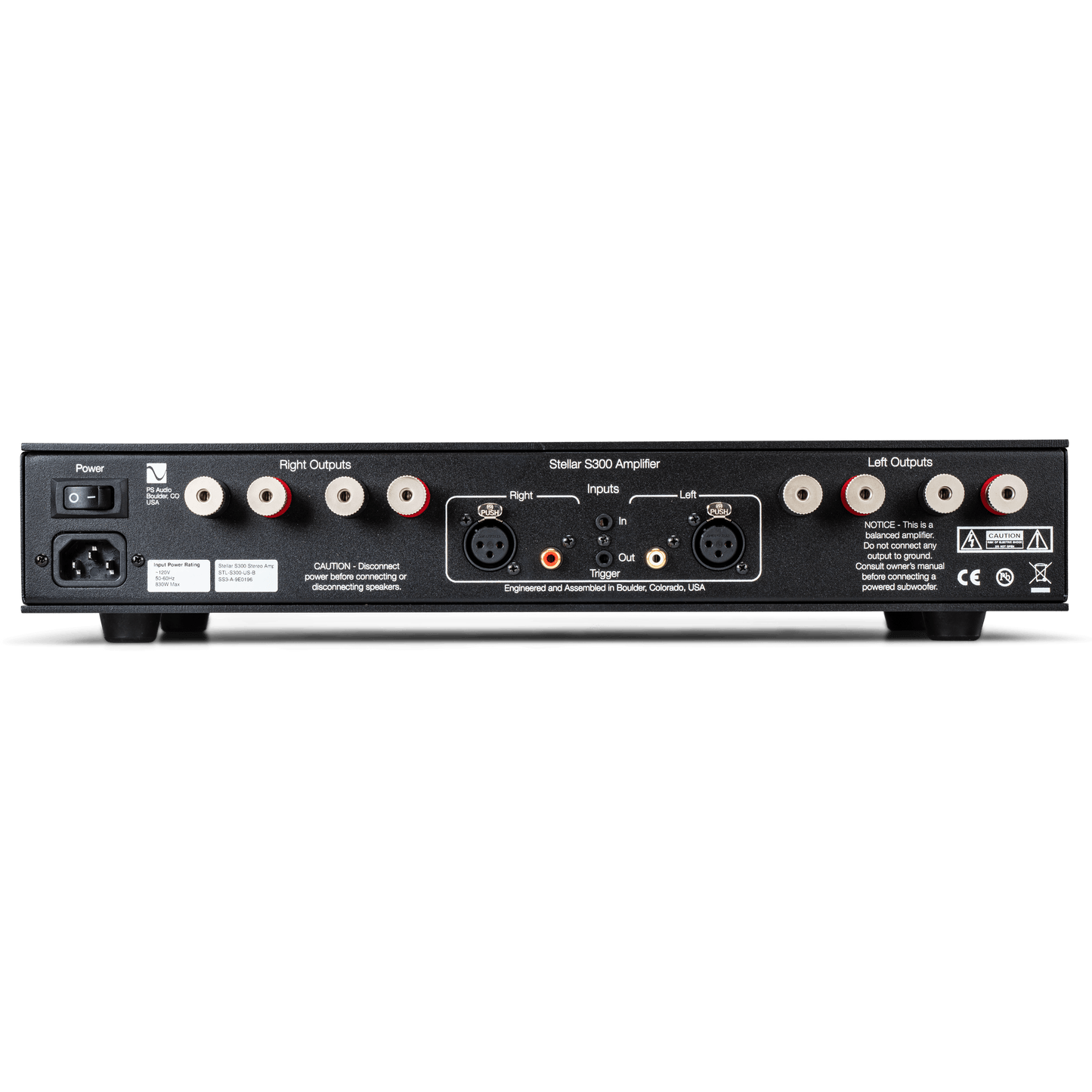

Rear Panel

S300 Amplifier

From the deepest bass to the warmest, sweetest highs, the Stellar S300 makes any loudspeaker sing and is our most affordable stereo power amplifier ever.

S300 Amplifier

From the deepest bass to the warmest, sweetest highs, the Stellar S300 makes any loudspeaker sing and is our most affordable stereo power amplifier ever.

Breathe new life into your loudspeakers with the Stellar S300, a full-sized, affordable stereo power amplifier that honors the music and controls your loudspeakers better than you ever imagined possible. The S300 combines the slam, linearity, and toe-tapping pacing of a Class D output stage with the warmth, grace, and rich inner detail of Stellar’s Class A Analog Cell. The results are nothing short of ground breaking. Liberate a wealth of untapped energy trapped in your media library. Plumb music’s subterranean depths and finally hear the bass your speakers were capable of. Revel in rich layers of fine, full detail. Marvel at the deep, extraordinary, wall-to-wall soundstage. Effortless. Lush. Stellar.

Clear

Eligible for up to $495 of credit with Trade-In.

TALK TO A HI-FI SPECIALIST
1-800-PSAUDIO

Design

The Stellar S300 stereo power amplifier is a dual mono power amplifier capable of effortlessly driving demanding loudspeaker loads to concert levels. It combines the best of two worlds: ultra linear, high-current, Class D technology for the output stage; a discrete, Class A MOSFET based Analog Cell for the all-important input stage. The S300's rich, warm, and engaging sonic character comes from the Analog Cell. It's powerful, authoritative control over the loudspeaker stems from its high current, ultra-low impedance Class D output stage.

Application

The perfect choice for just about any loudspeaker, the S300 slips into any system, surprising and delighting even the most discriminating Audiophile. Rated at 140 watts per channel into 8‎Ω and 300 watts per channel into 4‎Ω, the S300 has plenty of horsepower for even the most demanding loudspeakers. Your musical library will open up in ways you might not have thought possible, revealing nuance and detail covered up by traditional amplifiers.

Technology

Overview

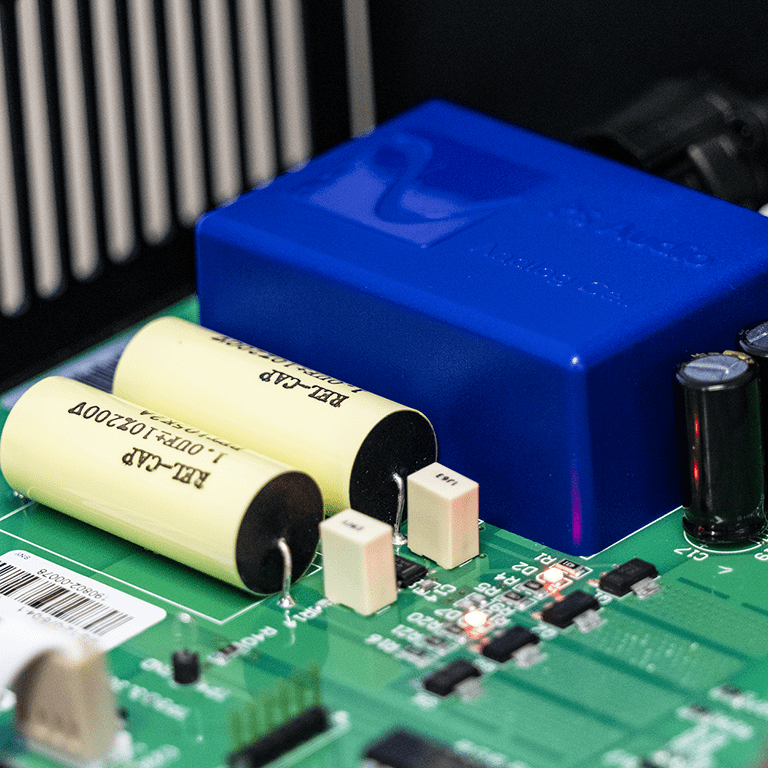

The Analog Cell
Output Stage
The S300 is an extraordinarily musical power amplifier rated at 140 Watts per channel into 8Ω and 300 Watts per channel into 4Ω. Power enough for even the most demanding speakers. The S300 design marries the best of two worlds: an ultra linear high-current output power stage with a discrete Class A MOSFET based AnalogCell input stage. Between them, the S300 delivers powerful, authoritative control over the loudspeakers, while maintaining a perfectly layered soundstage under the most complex musical passages. Designed by PS Audio engineer Darren Myers, who invested hundreds of hours of tuning, voicing, and perfectionist tweaking, the results are extraordinarily musical. Stellar amplifiers never draw attention to themselves, and are one of our highest value offerings in amplification, a rare quality in amplifiers of any price.
The connection between preamplifier and power amplifier is critical, for it is at this junction where most essential musical details are easily lost. Nothing in the design of a power amplifier is more important than its input stage when preserving music's finest nuances. In the S300, a unique topology, called the Analog Cell, has been employed to preserve the rich details found in music. The Analog Cell is the heart of the S300's musicality, where rich overlaid layers of music's inner details are preserved even in the most complex orchestral crescendos. The Analog Cell is a proprietary, fully differential, zero feedback, discrete, Class A MOSFET circuit, hand-tuned to capture the smallest micro dynamics without sacrificing the loudest macro dynamics music has to offer. The Analog Cell makes all the difference.

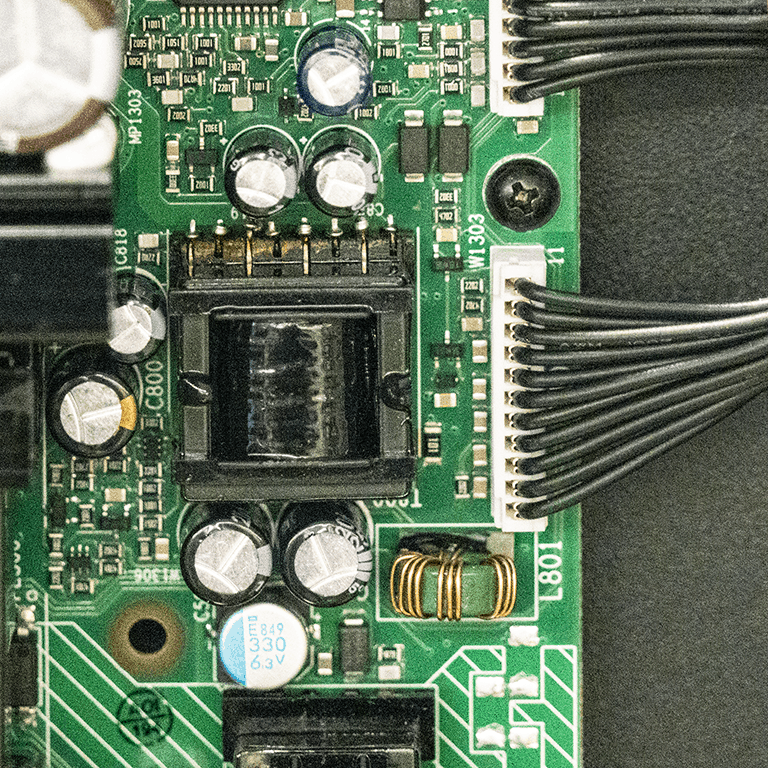

The Stellar S300 is a dual mono design. This means that each channel has its own, separate power supply. Each of the two channels is a complete and independent power supply and power amplification stage, based on a modern Class D ICE module, designed in Denmark. Class D output stages provide near-perfect linearity, low distortion, and high efficiency. Because Class D amplifiers require an output filter to remove their switching noise, they do not have frequency extremes into the many hundreds of thousands of Hertz. Depending on their design, modern Class D amplifiers, like the type used in Stellar, extend high frequencies to about 50kHz. Human hearing limitations are 20kHz, though most listeners rarely have hearing exceeding half that. The S300 provides excellent frequency extremes, low distortion, high efficiency, high damping factor, and a powerful output of 300 watts per channel into the most common loudspeaker loads of 4Ω.

Specifications

Stellar S300 Stereo Amplifier

Unit Weight 13 lbs [5.9 kg]
Unit Dimensions 17”W x 3”H x 12”D (13″D w/connectors)
Shipping Weight 16.5 lbs [7.5 kg]
Shipping Dimensions 22”W x 8”H x 17”D
Color Options Black
Silver
Voltage Options
(Factory set only)
Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V
Mains Power Inputs IEC C14
Idle Power Consumption 13W
Accessories Included US (NEMA 5-15P) (all versions)
Schuko (CEE7/7) (230V version)
UK (BS 1363) (230V version)
Audio Inputs RCA (Unbalanced)
XLR (Balanced)
Speaker Outputs Copper base nickel plated binding posts (2 pair per channel)
DC Trigger Input 3.5mm 5-15VDC
Warranty 3 years parts and labor

Signal

Gain 30.5dB +/-0.5dB
Sensitivity for rated output power 1.01V
Noise [email protected] Watts < -100dB
Input impedance Unbalanced 50KΩ
Balanced 100KΩ
Output Impedance 50Hz, 2.8VRMS <0.007Ω
Damping factor 50Hz. 2.8VRMS
8Ω >1100
4Ω >550
Frequency Response 2.8VRMS into 4Ω
10Hz – 20KHz +/- 0.5dB
10Hz – 50KHz +0.1/-3.0dB

THD&IM

1KHz, 1W/4Ω <0.02%
10-20KHz, 1W/4Ω <0.02%
10-50KHz, 1W/4Ω < 0.05% (90kHz BW)
1KHz, 37.5W/4Ω < 0.01%

Output Power

Both channels driven 120vac mains, 1kHz, 1% THD
8Ω 140W minimum
4Ω 300W minimum
2Ω Stable for musical transients

Reviews

INDUSTRY
USER
The result of all these strengths gives the S300 a beautiful voice which mates well
with the variety of upstream gear we had on hand for testing. It holds its own against
components that exceed its price tag. This PS Audio component deserves a spot on a short
list of bargain amps that perform beyond what one should expect for the money.

After a few weeks with the S300 in my reference system, I must admit I am smitten with it.
I applaud PS Audio’s new approach to circuit design bringing together the benefits of both
Class A and Class D technology.
READ MORE

Tone Audio

Rob Johnson

They sounded so good together I couldn't bring myself to try too many other speakers. The sound was rich with resolution to die for.
READ MORE

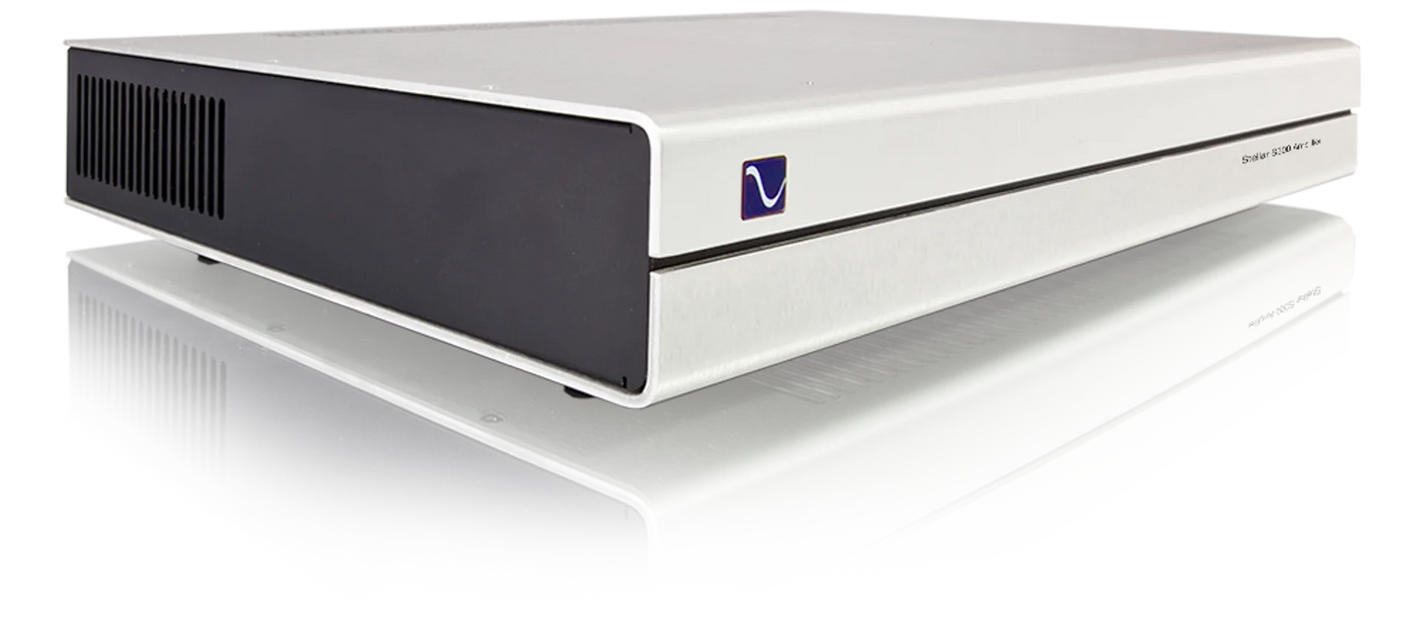

C/NET

Steve Guttenberg

The Stellar DAC/Pre-Amp/Power Amplifier filled my listening room with 3D sound, and they matched well with each of my speakers; the floor standing Audio Physic Tempos, the stand mounted Platinum Audio ST 1’s and the low-to-the ground Mission 727s. I was surprised how different they made each sound and I spent a great deal of time swapping out my Parasound Halo 2.1 integrated amplifier, Bel Canto s300 integrated amplifier to make sure I wasn’t fooling myself. And, yes, I was hearing something new and more evocative from my usual suspects.
READ MORE

HIFI Pig

David Blumenstein

Folks, this is the future. We have heard vast improvements of Class D amplifiers during the last 10 years, and we are at or near the point where the technology is largely irrelevant to the final sound. The sound of audio components is more dependent on the implementation than on the underlying technology. The PS Audio Stellar S300 gets so close to perfection that the low purchase price is an out-of-this-world value. The PS Audio Stellar S300 adds nothing objectionable while delivering wonderful musical performances.
READ MORE

10 Audio

Jerry Seigel

This is going to be fun!

The sound is already coming alive… in fact, it’s faaaantastic! I’m currently listening to Robert Cray, Strong Persuader (high rez FLAC file). The detail and punch are just what they should be. His voice is clear and centered, surrounded by nicely balanced treble and bass. Another wonderfully engineered recording and the Stellar GCD shows it off in fine fashion. The clarity has improved and the veil has lifted. Wow, this is going to be fun!
READ MORE

- Gene

Finding renewed enjoyment

I find myself digging further back in my CD collection and finding renewed enjoyment in old favorites. Many are digitally mastered (or 20 bit remastered) from the time when that was a new thing. Many selections from Sheffield Labs, DMP, ECM, Telarc and GRP make for good critical listening. My previous impressions (vs my previous preamp and DAC) are reinforced: excellent bass extension, deeper front to back soundstage, more precise placement and crisp percussion.
READ MORE

- Calord

Fun stuff!

Right out of the box, the S-300 presented a sound stage larger than previously experienced with the older Rotel amplifier. Control was tighter, base was tighter, and the overall experience tighter. After about 3 hours, I adjusted speaker placement to take better advantage of the expanded sound stage. Fun stuff!
One thing surprising, the experience was not strained at all, the sound is very relaxed, not overly bright. After approximately 6 hours, the unit is settling in nicely, both vinyl and digital sources are benefiting from the Stellar. I have other systems to reference back to (not just getting used to the new sound), and am looking forward to reporting back as to how the burn in continues and settles in.
READ MORE

- Rocket

Goodness!

Goodness! Despite the slightly lower power of the Stellars, I was able to get 90+dB levels in the (largeish) room. And, for the first time sans subwoofers, there was solid chest-impacting bass.
Next up was Blue Nile’s A Walk Across the Rooftops; Heatwave is a perennial favourite. Again, from the Olive, transferred to digital through the NuWave Phono Converter. Ooh – goodness, even on casual listening there was a bit more going on than I remembered.
Now I have to drive away and do some errands, so the machinery is left playing Best of the Shadows – you know, there’s a bit more going on in there than I’d noticed before, too. And, begum, there’s actual bass.
Bottom line – straight out of the box, these Stellars make my system sound better.
READ MORE

- Pete Wilson

Love the amp

Love the amp and I'm gonna buy it. I found the sound open and detailed with LP vinyl and CDs . Detailed soundstage and very musical in my opinion. I'm a construction worker so my computer skills are kind of limited. My associated equipment is Primaluna prologue 3 tube preamp project Debut carbon turntable and phono stage. Otrofon 2m red cart, Emotiva Erc 1 CD player, Klipsch RF 42 tower speakers, and energy sub in a 2.1 stereo system and PS Audio power cables and Audioquest interconnects. Pretty basic system by High end standards but wow did Freddie Hubbard and Pink Floyd sound great. Eva Cassidy's vocals were so rich and real and Dire straights Ride Across the River blew me away.

- Daniel Dennis

Simply amazed!

About 8 years ago I bought the Mark Levinson No. 434 monoblocks. They went for $8000 the pair, and they looked and sounded as good as I’d come to expect for that kind of money. I was happy! They are still very good amps by today’s standards. When I think about how much performance PS Audio has managed to put into a stereo amp that costs less than 20% of what the Mark Levinson’s cost, however, I’m simply amazed. The S300 doesn’t look as expensive, but it’s performance leaves little to forgive. When I’m listening to the Stellar S300, I’ve found myself not thinking about any of that—just the music, with the S300.
READ MORE

- mggm56

Amazing soundstage

I'm not adept at audiophile descriptions so I'll keep this relatively short. I replaced a modded HCA-2 with the S300 and have been mightily impressed. Most noticeable has been the blackness and silence of the background. That might have been a function of the mods done to the HCA-2, which I did love but always had a slight hum. The S300 is dead silent. Amazing soundstage and definition between instruments. Perhaps slightly dry but not overly analytical. I'll take the amazing detail on well-recorded material over warmth hiding poor recordings. I have plenty of poorly recorded albums that I love, I still can listen to them with this amp. The trade off is that well-recorded material sounds unreal. I hear things I never heard before! I'm impressed, and the music sounds wonderful. Thank you!
My system - JA Michell Tecnodec and PS Audio Nuwave front end, Emotiva XSP-1 preamp, PS Audio S300, Alon Mark IV speakers
READ MORE

- Watts72

Stellar!

My impression in one word: stellar!
The S300's performance is really outstanding. It's very energetic and crisp, has very decent control and momentum. What I like most are its amazing vivid clarity and detail, this is not the kind of slow, warm, laid back and dull amp. Yes, maybe it lacks the last bit of extension at both end of frequency extreme. It's a tiny little bit on the forward and cool side of neutral, but definitely not aggressive, artificial or edgy. It's textured and colorful with very wide soundstage. And the punchy bass! If this is the one and only amp I have in a desert island, I can live with it happily ever after. Sound wise, it's that good.
READ MORE

- Eddie

Whole new ballgame

I received my Stellar 300 Amp about a week ago. My system is modest: Cambridge Audio CXA 80, Cambridge Audio CXC transport, Ohm Walsh Tall 100's with 2.1 Anti Cables. The 300 replaces the 80 watt amp in the CXA 80 and is connected with low quality single end cables. (the balanced Anticables await the Gain Cell DAC still on it's way.)
The 300 made an immediate difference in the overall sound of the system, beyond just the additional power. The Ohm speakers create a broad and deep soundstage, but with the 300 instrument placement and clarity were clearly improved. Bass was more specific and apparent while the mid-range was richer with greater texture. Treble seemed heightened as well, though without strident overtones. I listen mostly to jazz and classical pieces on CD and through Tidal over a Sonos system. The extra quality power showed enhancement with Tidal as well.
I have to imagine with the Gain Cell DAC in place it will be whole new ballgame.
READ MORE

- JM Unger

Two thumbs up!

The S300 delivers a non-fatiguing presentation, with excellent bass control, and gobs and gobs of detail, all emerging from a black background. And it does so even at very low listening levels (living in an apartment, ability to listen at low levels late in the evening is important to me.)
With the Red Wine amp. I had the powered subs crossed over around 70 Hz, at a higher output, to augment the Red Wine's lower bass output. The S300 delivers such powerful, detailed bass that the powered subs are almost unnecessary.
I eventually added the subs back in, but crossed over around 45 Hz, just to provide that low end that you feel almost more than you hear. Just to be clear, the subs are making up for the bass shortcomings of the open baffle speakers, not any shortcomings of the S300.
I give the S300 two thumbs, way up! Anyone want to buy a Red Wine amp?
READ MORE

- Jdaun

Don't want to be the competition

I will simply say Paul & his fine team have, what I truly believe is the best amp @1.5k that you could possibly hope own. I wouldn't want to be the competition @ 3k & have to take the S300 on! Every listen just brings smiles. Clarity, depth, balance, dynamic range, and this thing just doesn't seem to run out of gas! I have a pair of Magnapan 1.6 QR's with an SVS subwoofer, the S300 delivers slam & articulation, like I haven't heard before. I had the 1.6's rebuilt by Magnapan 1 year ago after 13 years of serious use, so I am confident they are up to the task. Okay, I did spin some superlatives, sorry. I will sum it up by saying I am totally satisfied with the S300 & would recommend it to all, save your coin, this amp kicks some very serious butt! Thank you Paul & everyone @ PS Audio!
READ MORE

- Stephen
