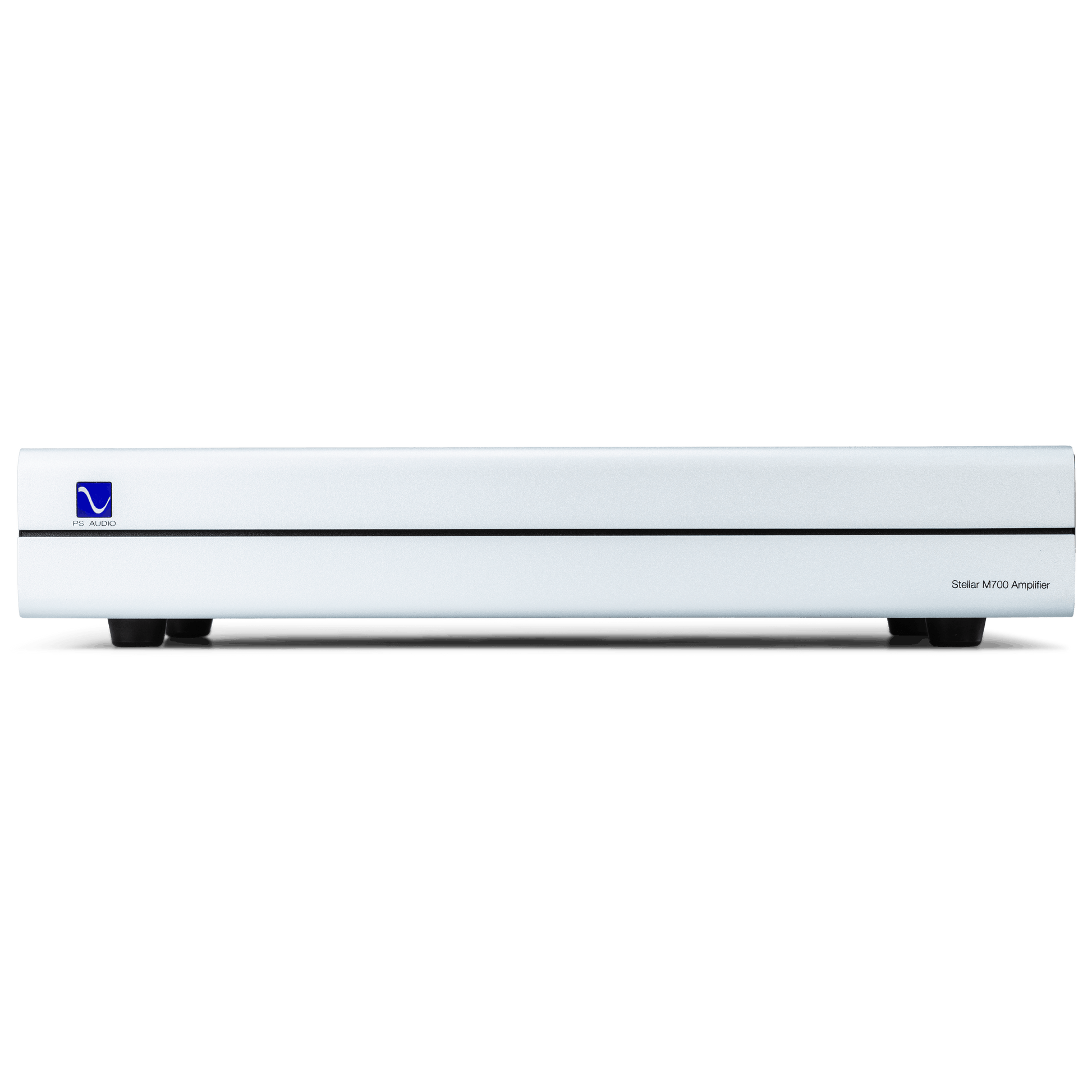

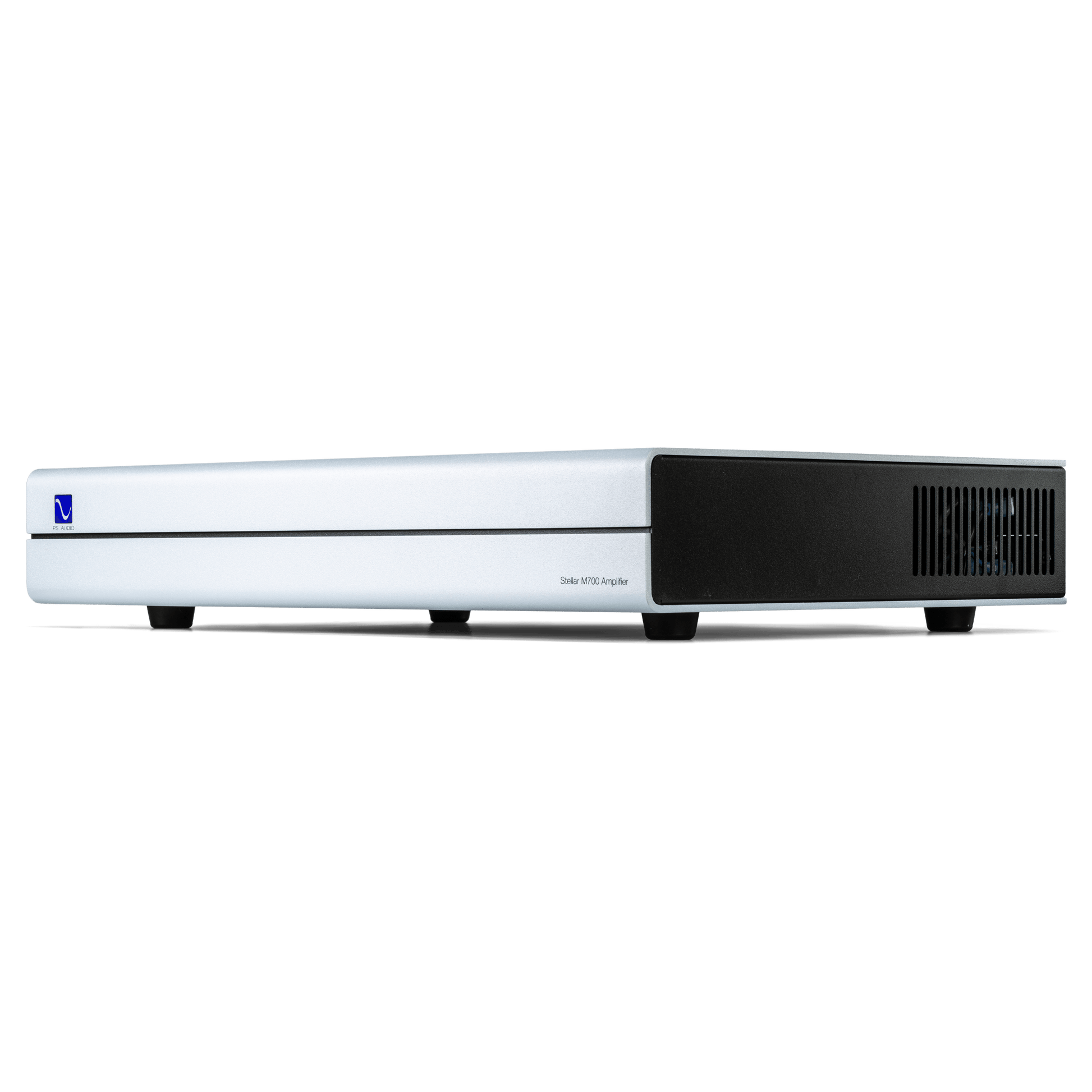

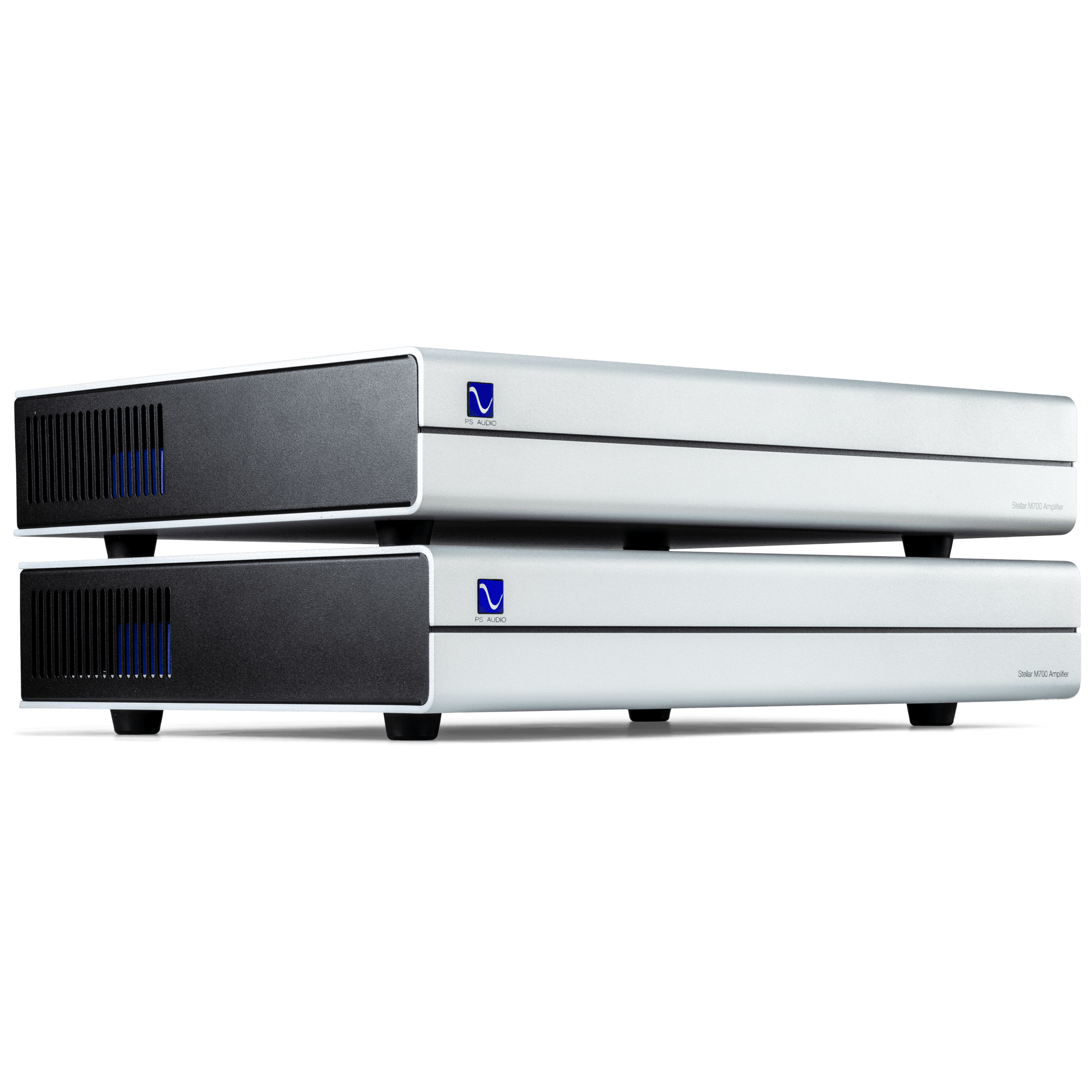

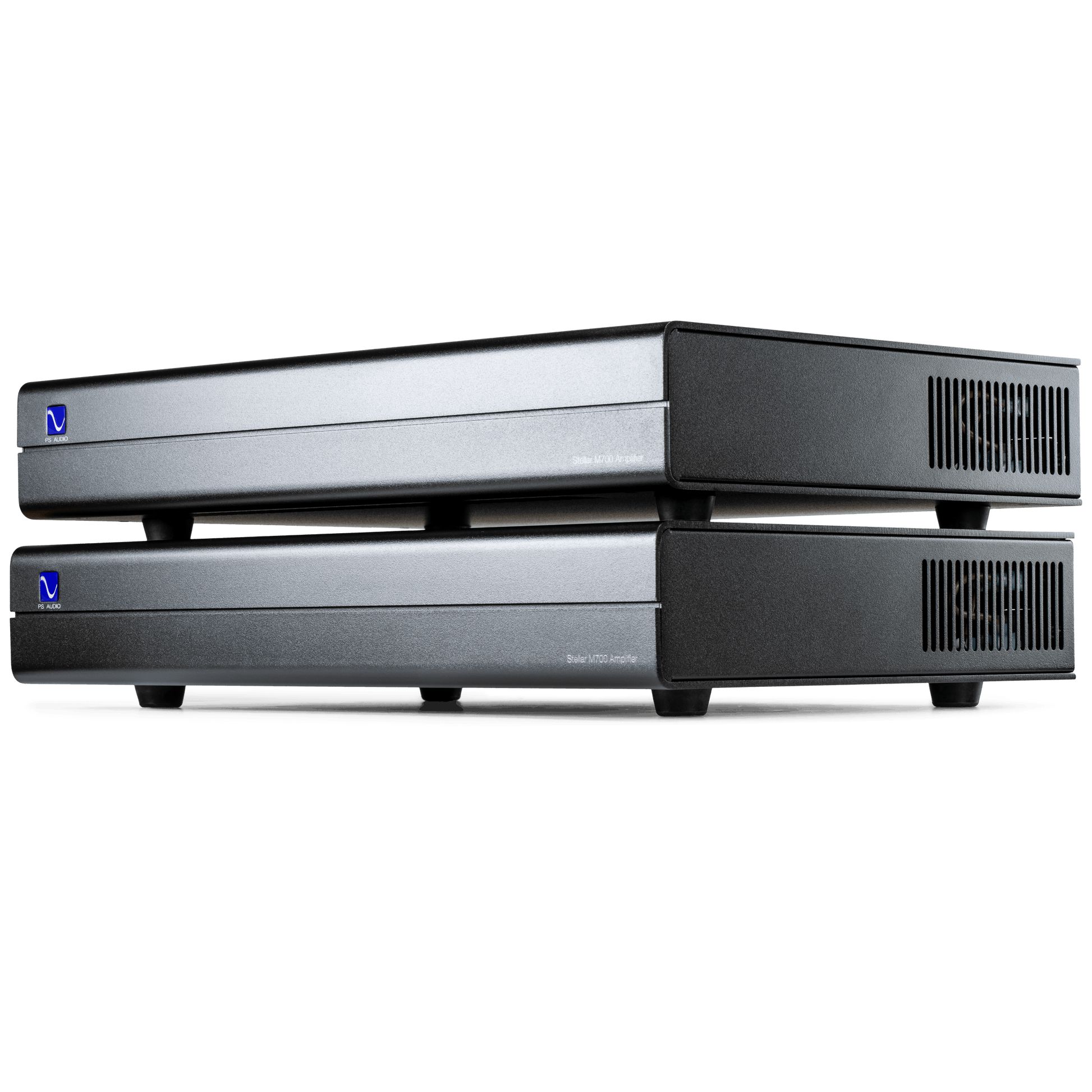

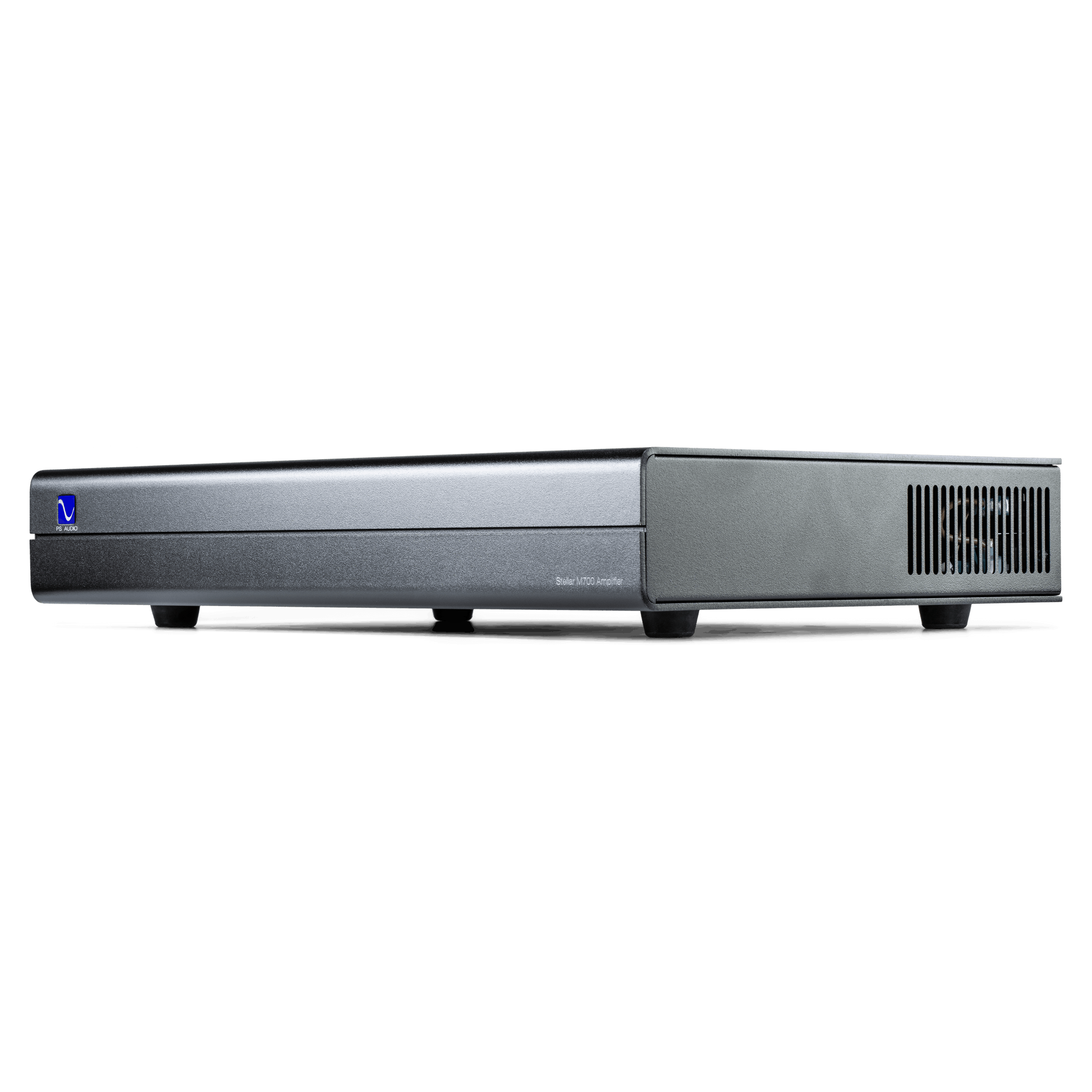

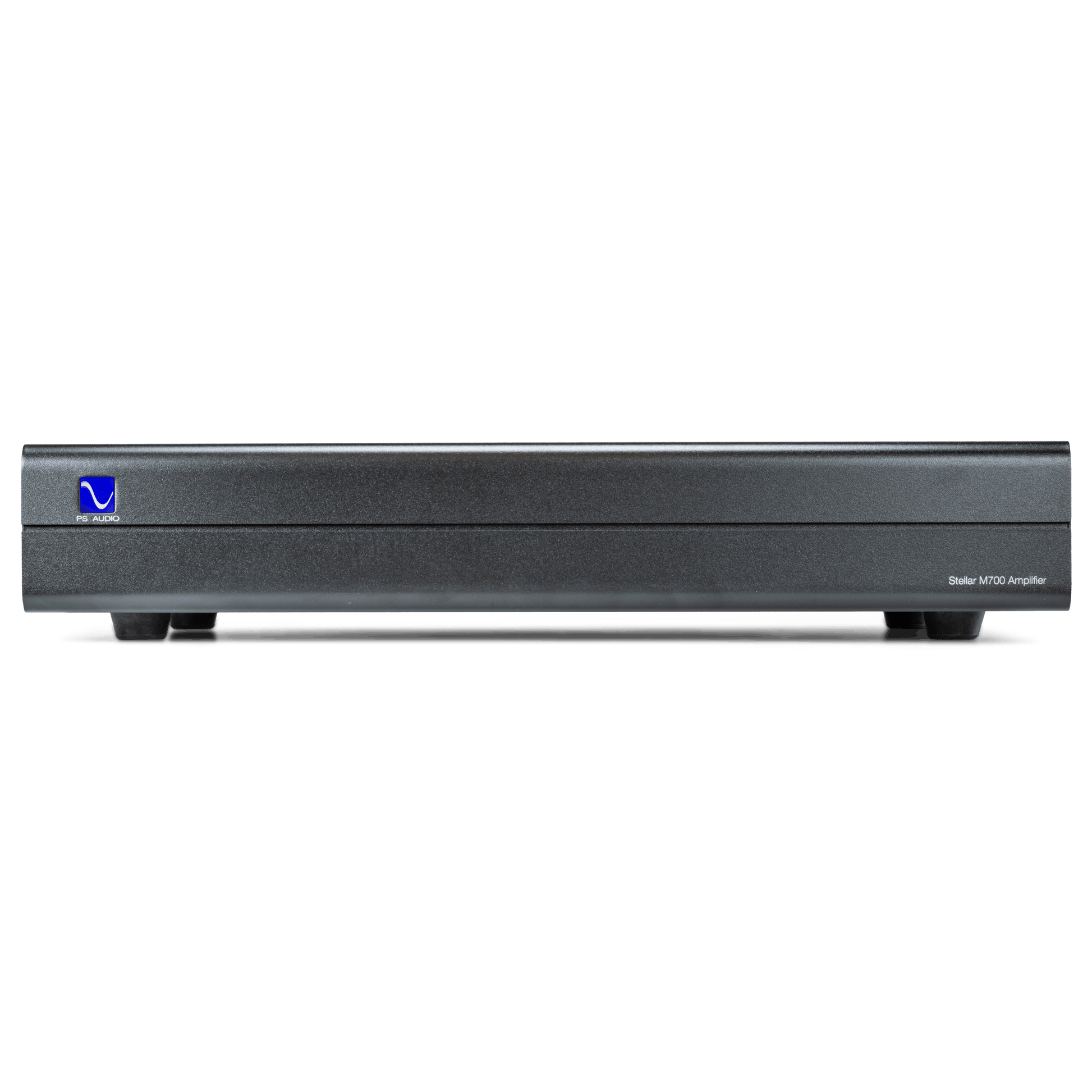

Stellar M700 Mono Amplifier

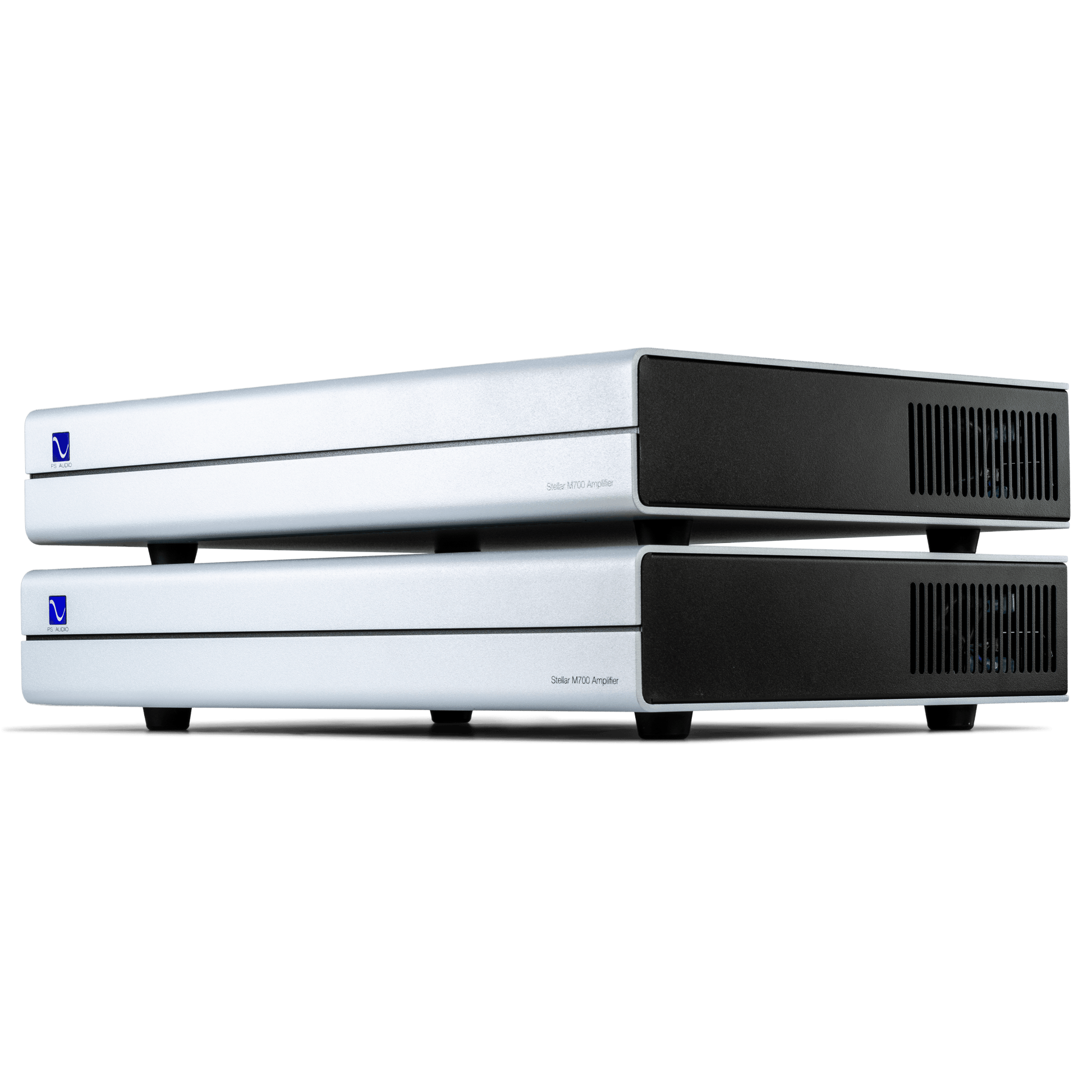

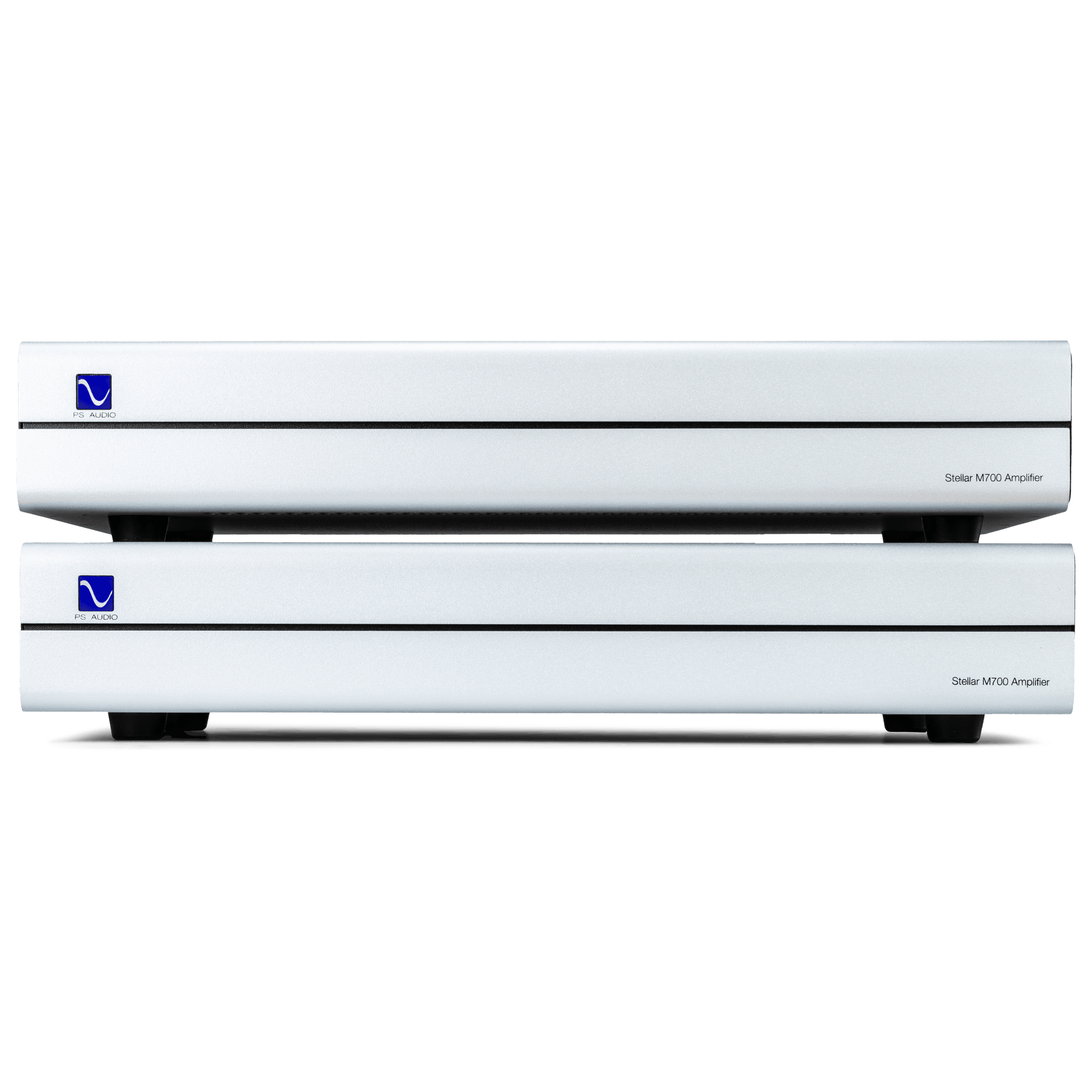

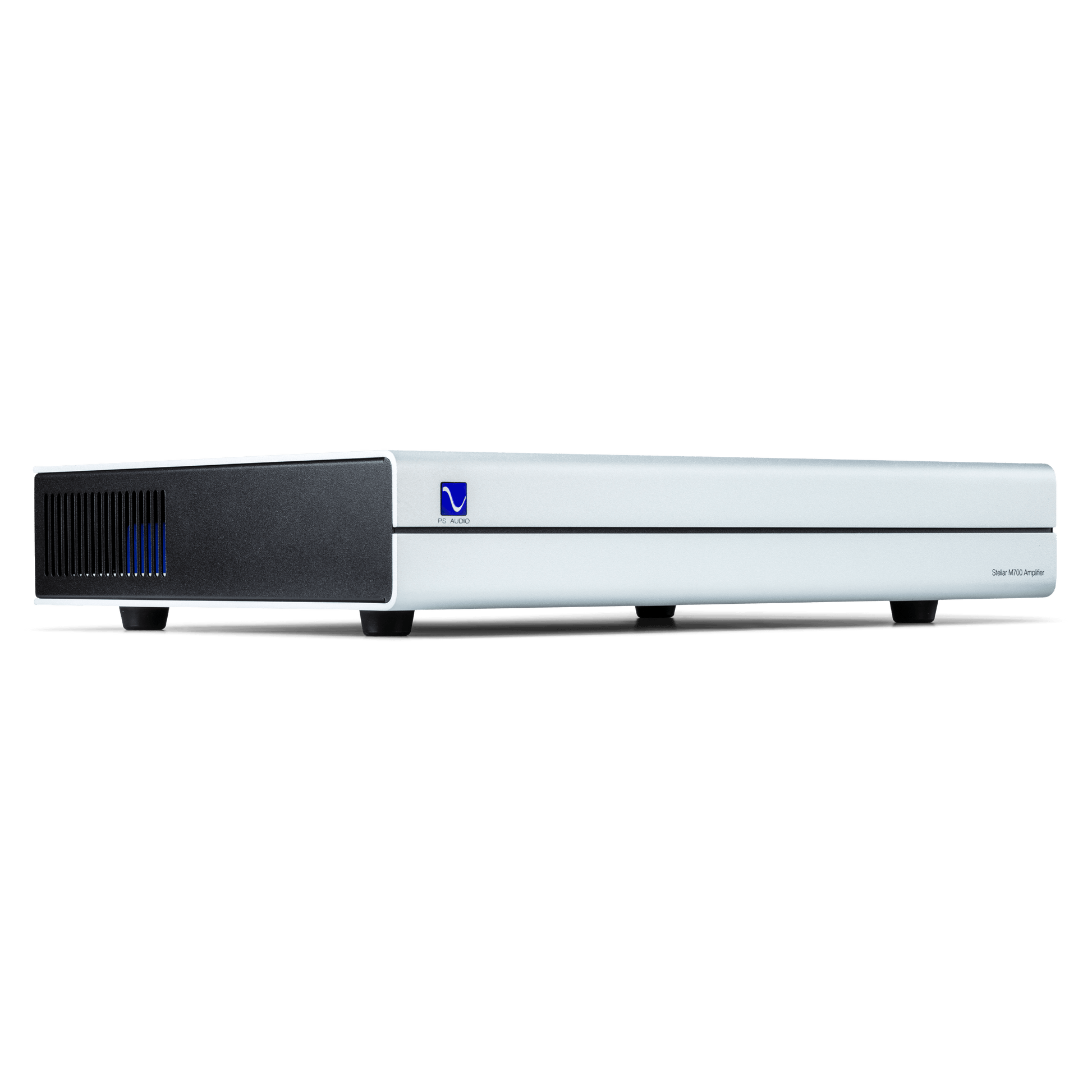

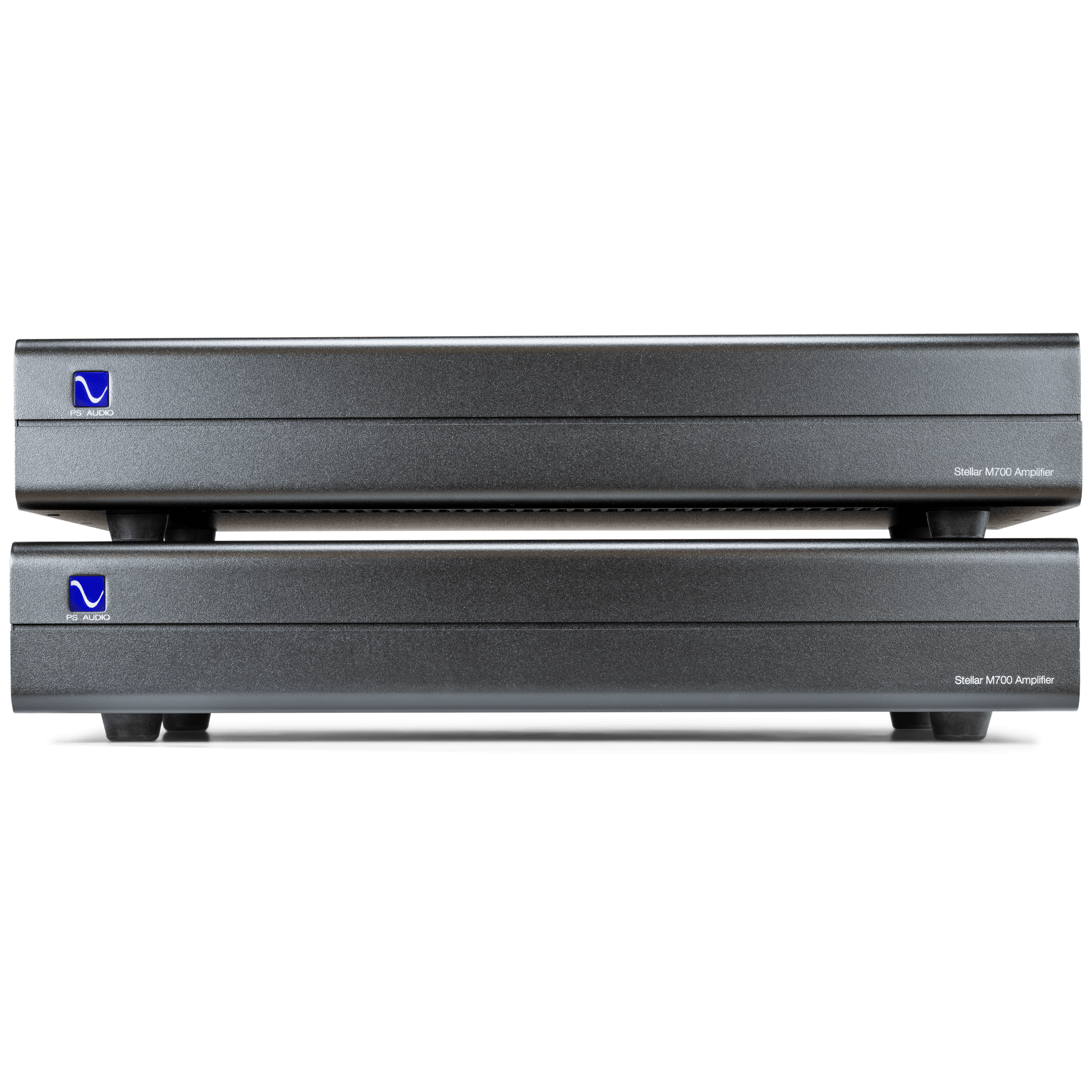

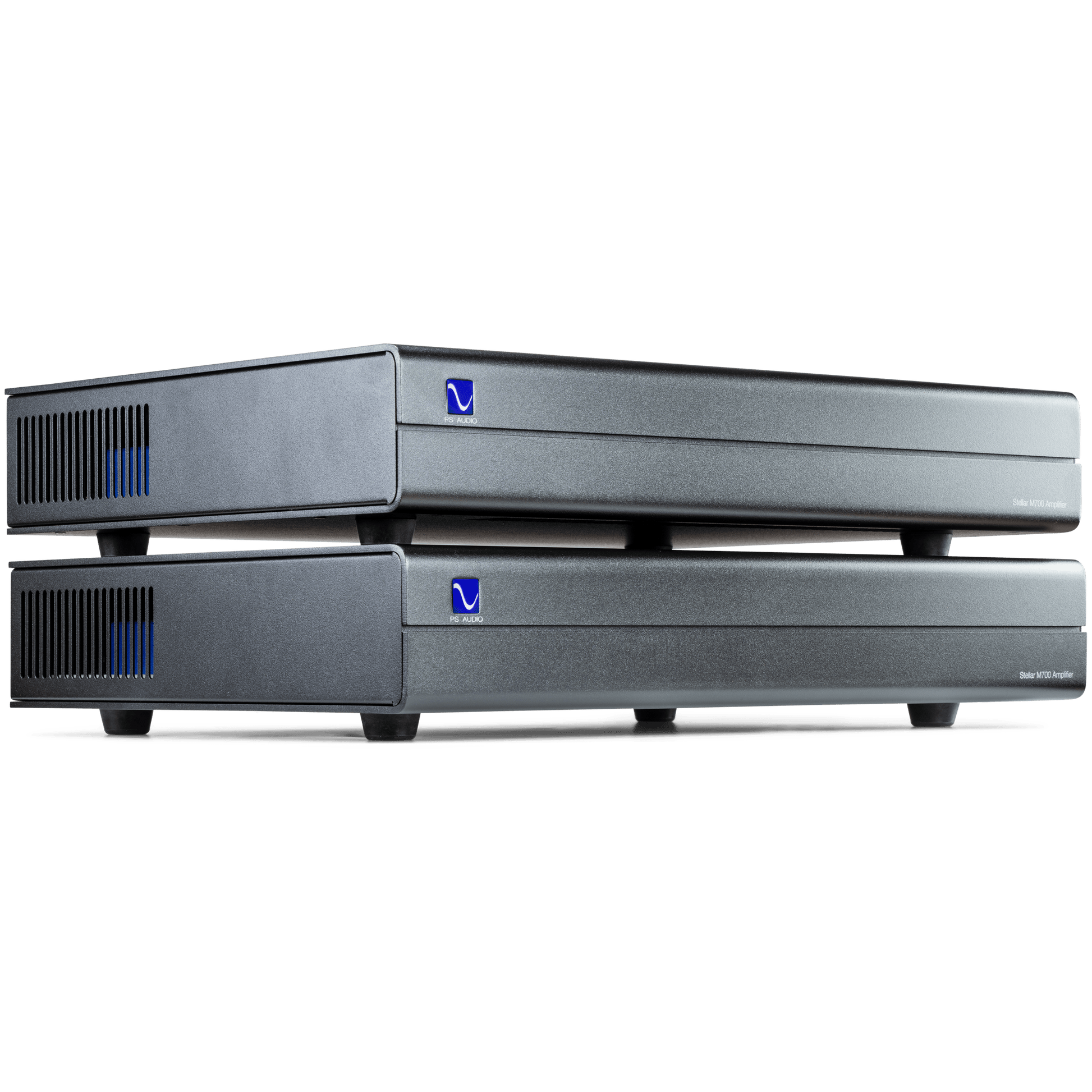

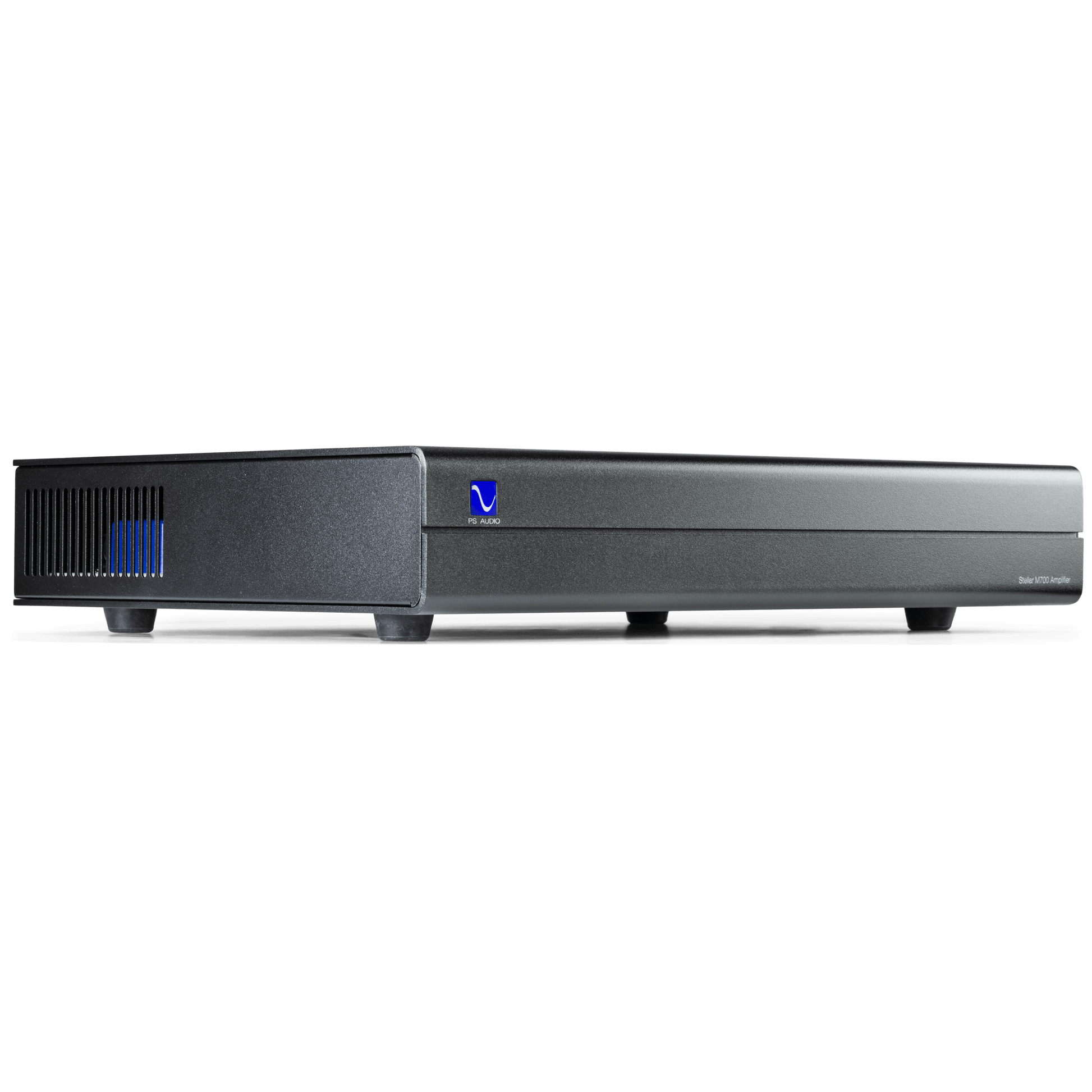

M700-left-side-500The Stellar M700 mono amplifiers are a massively powerful engine capable of effortlessly driving demanding loudspeaker loads to concert levels. Stellar’s best. A pair of these placed on any loudspeaker brings forth the lush, rich and soul-satisfying power of two completely independent power blocks with headroom to spare. One listen to a hugely loud and complex musical passage effortlessly rendered by the M700 pair and you’ll know you made the right choice.

Rated at 350 Watts into 8Ω and 700 Watts into 4Ω, the M700 combines the best of two worlds: ultra linear, high-current, Class D technology for the output stage; a discrete, Class A MOSFET based Analog Cell for the all-important input stage. The M700’s rich, warm, and engaging sonic character comes from the Analog Cell. Its powerful, authoritative control over the loudspeaker stems from its high current, ultra-low impedance Class D output stage.

Stellar’s design imperative was to produce a truly musical sounding power amplifier that proudly competed with any amplifier under $5,000.  Its designer, PS Audio engineer Darren Myers, took the challenge and set to work on a new concept—a hybrid that would combine the best of today’s technology with time-honored techniques leveraging PS Audio’s forty plus years of experience.

The results are extraordinarily musical. Even from the earliest prototype we knew the Stellar power amplifier series was going to be something special. Stellar amplifiers never draw attention to themselves, a rare quality in amplifiers of any price. After hundreds of hours of tuning, voicing, and perfectionist tweaking, we were confident the ends justified the means.

Audition the Stellar M700 pair and you’ll appreciate Myer’s dedication to musical truth without compromise.

Analog-Cell-in-chassis-500The power amplifier is technology always present in stereo systems. Yet, despite the fact everyone uses them, few appreciate the power amp’s critical role in preserving music’s nuanced details, because most amplifiers fail to preserve them. Overtones from plucked instruments, subtle cues defining placement, depth, soundstage width, and transient decays are often lost in the power amplifier.

The M700 loses nothing. Stellar’s lead designer, engineer Darren Myer, was obsessed with its detail and voicing—lavishing great attention on even the tiniest nuances in the music. This helped Stellar capture the rich full-bodied essence of recorded music and presents it to your loudspeakers with authority and grace—with never a hint of glare or unnaturalness. The M700 is faithful to the music like few amplifiers are.

The Analog Cell makes all the difference

The connection between preamplifier and power amplifier is critical, for it is at this junction where most essential musical details are easily lost. Nothing in the design of a power amplifier is more important than its input stage when preserving music’s finest nuances. In the M700 a unique topology called the Analog Cell has been employed to preserve the rich details found in music.

The Analog Cell is a zero feedback, balanced, Class A, MOSFET input stage. The design closely mirrors the sonic characteristics of a vacuum tube and allows Myer the freedom to voice the amplifier as he sees fit. Long hours of listening and tuning sessions in Music Room One, shared by PS Audio founder Paul McGowan and Darren Myer, resulted in a sonic signature that honors the music and never draws attention to itself.

The listening experience with the M700 starts feet tapping and smiles breaking out. The M700 presents music without a hint of glare. Listeners are constantly surprised at the width and depth of the M700’s soundstage; its preservation of the smallest details in reverb, room acoustics, musical overtones; its commanding presence without intrusion; it’s delicate handling of subtle shadings; its authority as it grabs hold of the loudspeaker and breezes through even the most complex musical passages.

M700-single-face-on-verticalThe hybrid approach used in Stellar’s power amplifiers takes advantage of the best traits technology has to offer. Its all important input stage relies upon the Analog Cell to provide a zero-loss interface between the preamplifier or DAC, as well as imprint the amp’s sonic character. It is then time to convert the perfected analog voltage into the all important high current output needed to drive loudspeakers.

A power amplifier connects a reservoir of energy to the loudspeaker through a type of valve (solid state or vacuum tube) controlled by the input stage. If the input stage has done a good job of preserving music’s subtle details, textures, timing and phase information, transferring it without loss to the loudspeaker can be accomplished in a few ways: the most efficient is Class D.

The history of Class D amplifiers stretches back to the 1950s, though those early designs—even those into the late 1990s—had much to be desired, sonically. Modern designs capable of high linearity and neutral sound quality weren’t available until the early 2000s, and into late 2015.

There is a lot of misinformation surrounding class D amplifiers. Perhaps the most common is they are digital, which is incorrect. A Class D amplification stage is an analog process, known as Pulse Width Modulation (PWM). Class D amplifiers do switch in on/off fashion, which is likely the reason they wrongly acquired the “digital” moniker.

The Stellar M700 has a massive power supply and ultra-linear high Wattage power amplification stage, based on a modern Class D ICE module, designed in Denmark.

All power amplification stages have strengths and weakness. Class D output stages are no different. Their strengths are many: near-perfect linearity, low distortion, high efficiency. Areas where they do not excel, are most notable in high-frequency extremes. Because Class D amplifiers require an output filter to remove their switching noise, they do not have frequency extremes into the many hundreds of thousands of Hertz. Depending on their design modern Class D amplifiers, like the type used in Stellar, extend high frequencies to about 50kHz. Human hearing limitations are 20kHz, though most listeners rarely have hearing exceeding half that.

The Stellar M700 provides excellent frequency extremes, low distortion, high efficiency, high damping factor, and a generous and powerful output of 700 Watts into the most common loudspeaker loads of 4Ω. Plenty of horsepower for even the most demanding loudspeakers.

Is 700 Watts too much for my loudspeakers?

No. One of the common audio myths is too much power for speakers. The truth is, underpowering a loudspeaker is potentially more damaging than over powering it. Square waves (clipping) causes more tweeter and driver damage to speakers than anything else. The massively powerful nature of the M700 works well with any loudspeaker, providing huge amounts of headroom and effortless sound quality for even the most demanding orchestral crescendos.

Work on the Stellar series began in 2015 with the goal of building a line of world-class, exceptional sounding, under $2,000 full-size chassis products at our Boulder facilities. What we hoped for was an affordable gateway into the world of PS Audio. We wanted to build a line of equipment we would be proud to place the PS Audio name upon, and customers would be equally proud displaying in their homes, at prices anyone can afford.

Our standards have always been high. In our forty plus years of business, we have never sacrificed quality, performance, or customer service when we launch a new product. If we can’t proudly take a new product home and enjoy its musical delights, then it’s never going to see the light of day as a PS musical instrument. Nothing is more important to us than honoring the music and those that use our products.

The first major challenge in Stellar’s creation was how to build a beautiful, full-sized chassis, and still have budget enough for the level of audio quality we had envisioned. Once solved with the tireless help of PS Engineering and a cartel of local vendors eager to keep business local, our next hurdle was the biggest of all—crafting musical circuits that matched our lofty vision of sonic bliss. Nearly two years in the works, our vision of a locally built gateway line of musically gorgeous audio products took shape. The Stellar line became reality and one we hope will enjoy a lifetime legacy in the PS Audio family.

Each Stellar product is hand-built in our Colorado facility. We take great pride in what we build, how it sounds, and how the end user is treated. We’re PS Audio, and making music and keeping our customers happy and thrilled is what we’re all about.

Stellar S300 Stereo and M700 Mono

Unit Weight13 lbs
Unit Dimensions17” x 3” x 12” Chassis only. 13" deep including connectors.
Shipping Weight16.5 lbs
Shipping Dimensions22”x 8” x 17”
Color OptionsBlack
Silver
Voltage Options
Factory set only
Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V
Mains Power InputsIEC C14
Accessories IncludedUS (NEMA 5-15P) (all versions)
Schuko (CEE7/7) (230V version)
UK (BS 1363) (230V version)

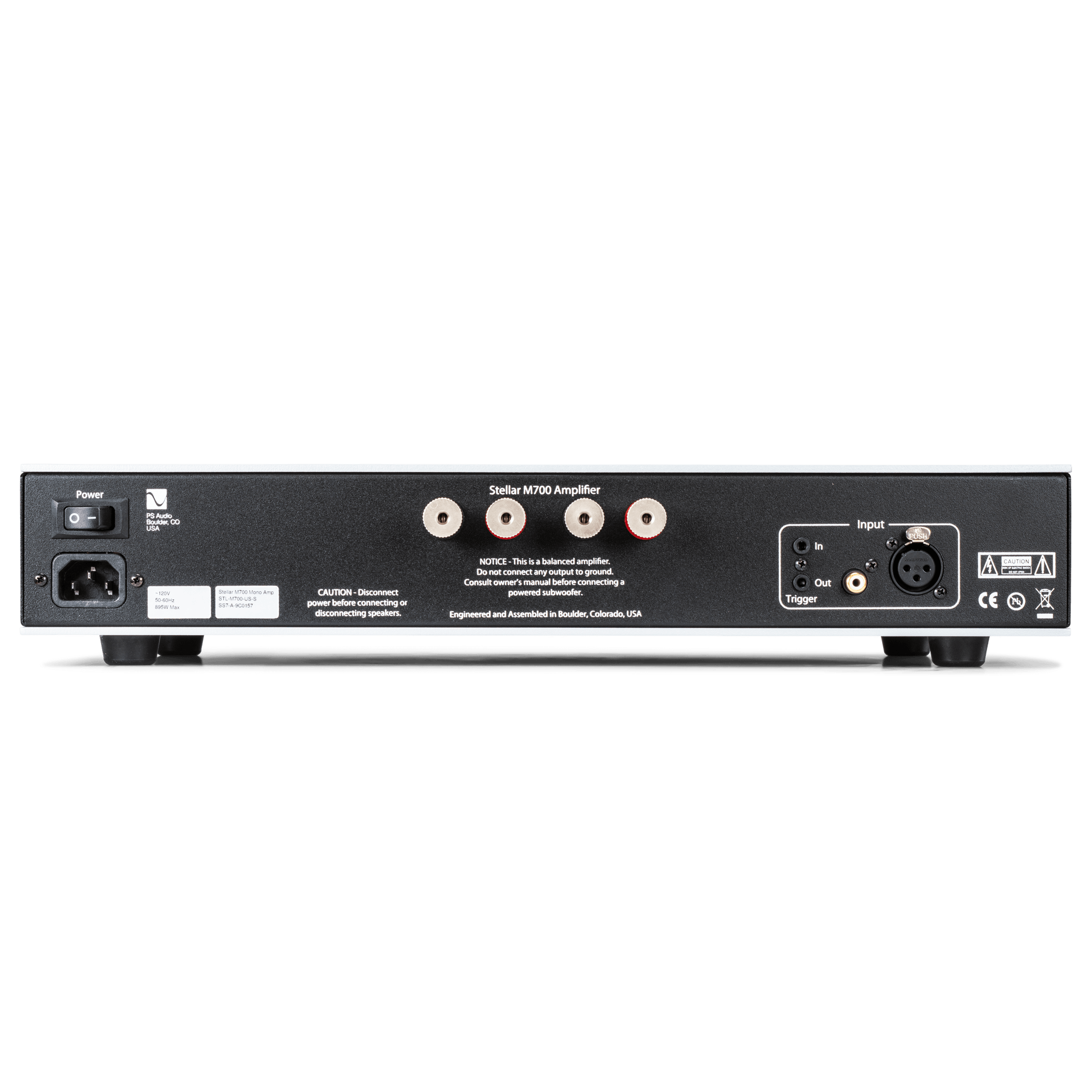

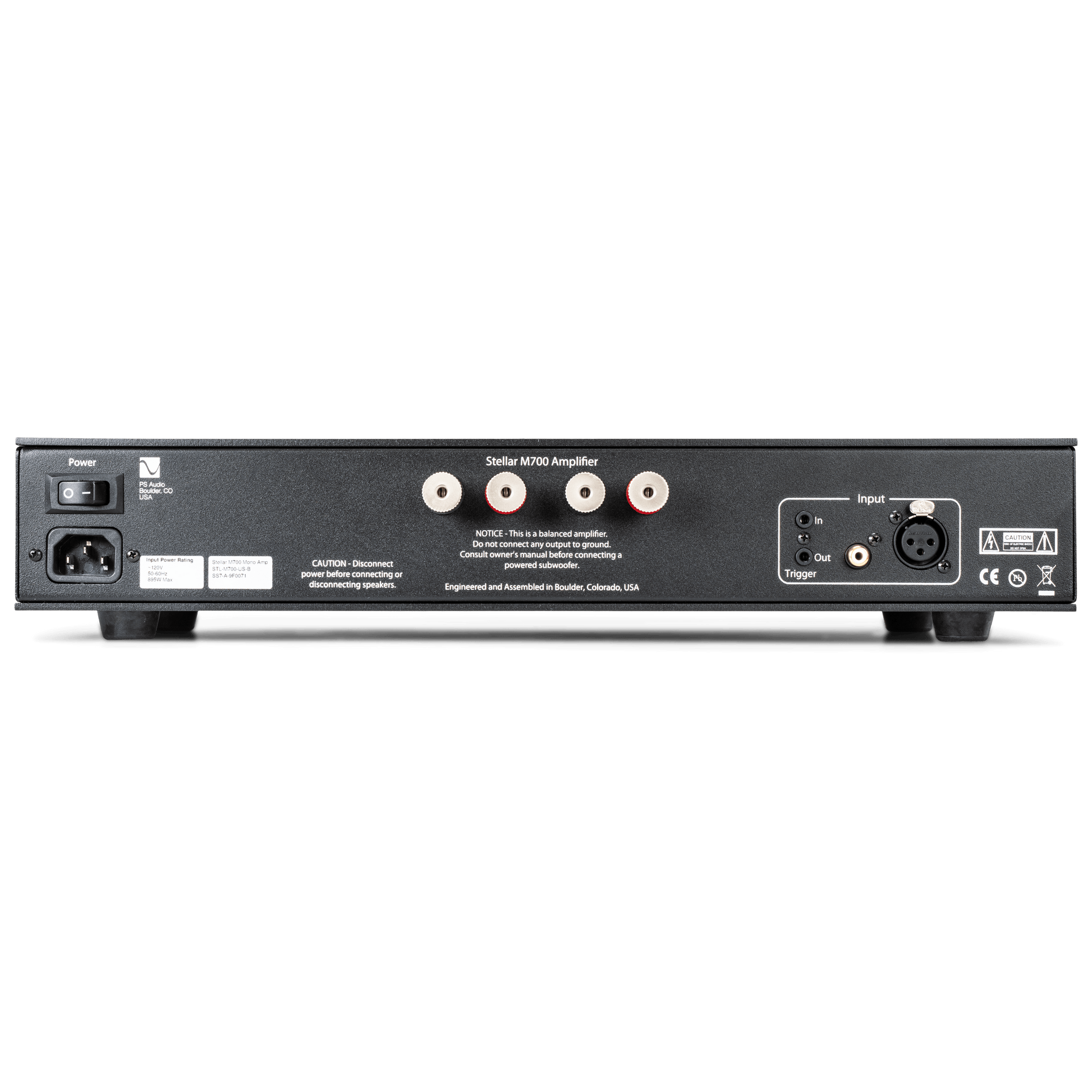

Audio InputsRCA (Unbalanced)
XLR (Balanced)
Speaker Outputs S300Copper base nickel plated binding posts (2 pair per channel)
Speaker Outputs M700Copper base nickel plated binding posts (2 pair)
OtherDC Trigger Input
3.5mm 5-15VDC
Warranty3 years parts and labor

Signal

Gain30.5dB +/-0.5dB
Sensitivity for rated output power1.01V
Noise1kHz@300 Watts <-100dB
Input impedance S300Unbalanced 50KΩ
Balanced 100KΩ
Input impedance M700Unbalanced 50KΩ
Balanced 100KΩ
Output Impedance50Hz, 2.8VRMS <0.007Ω
Damping factor50Hz. 2.8VRMS
8Ω >1100
4Ω >550
Frequency Response@2.8VRMS
10Hz – 20KHz +/- 0.5dB
10Hz – 50KHz +0.1/-3.0dB

THD&IM

1KHz, 1W/4Ω<0.02%
10-20KHz, 1W/4Ω<0.02%
10-50KHz, 1W/4Ω< 0.05% (90kHz BW)
1KHz, 37.5W/4Ω< 0.01%

S300 Stereo Amplifier

Output Power

Both channels driven 120vac mains, 1kHz, 1% THD
8Ω140W minimum
4Ω300W minimum
2Ω Stable for musical transients

M700 Mono Amplifier

Output Power

120vac mains, 1kHz, 1% THD
8Ω350W minimum
4Ω700W minimum
2ΩStable for musical transients
