Physical |
|
| Unit Weight | 22 lbs [9.97 kg] |
| Unit Dimensions | 14” x 17” x 4” [ 36cm x 43cm x 10cm] |
| Shipping Weight | 31 lbs [14 kg] |
| Shipping Dimensions | 20.5”x 24” x 10” [52cm x 61cm x 25cm] |
Power requirements |
|
| Input Power | Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz |
| Power Consumption | 30W |

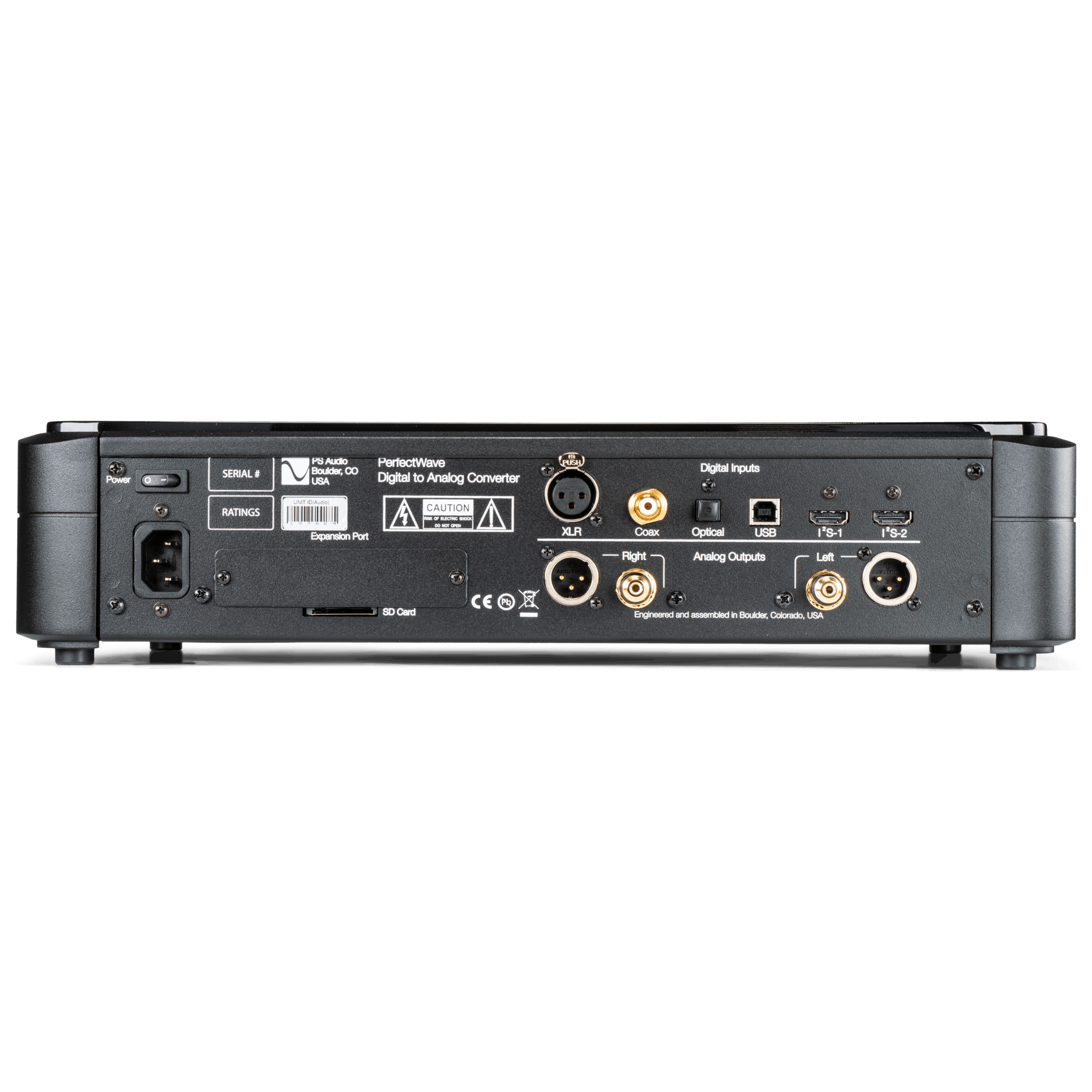

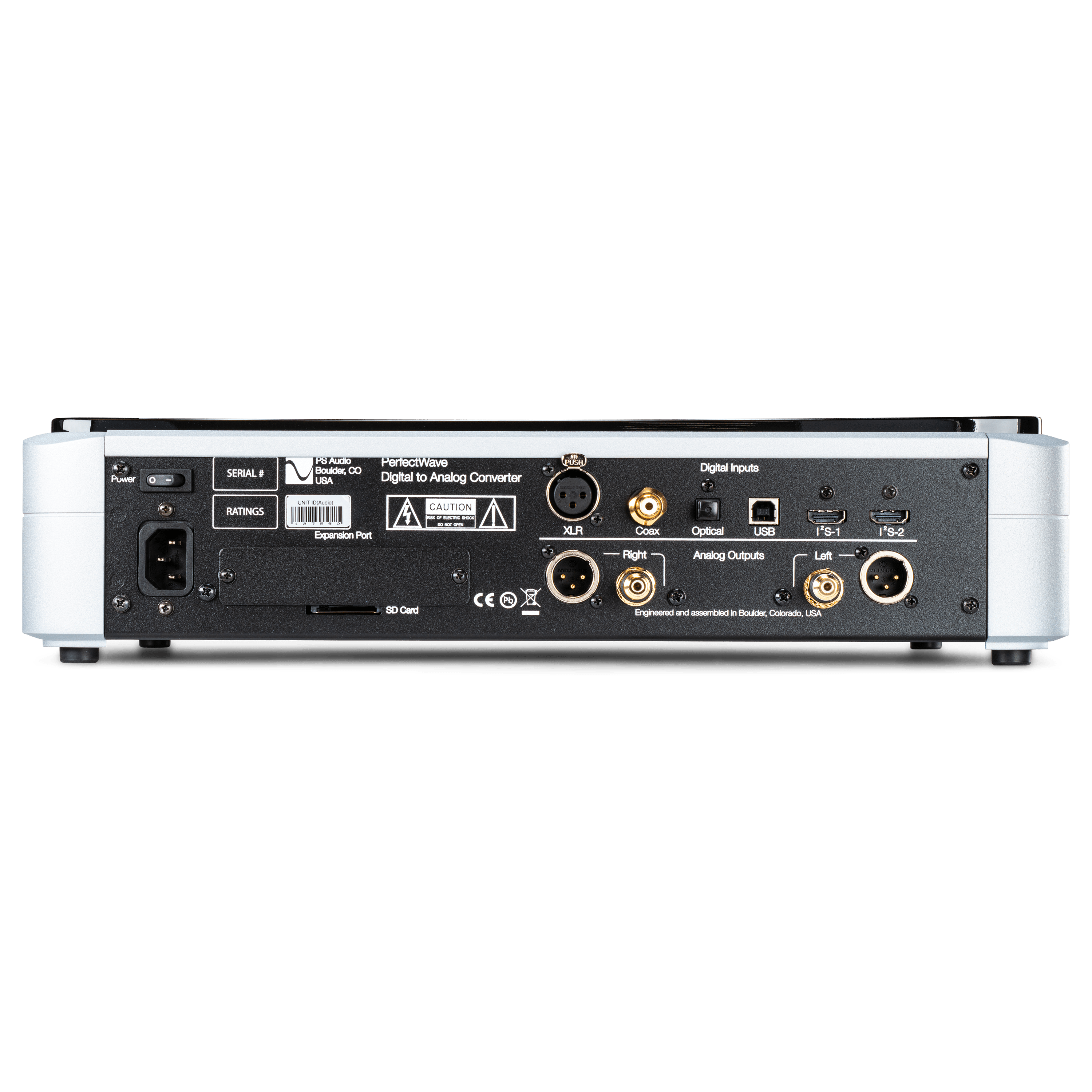

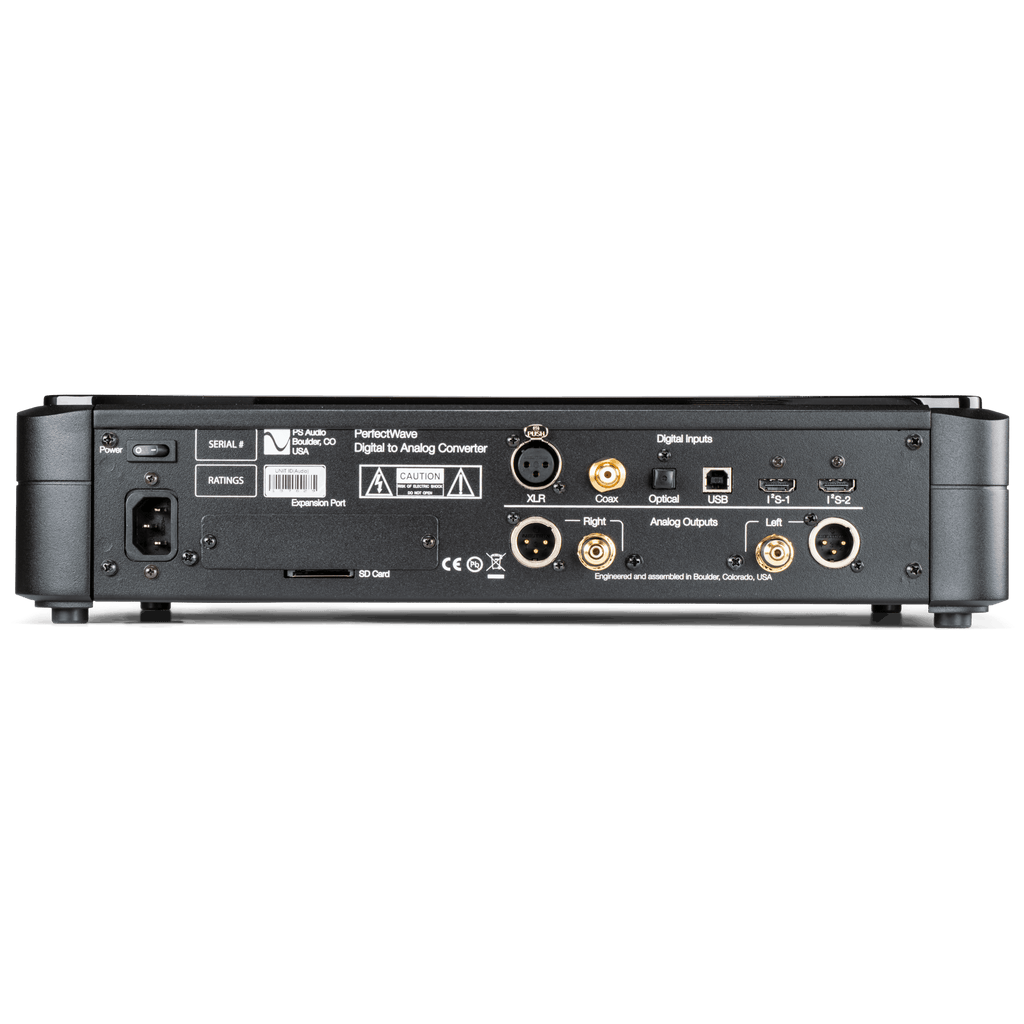

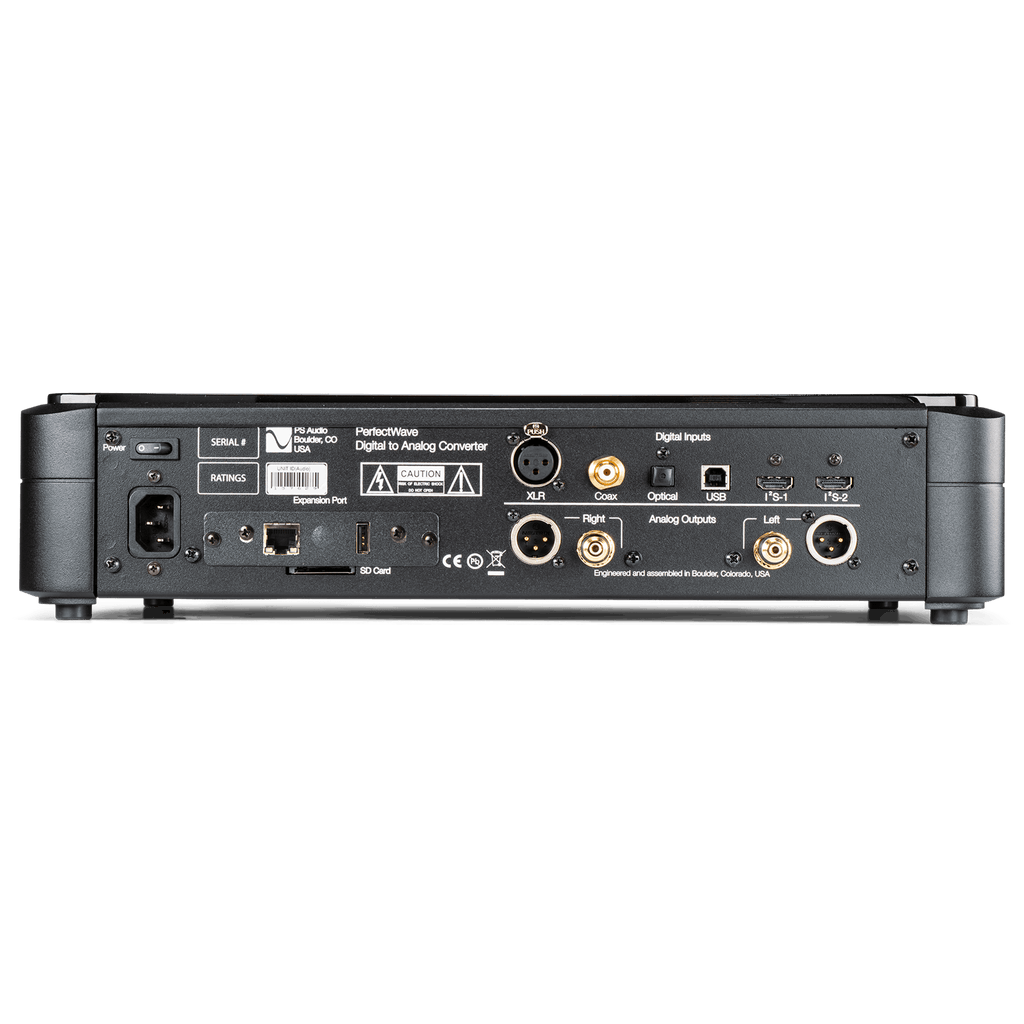

Digital audio inputs |
I2S(2), Coax, XLR Balanced, TOSLINK, USB, Network Bridge slot |
Sample Rates |
I2S, and USB — 44.1kHz to 352.8kHz 16bit, 24bit, DSD 64, DSD 128 (I2S DSD 256 with Sunlight update)
|
Analog Audio Output |
|
| Connector | RCA/XLR Unbalanced /Balanced (X2) |
| Output level, low | 0.282 VRMS Balanced 0.141 VRMS Single Ended |
| Output level high, maximum | 2.818 VRMS Balanced 1.414 VRMS Single Ended |
| Output Impedance | 100Ω/200Ω |
| Frequency Response | 20-20KHz +/- 0.25dB |
| THD+N @ 1KHz (full scale) | <0.03% |
| Output Stage | Passive audio transformer, fed by high current, high speed analog amps producing double rate DSD. |
Data Handling |
|
| Format | PCM or DSD |
| Sample rate (PCM) | 44.1kHz, 48.0kHz, 88.2kHz, 96.0kHz, 176.4kHz, 192kHz, 352.8kHz |
| Word length (PCM) | 16b, 18b, 20b, 24b |
| Data rate (DSD) | Standard (2.8MHz) or Double (5.6MHz) DoP as well as raw DSD on I2S and USB inputs |
| Input jitter reduction | effectively 100%, residual immeasurable. No input PLLs, FLLs. |
| Input Processing | 170MHz |
| Signal Processing | 50MHz |
| Synchronous Upsampling, all inputs | 28.224MHz |
| Digital Processing S/N ratio | >146 dB |
| Digital Volume Control | Zero loss of precision |
| Analog Conversion method | Delta Sigma (DSD) Single-bit double rate |
I2S Digital Input |
|
| Connector | HDMI |
| Format | PCM or DSD. DoP on all inputs as well as raw DSD on I2S inputs |
USB Digital Input |
|
| Connector | USB “B” Type |
| Format | PCM or DoP v1.1 (DSD over PCM) |
| Transfer mode | Asynchronous |

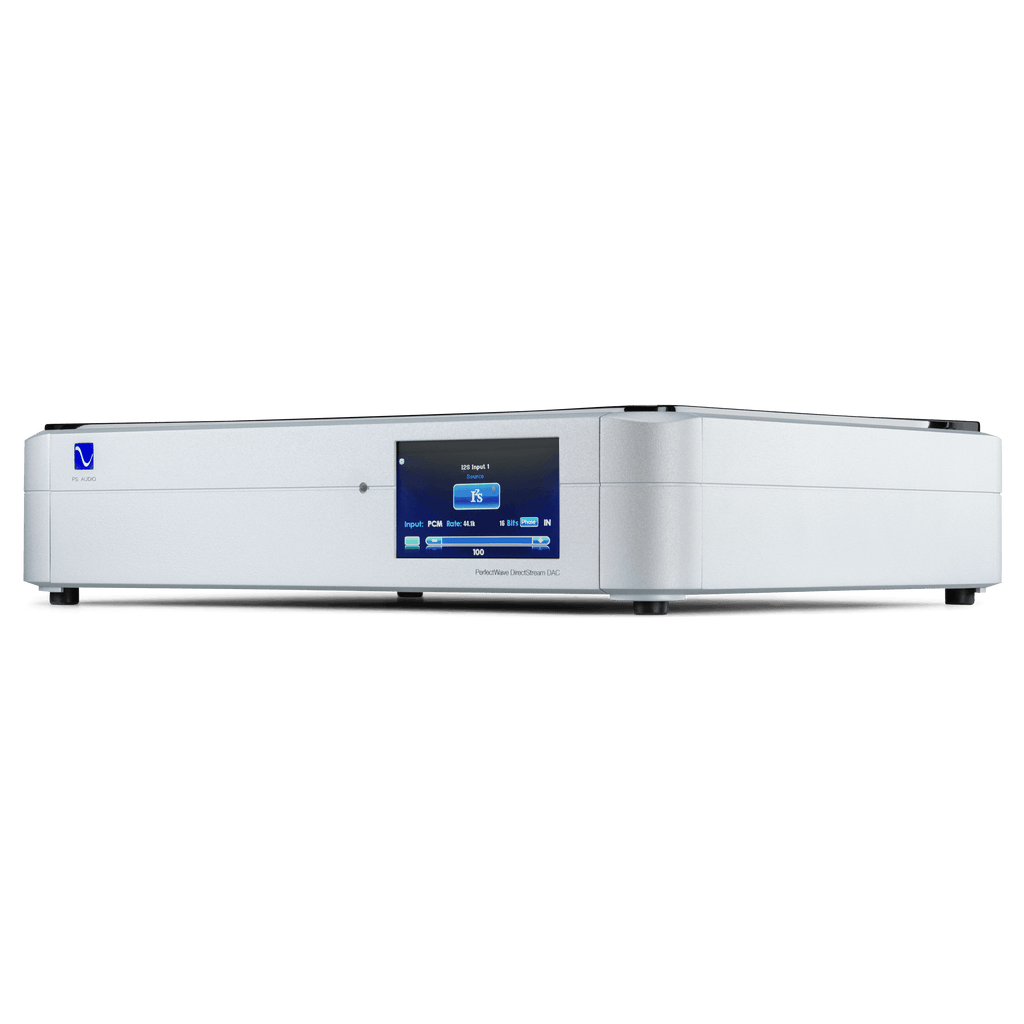

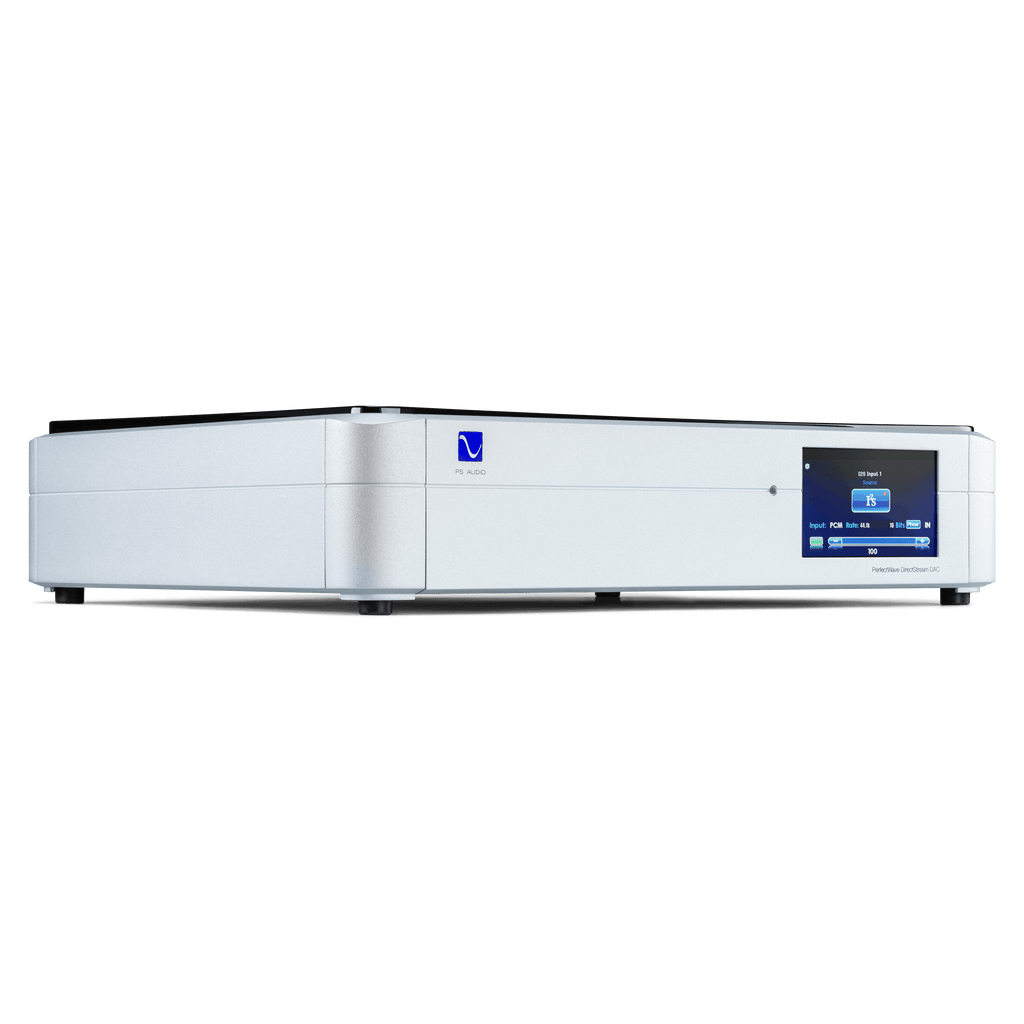

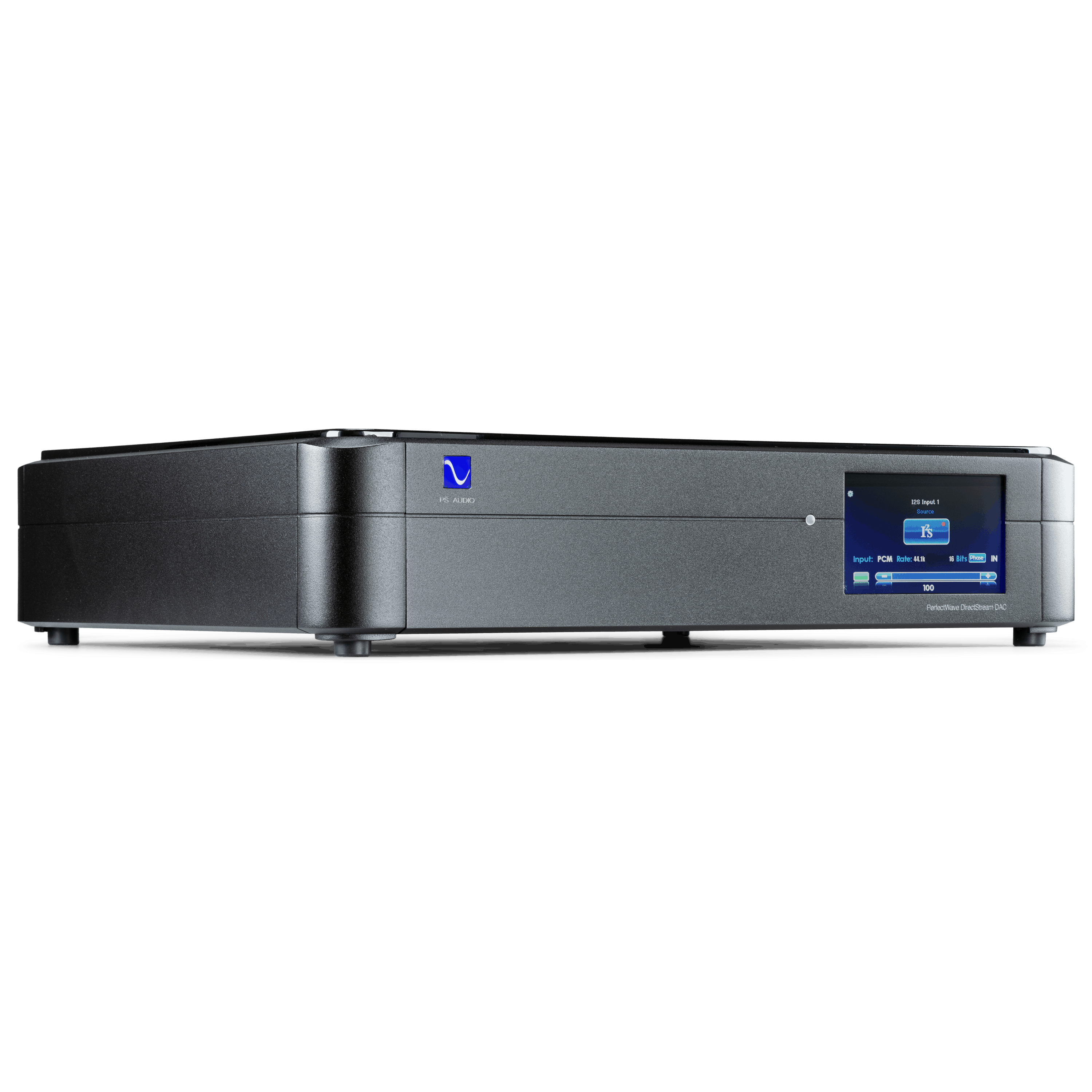

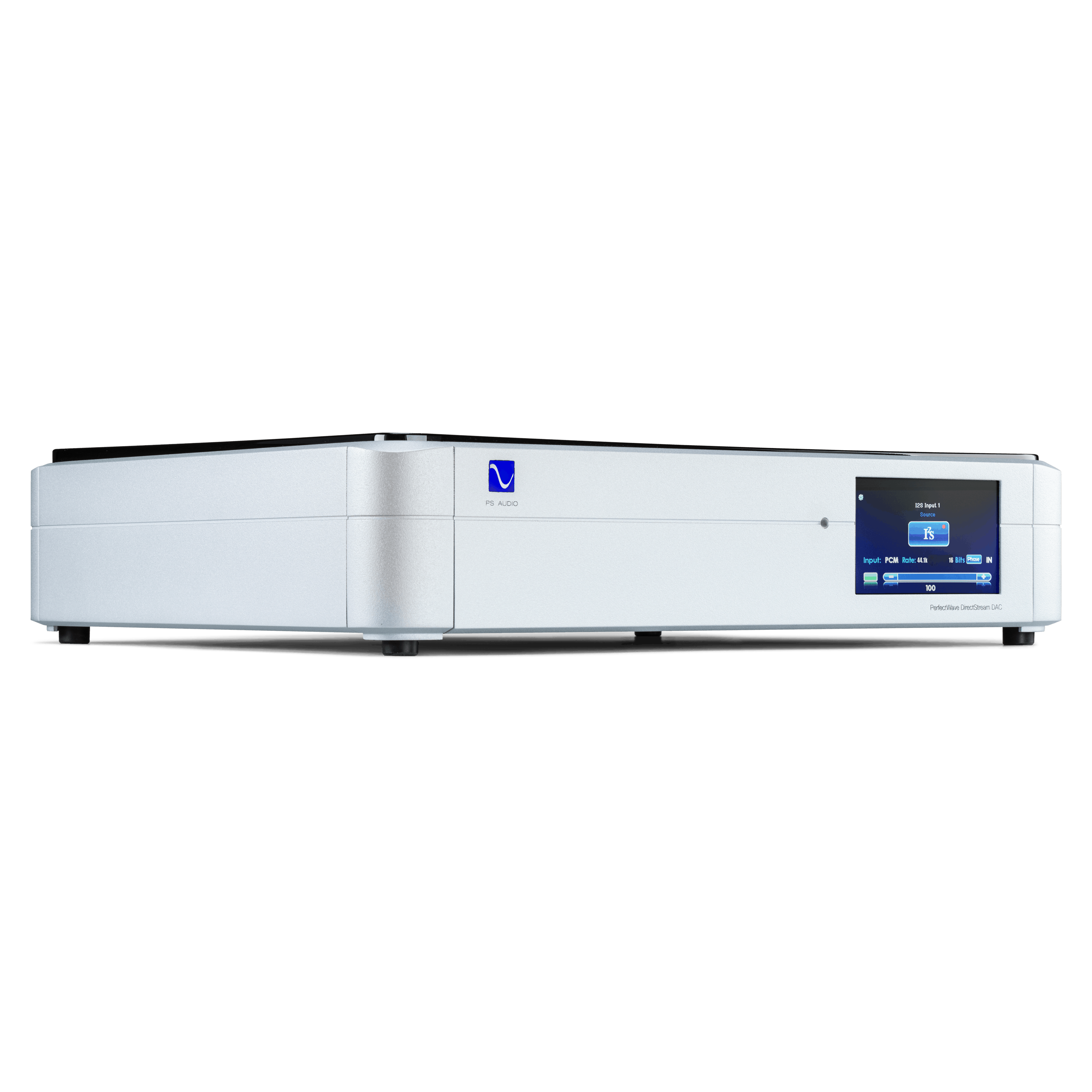

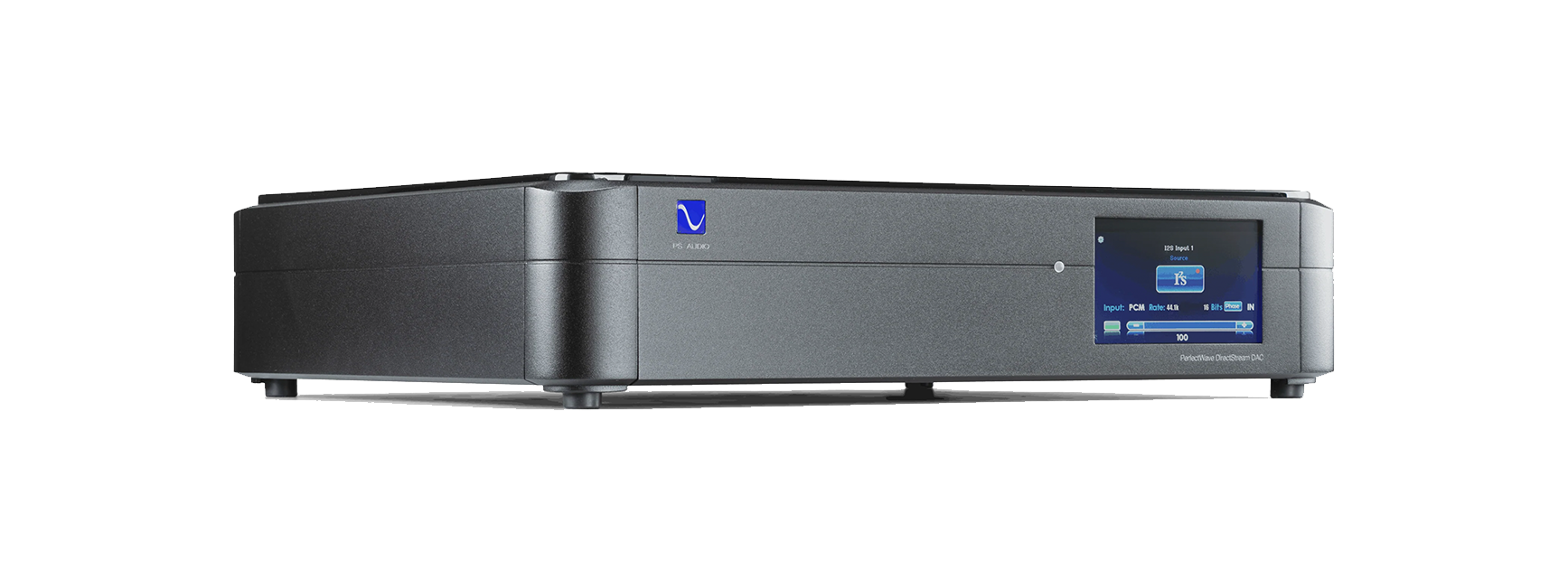

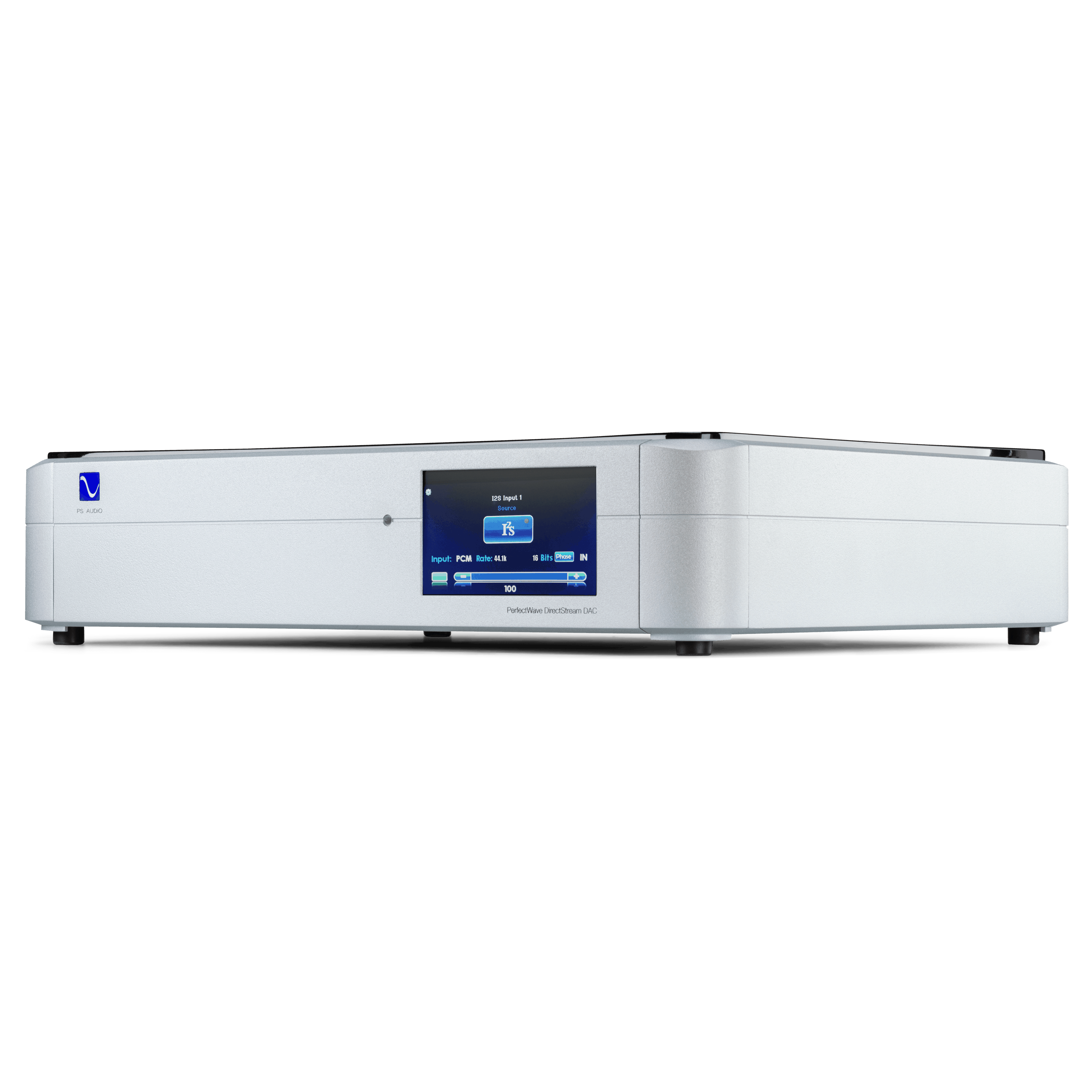

DirectStream DAC MK1 - Factory Certified
Note:

Design
Applications
Overview
DSD Conversion
Output and Volume
Features
17 key features100% DSD BASED D-A CONVERTER
UPGRADABLE VIA SOFTWARE RELEASES
VOLUME, BALANCE CONTROL BUILT IN
UPSAMPLES PCM AND DSD TO 20x DSD RATE
DXD SUPPORT
PASSIVE TRANSFORMER COUPLED OUTPUT
IMPROVES IMAGING + SOUNDSTAGE
DIRECT SIGNAL PASS WITH 1x MASTER CLOCK
HANDWRITTEN FILTERS, PROCESSORS, SAMPLERS
IMMUNE TO OUTSIDE SOURCE JITTER PROBLEMS
INCREASED DIGITAL HEADROOM
NO OFF-THE-SHELF IC-DAC CHIPS USED
UNCOVERS DETAILS USUALLY MASKED BY PCM PROCESSORS
7x DIGITAL INPUTS

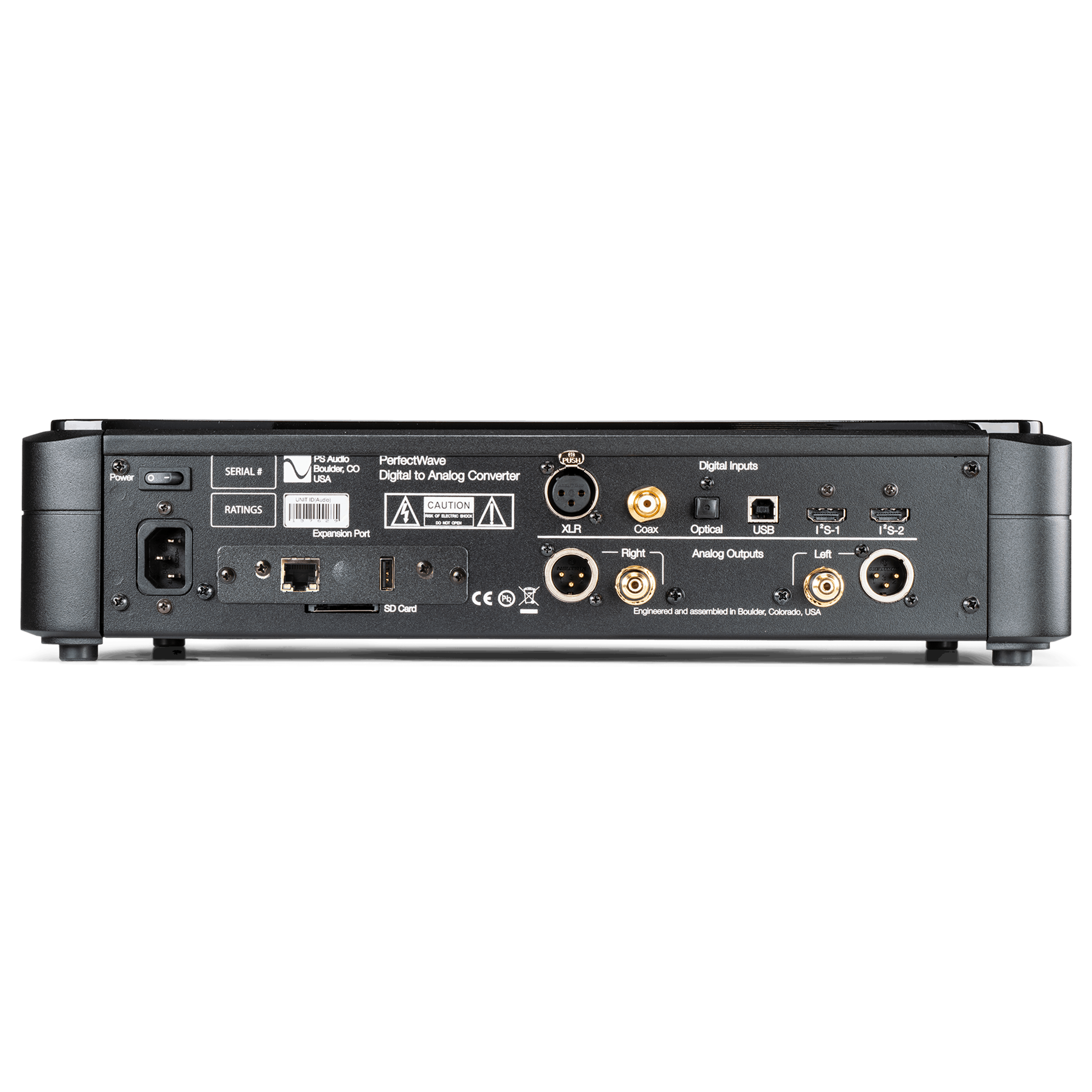

MQA + TIDAL READY WITH OPTIONAL BRIDGE II
FULLY BALANCED FROM INPUT TO OUTPUT

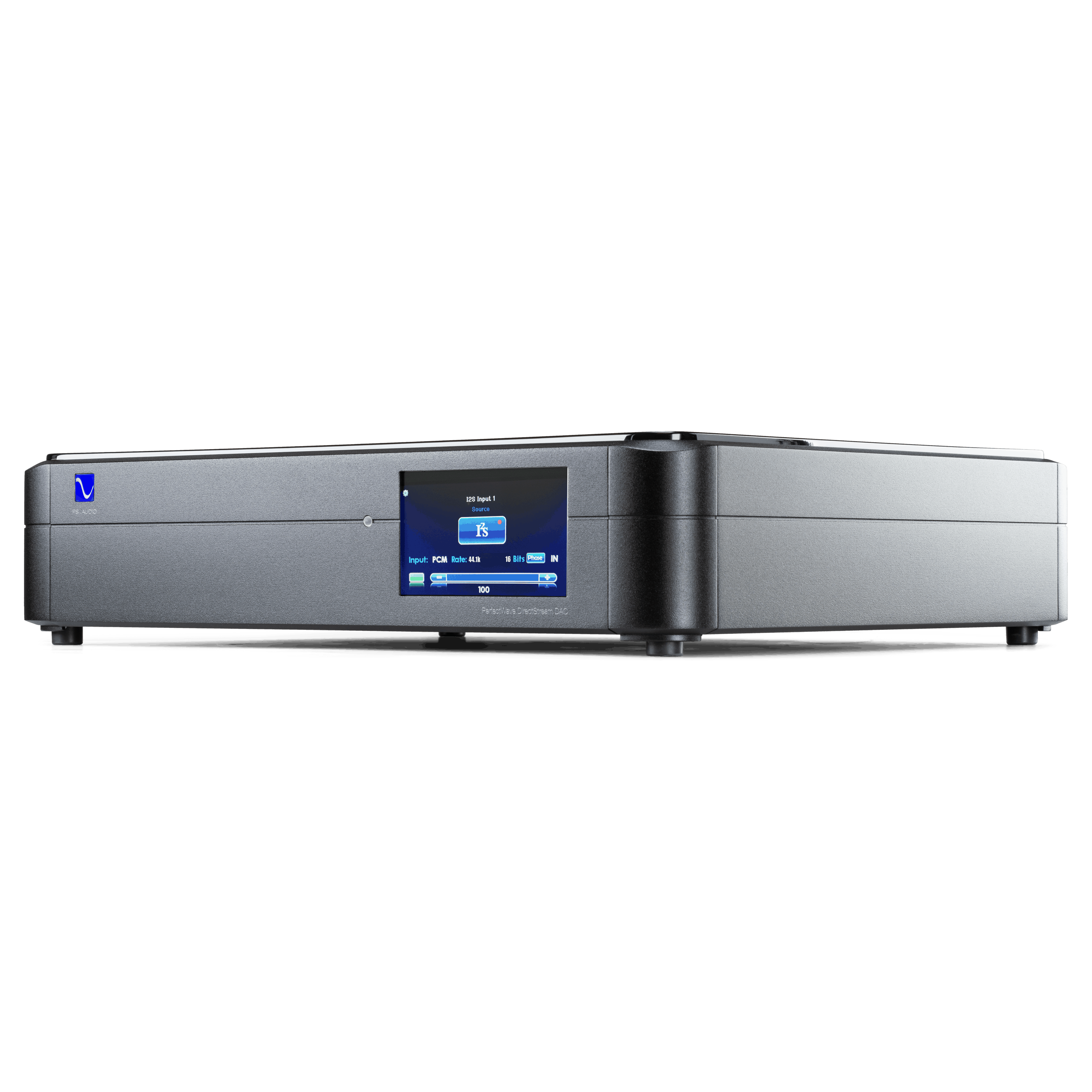

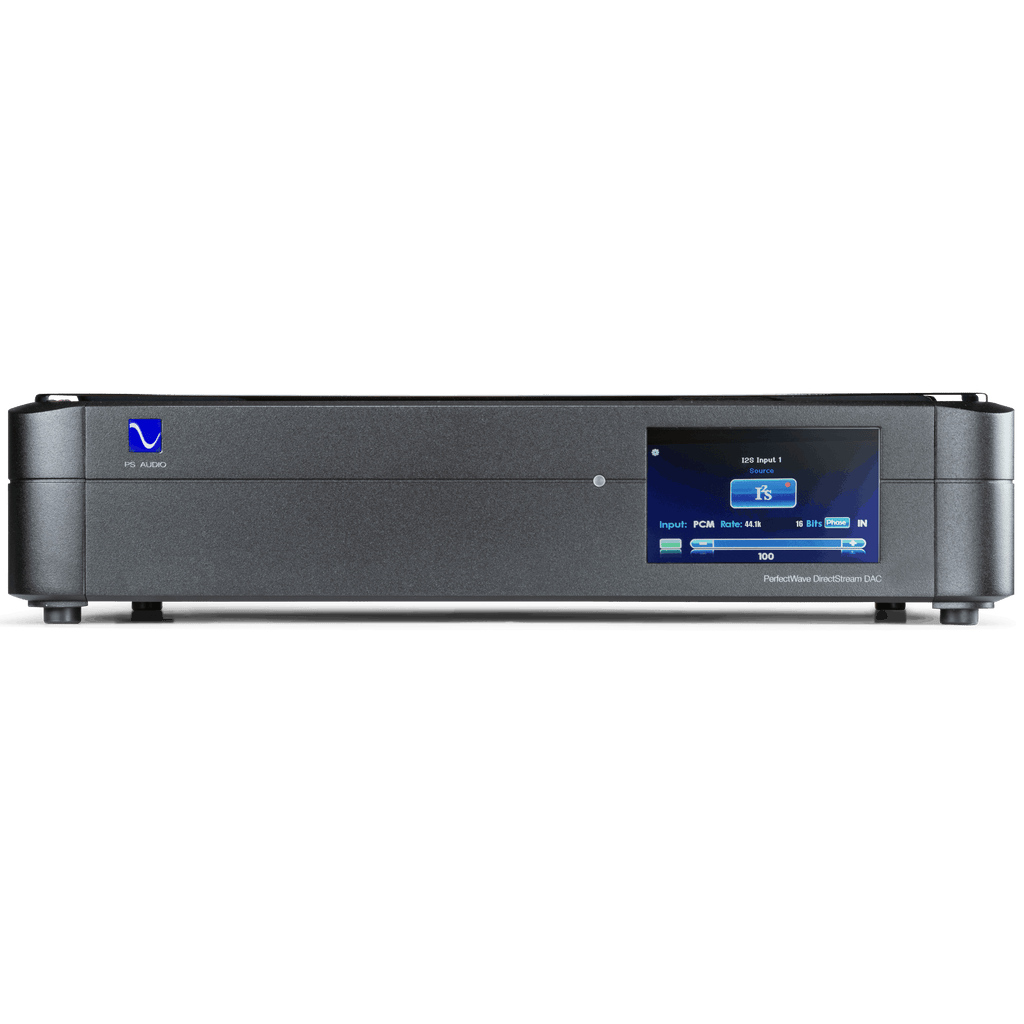

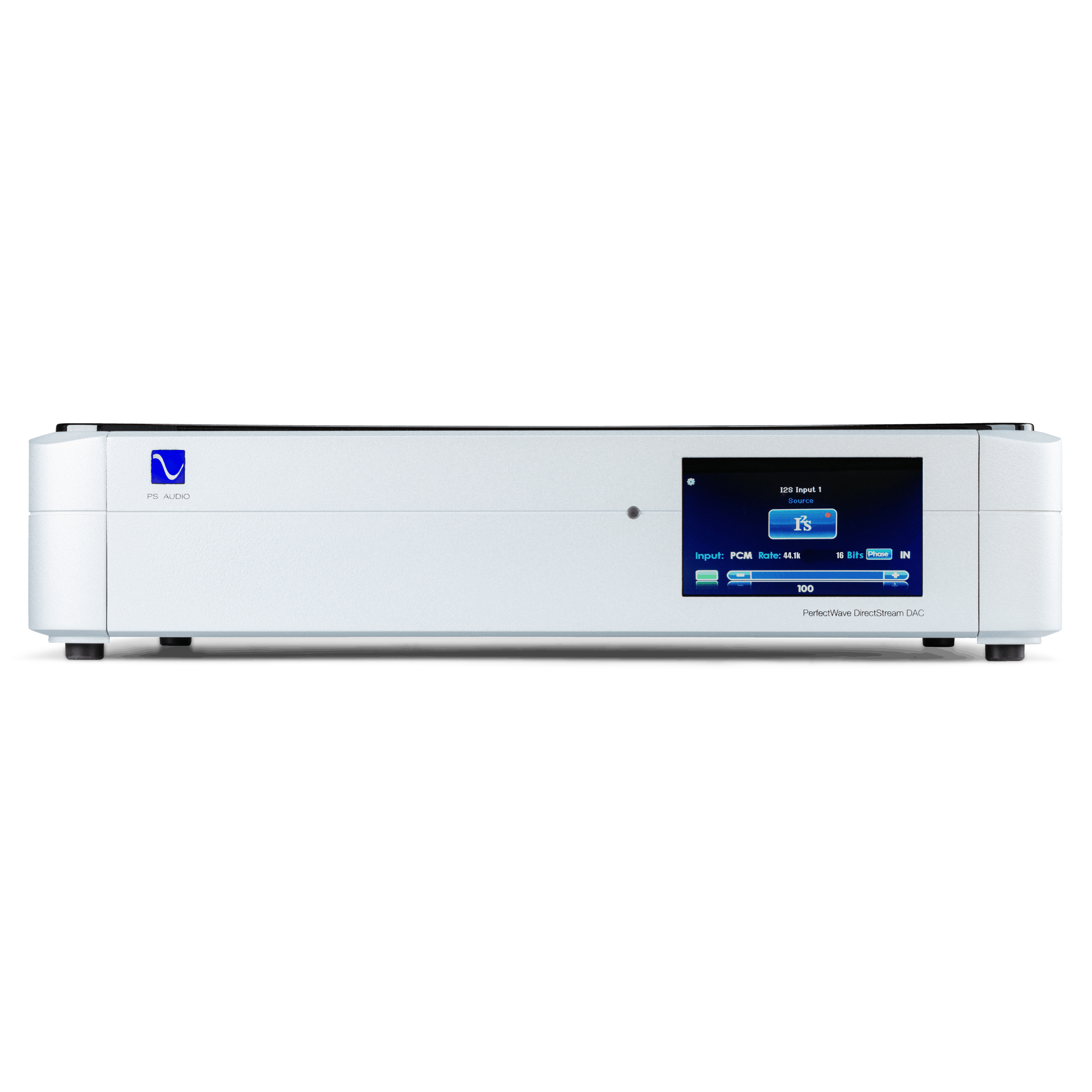

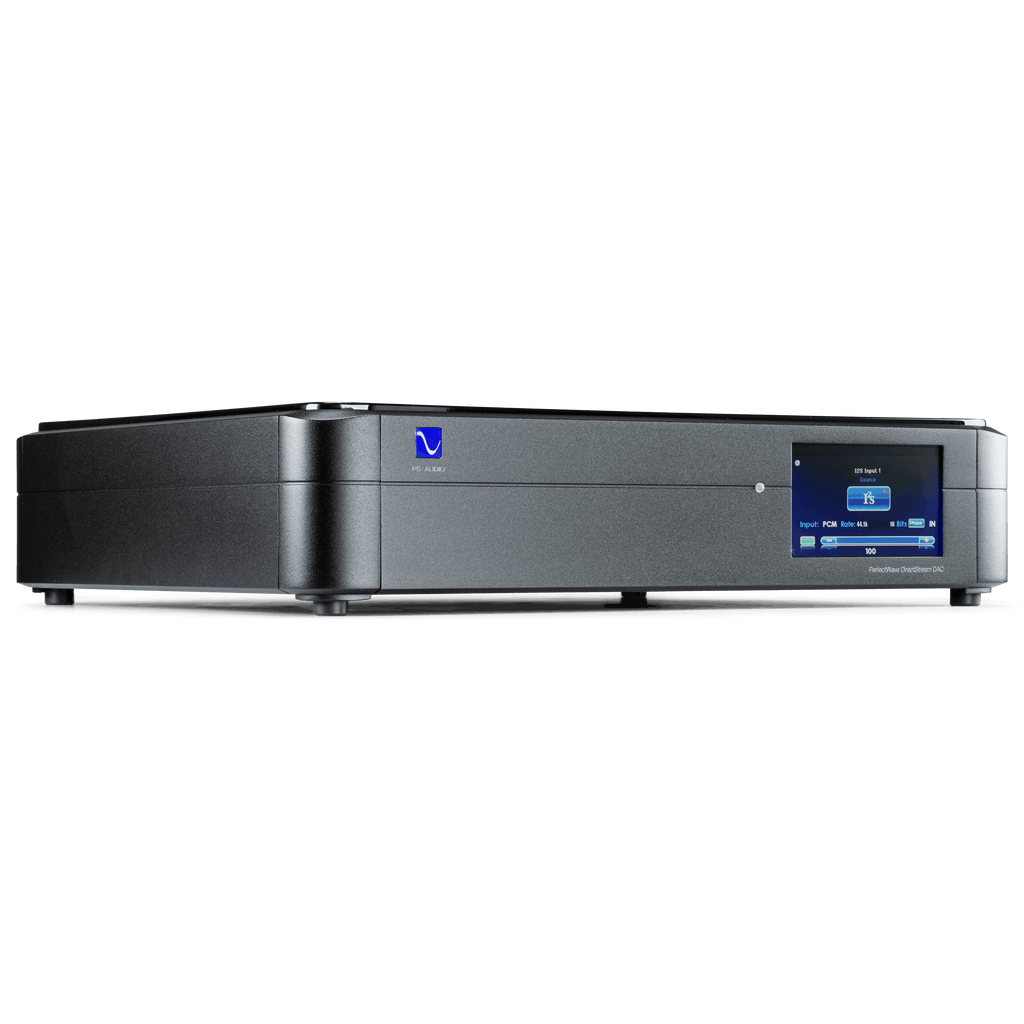

COLOR TOUCH SCREEN
Reviews
reviews
The PS Audio DirectStream DAC is a 5 year old design that, with the latest “Snowmass” release, still competes with the best DACs in its price class. How many DACs can make that claim? Many DACs are user-upgradeable, but very few have received the steady stream of free firmware updates that delivered sound quality improvements - not just bug fixes - that enable the DS DAC to retain its competitive edge. Plus, designer Ted Smith tells me he still has some (albeit shrinking) capacity left in the
Read full review →
In all configurations I tried, playback from the Memory Player was clearly better than playback from the Mac Mini+Roon. This is an instance where I feel the differences were not a matter of preference. I am sure there are some out there who would prefer the sound of the server, but they would be wrong…. I consistently heard a lower noise floor from the Memory Player and, from that, more air, better definition, and less smearing, which I became aware of only when confronted with its absence
Read full review →
I feel fairly safe in concluding that not only are these components highly enjoyable to hear and use, but that they are also safely on the cutting edge of digital audio reproduction. And I don't see that premise changing anytime soon, what with PS Audio's commitment to free software updates to anyone purchasing the gear. I don't think the digital audio enthusiast could go wrong with this pair
Read full review →
I can't think of a better digital disc player than the PS Audio DirectStream Memory Player and DAC. (Neither of these six figure players will play your DVD-a discs) If I had more than two thumbs to raise I would offer them, it's that good. The only remaining choice is whether you want silver or black
Read full review →
Attaining the performance provided by the PerfectWave transport and DirectStream DAC even five years ago would have cost multiples of the PS Audio Duo. This potent, engagingly musical front end will allow you to rediscover the plethora of CDs in your collection with a fresh, more organic and dynamic take. And with the millions of CDs flooding the used market the PerfectWave Transport and DirectStream DAC will be a great musical partner standing by your side for years to come
Read full review →
The DirectStream DAC is the hottest thing to come of PS Audio since forever. This unconventional design, even as it does all manner of violence to the heart of the purist with all of his “do nothing to the signal” whining, just kills it. Its performance is on par with some of the very best “traditional” designs on the market, and with its potential for endless upgradability, the DirectStream is revolutionary
Read full review →
Time will tell if and when these levels of performance, flexibility, and luxury will become available for less than 000. But today, for those who've waited for a computer-friendly DAC that offers, with every type of music file, the best musicality of which DSD is capable, the PerfectWave DirectStream may be in a class by itself
Read full review →
DirectStream's easily the best DAC I've ever heard in my system, making digitally-recorded music sound better than I've ever heard it
The real magic of this DAC may centre on its handling of PCM material—material the DAC gives greater smoothness, fluidity, dimensionality, and elegance than it might otherwise have had. I don't mean to suggest by this that traditional PCM playback methods cannot or do not sound perfectly good in their own right, because they certainly can and do. But if PCM playback has an identifiable 'failure mode' it might be that PCM files can at times sound a bit flat and 2-dimensional, while exhibiting
The jump from downmixed to true, native DSD was quite astonishing. It lifted a previously unnoticeable opaqueness, allowing unfettered access to the full harvest of tonality and detail
Synergy and magic. Right now here in our listening room...Way deeper bass, way more open, way less whatever being in the way of our music… way more music. Dynamics… try My Disco's "1991" or anything from Lustmord. Happy times
Read full review →
The DS is a game changer; I think it has caused the 'war' between DSD and PCM to be on hold or mute for most of us, and above all hold your horses before buying expensive high-resolution PCM files or DSD. That alone is a major accomplishment
The DirectStream DAC is one of the finest-sounding DACs I have heard. Many will be excited just to see that it can accept DSD signals, but I would say that they are being shortsighted. The DSD processing of all signals is what makes this unit special
Read full review →
PS Audio's DirectStream DAC is a goto unit for vinyl fans who've previously found digital playback to sound too rigid or uptight. The DirectStream is simultaneously more mellow and understated; there's less of the celestial awe of the Aqua La Scala MKII and less of the ultra-colourful exuberance of the AURALiC Vega. In driving this point home I've put my money where my mouth is: I've purchased the DirectStream review unit in spite of already having a multitude of terrific sounding DACs here to
The PS Audio DirectStream is a musically authentic, thoroughly engaging and ultimately compelling DAC that elevates the listening experience to an entirely new level. Its treatment of any digital material, regardless of format, is quite astounding — even MP3s and Internet radio sounded vibrant and exciting
Matthias Böde of Germany's Stereo Magazine gives DirectStream 100 out of 100 points. The article is in German, but it can easily be translated and viewed if German's not your native language. "100 out of 100"
But what happened now was beyond our expectations. Maybe we had been lulled into a bit of been-there-done-that reviewer fatigue but the DirectStream's handling of this CD became a rude wakeup call and put us back on edge to eat crow. Damn, the performances of the various groups and soloists were so real and at such dynamic range, it was hard to believe that the source material was a simple 16/44.1 Redbook CD
Read full review →
Even at low listening levels, music retained its character with no sense of the sound washing out. For those people looking for a direct-to-amp DAC/Digital Preamp, consider the DirectStream a solid contender
After listening to the PS Audio PerfectWave DirectStream DAC for the past few months it is my opinion that DirectStream represents a new benchmark in audio reproduction. Notice that I didn't say “digital audio reproduction.” In other words, in my view the PS Audio DirectStream is the most musically and technically capable device of any type that I've ever had the pleasure to evaluate. My heartfelt congratulations go out to Paul McGowan, Ted Smith, and PS Audio's excellent design team for making
Read full review →
This is a brilliant design, with exceptional execution, and paradigm-setting sound. I can tell you, this bloody DAC, DSD to the fore, is a real killer. Flat-out, stone-cold, and damn-straight. It has been a while since 2008, but now I have to say that the DirectStream DAC is the first real rival to Playback Designs that I've heard. It goes right to the top of my heap of DSD DACs, right next door to the PD Series-3. The envelope for the audio arts has moved out yet again. To tell you the truth, I
Read full review →
The DirectStream's sound is non-fatiguing in an almost tube-like way. It is smooth and relaxing. Surely, you tell yourself, it must be sacrificing detail to deliver this. But no. With recording after recording, the DirectStream presents layers and layers of detail in such a way as to produce a sound which is very easy to listen to, and with a low fatigue factor, even with CD sources. As someone with very little tolerance for the fatiguing nature associated with CD, I find this to be a most
Read full review →
It is truly an exceptional product, and a DAC that allows even the most familiar music to surprise and enthrall. Yes, the folks at PS Audio understand that with digital audio, there can be no final word. Meet the Directstream - a DAC that is ready to keep up with the conversation
